Friday, March 08, 2013

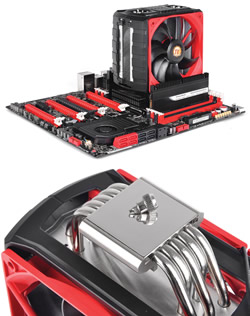

New Non-interference Cooler series From Thermaltake


Thermaltake today announced the NiC Series CPU Coolers. Consisting of the F3, F4, C4, and C5 models, the series achieve great RAM clearance allowing you to install high end overclocking RAM with ease.



The F3, F4, C4, and C5 coolers come with TDP ratings of 160W, 180W, 200W and 230W respectively. Heat is conducted from the CPU onto the cooler through the thick nickel coated copper base and then onto the aluminum fins with 3 ? 5 Φ6mm U-shaped heat-pipes. Furthermore, users can opt for something smaller and cooled with a single 120mm fan, or go for coolers that have shrouds to contain the air flow, or go with a pair of 120mm fans to allow for the best performance of both selections of the Nic series line.

The 0.4mm thick aluminum fin are designed in a curved shape to reduce backpressure and at the same time maximize airflow through them.

Single 120mm PWM fan (F3), dual 120mm PWM fans (F4) with automatically adjustable silent fan blades at a range of 800-1600rpm; or both VR fans (C4/C5) are contacted to an adjustable fan speed knob where the fans speed can be manually adjusted from 1000-2000rpm. Tool-less fan clip design also makes installation easy.

Specifications

  NiC F3 NiC F4 NiC C4 NiC C5
P/N CLP0605 CLP0606 CLP0607 CLP0608
Compatibility Intel LGA 2011/1366/1155/1156/1150/775
AMD FM2/FM1/AM3+/AM3/AM2+/AM2
Heatsink Dimension 152H*140W*50L mm 160H * 140W * 50L mm
Heatsink Material
Aluminum Fins
Copper Heatpipes
Aluminum Fins
cu base
Copper Heatpipes
Heatpipe Φ6mm x 3 pcs Φ6mm x 4 pcs Φ6mm x 4 pcs Φ6mm x 5 pcs
Fan Dimension
120 x 120 x 25 mm(L xW x H)
Fan quantity 1pcs 2 pcs 2 pcs 2 pcs
Fan Speed
800-1600RPM
1000-2000RPM
Rated Voltage
12V
Start Voltage
9.0V
Rated Current
0.17A
0.32A
Power Input
2.04W
3.84W
Air Flow
79.283CFM
99.1 CFM
Air Pressure
1.911 MM-H2O
2.99 MM-H2O
Noise
18.0~ 30.2 dBA
20 ~39.9 dBA
Life time/Fan Life time
40,000 hours
Fan control
PWM
VR
pin connect
4 pin
3 pin
Cooling Power 160W 180W 220W 230W
Weight 555g 688 g 794 g 811 g
