1. Introduction - Retail Package
Memorex
D² External Burner-
Page 1
It
was only very recently that Memorex had released the D² (or F16)
internal burner. Now, the same drive becomes external. The external version
of the D² offers maximum compatibility, with Firewire IEEE 1394a and
USB2.0 support. The specifications
for this device
are the same as those of the internal model. However, different writing and
reading behavior is usually observed between internal and external models.
Let us
see how this external burner performed.
The drive supports
16X writing for DVD+R, and 8X for DVD-R. Of course, Double Layer writing is
supported, at 2.4X. It can also write CD media at 48X and ReWrite at 24X. Buffer
underrun protection is introduced for safe burning.
- Specifications
Interface: |
IEEE 1394a and USB2.0 |
Write Speeds: |
DVD+R:16X / -R: 8X,
DVD+R9:2.4X DVD+RW: 4X, DVD-RW: 4X
|
|
CD-R: 48X, CD-RW: 24X |
Read Speeds: |
DVD+R/-R/+RW/-RW: 8X
|
|
DVD-ROM: 16X, CD-R/RW: 48X |
Random Access: |
DVD: 160msec, CD: 160msec |
Buffer Size: |
2MB |
Supported Disc Formats: |
DVD-ROM, DVD-Video, DVD+R, DVD+RW, DVD-R,
DVD+R9, DVD-RW, CD-Extra, CD-I, CD-ROM, Audio CD, CDR,CD-RW, CD-ROM, CD-ROM
XA, CD Test, Photo CD,
Hybrid CD |
Supported Writing Types: |
DVD±RW: Disc-at-once,
Incremental recording, Multi-border recording, Restricted overwriting
|
CD-R/RW: Variable Packet, TAO, SAO, DAO, Raw Mode Burning & Over-Burn |
Software Details: |
Nero Express 6, Nero InCD, Nero Vision Express 2, Nero BackITup, Nero
Showtime, Nero Recode 2, Nero Cover-Designer, Nero Tool Kit, PhotoShow
Deluxe |
Below are the drive's main specs as given by NeroInfoTool and DVDInfoPro:
The drive also uses the RPC II region control, allowing a
user to change the drive's region at most 5 times. However, since this is a
LiteOn based drive, you can set the drive to region free using
several utilities such as Kprobe.
Below is some additional information from KProbe regarding
LiteON based drives:
- European Retail package
The retail box includes the external drive, one USB 2.0 cable, one firewire IEEE-1394a cable, the external power supply unit and one CD with Nero Express Software Suite offering: Nero Express 6, NeroVision Express, InCD, Nero BackItUp, Nero ShowTime, Nero Cover Designer, Nero Recode, Nero Media Player, PhotoShow Deluxe. Also included are a DVD+R 16X certified blank media, a quick installation guide and software manual.
Now let's take a look at the drive itself.
The dark colored front panel of the drive remains the same as the internal
model, with the Memorex logo and the DVD+R Double Layer and 16X speed logos.
The activity led is again blue.
The rear panel has the USB2.0, IEEE 1394a and Audio Out connections, along with the power connector and the power switch.
Removing the screws and opening the drive's cover voids the drive's warranty.
So, for reference reasons, we post the following pictures. You can click
on the mainboard
picture for a higher resolution image:
The following picture shows the laser lens assembly of the Memorex D² External recorder. By clicking on the picture, you can see a higher resolution image.
- Installation
The drive was installed using the firewire connection and
under WindowsXP was recognized as "Memorex DVD+/-DLRWL1 F16 ".
Below is a picture from Nero Burning Rom, showing supported options such as
overburn and buffer underrun protection support.
During this review, we will be comparing the drive with the LiteON SOHW-1633s
and LG GSA-4160B.
(Editors Note: While many may have expected that we
would have included the Memorex D² internal drive in our comparison, as
it turned out the differences between internal and external devices was so
insignificant
that
it would have proved fruitless.)
- Testing software
In order to perform our tests we used:
- Nero CD-DVD Speed v3.30
- CDVD Benchmark v1.21
- ExactAudioCopy v0.9 beta5
- Nero Info Tool v2.27
- KProbe v2.4.2 (Reader: LiteOn LDW-811S firmware vHS0Q, LiteOn SOHD-167T firmware 9S13, LiteOn XJ-HD165H firmware CH11, and LiteOn LTD-163 firmware GH5S, Reading speed 8X CAV)
- PlexTools v2.17 (Reader: Plextor PX-712A firmware v1.05, Reading speed 8X CLV for CD-R)
- DVDInfoPro v3.16
- Nero Burning Rom v6.3.1.25
- DVD Decrypter 3.5.1.0
- CopyToDVD 3.0.29.48
2. Transfer Rate Reading Tests
Memorex D² External Recorder - Page 2
Transfer Rate Reading Tests
- CD Format

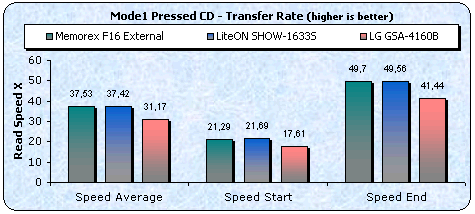

The Memorex D² External supports up to 48X reading speed for CD-R media
and 32X for CD-RW. Below are the transfer rate graphs, where we compare its
performance
against the other two drives:
The LG GSA-4160B offers 40X CD media reading speed. This explains the low
reading speed when compared with the Memorex and LiteON drives that offer

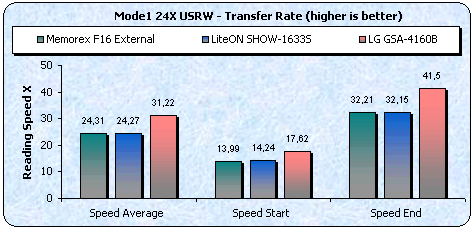

48X reading speed. On the other hand, with US-RW media, the LG model was faster.

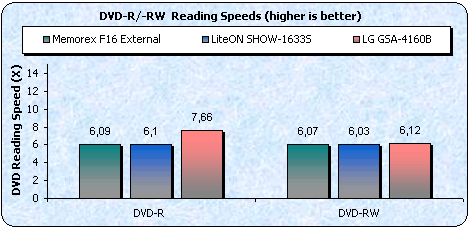

- DVD Format

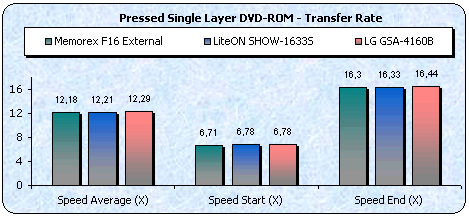

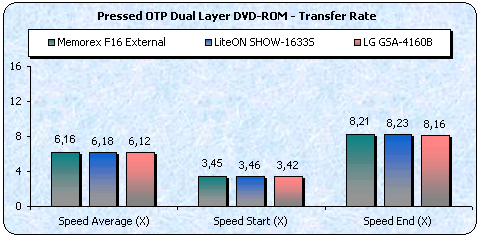

With Single Layer media, similar speeds from all three drives were observed.
With DVD-R/+R media, the LG 16X recorder was again faster, while the LiteON
and Memorex drives produced similar results, as expected.

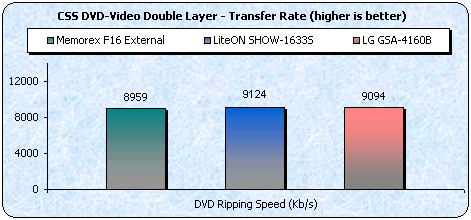

The Memorex drive was the slowest when it comes to DVD Video ripping. However, speed differences are not significant.
- Appendix
Nero CD-DVD Speed Graphs
3. CD Error Correction Tests
Memorex D² External Recorder - Page 3
CD Error Correction Tests
In the following tests, we check the drive's behavior when it comes to reading
scratched / defective discs. The test discs we use are the ABEX series
from ALMEDIO.
- ABEX TCD-721R
Errors total
|
Num: 5175453
|
Errors (Loudness) dB(A)
|
Num: 80708
|
Avg:-53.9 dB(A)
|
Max: -13.3 dB(A)
|
Error Muting Samples
|
Num: 26396
|
Avg: 1.1 Samples
|
Max: 12 Samples
|
Skips Samples
|
Num: 1771
|
Avg: 8.2 Samples
|
Max: 24 Samples
|
Total Test Result
|
55.3 points (out of 100.0 maximum)
|
The drive's ability to correct errors is mostly chipset dependent. Since the
external Memorex 16X recorder uses the same chipset as the internal model,
similar results are produced in both cases. Around the 32 minute mark it
hits its first high peak, and it remains consistently high hovering around
-18 dB. At such a prolonged, high level, it is no wonder we get a very high
total error count of 5,175,453 and correspondingly high muting sample
errors and skipped samples.
The
total result
score of 55.3 out
of 100 is a very poor score.
- ABEX TCD-726
Errors total
|
Num:
|
Errors (Loudness) dB(A)
|
Num: 0
|
Avg: -174.0 dB(A)
|
Max: -174.0 dB(A)
|
Error Muting Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
Skips Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
Total Test Result
|
100.0 points (out
of 100.0 maximum)
|
The behavior of drive was much better in this case where it managed to correct
the disc's errors accurately. The result was a perfect 100.
- CD-Check Audio Test Disc
The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction
/ Error correction capabilities of a CD player. The disc offers a signal combination
with disc error patterns to rate the drive's ability to read music and reproduce
it completely. Five tracks on the disc contain a sequence of progressively
difficult tests. These tracks are referred as Check Level -1 through Check
Level -5.
The
tracks are reproduced (played) through a software multimedia player
(i.e. Windows Media Player). Each level is considered as passed, if the tone
coming
out
from the speakers is smooth, continuous without interruptions, skipping or
looping. The higher the Check Level passed, the more reliable the sound reproduction
of the tested device.
Error Level
|
1
|
2
|
3
|
4
|
5
|
Memorex D² External
|
5/5
|
5/5
|
5/5
|
0/5
|
0/5
|
The drive passed only the first three Check Levels of the test. The performance
reveals average sound reproduction and error correction. The fourth and the
fifth levels include an error size of 1.125mm and 1.500mm respectively, and
the drive produced continues audible clicks over those tracks.
- Conclusion
The performance of the Memorex F16 was average although with the ABEX
TCD-721R disc, it was amongst the worst we have seen.
4. DVD Error Correction Tests
Memorex D² External Recorder - Page 4
DVD Error Correction
Tests
In the following tests, we examine the DVD reading capabilities of
the Memorex D² External drive with scratched / defective
DVD media.
For the tests we used Nero CDSpeed and not the usual CDVD Benchmark since it couldn't recognize the external drive. The reference test
media
comes
from
ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with 4.7GB capacity, and its
surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm.
The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer
rate test.
The Memorex D² External read the disc accurately and no read errors
were
reported.
This graph shows very
good
error
correction
capabilities with scratched, single layer DVD-ROM discs.
ABEX TDR-825
This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The
data structure of the disc is exactly the same as that of the TDR-821, with
the difference that there are no scratches on it but instead, defective areas
of dimensions ranging from 0.5 to 1.1 mm. There are also fingerprints sized
between
65 and
75 micrometers.
The same behavior was observed with this media type. No read errors were introduced, as if there were no defective areas or fingerprints on the disc.
- Dual Layer media
ABEX TDR-841
This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches
of dimensions ranging from 0.4 to 3.0mm, on both layers.
Again, excellent error correction with DVD double
layer media.
ABEX TDR-845
This test disc is a single sided, dual layer DVD-ROM disc with a capacity
of 8.5GB. The only difference between the TDR-845 and the TDR-841 discs is
that the first includes
defective areas and fingerprints. The dimensions of the defective areas ranges
from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micrometers.
The drive kept on producing excellent graphs, indicating high DVD error correction capabilities.
ABEX TDV-541
The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity
of 8.5GB. The disc is based on the TDV-540 series which is designed for inspection
and adjustment of DVD-VIDEO players. The disc checks the layer switch operation
from layer 0 to layer 1 and also includes test pictures and test signals for
DVD sound files. The current TDV-541 also checks the error correcting
capabilities of the drive and includes scratches from 0.4 to 3.0 mm.
Although the Abex TDV-541 test media is a difficult test for most recorders,
the Memorex external recorder passed it without any difficulties.
ABEX TDV-545
The
TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer
DVD-VIDEO disc with a capacity of 8.5GB. The TDV-545 includes artificial black
dots on the data surface, sized from 0.4 to 1.0 mm. It also has 65 - 75
micrometer fingerprints.
The drive proves to be an excellent reader, when it comes to defective media.
- Conclusion
The performance of the Memorex F16 with DVD defective media was nothing short
of excellent.
5. Protected Disc Tests
Memorex D² External Recorder - Page 5
Protected Disc
Tests
- Reading Tests
To create an image of the various protected titles to the hard disk,
we used Alcohol 120% software with the appropriate settings depending
on the protection
type of the inserted discs. Below you can see the duration of each process
as well as the transfer rate in each case.
Game Title |
Protection Scheme |
Duration |
Reading speed |
PSX "NBA Jam Extreme" |
Lybcrypt |
3:07 min |
483 sectors/sec |
Serious Sam The Second Encounter |
SafeDisc v.2.50.051 |
13:18 min |
420 sectors/sec |
VRally II |
SecuROM v.2 |
2:22 min |
2420 sectors/sec |

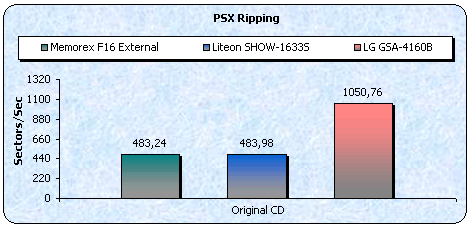

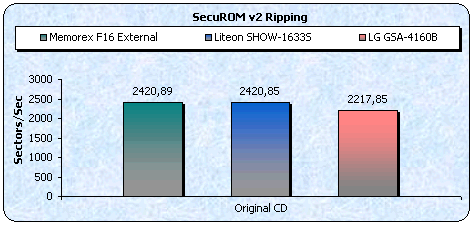

With SafeDisc v2 and PSX protected games, the LG drive's speed cannot be
easily matched by any other drive. However, with SecuROM protected
games, the Memorex model was slightly faster than the LiteON model, and reported
the
fastest ripping speed among the three recorders.
- Writing Tests
The D² External supports DAO-RAW writing mode. For checking the drive's EFM correction status, we used 3 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.
- Fifa 2004 - Safe Disc v3.1x
- The Sims Superstar - Safe Disc v2.9x
- The Sims Unleashed - Safe Disc v2.8x
- Serious Sam Second Encounter - Safe Disc v2.51.021
- Max Payne - Safe Disc v2.51.020
The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.
Drive |
Fifa 2004
SD v3.1x |
Sims Superstar
SD v2.9x |
Sims Unleashed
SD v2.8x |
Serious Sam-Second Encounter
SD v2.50.051 |
Max Payne
SD v2.51.020 |
EFM OFF |
EFM ON |
EFM OFF |
EFM ON |
EFM OFF |
EFM ON |
EFM OFF |
EFM ON |
EFM OFF |
EFM ON |
Toshiba
SD-M1502 |
No
|
Yes
|
Creative CD5233E |
Memorex D² External |
6. DAE Tests
Memorex D² External Recorder - Page 6
DAE Tests
- Pressed and CDR AudioCD
The Memorex D² External supports up to 48X CAV DAE speed. When using pressed
AudioCD and its CD-R copy with EAC, we logged the following results:
The Memorex drive reports the same results with LiteON drives. The LG model
on the other hand, because of its 40X speed, reports slower speeds.

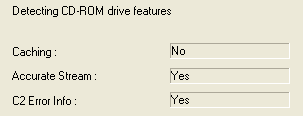

According to Exact Audio Copy drive properties, the Memorex D² External does not support caching but can copy accurate stream and can report C2 errors.
- Advanced DAE Quality
The Memorex F16 received a score of 100 (perfect) in the Nero CD Speed
Advanced DAE test. Its average reading speed was again faster than LG GSA-4160B.
- Reading 90/ 99mins AudioCDs

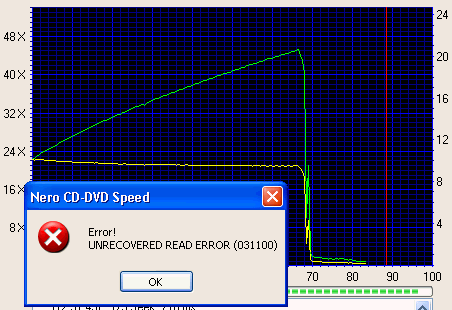

When we tested the internal Memorex 16X recorder, we observed a strange behavior,
with the drive being unable to read the 90 minute audio CD where it produced
an "UNRECOVERED READ ERROR", while the 99 minute audio CD was no
problem for the recorder. Exactly the same behavior was reported by the external
version
of the drive.
7. Protected AudioCDs
Memorex D² External Recorder - Page 7
Protected AudioCDs
For this test procedure we used three audio discs with different
audio copy protection schemes. The ripping process for all protected
Audio discs was carried out with Exact Audio Copy v0.9beta5.
The tested protected Audio discs were:
- Sony's Key2Audio from "Celine Dion - New Day Has Come"
- Cactus Data Shield 200 from "Natalie Imbruglia - White Lilies Island"
The Cactus Data Shield 200 contains artificial errors that are not
easy to bypass with a reader, while the Key2Audio contains a second session,
causing
problems for readers when they attempt to read the Table Of Contents (TOC).
The tested tasks are:
- Recognition of the inserted disc (Yes/No)
- Ripping all wavs (with EAC's Burst Mode) to the hard disk with copy&compare function.
- Listening to the produced wavs for any clicks/skips.
The Memorex F16 External recognized up to the 12th Audio track of CDS200 disc,
and with the "Retrieve Native TOC" option removed, it then recognized
the 13th Data track.
The test results are shown in the following table:
|
Key2Audio |
CDS200 |
Memorex D² External |
Ripping process completed, EAC reports
no problems, Read&Test CRC comparison successful for all tracks |
Ripping process completed, EAC reports timing problems, Read&Test CRC comparison not the same for all tracks |
The Memorex D² External can rip both Key2Audio and CDS200
protected audio discs. Both discs were recognized and their contents were
ripped
at the maximum speed.
- Cactus Data Shield 200.0.4 - 3.0 build 16a (Aiko Katsukino - The Love Letter)
This
is a "special" CDS200 build, since it doesn't contain any artificial
errors during the ripping process. Most problems occur when trying to write
the ripped wav files, since the produced CD-R disc contains C2 and CU errors!
This "problem" is rumored to be associated with specific
chipset weaknesses..
We ripped the disc contents with EAC and burned the produced wav with the
latest Nero version as AudioCD+CD-Text. The burned media was checked for
C1/C2 errors with PlexTools using the Plextor PX-712A (firmware
v1.05).
|
CDS 200.0.4 - 3.0 build 16a |
Memorex D² External |
Reading performed without any errors, writing produces few C2 spikes |

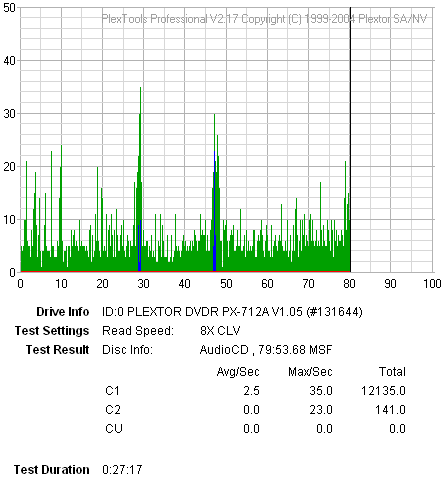

- C1C2 Error rate from PleXWriter PX-712A (8X CLV reading speed)
- BETA/Jitter Error rate with the PleXWriter PX-712A
The C1/C2 error graph indicates that the drive managed to produce
a very good disc.
Lets try to extract all the wav files with the Plextor PX-712A and PlexTools
DAE with Error Correction 5th Level enabled:
No errors were reported after extracting all files. The drive's error correction
mechanism corrected
the errors.
8. CD Recording Tests
Memorex D² External Recorder - Page 8
CD Recording Tests
The Memorex D² External supports 48X CD-R and 24X US-RW recording speeds.
The drive supports the following speeds for CD media recording,
illustrated in the screenshot below:
According to Nero CDSpeed, the drive confirmed the maximum 48X speed. The
test started at 21.78X and finished at 49.11X, having an average speed of 37.16X.
Click on the image below for more details.
We created an 80min data compilation with Nero Burning Rom and recorded it on a 700MB disc. The writing performance varies according to the inserted media. Below is a chart depicting all recording times with various media.
All media were recorded at maximum 48X speed. Best performance came with
Maxell and Traxdata media. With these CD discs, the drive returned a time of 2:47mins.
- Other features
Overburning writing
|
Up to 99min
|
CD text reading/writing
|
Yes
|
The Memorex F16 External supports 24X Z-CLV rewriting speed, with Ultra Speed Rewritable Media
(US-RW).
Below you can see the Nero CD-DVD Speed writing simulation test with blank
24X US-RW media from Mitsubishi Chemicals.
According to Nero CDSpeed, the drive confirmed the maximum 24X writing speed. The test started at 16.04X and finished at 24.08X, having an average speed of 22.53X. Click on the image above for more details.
- CD-RW Mount Rainier
The Memorex F16 External does not support the Mount Rainier feature.
9. 3T Jitter Tests
Memorex D² External Recorder - Page 9
3T Jitter Tests
On this page you can
see the 3T
Pit & Land Jitter graphs using various media burned at 48X CAV writing
speed.
- 3T Pit results
Most media performance was not good. BenQ media gave the best performance,
but jitter values were again higher than the 35nsec limit in many parts
of the disc.
- 3T Land results
Again, the drive's performance was not good. Although best performance came
with BenQ media, jitter values were again higher than the 35nsec limit.
On the following page we check the C1 and C2 error rates of the same discs,
to come up with more specific conclusions.
10. C1 / C2 Error Measurements
Memorex D² External Recorder - Page 10
C1 / C2 Error Measurements

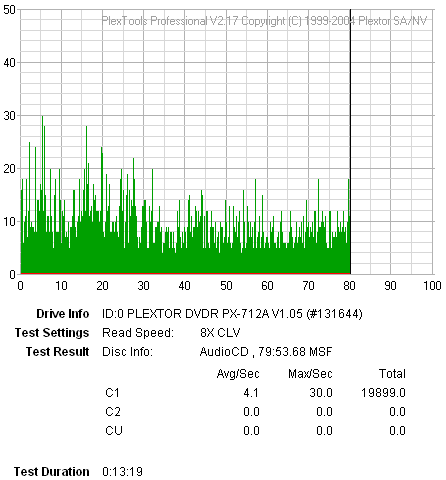

We measured the C1 / C2 error rate on the recorded discs we burned at the
maximum supported writing speed of 48X. The software we used is PleXTools Professional
v2.17, and more specifically the built-in Q-Check utility. The
reader was the Plextor PX-712A (firmware v1.05).
BenQ 80min 52X CD-R @ 48X

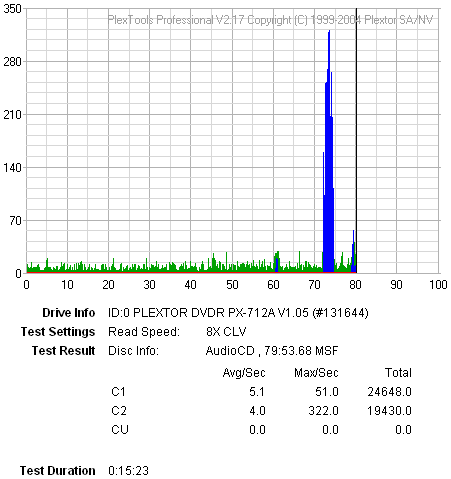

Maxell 80min 48X @ 48X
MMore 80min 52X @ 48X
TraxData 80min 52X @ 48X

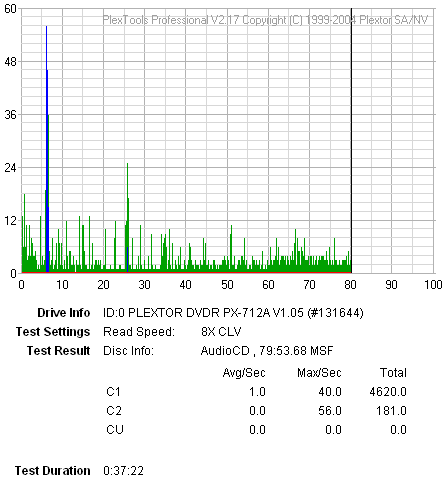

TY 80min 48X @ 48X
- Summary
We should not forget that the drive writes CD media at 48X. Writing quality is expected to be reduced at this speed. Most media burned ok, while in three cases C2
errors
were reported. However, in all these cases there was no error with CDSpeed.
- Appendix
Media Label |
ID Code |
Manufacturer Name |
Lead Out TIme |
BenQ 80min 48X |
97m22s67f |
Daxon Technology |
79:59.74 |
Maxell 80min 48X |
97m15s17f |
Ritek |
79:59.70 |
MMore 80min 48X |
97m17s 6f |
Moser Baer India, Ltd. |
79:59.74 |
TraxData 80min 52X |
97m15s17f |
Ritek |
79:59.70 |
Taiyo Yuden 80min 48X |
97m24s 1f |
Taiyo Yuden |
79:59.72 |
11. DVD Recording Tests
Memorex D² External Recorder - Page 11
DVD Recording Tests
- Writing Performance
The maximum supported speed is 16X for DVD+R media while
with DVD-R it is 8X, and for rewritable media 4X.
Nero Burning Rom reported speeds are shown below.
The drive burns P-CAV at
8X/12X, CAV at 16X for +R media type, and 8X Z-CLV for -R media type.
We used Nero CD-DVD Speed and its "create disc" function,
in order to see the 8X and 16X recording technology being used by
the Memorex External recorder. In the following graphs we used Verbatim 8X DVD-R and CMC 16X DVD+R
media.

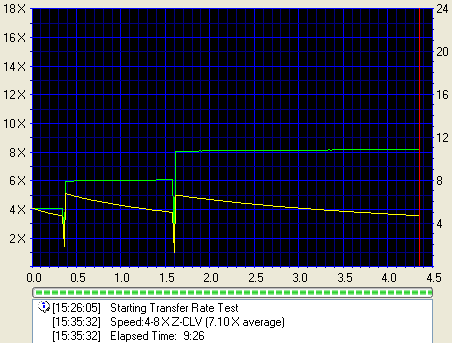

The drive completed successful DVD writing at 8X in 9:26mins.
- 16X DVD+R Single Layer writing
The drive completed successful DVD writing at 16X in 5:55mins.
It started writing at 6.68X, reached a maximum writing speed of 16.02X and
reported an average speed of 11.99X.
Below is a table with
the average writing speeds for various 16X recorders as measured by Nero CDDVDSpeed,
showing that the Memorex achieved the fastest average 16X recording speed:
Drive |
Writing Strategy |
Writing Speed |
Average
Writing Speed |
Plextor PX-712A |
P-CAV |
12X |
10.62X |
LG GSA-4120B |
Z-CLV |
12X |
9.87X |
BenQ DW1620A |
CAV |
16X |
11.52X |
ASUS DRW-1604P |
Z-CLV |
16X |
10.11X |
TDK 1616N |
CAV |
16X |
11.86X |
NEC ND-3500A |
CAV |
16X |
11.86X |
LiteON SOHW-1633S |
CAV |
16X |
11.97X |
Memorex F16 External |
CAV |
16X |
11.99X |
Pioneer DVR-108A |
Z-CLV |
16X |
10.03X |
- Burning Tests
We burned 4315MB of data on various DVD±R and DVD±RW media.
We used the maximum allowed writing speed for each disc.

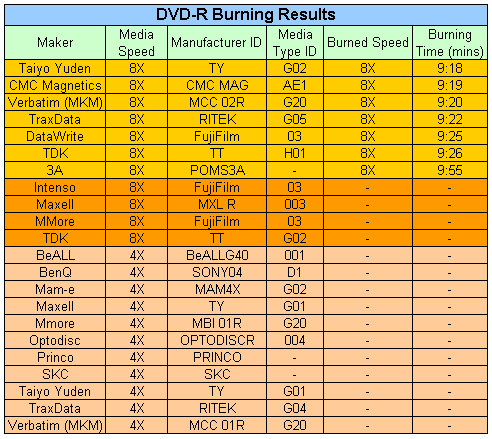

The Memorex D² External can record up to
8X with -R media. Best recording times came with TY 8X media. The drive
needed 9:18mins to finish the burning process. Overspeed burning was not introduced
at any instance.
The Memorex D² External can burn up to 16X
with +R media. Best performance came with CMC Magnetics 16X media (5:56mins).
However, you can see that Traxdata and Philips 16X media were not recorded
at 16X but only at 8X. On the other hand, recording times at 8X are very good,
except for Optodisc 8X media that was burned in 8:59mins and reported the worst
results.
- Comparison with other drives
With DVD+R media, all drives gave similar results, with the LG 16X recorder being the fastest of all three. With DVD-R media, the LG GSA-4160B was slower that the other two drives, and the LiteON drive gave the same results as the Memorex drive, a more or less expected behavior.
With DVD+RW and DVD-R media format, the LG model was faster, but differences are not significant.

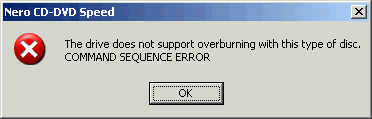

- DVD Overburning Test
Unfortunately, the drive does not support overburning with DVD+R and DVD-R media.
- DVD+MRW Tests
The drive does not support the Mount Rainier feature.
12. CDSpeed/PlexTools Scans - Page 1
Memorex D² External Recorder - Page 12
CDSpeed/PlexTools Scans - Page 1

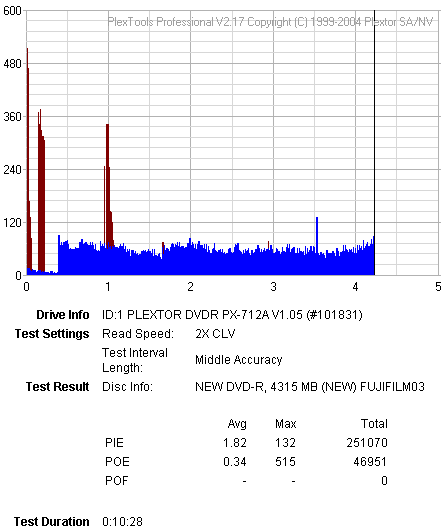

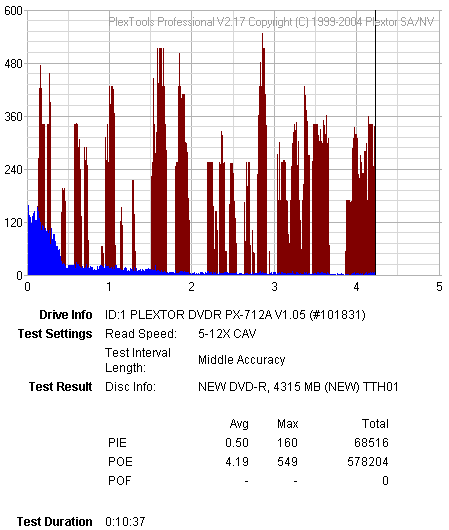

In order to test the writing quality and readability of the
burned media, we used two readers with two software applications:
- The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
- The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.
In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we overspeed the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.
The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.
CMC 16X DVD+R @ 16X
Verbatim 16X DVD+R @ 16X
- Summary
Although no POF errors were introduced and all media burned at 16X was
readable, high PI error levels were reported. According to the graphs above,
Memorex
needs to improve its writing quality at 16X speed.
13. CDSpeed/PlexTools Scans - Page 2
Memorex D² External Recorder - Page 13
CDSpeed/PlexTools Scans - Page 2
In order to test the writing quality and readability of the
burned media, we used two readers with two software applications:
- The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
- The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.
In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we overspeed the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.
The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.
Philips 16X DVD+R @ 8X
Traxdata 16X DVD+R @ 8X

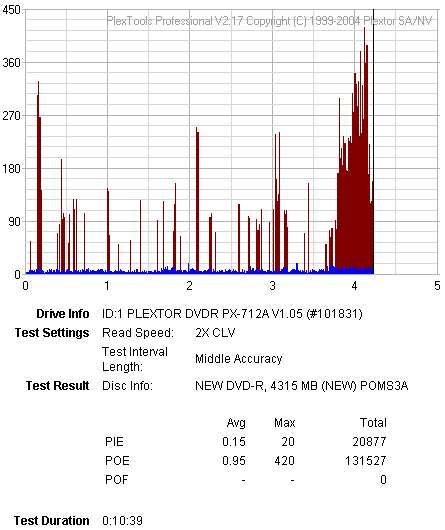

3A 8X DVD+R @ 8X
CMC 8X DVD+R @ 8X
Intenso 8X DVD+R @ 8X
Optodisc 8X DVD+R @ 8X
Philips 8X DVD+R @ 8X
Ricoh 8X DVD+R @ 8X
TDK 8X DVD+R @ 8X
Traxdata 8X DVD+R @ 8X
TY 8X DVD+R @ 8X

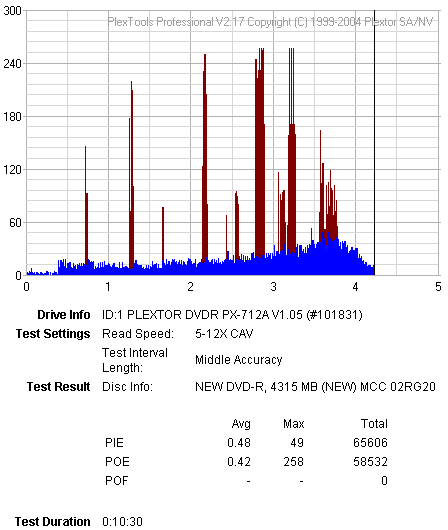

Verbatim 8X DVD+R @ 8X
BeALL 8X DVD+R @ 8X
- Summary
Writing quality is improved when recording at 8X when compared with the 16X
writing quality. However, in some occasions, high PI error levels indicate
average quality. BeALL 8X +R media was unreadable with the Plextor 712A and
reported an unrecovered error with the LiteON drive. Apart from BeALL
media, all other
8X +R media were readable. Best results came with TY and TDK media.
14. CDSpeed/PlexTools Scans - Page 3
Memorex D² External Recorder - Page 14
CDSpeed/PlexTools Scans - Page 3
In order to test the writing quality and readability of the
burned media, we used two readers with two software applications:
- The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
- The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.
In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we overspeed the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.
The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.

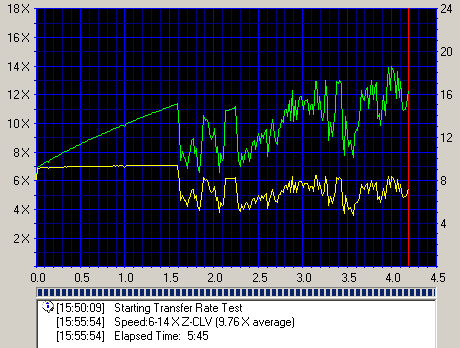

3A 8X DVD-R @ 8X
CMC 8X DVD-R @ 8X

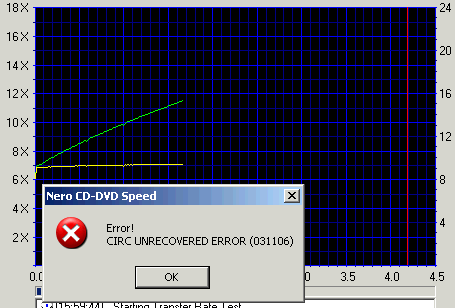

Datawrite 8X DVD-R @ 8X
TDK 8X DVD-R @ 8X

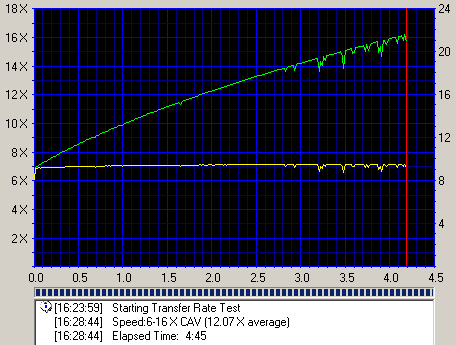

Traxdata 8X DVD-R @ 8X
TY 8X DVD-R @ 8X
Verbatim 8X DVD-R @ 8X
- Summary
All 8X -R media was readable with the Plextor 712A recorder,
but the LiteON DVD reader was unable to read the Datawrite 8X -R media. 3A
8X media gave the best results.
15. CDSpeed/PlexTools Scans - Page 4
Memorex D² External Recorder - Page 15
CDSpeed/PlexTools Scans - Page 4
In order to test the writing quality and readability of the
burned media, we used two readers with two software applications:
- The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
- The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.
In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we overspeed the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.
The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.
MKM 4X DVD+RW @ 4X
MKM 4X DVD-RW @ 4X

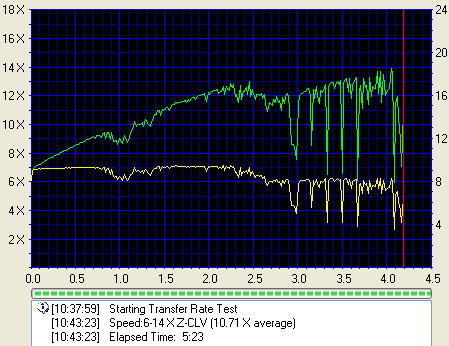

Optodisc 4X DVD-RW @ 4X
Traxdata 4X DVD+RW @ 4X
- Summary
All RW media burned with the Memorex recorder was readable by both the LiteON
and Plextor drives. Plextools, however, returned high PI error levels. Memorex
should improve its burning quality for certain media with a future firmware
release.
16. DVD+R DL - Page 1
Memorex D² External Recorder - Page 15
DVD+R DL - Page 1
- Writing Tests
We burned two DVD+R DL discs with DVD-Video content. The source
disc was "Gladiator Movie - Special Edition" disc1 with a total
size of 6.86GB. First, we transferred the movie to the hard disc with DVD
Decrypter in ISO format (single file). Afterwards, we used CopyToDVD v3.0.32.54.
After choosing the "GLADIATOR.ISO" image we selected the Memorex
F16 recorder.

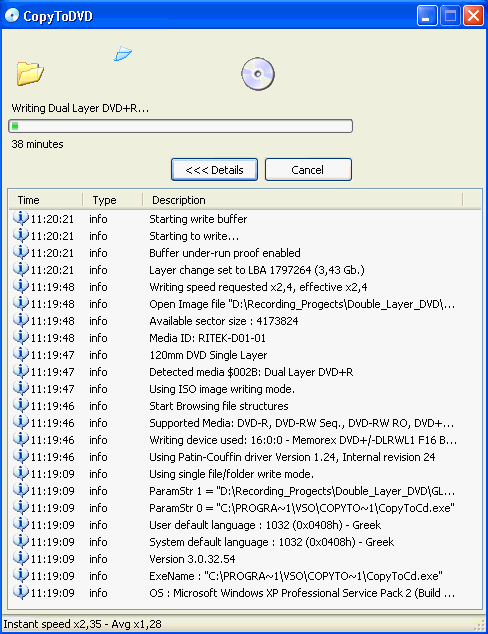

When Traxdata DL media was used, the following information
was reported by CopyToDVD software.
The writing process was finished after 37:25 minutes.
The average speed was 2.35X as reported by CopyToDVD software. The recorded
disc had DVD+R9 format booktype setting.
When Verbatim DL media was used, the following information
was reported by CopyToDVD software.
Disc Label |
Disc Information |
Max Allowed Writing Speed |
Total Recording Time (mins) |
Verbatim 2.4X |
MKM 001 |
2.4X |
37:26 |
Traxdata 2.4X |
RITEK D01 |
2.4X |
37:25 |
For comparison reasons, we post DL burning times for
other writers, with the same disc content and same recording software:
Drive |
Time (mins) |
Memorex F16 |
37:19 |
NEC 2510A |
37:17 |
BenQ DW1600A DL |
40:16 |
BenQ DW830A |
39:14 |
LiteON SOHW-832S DVD+R DL BookType |
38:33 |
LiteON SOHW-832S DVD-ROM BookType |
38:36 |
SONY DRU-700A |
|
LG GSA-4120B |
38:12 |
ASUS DRW-1604P (4X) |
23:10 |
ASUS DRW-1604P (2.4X) |
38:08 |
Pioneer DVR-108A (4X) |
23:10 |
Pioneer DVR-108A (2.4X) |
|
Memorex F16 External |
37:25 |
BenQ DW1620A |
40:03 |
17. DVD+R DL - Page 2
Memorex D² External Recorder - Page 16
DVD+R DL - Page 2
- Writing Quality
In order to test the Memorex D² External writing quality, we used the LiteOn SOHD-167T and the Plextor PX-712A drives.
- Verbatim 2.4X DVD+R DL @ 2.4X
Using CD/DVD Speed, we got a good scan. Only a small speed dropdown was reported
near the "layer switch". Using Plextools, we got a very
good scan with low PI error levels.

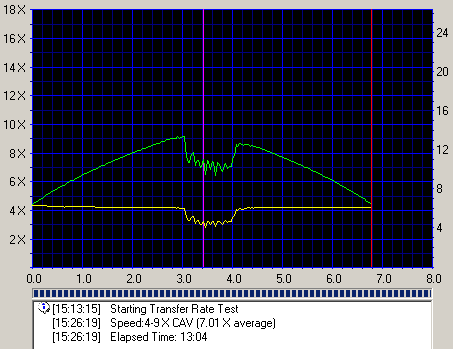

- Traxdata 2.4X DVD+R DL @ 2.4X
Although Traxdata media did not perform as well as Verbatim media, the
disc was readable with the LiteON drive. Plextools indicated PI error
levels far below
the 280 limit. Again, the Memorex D² External recorder showed very good
performance.
- Summary
Writing quality with Double Layer media was very good. Best results came with Verbatim media.
18. F16 vs. SA300 - Page 1
Memorex D² External Recorder -
Page 17
F16 vs. SA300 - Page 1
For checking exactly what
the Memorex D² External reports, we used three different media, burned
with other writers. The three media have been measured with the well
known AudioDev
SA300 DVD
CATS system at 1X.
The drive is capable of reporting PI/PIF errors, so we will compare those
measurements for various reading speeds:
Please note that the posted results are only valid for the specific tested Memorex
F16 drive. Using other drives, even another F16, can produce totally different
results. Be aware!
#1st Test Disc - PISum8/PIF Comparison - 8X Reading speed
The PIF error rate trend line is similar to that of the SA300. However, the
levels are different.
#1st Test Disc - PISum8/PIF Comparison - 6X Reading speed
Again, error levels are different but PIF error rate trend line is similar to that of the SA300.
#1st Test Disc - PISum8/PIF Comparison - 4X Reading speed
With these test discs, similar behavior was reported by both the SA300
system and Memorex drive, with PIF error levels increasing at the end of the
disc. But error values were totally different.
19. F16 vs. SA300 - Page 2
Memorex D² External Recorder-
Page 18
F16 vs. SA300 - Page 2
For checking exactly what the Memorex D² External reports, we used three different
media burned with other recorders. The media have been measured using the
well
known AudioDev SA300 DVD CATS system at 1X.
The drive is capable of reporting PI/PIF errors, so we will compare those
measurements at various reading speeds:
Please note that the posted results are only valid for the specific tested Memorex
F16 drive. Using other drives, even another F16, can produce totally different
results. Be aware!
#2nd Test Disc - PISum8/PIF Comparison - 8X Reading speed
#2nd Test Disc - PISum8/PIF Comparison - 6X Reading speed
#2nd Test Disc - PISum8/PIF Comparison - 4X Reading speed
The PIF error trend line as reported by the D² External recorder shows
the same behavior as the SA300 system but again the levels differ. In most
cases, the Memorex drive is reporting better results than the SA300 system
shows, leading users to believe that the media is in top shape when in fact,
that may not be the case.
20. F16 vs. SA300 - Page 3
Memorex D² External Recorder -
Page 19
F16 vs. SA300 - Page 3
For checking exactly what the Memorex D² External reports, we used three different
media, burned with other recorders. The media were measured using the
well known AudioDev SA300 DVD CATS system at 1X.
The drive is capable of reporting PI/PIF errors, so we will compare those
measurements at various reading speeds:
Please note that the posted results are only valid for the specific tested Memorex
F16 drive. Using other drives, even another F16, can produce totally different
results. Be aware!
#2nd Test Disc - PISum8/PIF Comparison - 8X Reading speed
#2nd Test Disc - PISum8/PIF Comparison - 6X Reading speed
#2nd Test Disc - PISum8/PIF Comparison - 4X Reading speed
Again, the Memorex writer reported lower PIF error values than the
SA300 system, giving the image of good quality media, when this is not the
case.
21. F16 vs. SA300 - Page 4
Memorex D² External Recorder -
Page 20
F16 vs. SA300 - Page 4
For checking exactly what the Memorex D² External reports, we used three different
media, burned with other recorders. The three media have been measured
using the well known AudioDev SA300 DVD CATS system at 1X.
The drive is capable of reporting PI/PIF errors, so we will compare those
measurements at various reading speeds:
- 3~8X CAV
- 2~6X CAV
Please note that the posted results are only valid for the specific tested Memorex
F16 drive. Using other drives, even another F16, can produce totally different
results. Be aware!
#4th Test Disc - PISum8/PIF Comparison - 8X Reading speed
#4th Test Disc - PISum8/PIF Comparison - 4X Reading speed
In this case, the SA300 system trend lines are lower than the Memorex scans. This means that the Memorex drive 's results are misleading, showing average media quality. In general, the Memorex D² External cannot be used to accurately scan media quality in any case.
22. BookType Setting
Memorex D² External Recorder -
Page 21
BookType Setting
The Memorex D² External supports BookType Setting for DVD+R/+RW formats, with
firmware revisions BWSE, while firmware versions BWSA and BWSB did not. There are several utilities you can use to change bitsetting. The most common utility is KProbe:
You can also use the latest Nero version to change booktype setting prior
to writing. You will find this option in the "Choose Recorder" tab:
23. Conclusion
Memorex D² External Recorder -
Page 22
Conclusion
The
external version of the Memorex D² model is suitable for users that
want to use an external high speed DVD recorder. It supports both USB2.0
and IEEE1394a interface, making it compatible even with MacOS systems. The
first thing that users will observe is the stylish case Memorex has designed
for this drive, similar to Memorex 8X external writers.
The D² external model proved to be a fast reader, with both DVD and CD
media. Fast DAE speed was observed without errors. Although CD error correction
needs further improvement, DVD error correction tests indicated high error
correction capabilities, and no problems were reported with all test media.
On the other hand, the drive cannot read/rip 90mins CDs, while 99mins CDs were
no problem.
The drive can backup protected audio CDs without problem, and it can make
working backups of SafeDisk protected games up to v.2.8. But protected games
backup is not a strong point of the Memorex D² External.
Jitter values and C1/C2 values were increased because of the 48X writing speed.
This was more or less expected, since at this high writing speed, more errors
are produced during the writing process. Nevertheless, the safest writing speed
at which to burn a CD is 16X or 24X, and this applies to all
writers.
The drive reported very good DVD recording times with +R media, and average
recording times with -R media. Unfortunately, the drive cannot overburn DVD
media, and writing quality needs further improvement with certain media. On
the other hand, DVD writing quality with Double Layer media was very good,
reporting low PI/PIF error values. It even supports booktype setting for +R,
+RW and +R9 media.
In general, this Memorex proposal is very appealing for notebook users that
want to add DVD recording to their laptop. They should not worry about compatibility
problems, since it can be used with USB2.0 or Firewire interface. The drive
is priced at US$229.99 on the Memorex web-site.
- The Good
-
CD reading speed
-
Very Good Double Layer media writing quality
-
Can backup SafeDisc2 v2.8x protected discs
-
Very good DVD error correction
-
Can overburn up to 99mins
-
Supports protected Audio discs (CDS200, Key2Audio)
-
Accurately backed up "Aiko Katsukino - The Love Letter",
Audio protected disc
-
Can be used for DVD media error measurements
-
High DVD ripping speed
-
RPC1 utilities
-
16X DVD+R media included in retail package
- Supports booktype change with firmware revision BWSE
- Supports both IEEE1394a and USB2.0 interfaces
- The Bad
- Poor CD error correction
- Doesn't accurately backup SafeDisc2 v2.9x+ protected discs
- Doesn't support reading of DVD-RAM media
- Retail package didn't include any DVD+R DL media
- Doesn't support DVD overburning
- Like to be fixed
- DVD writing needs improvement, drive produces high PI/PIF error rates (could
be fixed with firmware upgrade?)
- Limited support media list for 16X/12X DVD+R writing
- High C1/C2 errors with specific media at 48X
- Retail price
Retail Package |
|
Reading |
|
Error Correction |
|
Protected Discs |
|
Writing |
|
Features |
|
To discuss this drive further or to discuss it with other users, go to our forum.
