1. LG GDR8163B
LG
is one of the largest participants in the optical storage industry. LG has
the biggest market share in many countries and usually, its burners are well
tuned and with unique features. In November 2000, Hitachi and LG formed a
new joint venture to manufacture optical storage drives under the name "HL-DS".
"...Based on the cutting-edge development technology of Hitachi Ltd. and the advanced mass production technology and high-level marketing performance of LG Electronics Inc., we have been succeeding in creating technical synergy effect and is one of the leading company of the world in optical storage drive industry. "
is a joint company consisting of Hitachi, Ltd. and LG Electronics, Inc., which started business in January of 2001. We develop and sell optical data storage disc drives for PC OEM and keep top share in the world. Our main products are DVD writable drives, DVD-ROM drives, CD-RW drives, CD-ROM drives and its combination drives. Development sites are located in Tokyo (Japan) and in Pyungtaik (Korea)."
Company Profile
Company Name : Hitachi-LG Data Storage, Inc.
Established : November 22, 2000 (business started on January 1, 2001)
Head office Location : 4F MSC Center Building
22-23 Kaigan 3-chome, Minato-ku, Tokyo 108-0022 Japan
Phone : +81-3-5427-8600
Representative Director, CEO : Kazuya Hori
Capital Stock : JPY 1,500M
"Since the establishment of the company, we' ve handled a wide range of
optical storage drive products including DVD-RAM, DVD-ROM/CD-RW Combination,
DVD-ROM,
CD-RW and CD-ROM drives. Recently, we' ve developed the world's first Super
Multi Drive which supports all DVD write formats. HLDS tries to be the first
in supplying the consumer with the products that they desire..."
We received the latest DVD-ROM from LG, capable of 16X reading speed for the
DVD-ROM and 52X for the CD-ROM formats. The full specifications for this drive
are summarized
below:
- Specifications
Read Speed (DVD) |
Max 16x |
Read Speed (CD) |
Max 52x |
Data Transfer Rate (DVD) |
Max 22,100KB/s |
Data Transfer Rate (CD) |
Max 7,800KB/s |
Access Time (CD) |
98msec |
Access Time (DVD) |
110msec |
Buffer Size |
256KB |
Loading Type |
Motorized Tray |
Interface Type |
Internal E-IDE / ATAPI / ULTRA DMA 33 |
Compatible Formats Write |
CD-R/RW |
Compatible Formats Read |
DVD+R/+RW, DVD-R/-RW, DVD-RAM, DVD-ROM, CD-R/RW, CD-ROM Mode 1,2, CD-DA, CD-I FMV, CD-ROM XA, Mixed CD, CD Extra, CD Plus, CD Text, Photo-CD, Video CD |
Dimensions - (W×D×H) |
146mm x 184.6mm x 41.3mm |
Weight |
780g |
O/S |
Window 95, 98, 2K,ME,NT4.0 or later,XP |
The drive also uses the RPC II region control, allowing a user to change the
drive's region at most 5 times. This is however something which can be changed!
In the following pages, you'll learn how ;-)
- The package
We received the drive out of the box so we cannot confirm what the package
does and doesn't include.
On the front panel there are the DVD-ROM and the compact disc logos,
while the LG brand name is in the center of the tray. The
activity indicator
light is located left of center and the emergency eject hole
right of center. On the far right is the eject button.
On the rear panel you can see the analogue and digital outputs (SPDIF), the IDE connector and the power input.

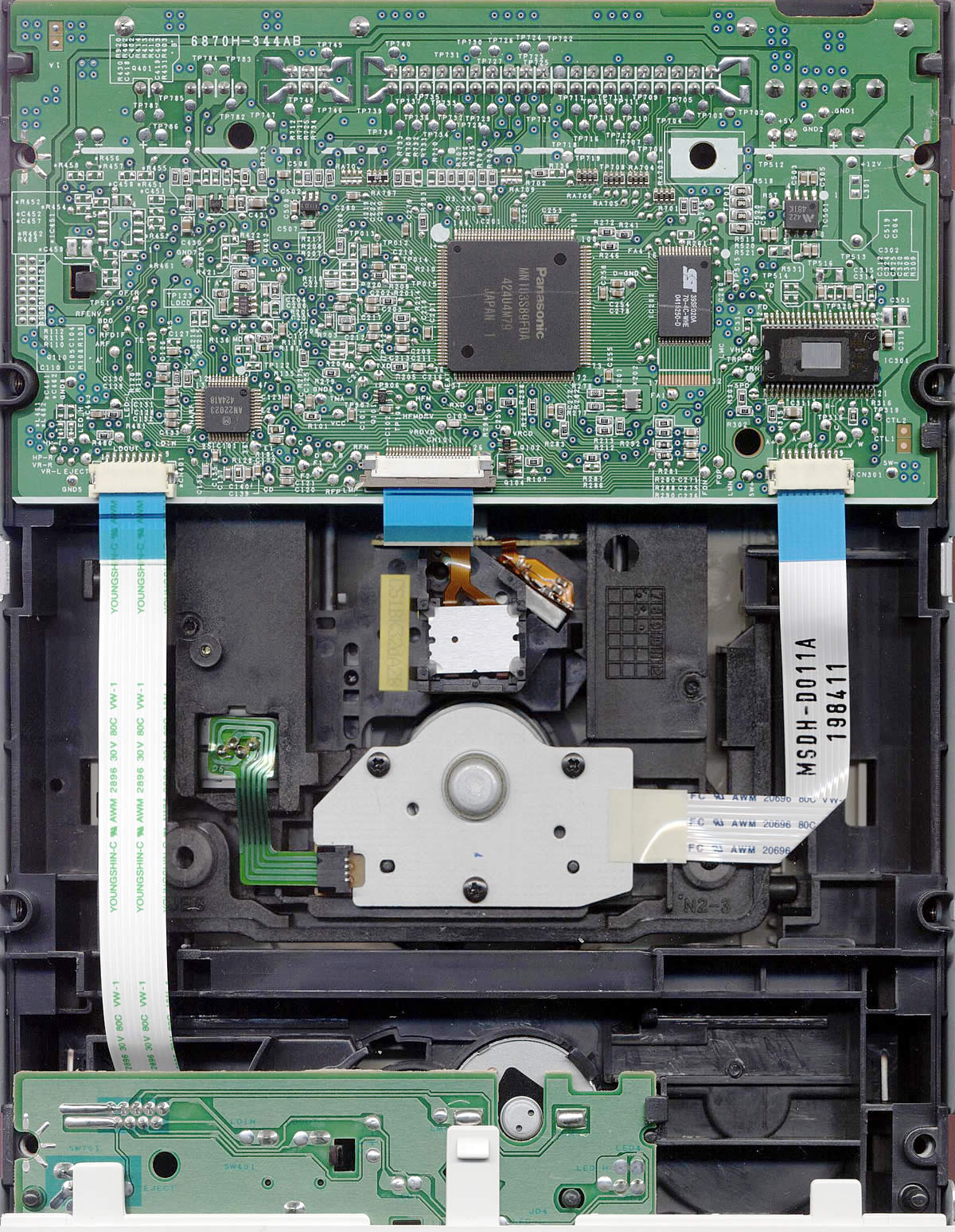

Removing the screws and opening the drive's cover voids the drive's warranty. For reference reasons, we post the following pictures. You can click on the mainboard picture for a higher resolution image:
- Installation
The drive was installed as secondary master and WindowsXP recognized
it as "HL-DT-ST DVD-ROM GDR8163B ".
The drive arrived with firmware vOL23.
- Testing software
In order to perform our tests we used:
- Nero CD-DVD Speed v3.75
- CDVD Benchmark v1.21
- ExactAudioCopy v0.9 beta5
- Nero Info Tool v3.00
- DVD Decrypter 3.5.4.0
- DVDInfoPro v3.51
2. LiteOn SOHD-16P9S
The
SOHD-16P9S is the successor to the very popular 167T model. The new DVD-ROM
from LiteOn supports 16X DVD reading and 48X for CD. It will be rather interesting
to see how this very promising drive will perform.
- Features
- ATAPI/E-IDE Half-Height internal DVD+R / DVD+R9 / DVD+RW / DVD-R / DVD-RW / DVD-ROM /
CD-R / CD-RW / CD-ROM combination drive
- SMART-X Smart Monitoring & Adjusting Read-speed Technology for eXtraction
- ABS® (Auto Balance System) mechanism to reduce vibration & noise while high speed rotating
- Plug & Play with emergency manual eject
- Belt Tray Loading Mechanism
- Specifications
Interface |
ATAPI/E-IDE |
Disc Size |
8cm / 12cm |
Data Transfer Rate |
DVD-ROM 16X(21600KB/sec) by CAV
CD-ROM 48(7200KB/sec) by CAV |
Buffer Size |
512KB |
Support Media |
|
Front Panel |
On/Busy LED, Door, Emergency Eject, Open/Close/Stop |
Disc Loading |
Tray |
Installation Angle |
Horizonal/Vertical |
Random Access Time |
DVD-ROM 105ms (typical)
CD-ROM 95ms (typical) |
Audio Specifications |
Line Output Level 0.7 ± 0.2Vrms
S/N Ratio 60dB |
Enviroment |
Temprature: Operating : 5°C to 45°C Storage: -20°C to 60°C
Humidity: Operating: 15-80% Storage: 15-90%
|
Physical Dimensions |
146(W) x 41.3(H) x 170(D) mm |
Weight |
0.8 Kg |
Power Requirement |
DC +12V ± 5%, DC 5V ± 5% |
MTBF |
70000 Hours |
Compatibility |
Windows 98/NT4.0/ME/2000/XP |

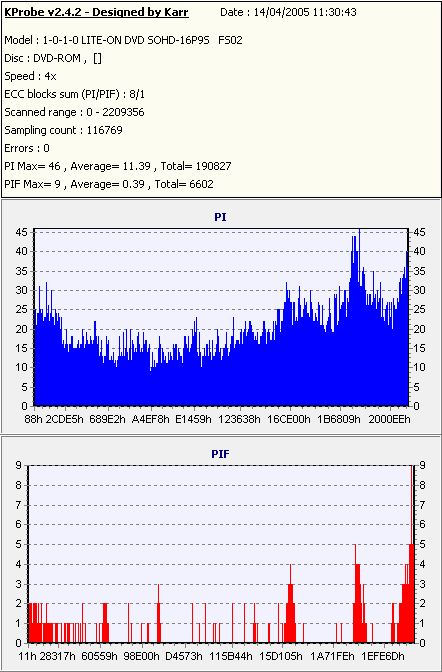

The drive uses the RPC II region control, allowing users to change the drive's
region at most 5 times. However, as can been seen below, this is something
which can be changed very easily. All you need is the appropriate utility from
LiteOn or Kprobe.
- The package
The kit contains the drive itself, a multilingual installation guide, Cyberlink's PowerDVD Software, an audio cable and four mounting screws.

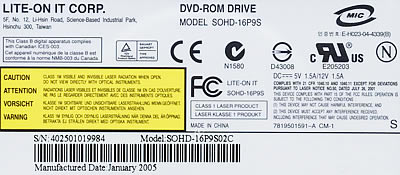

The front panel has only the DVD-ROM and "compact disc" logos. Left of center
there is the emergency eject hole with the power indicator which
blinks green while the drive is reading closer to center. The eject button
is on the right side.
Removing the drive's case will void the warranty, something
we don't recommend. Press on the image below for an enlarged view:
- Installation

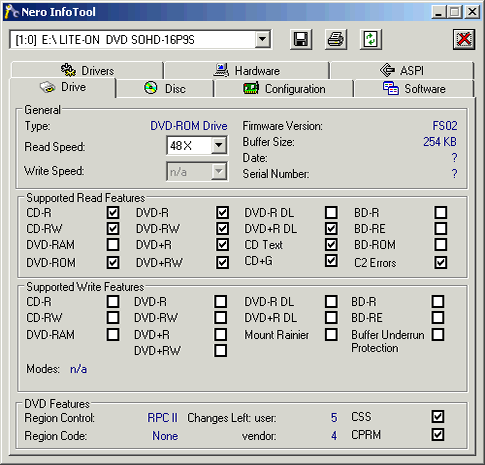

The drive was installed as secondary master and WindowsXP recognized it as "LITE-ON DVD SOHD-16P9S ". The drive arrived with firmware vFS02.
- Testing software
In order to perform our tests we used:
- Nero CD-DVD Speed v3.75
- CDVD Benchmark v1.21
- ExactAudioCopy v0.9 beta5
- Nero Info Tool v3.00
- DVD Decrypter 3.5.4.0
- DVDInfoPro v3.51
In the following pages we compare the performance of the two DVD-ROM drives
with that of the Toshiba SD-M1912, Asus DVD-E616P2 and Samsung TS-H352 drives.

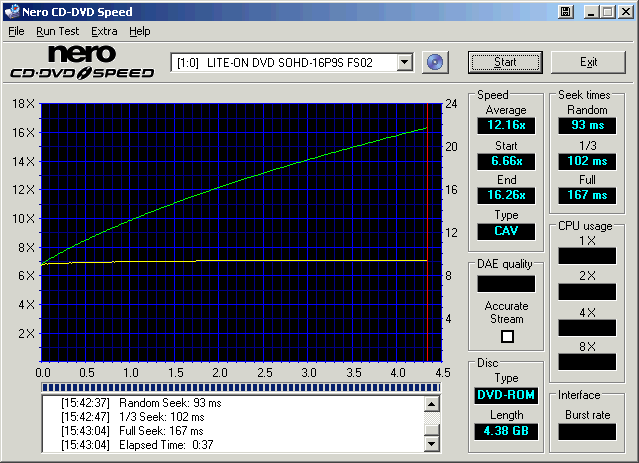

3. Transfer Rate Reading Tests
In order to confirm the CD reading specifications for the two drives
on test, we used one CD pressed media, a copy on CD-R and one on HS-RW
media. The
results are
illustrated in the following graphs.
- CD Format
LiteOn exhibited more stable performance with all tested media while
the LG was the fastest with pressed and US-RW media.
- DVD Format

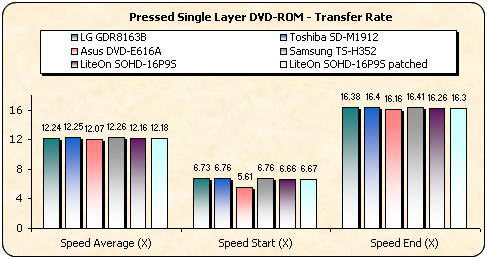

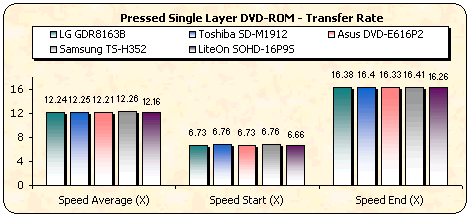

We repeated the same tests with DVD media this time.
All drives reported similar speeds. The differences can be considered as negligible.
The following DVD is a PTP DVD-ROM where the two layers of the disc are
read sequentially with the drive starting the reading process from the inner
part of the disc,
which is the beginning of each layer, progressing towards the outer range for
each layer.
The Asus and LG drives were the fastest with an end speed of just over
12X while the other drives reached just under 8.5X.

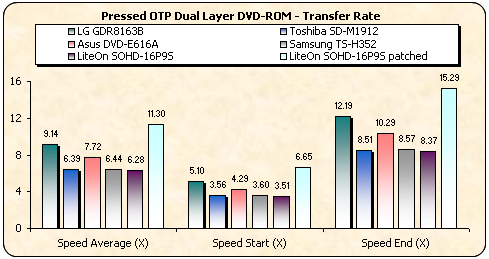

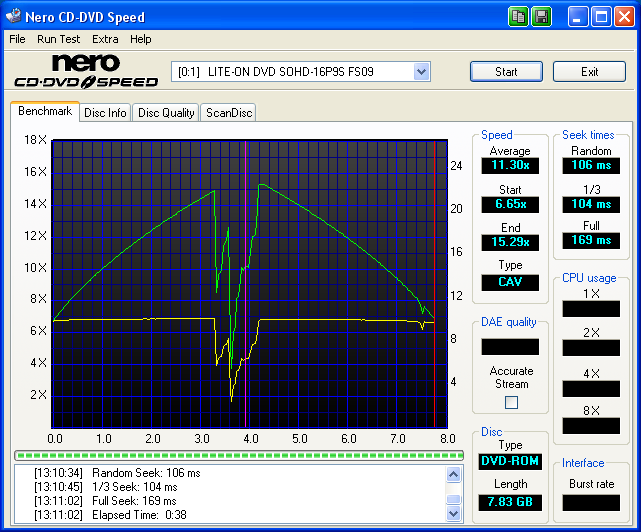

The graph shown below, indicates the reading performance of
the five drives with OTP dual layer media. The first layer of an OTP
dual layer DVD-ROM is read exactly the same way as the first layer of the PTP
disc
we tested previously. The difference here is the reading strategy of the second
layer on the disc. The beginning of the second layer is located in the outer
part of the disc, so the drive starts reading from the outer tracks towards
the inner part of the disc.
Once again the Asus and LG drives proved to be the fastest.

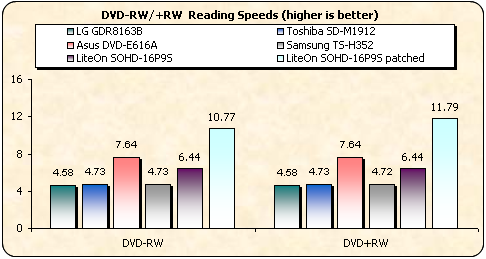

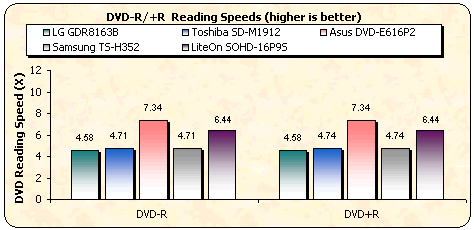

The two following graphs include the reading performance with
recordable and rewritable media.
Here, the Asus with a consistent average reading speed of 7.3X with all media
was the fastest, followed close behind by the LiteOn at 6.44X. In fact, all
the drives were very consistent with all media. The LG GDR8163B was the slowest
at 4.58X.

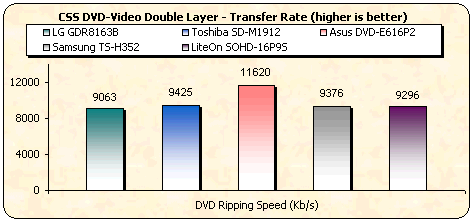

We ripped the contents of a pressed Double Layer movie to the hard disk using
all the drives. The results are given below:
The higher ripping speeds belongs to the Asus and the Toshiba drives.
Only the LG, Toshiba and Samsung drives support DVD-RAM reading. All had an
average speed close to 2X.
-Appendix Nero CD-DVD Speed Graphs
LG
LiteOn
4. CD Error Correction Tests
In the following tests we check both drives behavior when reading scratched
/ defective audio discs. The test discs used were the ABEX series from ALMEDIO.
- ABEX TCD-721R
Errors total |
Num: 873740 |
Errors (Loudness) dB(A) |
Num: 50130 |
Avg: -74.3 dB(A) |
Max: -16.7 dB(A) |
Error Muting Samples |
Num: 2793 |
Avg: 1.2 Samples |
Max: 161 Samples |
Skips Samples |
Num: 0 |
Avg: 0.0 Samples |
Max: 0 Samples |
Total Test Result |
76.8 points (out of 100.0 maximum) |
C2 Accuracy |
99.7 % |
Errors total |
Num: 1080563 |
Errors (Loudness) dB(A) |
Num: 53891 |
Avg: -73.7 dB(A) |
Max: -14.9 dB(A) |
Error Muting Samples |
Num: 3430 |
Avg: 1.0 Samples |
Max: 9 Samples |
Skips Samples |
Num: 0 |
Avg: 0.0 Samples |
Max: 0 Samples |
Total Test Result |
76.6 points (out of 100.0 maximum) |
C2 Accuracy |
99.7 % |
Both drives, but especially the LG had low total error counts while the average error loudness levels were also low. Both drives had 0 skipped samples and their total test result score of 76.8 and 76.6 ( LG and LiteOn respectively) is a good indication of their good performance. Both drives produced a good C2 Accuracy score of 99.7%.
- ABEX TCD-726
Errors total |
Num: 69 |
Errors (Loudness) dB(A) |
Num: 13 |
Avg: -84.2 dB(A) |
Max: -65.2 dB(A) |
Error Muting Samples |
Num: 0 |
Avg: 0.0 Samples |
Max: 0 Samples |
Skips Samples |
Num: 0 |
Avg: 0.0 Samples |
Max: 0 Samples |
Total Test Result |
93.0 points (out of 100.0 maximum) |
C2 Accuracy |
100.0 % |
Errors total |
Num: 137 |
Errors (Loudness) dB(A) |
Num: 10 |
Avg: -69.2 dB(A) |
Max: -64.6 dB(A) |
Error Muting Samples |
Num: 0 |
Avg: 0.0 Samples |
Max: 0 Samples |
Skips Samples |
Num: 0 |
Avg: 0.0 Samples |
Max: 0 Samples |
Total Test Result |
93.5 points (out of 100.0 maximum) |
C2 Accuracy |
100 % |
Very good results for this disc also although the best drives can produce test result scores of 100.
- CD-Check Audio Test Disc
The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction / Error correction capabilities of a CD player. The disc offers a signal combination with disc error patterns to rate the drive's abilities to read music and reproduce it completely. Five tracks on the disc contain a sequence of progressively more difficult tests. These tracks are referred to as Check Level-1 through Check Level-5.
The tracks are reproduced through a software multimedia player (i.e. Windows Media Player). Each level is considered as passed, if the tone is smooth, continuous without interruptions, skipping or looping. The higher the Check Level passed, the more reliable the sound reproduction of the tested drive.
Error Level |
1 |
2 |
3 |
4 |
5 |
LG GDR8163B |
5/5 |
5/5 |
5/5 |
5/5 |
0/5 |
Error Level |
1 |
2 |
3 |
4 |
5 |
LiteOn SOHD-16P9S |
5/5 |
5/5 |
5/5 |
5/5 |
0/5 |
Both drives successfully passed four out of the five check levels for this
test. This is very good performance since an average drive manages to play up to
the third level while very few drives manage to read the fifth.
- Summary
Overall the error correction is good for both drives.
5. DVD Error Correction Tests
In the following tests we examine the DVD reading capabilities of the drives with
scratched / defective DVD media. For the tests we used CDVD Benchmark
and Nero CDSpeed. The reference test media came from ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with 4.7GB capacity, and its surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm.
The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.
The performance is reasonably good from both drives. Strangely, the LiteOn
drive had more problems reading at the end of the disc than over the defective
region.

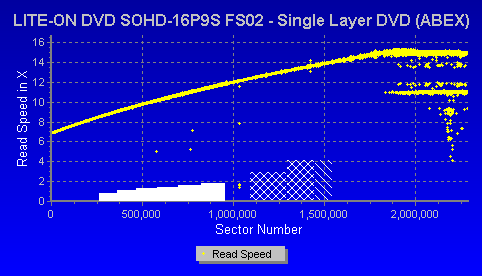

ABEX TDR-825
This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, with the difference that there are no scratches on it but instead defective areas of dimensions ranging from 0.5 to 1.1 mm.
There are also fingerprints sized between 65 and 75 micrometers.

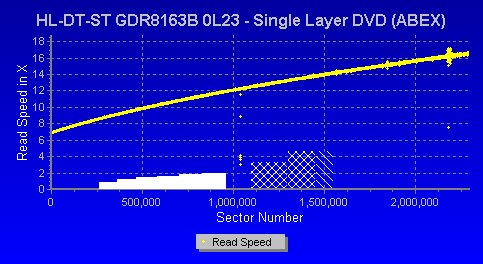

Excellent performance from the LG drive while the LiteOn once again had problems
at the end of the disc.
- Dual Layer media
ABEX TDR-841
This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches of dimensions ranging from 0.4 to 3.0mm, on both layers.
The performance is more than good from both DVD-ROMs. The LiteOn produced
the cleaner graph with an almost perfect performance.
ABEX TDR-845
The disc is a single sided, dual layer DVD-ROM disc with a capacity of 8.5GB. The only difference between the TDR-845 and the TDR-841 is that the first includes defective areas and fingerprints. The dimensions of the defective areas range from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micrometers.
Excellent performance from both drives.

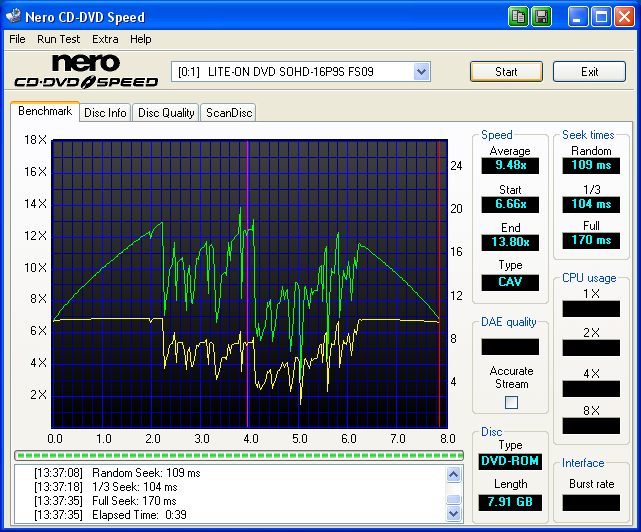

ABEX TDV-541
The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The disc is based upon the TDV-540 series which is designed for inspection and adjustment of DVD-VIDEO players. The disc checks the layer switch operation from layer 0 to layer 1 and also includes test pictures and test signals for DVD sound files.
The current TDV-541 also checks the error correcting capabilities of the drive and includes scratches from 0.4 to 3.0 mm.
LG GDR8163B
LiteOn SOHD-16P9S
The reading process finished successfully for both drives with a smooth
reading graph.
ABEX TDV-545
The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer DVD-VIDEO disc with a capacity of 8.5GB.
The TDV-545 includes artificial black dots on the disc's surface, sized from 0.4 to 1.0 mm. It also has 65 - 75 micrometer thickness, fingerprints.
LG GDR8163B
LiteOn SOHD-16P9S
Black dots and fingerprints on the disc's surface did not create any reading
problems and both drives finished the task successfully.
6. DAE Tests
- Pressed and CDR AudioCD results
The LG supports a maximum 52X DAE speed while the LiteOn 48X.
The LiteOn drive was more consistent with both media types while the LG
although fastest with the pressed CD, lost a good deal in speed when reading
CD-R media.
EAC also reported the following information for each drive:
LG |
|
LiteOn |
|
- Advanced DAE Quality
All tested drives received a perfect quality score of 100. The LiteOn was
the fastest.
Advanced DAE Quality for LG
Advanced DAE Quality for LiteOn
- Ripping 90mins AudioCDs
LG
LiteOn
- Ripping 99mins AudioCDs
LG
LiteOn
The LG drive managed to read only the 99min test disc while LiteOn failed
in both tests.
7. Protected AudioCDs
For the test procedure we used three audio discs with different
audio copy protections. The ripping process performed for all protected Audio
discs was carried out with Exact Audio Copy v0.9beta5.
The tested protected Audio discs were:
- Sony's Key2Audio from "Celine Dion - New Day Has Come"
- Cactus Data Shield 200 from "Natalie Imbruglia - White Lilies Island"
The Cactus Data Shield 200 contains artificial errors that are not easy to
bypass with the reader, while the Key2Audio contains a second session,
causing problems to readers when trying to read the Table Of Contents (TOC).
The tested tasks are:
- Recognition of the inserted disc (Yes/No)
- Ripping all wavs (with EAC's Burst Mode) to the hard disk with copy&compare function.
- Listening to the produced wavs for any click/skips.
All drives recognized up to the 13th Audio track of CDS200 disc,
and with the "Retrieve Native TOC" option removed, also recognized
the 13th Data track.
The test results are shown in the following table:
|
Key2Audio |
CDS200 |
LG GDR8163B |
Ripping process completed, EAC reports no problems, Read&Test CRC comparison successful for all tracks |
Ripping process completed, EAC reports no problems, Read&Test CRC comparison successful for all tracks |
LiteOn SOHD-16P9S
|
Ripping process completed, EAC reports no problems, Read&Test CRC comparison successful for all tracks |
Ripping process completed, EAC reports no problems, Read&Test CRC comparison successful for all tracks |
Very good behavior against protection from both drives.
Both discs were recognized and ripped successfully.
- Cactus Data Shield 200.0.4 - 3.0 build 16a (Aiko Katsukino - The Love Letter)
This is a "special" CDS200 build, since it doesn't contain any artificial
errors during the ripping process. Most problems occur when trying to write
the ripped wav files, since the produced CD-R disc contains C2 and CU errors!
This "problem" is rumored to be connected to specific writer chipset
weaknesses.
|
CDS 200.0.4 - 3.0 build 16a |
LG GDR8163B |
Ripping process completed, EAC reports no problems, Read&Test CRC comparison successful for all tracks
|
LiteOn SOHD-16P9S
|
Once again, the performance was very similar from both drives.
8. Protected Disc Tests
- Reading Tests
To create the image of the various protected titles to the hard disk, we used the latest version of Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

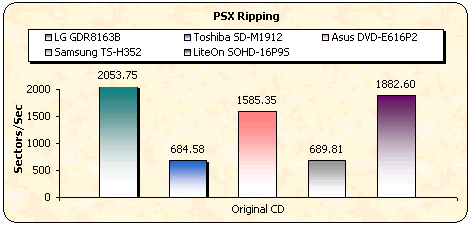

Game Title |
Protection Scheme |
Drive |
Duration |
Reading speed |
PSX "NBA Jam Extreme" |
Lybcrypt |
LG |
00:44min |
2054 sectors/sec |
LiteOn |
00:48 min |
1883 sectors/sec |
Serious Sam The Second Encounter v1.07 |
SafeDisc v.2.60.052 |
LG |
16:54
min |
331
sectors/sec |
LiteOn |
10:10 min |
550 sectors/sec |
VRally II |
SecuROM v.2 |
LG |
02:36min |
2218 sectors/sec
|
LiteOn |
02:35min |
2218 sectors/sec |

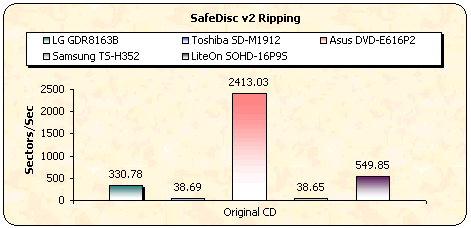

Safedisc protection seems to be present the biggest problem
for both the LG and the LiteOn drives. Their performance however was good with
the other
two
protection schemes.
9. Quality Scans
Between the two drives under test, only the LiteOn supports this advanced
feature. The LG cannot run such tests either with DVDinfoPro or CDSpeed.
For this reason,
we will present the results from the LiteOn drive.
For checking exactly what the LiteOn DVD-ROM reports, we used four different media, burned with other recorders. The three media have been measured using the well known AudioDev SA300 DVD CATS system at 1X.
The drive is capable of reporting PI/PIF errors, so we will compare those measurements at 4X reading speed.
Please note that the posted results are only valid for the specific tested LiteON
SOHW-1633S drive. Using other drives, even another SOHD-16P9S, can produce
totally different results. Be aware!
#1st Test Disc
The trends are similar but the values are different.
#2nd Test Disc
Once again the trends are similar but this time the reported values
are closer than in the previous case.
#3rd Test Disc
Almost same trends but with big difference in values.
#4th Test Disc
The trend line once again seems the same but with differences as far as values
are concerned.
10. Hacked Firmware for LG
The only available firmware currently is for Auto Reset and RPC1, based on 0L14, 0L15, 0L16, 0L23, 0F21, 0N21 and 0B26.
We downloaded the utility, which at the time of the review was available
only in beta version and we started the flashing process:
After we rebooted, we found that the previous region code had been reset
and the 4 available changes had disappeared.
11. Hacked Firmware for LiteOn
* 06/09/2005 Review Updated
A more recent patched version of the fw FS09 has been released. The drive can read up to 16X all DVD SL formats and DVD-ROM DL, while for rest of the DL it supports 12X.
Firstly select the patcher utility, namely 16P9S.FS09.patcher, in order to adjust the firmware to your own needs.
You can set the speed for each format seperately depending on the available speeds provided by the utility. We set them all to maximum speed.

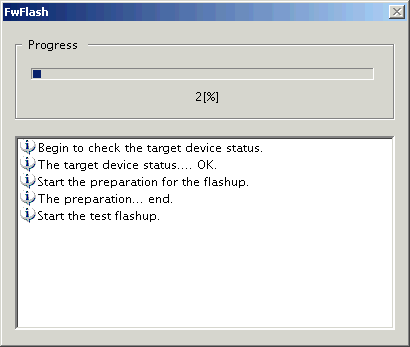

Now the 16P9S.FS09.patched firmware has been created and it is ready for use. Run it to flash the drive...
Now the patched firmware has been installed and we can start the reading tests. The rest of the drives, presented in the following graphs, have their official firmwares installed and are all the same as in the rest of the review, apart from the Asus which is the latest one, more recent than the DVD-E616P2 used in previous pages.
There is no reason for comments as the graphs speak for themselves. The patced firmware made the drive extremely fast, as a matter of fact it reached its limits. However, if you observe the complete CD-DVD Speed Graphs, you'll notice that sometimes, especially with the RW discs, the drive had to slow down for a while.
- Nero CD-DVD Speed Graphs
DVD Pressed SL
DVD Pressed DL PTP
DVD Pressed DL OTP
DVD-R
DVD-RW
DVD+R
DVD+RW
It would be rather interesting to see what the error correction of the drive at such high speeds would be..
The error correction is not as effective as with the official firmware, but this is something we should expect since the reading speed has been doubled, from 8X to 16X. Even at such a high speed the readings were completed successfully, in spite of the fact that the spped dropped at times.
Since the patcher allows you to define the speed at 8, 10, 12, 14 and 16X, you can reduce it to 14X or even 12X and reflash the drive, in case you come up with any problems at 16X regarding specific media.
One thing we noticed is that everytime we flashed the drive with the patched firmware, the region count was reset to 5. That was good...
So, it seems that for the time being the LiteOn SOHD-16P9S could be no less than the perfect purchase.
12. Conclusion
The LiteOn drive is a fast CD reader regardless of whether the media
is pressed, CD-R, CD-RW or AudioCD, while the LG drive seems to perform better
with
pressed media. This is something which also
happens
with DVD media. LG was faster with pressed DVD-ROM Double Layer test discs
but not with the DVD±R/RW where the LiteOn performed better. The
ripping process revealed that both drives had similar speeds. DVD-RAM support
is an
extra advantage of the LG drive.
To be honest however, we expected something
more from both drives, something closer to the Asus DVD-ROM or the LiteOn
167 with the hacked
firmware in order to say we were satisfied with their performance.
Error correction was also similar for both readers with the LiteOn being
slightly better with the CD format. All DVD test discs were read without
reporting
any errors and at high speeds.
Another thing we liked was that if you are planning to read Key2Audio or CDS200
protected AudioCDs, both drives will help you in your quest. All tested
discs were recognized and ripped without problems. When
it comes
to game protections, both drives will make SecuROM and PSX images quite
fast but Safedisc is a bit of a problem, which is also the case with most
drives.
The quality scans for recorded media is a strong feature of the LiteOn DVD-ROM.
Unfortunately, the LG drive we had, failed with CDSpeed and DVDinfoPro.
One thing we always like about the LiteOn drives, is their unofficial support
with altered firmware upgrades that make the drive faster in all tasks,
something that made the previous DVD-ROM from LiteOn very popular. This is
something
that we are waiting for with the new 169 reader.
Fortunately, both drives can be set to region free. For the LiteOn, the
procedure is simple and doesn't require re-flashing the drive with new firmware,
something that is the case with the LG.
The price for the drives is almost the same, at approximately US$25.
