1. Features, specifications
After having tested the Q1000P product by Qstarz some months ago, today we will have a look to the company's newest model which has a much slimmer and sexy design and good logging features, the Qstarz Q1300 series.
The Qstarz Super 66 CH BTQ1300 – Bluetooth
GPS Travel Recorder nano is powered by
MTK's a new generation of GPS chipset that supports 66-Channel tracking. The device provides stand-alone logging up to 200,000 records with 12
hrs recording, and supports Smart Power control and Auto Log On-off
to extend usage time and save memory.
The included BT-Q1300 software utility supports multi-condition setting which
allows you to customize and travel record by 3-level detail
adjustment and provides download, save, and split to arrange
tracking record. Moreover, you can display travel path directly on
Google Earth and combine geography information with photos by
Geotagging. As a result, you may use this device for strict needs of positioning applications such as car navigation, mapping, surveying, security, agriculture and so on.
- Features
- Adopt the latest MTK chipset with high sensitivity -165dBm and Super High 66-Channel tracking
- Lower power consumption up to 12hrs for travel recording
- Stand-Alone travel recorder to log up to 200,000 records
- Slim, Thin, Light, and Stylish design, only 62L x 38W x 7H (mm)
- Capable of Assisted GPS: download almanac data to realize fastest TTFF and positioning
- G-Mouse + Bluetooth in one: wired and wireless GPS receiver
- Built-in Photo Geotag and visualized travel path
- Support button push manually to memorize your location immediately
- Support Multi-mode setting to record data (Vehicle, Bicycle, Jog)
- Fast Position Fix ,Cold start 35s, Warm start 33s,Hot start 1s
- Auto On-Off function for smart power control
- Auto Log On-Off function to save as much as memory during your travel
- Personal/Portable Navigation (PDA, Smartphone, PC, etc.)
- QZSS, DGPS(WAAS+EGNOS+MSAS) support
- Chipset specifications
2. Opening the package

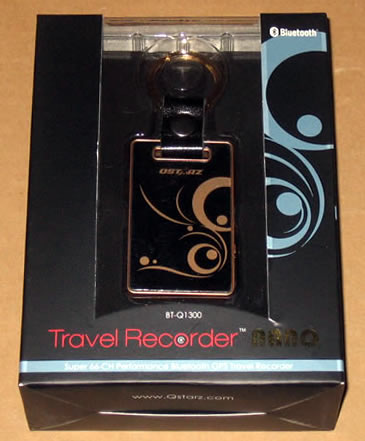

The device comes in a small and stylish package retail package. The Qstarz Q1300BT GPS unit retails for around € 85.
Inside the box you will find all the contents typically found in GPS packages:
- 1x GPS BT-Q1300 unit
- 1x car power adapter
- 1x mini USB Cable
- 1x Driver CD
- Printed users manual, quick guide, warranty card
- 1 month of locr Pro account
The device itself should be among the most stylish we have ever tested. The combination of the black finish and the gold color creates a unique, luxurious look:
The keyring strap is also useful for carrying the device or attaching it to your keys, but we would also like it if it could be removed without breaking the black leather strap.
The three available LEDs are ON when the device is operating. Other functions can be found be found in the table below:
On the right side of the device we find the power on/off button and a mini-USB port, protected via a plastic rubber.
3. Getting started
Before using the the BT-Q1300 for the first time, make sure you have fully charged the battery. This can be done either though the the mini USB cable, the
travel charger, or car the power adaptor.
Charging typically takes about 1 hour. When the Power LED is Red, the battery needs to be
recharged. When the Power LED is Green, the battery is under charging mode and finally when the Power LED is blinking, the battery is fully charged.
To power on the device, press the power button and hold it down for 4 seconds. The same procedure applies when you need to power it off. In order to pass to logging mode, press the power
button and hold it for additional 2 seconds (device is already ON). Once the logging mode is active, the LOG status LED (blue) will start blinking . Press power button and hold it for 2 seconds again
to disable the log mode. The blue LED will be off and the device will stop logging. Once you are in LOG mode, press the power button once again to log your
favorite Point of Interest (POI).
Another neat feature of the Qstarz Q1300 model is the "Auto On/Off" function (Power saving mode). This will make the device automatically enter
the sleeping mode after the Bluetooth connectivity is turned off, and the Blue LED will flash every 5 seconds.
But even under the power saving mode, the device will automatically turn on as soon as it detect Bluetooth connectivity. Then the blue LED will
start flashing every 2 seconds and the GPS Orange LED will also be active.
Similar power/memory saving functions are supported under the Auto "Log On/Off". Under the Log mode, the device will automatically stop
logging when the GPS is not fixed. As soon as the GPS is fixed again, the BT-Q1300 will
start to log.
In order to take advantage of the Geotagging features and Google maps, you have to download the latest version of QStarz Travel Recorder (v4.20). In sort the software has:
- Double software included with built-in Google Map,
multi-language support, and visualization UI
- Provide PC Utility V3 allowing you to further detailly configure
the device
- Provide PC Utility V4 with built-in Google Map and visualization
UI for users to easily manage their travel
- Auto track split function helps you organize your travel path
- Support Track Edit function allowing you to remove
unnecessary waypoints
- Active NMEA protocol VTG / GLL manually via Qstarz setup tool
- Backup your travel record as GPS / PLT / CSV / NMEA / Google
Earth file format
- Draw your navigation path immediately on Google Earth as
default
- Support GeoTagging function for digital photo and generate
KMZ file easily
For our tests, we used the latest version of the software (v4.20):
Under the configuration panel you can set autoscan for the GPS and the GPS logging setting (car, bike, pedestrian) and of course the log criteria (time, meter, km/h). A progress bar indicates the current utilization of the memory (%).
Connecting with the GPS is done automatically and you can include several tracks to display, edit, etc..
The user manual include a detailed explanation of all the functions of the Qstarz Travel Utility. Overall we have to congratulate Qstarz for the well-designed software and the overall usability/functionality it provides.
4. Tests
We paired all tested GPS receivers with an Asus A6JA laptop, via BT protocol. Each device has its own Serial port mapping under Windows. We placed the two GPS receivers side by side at the dashboard of a car. The same environmental conditions are valid for both receivers (night, clear sky, 25° Celsius ).
We recorded all the produced data for a pre-selected route with VisualGPS and later analyzed it with GPSLog. We couldn't measure the TTFF tests ("Time to First Fix" which is the time it takes for a GPS to determine its current position), since there isn't such software under Windows XP.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Average Signal Level (in dB)
|
|
|
|
|
|
|
The Qstarz Q1300 showed an excellent performance, at least compared with another similar "slim-line" devices that use the SirfIII chipset. The Q1300 was able to get a 3D Fix quickly and didn't lost it during our course.
- Indoor Sensitivity
We placed both receivers inside a house close to a big window and noticed their performance. The Qstarz Q1300 had a 3D fix, having 6 satellites in use, while the Globalsat BT-368 had also 3D fix with 5 satellites in use.
5. Conclusion
The Qstarz Q1300 is a unique device not only for its features/specifications but also for its stylish appearance and design. It is a very beautiful and eye-catching gadget when attached to your key chain. People seeing it may think it is a jewel, others may think it is a mobile phone but still, it is an electronic combo device, matching a very capable BT GPS receiver and at the same time a GPS logger with over 200.000 points onboard memory.
The device uses the newest MediaTek GPS chipset with the ability to track 66 channels and sensitivity of 168dB. In our test field tests, it performed better than the GlobalSat BT-368 device, which is based on the SirFIII chipset. The Auto on/off function saves power resources when the device is not used, while the Auto on/off logging is useful to save valuable memory space at your GPS logger. There is no option for an external antenna but you probably won't need it at all.
The retail package of the device is more than complete including several charging cables/adapters and of course the appropriate software that will help you upload your logged tracks. The latest version of Qstarz Travel Recorder software (v4.2) is very user-friendly and it should help you analyze your driving/biking/walking skills and performance.
Overall, we have to do with a well-designed product that comes with the appropriate software and offers a very good performance. Add to all these its reasonable retail price of ~85Euro and we believe we have a great product here. Highly recommended to gadget freaks and enthusiasts.
The Positive
- Very small and light
- Very stylish
- Auto on/off functions
- Complete retail package
- Good battery life (11 hours in logging mode, 9 hours in Bluetooth mode)
- Dual use (Navigation+Logging at the same time)
- Supports WAAS/Egnos
- Car charger is included
- Very good performance for indoor/outdoor use
- Included Travel Recorder software is very easy to use
- Well documented
The Negative
- No option for external antenna
