Toshiba Exceria Pro 64GB SDXC UHS-II review


1. Features

Today we will run some benchmarks with Toshiba's EXCERIA PRO UHS-II SD card 64GB, which is designed for professional DSLR photographers and videographers who demand serious performance to capture fast-action photos and 4k videos without delay. Compliant with UHS-II, this memory card offers up to 260MB/s read and 240MB/s write speeds. This means that transferring 1,000 photos would takes only one-fifth the time needed by a class 4 SD cards.

The new EXCERIA PRO SD cards are compatible with SDA version 4.20 and support the UHS-II interface and UHS Speed Class 3 (U3). The U3 cards guarantee minimum read and write data transfer speeds of 30MB/s.

With the Toshiba write-protect feature, you can prevent accidental overwrites.

The Toshiba SD Memory Cards are backed by a five-year limited standard warranty.

Model
  THN-N101K0160E6 THN-N101K0320E6 THN-N101K0640E6 THN-N101K1280E6
Technical Specifications
Capacity
16GB
32GB
64GB
128GB
Speed Class
UHS speed class 3
Write Speed
240 MB/s
150 MB/s
Read Speed
260 MB/s
Dimensions
32.0 mm (L) x 24.0 mm (W) x 2.1 mm (H)
Weight
approx 2g



SD Bus interface UHS-II Interface
HD 312 Mode
UHS-I Interface
SD 104 Mode
Conv. SD Interface
SD High-Speed Mode
Transfer Speed
Max. Bus Speed
312MB/s
104MB/s
25MB/s
Max. Speed
Read: 260MB/s
Write: 240MB/s
Read: 95MB/s
Write: 90MB/s
Read: 23MB/s
Write: 23MB/s

2. Performance

The Toshiba Exceria PRO 64GB USH -II SDXC retails in the box you see below. As you see below, on the outside of the package you can find everything that we need to know from the capacity and speed to the more detailed card information. The back of the box contains additional specifications.

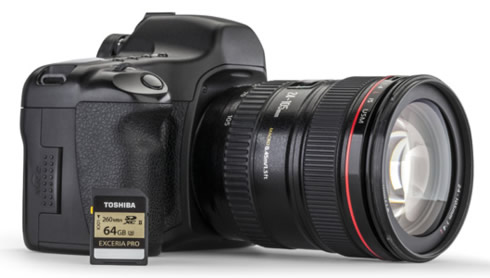

The card has the typical 32.0 mm (L) x 24.0 mm (W) x 2.1 mm (H) size for the category and its read and write speed ratings are visible on its body, along with its SDXC UHS-II interface and UHS speed class 3 speed class symbols.

By utilizing the new UHS-II 4-channel serial bus with contacts for 17 pin configuration the card operates at UHS-II bus modes HD312 (3.12 Gbps) and FD156 (1.56 Gbps). In UHS-II devices, Toshiba claims the card can provide up to 260 MB/s read and 240 MB/s write. Still, the card is backward compatible with UHS-I and conventional SD devices. At UHS-I can operate up to 104 MB/s bus speed (SDR104). Toshiba says it provides 95 MB/s read and 90 MB/s write speed in UHS-I mode. Conventional SD operation is quoted as 25 MB/s bus speed for 23 MB/s read and write.

It's time to run some benchmarks with the new SD card. For our tests, we measured speeds of the Toshiba Exceria PRO 64GB SDXC UHS-II card using a Panasonic AJMPD1 USB 3.0 card reader. The reader was plugged into a USB3.0 port of a PC, with the following specs:

As it was expected, in order to get the full speeds out of the Exceria Pro UHS-II, you should use a UHS-II compatible reader. The card performed at 247.6 MB/s sequential read and 214.5 MB/s sequential write.

When used in a UHS-I card reader such as the Kingston fcr-h23, the card reverted to UHS-I speeds. It gave 87.3 MB/s read and 79.99 MB/s write.

CrystalDiskMark
Sequential Read
Sequential Write
Kingston UltimateX 32GB SDHC Class 10
33.58 MB/s
17.02 MB/s
Kingston UltimateXX 32GB SDHC
92.97 MB/s
48.59 MB/s
Sandisk Extreme 32GB SDHC UHS-I
47.83 MB/s
43.99 MB/s
Toshiba Exceria PRO 64GB SDXC UHS-II
247.6 MB/s
214.5 MB/s
Toshiba Exceria PRO 32GB SDHC UHS-II
236.5 MB/s
209.8 MB/s

Consequently, cameras that do not support UHS-II will force the Exceria Pro UHS-II card operate at UHS-I speed.


3. Summary

The Toshiba Exceria Pro SD Memory Cards (UHS-II U3) have been designed to offer pure speed. We measured impressive sequential speeds of 247 MB/s for read and 214 MB/s for write. Those figures are close to the maximum theoretical performance quoted by Toshiba. Of course, the card should operate in UHS-II bus modes HD312 (3.12 Gbps) in order to achieve this performance. So make sure your card reader or your camera is compatible with UHS-II speeds before buying this card. In UHS-I operation, the Exceria Pro 64GB SDXC will top at about 87 MB/s read and 80 MB/s write, depending on the host device.

Backed by a long, five-year warranty, the Toshiba Exceria Pro 64GB retails on Amazon for $250. In terms of performance, it should be competing with Sandisk's Extreme Pro 64 GB Secure Digital Extended Capacity (SDXC), which can be found online for significantly less - for about $130. We hope to get our hands on Sandisk's proposal soon in order to run some benchmarks with it.

For those seeking speed at any cost, the Toshiba Exceria Pro UHS-II gets a recommendation. It will provide excellent performance in UHS-II devices and offer speeds that match even some low-end SSDs.
