1. Introduction
CyQ've
2400Plus IDE DVD+RW - Page
1
Introduction
M.E.T
technologies presents another DVD+RW/+R recorder, the CyQ've 2400Plus. The external
drive is actually a combo one, since it also supports CD-R/RW writing. We have
already tested some of the latest DVD+RW/+R drives from Ricoh and Philips, and
the comparisons are expected to be at least interesting.
The drive
CyQ've
2400Plus supports 12x (CD) and 2.4x DVD+R/+RW writing, 10x re-writing, 32x (CD)
and 8x (DVD-ROM/+R/+RW) reading. The drive also supports "JustLink"
technology in order to avoid buffer underruns, for the CD-R/RW format. Its writing
speeds are: 2x, 4x, 8x, 12x (CLV) writing and 4x, 10x (CLV) re-writing. The
supported connections for the CyQ've 2400Plus are Cardbus/IEEE1394/USB2.0 interface,
compatible to PC and notebooks.
The
writing speed for DVD+R/+RW format is 2.4X CLV (X factor is now 1385Kb/s)
which is equivalent to 20x for CD-RW drives. Although the media support both
CAV and CLV writing modes, the drive incorporates the CLV recording. The differences
are the same as in the CD writing, meaning that the overall writing speed with
CLV will be quicker. However random access with CAV is quicker. Due to 'Lossless
Linking' we don't have buffer underrun problems in DVD+R/+RW formats. The drive
doesn't support Mt. Rainier in both CD/DVD formats. The next generation of DVD+RW
recorders are supposed to support the DVD-MRW format (Mount Rainier at DVD format).
Currently, the following writing formats are supported:
1) DVD+R/+RW: DVD-ROM, DVD-Video, Random Access Write
2) CD-R/RW: CD-DA, CD-ROM, CD-ROM XA, CD Extra, CD-I, Mixed-ModeCD, VideoCD,
PhotoCD, CD TEXT and Bootable CD.
The package
The retail package includes: CyQ've 2400Plus, an installation guide, 1 piece
of Ricoh 74min 1-24X CD-R media, 1 piece of Ricoh DVD+RW & DVD+R media,
a USB2.0 connection cable and a power cable. The package also included a USB2.0
host adapter card by Tekram, and an installation manual for it. The attached
software programs are Nero v5.582, InCD v3.2x, PowerDVD v4.0x for DVD Video
playback and Unlead VideoStudio v5.0 for Video editing. There are also available
an installation CD-ROm for the attached USB2.0 adapter card.The expected price
of the drive is around Euro 600 (?)
The external drive is placed in a stylish plastic case. In the
front of the drive you can see the "CyQ've", "JustLink",
"High-Speed RW" and "DVD+RW/+R" logos, among with one orange
led, the eject button and the headphone input jack/volume selector: The power
button of the drive is located in the right side, and the power indication led
is placed right above it, as you can see in the picture below.

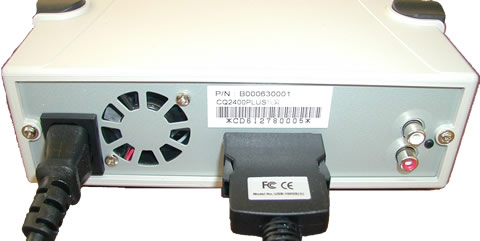

On the back of the drive there are the power conector, the interface
conector, audio output and a cooling fan.
Installation
CyQ've 2400Plus was identified as "CQ2400PLUS"
under WinXP.. The drive was easily installed to our test PC through USB2.0 interface.
The drive came with firmware version v1.27 installed. Nero reports
that the available cache buffer is 2MB.
The "high compatibility" mode is also present in the
writing software. It is included in order to allow users to create DVD according
to the DVD ROM standard. As you may know the minimum data on a pressed DVD is
about 1Gb or 30 mm of data. In some DVD drives and players having less data
may cause incompatibility issues. The feature allows the users to write the
minimum amount of data and the actual user data should not be less than 1Gb
or 30mm.
2. Data CD Tests
CyQ've
2400Plus IDE DVD+RW - Page
2
Data CD Tests

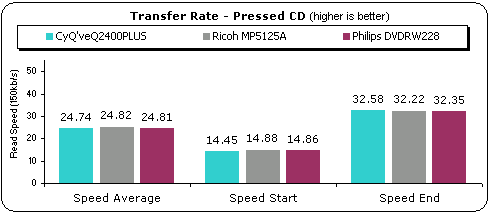

- Pressed CD results (Click
to see the CD Speed Graphs)
CyQ've 2400Plus supports 32X average reading speed, for the CD
format. The drive gave a 32.58X average by the end of the CDSpeed test, and
as you can see in the graph above, both Ricoh MP5125A and Philips DVDRW228 gave
a similar reading speed.

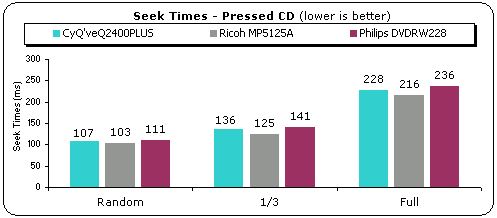

In the same test, we measured the seek time of the drive. Again all the
drives gave adequate results, with Ricoh MP5125A to have a slight lead in the
test. However the differences are small considering that the time is measured
in mseconds.

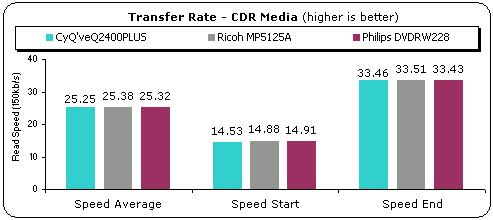

- CDR Media results (Click
to see the CD Speed Graphs)
The drives improved their reading performance with the CDR media.
The small speed differences are not worth to mention and sometimes can be included
in the measurement errors.

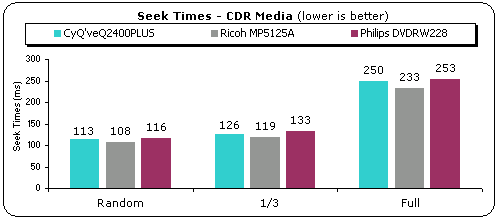

In the seek test, the drives were slower in the Full seek mode,
and Ricoh MP5125A is again a little faster with 233 msec.
- HS-RW media (Click
to see the CD Speed Graphs)
For the RW tests we used the Ricoh HS-RW media.
All the drives started the reading in the same speed, and CyQ've and Ricoh gave
the same average reading speed (23.4X). The Philips drive lowered the speed
by the end of the test, giving a lower average.
3. CD Error Correction tests
CyQ've
2400Plus IDE DVD+RW - Page
3
CD Error Correction tests
In the following tests we examine the error correction capabilities
of CyQ've 2400Plus, with for the CD format.. We use the built-in Nero CD Speed
v0.99.3 CD Quality test. The reference test media come from ALMEDIO and Philips
corporations.
- ABEX TCD-714R
This test disc has been produced for measuring and adjusting the
tracking servo characteristics of the drive, against the eccentricity of compact
disc. The fundamental characteristics of this disc other than on eccentricity
are compatible with the standards in "Red Booklet".
The test examines the ability to trace eccentricity of the compact
disc player. In reference to a zero eccentricity disc, we check the following
phenomena:
a. There is skipping of sound tracks
b. Requires excess time to locate or cannot locate the starting point of the
tune.
c. Mechanical noise is heard from the CD player
d. Requires excess time to read or cannot read the TOC information
e. The spindle motor runs wild
Physical characteristics of disc:
Eccentricity: 280 micro meters
Deviation: 3 micro meters
Our tests did not show any of the above negative behaviors from
the CyQ've 2400Plus. The drive kept a stable reading speed to 8.6X and did not
gave any read errors, as it was expected.
- ABEX TCD-721R
This test disc is produced with the objective of measuring and
adjusting the CD player's tracking servo characteristics and error correction
ability against scratches on the disc. Artificial scratches with lengths from
1.8 mm to 3.0 mm are found on the disc. The phenomenon that may occur during
playback of the disc contents are:
a. Noise is created
b. The sound skips
c. The same section is repeatedly played
d. Start of the tune cannot be detected
e. The spindle motor rotates erratically (reverse rotation, change in revolution,
e.t.c)

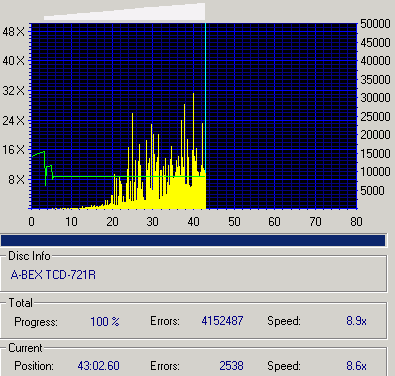

Nero CD Speed showed that the drive gave 4152487 read errors during the reading
process. The read errors occurred when the size of the scratch on the disc became
large enough, and they kept coming up until the end of the disc. The reading
speed was constant to 8.6X from the 6min area till the end. We cannot say that
the drive gave very good results in the test, and definitely error correction
needs to be improved.

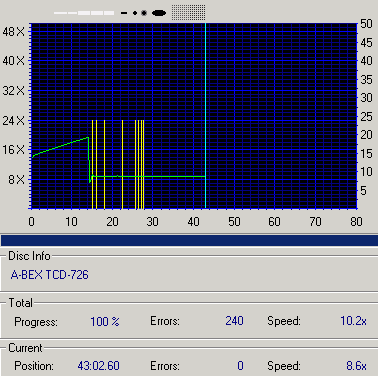

- ABEX TCD-726
This disc is produced for measurement and adjustment of error
ability and tracking / focusing servo characteristics of a CD player against
defects included in some discs. Three kind of defects, interruption, black dots
and fingerprints are prepared in this disc. The interruption defects are sized
from 0.5 mm to 1.0 mm. The black dots are from 0.4 mm to 1.0 mm. Lastly, the
fingerprints are from 65 to 75 micro meters.
The drive started the reading test at 14X and accelerated to 19X
until the 16min, where the speed was reduced to 8.6X. Some read errors occurred
in the data interrupted areas, and also in the black doted areas of the disc.
The total amount of the read errors were 240. The drive managed to pass the
fingerprint area with no errors.
- PHILIPS SBC-444A
Another test disc that comes from Philips. The purpose of this
disc is adjustment / checking of the CD player. Note that the disc is not within
specification concerning local defects. The defects found on the disc are interruptions
of the information layer, black dots at out-read area, and simulated fingerprint.
As in the previous test, the read errors were noticed in the interrupted
areas, but the local black dots and fingerprints did not make the reading more
difficult.
4. DVD reading tests
CyQ've
2400Plus IDE DVD+RW - Page
4
DVD reading tests
- Test Method
We used Nero DVD Speed to run DVD tests (DMA enabled on all drives). All tests
were performed at least 3 times with the same DVD title (we show the average
results). The tests discs were one single sided, single layer DVD-ROM, one single
sided, dual layer DVD-ROM, and DVD-R,-RW, +R and DVD+RW media.
- Single Layer DVD-ROM reading: (Click
for DVDSpeed results)
CyQ've 2400 Plus read the DVD-ROM disc at 8087KB/sec. The increased speed
in the end (10810KB/sec) makes the drive faster than Ricoh MP5125A and Philips
DVDRW228.
In the random seek test, the CyQ've was fast with 131 msec. What we found
strange was the drive's behavior in the Full seek mode, where the 298msec result
is considered high.

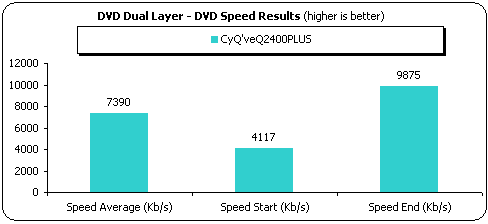

- Dual Layer DVD-ROM reading: (Click
for DVDSpeed results)
The reading performance of CyQ've 2400Plus with dual layer DVD
media is not as high as in the previous test. The average speed is 7390 Kb/sec.
The seek times for the dual layer disc are even higher the single layer one.
- DVD Ripping Tests
We measured the DVD Ripping speed using the "Matrix" DVD Video title
and DVD Decrypter v3.0 software.
CyQ've 2400Plus ripped the movie to the hard disk at 7892 kb/s.
In the same test Ricoh MP5125A is faster with 8021kb/sec and Philips DVDRW228
gave approximately the same ripping speed with the CyQ've drive.

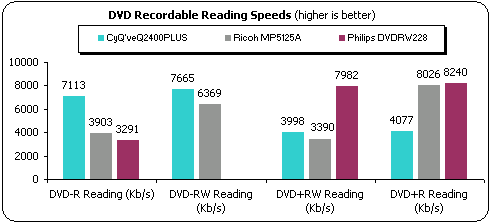

- DVD reading Tests
The chart below shows the Nero DVD Speed results of both drives with DVD+R,
DVD-R,
DVD-RW
and DVD+RW
media.
The CyQ've 2400Plus managed to read the DVD-R/-RW test discs in a high average
speed. However, the drive was not that fast with the DVD+RW/+R media. In the
DVD+RW reading test the drive gets the second position with 3998kb/sec, and
in the +R test the third position, since Philips DVDRW228 and Ricoh MP5125A
are faster.
5. DVD Error Correction tests
CyQ've
2400Plus IDE DVD+RW
- Page 5
DVD Error Correction
tests
In the following tests we examine the DVD error correction capabilities
of CyQ've 2400Plus. For the tests we used CDVD Benchmark v1.21 and Nero DVD
Speed . The reference test media comes from ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with a 4.7GB capacity,
in which there are scratches with dimensions from 26 to 48 mm. The following
picture comes from CDVD Benchmark v1.21.
CyQ've 2400Plus did not manage to finish the reading test. The requirements
of the test exceeded the drive's error correction capabilities and serious read
errors were occurred by the end of the test, making the drive unable to read
all the disc contents.

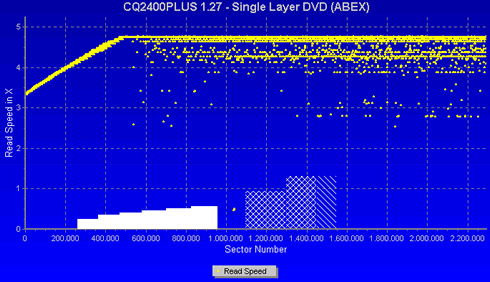

ABEX TDR-825
This is also a single sided, single layer DVD-ROM with a 4.7GB
capacity. The data structure of the disc is exactly the same as the TDR-821,
with the difference that there no scratches on it but defected areas with dimensions
from 0.5 to 1.1 mm. There also fingerprints sized from 65 to 75 mm.
The drive did not have any problems to read the disc contents. As you can see
from the above graph, the yellow dots correspond to the current speed in each
area of the disc. No read errors were reported.
- Dual Layer media
ABEX TDR-841
This is a 8.5GB dual layer, single sided DVD-ROM disc with artificial
scratches with dimensions from 0.4 to 48 mm, in both layers.
The CDVD Benchmark showed that the drive cannot handle heavily
scratched DVD-ROM media. The drive stopped reading by the end of the first layer,
and the test was terminated. The result was expected, since the CyQ've 2400Plus
had previously failed to successfully finish the single layer scratched DVD-ROM
reading test.
ABEX TDR-845
The disc is a single sided, dual layer DVD-ROM disc with a capacity
of 8.5GB. The only difference between the TDR-845 and the TDR-841 is that the
first includes defected areas and fingerprints. The dimensions of the defected
areas are ranged from 0.5 to 1.1 mm and the fingerprints are sized from 0.065
to 0.075 mm.
CyQ've 2400Plus did not have any problems to overcome the defected
areas and successfully finished the reading test.
ABEX TDV-541
The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with
capacity of 8.5GB. The disc is based upon the TDV-540 series which is designed
for inspection and adjustment of DVD-VIDEO players. The discs check the layer
switch operation from layer 0 to layer 1 and also include test pictures and
test signals for DVD sound files. The current TDV-541 checks also the error
correction capabilities of the drive and includes scratches from 1.8 to 3 mm.
For another time, the CyQ've gave a read error in the scratched
areas of the test disc, and the test was terminated.

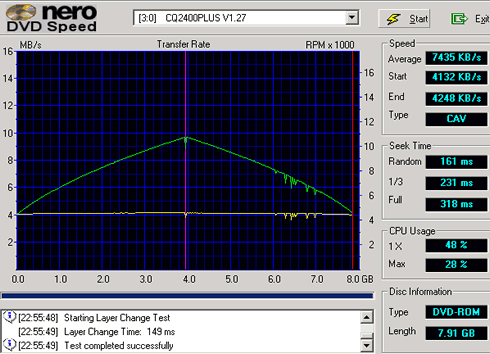

ABEX TDV-545
The TDV-545 disc is based on the TDV-540 series. It is a single
sided, dual layer DVD-VIDEO disc with a capacity of 8.5GB. The TDV-545 includes
artificial black dots on the data surface, sized from 0.8 to 1.0 mm. It has
also 0.065 - 0.075 mm fingerprints.
Black dots and fingerprints were not a problem for the drive.
The test was successful, and the layer change time was 149msec.
6. CloneCD Reading Tests
CyQ've
2400Plus IDE DVD+RW
- Page 6
CloneCD Reading
Tests
- Procedure
We used CloneCD and 4 original CDs - Serious Sam 2 (SafeDisc 2), Desperados
(LaserLock 2), V-Rally 2 Expert (SecuROM 2) and NBA Jam Extreme (PSX) - in order
to test the reading time of the drives. We also tested the reading performance
with backups of the original CDs, since the reading speed varies between original
and backup media. The following pictures show the drive reading/writing capabilities
as CloneCD reports:
- PSX Pressed Media
For this test we used the PSX game 'NBA Jam Extreme' and we ripped the image
to the HD with CloneCD. CyQ've needed 1:49min to finish the requested task,
just 2 seconds slower than Philips DVDRW228.
- SafeDisc v.2 Results
With both pressed and backup test discs, CyQ've 2400Plus was faster than
the other drives, with small differences.
- LaserLock v.2 Results
With the LaserLock v.2 protected disc, CyQ've 2400Plus was slightly
slower than the other drives, especially in the test with the backup CD.
- SecuROM Results
CyQ've 2400Plus can read SubChannel data from Data/Audio tracks. Ricoh MP5125A
is the faster drive in the pressed CD test, but CyQ've 2400Plus leads the backup
CD test.
7. DAE Tests
CyQ've
2400Plus IDE DVD+RW
- Page 7
DAE Tests
- DAE features
We
used EAC v0.9 reports that CyQ've 2400Plus supports caching of data, "Accurate
Stream" and retrieves "C2" error info.
- Pressed AudioCD results
In this test we examine the speed of the DAE of the drives. CyQ've 2400Plus
ripped the audio files to the hard disk 22.5X average speed. The Ricoh and Philips
drives are approximately 1X faster.

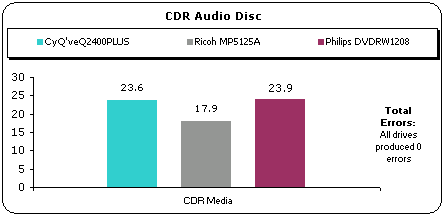

- CDR AudioCD results
With CD-R media, the CyQ've improved the ripping speed to 23.6X close to
Philips DVDRW228, and Ricoh MP5125A was slower with 17.9X.
- EAC Secure Extract Ripping mode
EAC's secure extract ripping mode results, which ensures maximum produced
WAV quality. Note that for each drive we used the build-in detection function:
Tested Drives
|
Average DAE Speed (X)
|
Pressed
|
CDR
|
Cy'Qve 2400Plus
|
19.8
|
20.1
|
Ricoh MP5125A
|
12.3
|
11.6
|
- Advanced DAE Quality

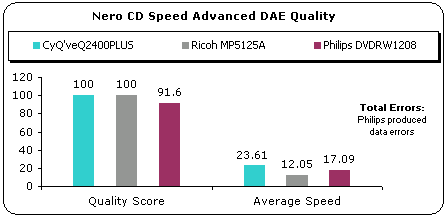

CyQ've and Ricoh drives got a 100 score (best) in the Nero CD Speed Advanced
DAE test. The average speed for CyQ've 2400Plus was 23.61X. The drive can also
read data from SubChannel and CD Text.
- CD-Check Audio Test Disc
Error Level
|
1
|
2
|
3
|
4
|
5
|
CyQ've 2400Plus
|
5/5
|
3/5
|
1/5
|
0/5
|
0/5
|
The CyQ've drive showed poor error correction abilities with the CD-Check
audio test disc. Only the 1st audio track was playbacked correctly without any
error noises. The result could be expected after the previous error correction
test results, with the ABEX media.
- Bad CDR Media results
We used CD DAE 99 software to rip the whole disc (756539616 sectors) to
the hard disk.
|
Average Speed (X)
|
Errors
|
Errors Of Total Disc (%)
|
Cy'Qve 2400Plus
|
8.6
|
115528060
|
15.27
|
Ricoh MP5125A
|
8.7
|
106648871
|
14.1
|
Philips DVDRW1208
|
8.6
|
50368737
|
6.66
|
CyQ've 2400Plus ripped the files at 8.6X average speed, but the 15.27% of
the disc contents were incorrect.
- Ripping 90 and 99mins AudioCDs
Tested drives
|
Ripping up to
|
Cy'Qve 2400Plus
|
86 min
|
- Reading/Ripping Protected AudioCDs
For the test procedure we used 2 protected AudioCDs, which we
tested in both recognition and ripping (with EAC) processes:
* Pressed AudioCD with Sony Key2Audio (Celine Dion - New Day Has
Come)
* Pressed AudioCD with Cactus Data Shield 200 (Natalie Imbruglia - White Lilies
Island)
|
Key2Audio
|
CDS200
|
EAC
|
CyQ've 2400Plus
|
Cannot recognize disc contents
|
Rips entire disc without problems
|
The CyQ've drive did not any problems to rip the audio files of CDS200 discs.
On the other hand, the Key2Audio protection was hard for the drive and the inserted
disc was not even recognized.
8. CDR Tests
CyQ've
2400Plus IDE DVD+RW - Page
8
CDR Tests
We tested the drive with latest version of Nero/CloneCD. CyQ've 2400Plus supports
the 2X, 4X, 8X and 12X writing speeds. For all the recording tests, we used
slightly more than 80min data (80:01:47).

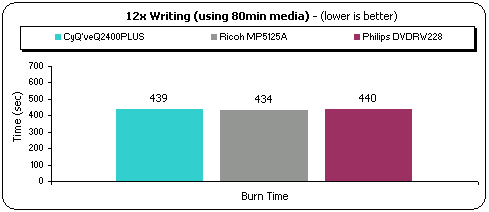

- Recording Tests
CyQ've 2400Plus finished the task in 7:19 min. The recording
time result is very close to Philips DVDRW228, and Ricoh MP5125A is 5 seconds
faster.
- Writing quality

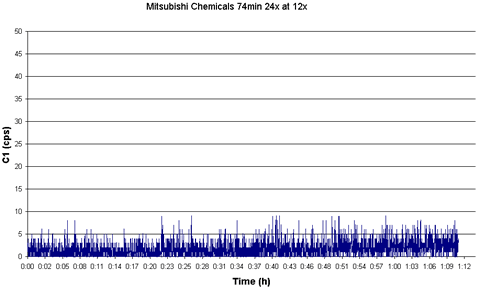

We used Mitsubishi Chemicals and Taiyo Yuden media and burned them at 12x
with CyQ've 2400Plus. We used Nero 5.5.9.6 as a CDR software. The produced CDs,
were measured from DigitalDrives
and results are illustrated in the following tables.
Brand
|
C1
|
C2
|
Average Burning Time (mins)
|
Max
|
Average
|
Max
|
Average
|
Taiyo Yuden 74min (24x)
|
19
|
1.6
|
0
|
6:46
|
Mitsubishi Chemicals 80min (24x)
|
41
|
3.5
|
7:19
|
The produced writing quality is high. Notice that the C1 error rate at the
12x recording speed is lower for the 74min media.
- Other features
Overburning
|
Up to 99 min
|
CD text reading/writing
|
Yes
|
- CloneCD Writing Tests
CloneCD
reports that the drive supports the DAO-RAW feature. We performed our usual
tests and we confirmed that the drive supports the DAO-RAW writing mode at the
following CD protections: SafeDisc 1, LaserLock 1/2 and SecuROM 2 CD protections.
SD2 Support
For the SD2 test we used the "Emperor: Battle for Dune", "Max
Payne", "Serious Sam - The Second Encounter" and "Medal
of Honour Allied Assault" game titles. We used the drive both as reader/writer
at the maximum reading/recording speed. Unfortunately, the produced backups
did not work at any drive we tried to. With CloneCD v4.x "Amplify Weak
Sectors" setting this can be overpassed.
9. HS-RW Writing Tests
CyQ've
2400Plus IDE DVD+RW - Page
9
HS-RW Writing Tests
We used Nero 5.5.9.6 for writing CDs in maximum RW writing speed for all
the tested drives in 10x HS-RW media. All the drives in the test support the
HS-RW writing standard:
The writing times are almost the same for all the drives. In the quick erase
process, Ricoh MP5125A is faster with only 30seconds.
- Packet Writing Tests
We used InCD v3.28 and Ricoh HS-RW media for all Packet Writing tests. The
formatting of the media takes around 10min. The formatted disc had 530mbs of
free space. We copied a 403 MB file (403.147 kbs) from a Hard Disk (on the same
PC as the writers) to the formatted RW media-using explorer (we dragged and
dropped) we completed the test twice to eliminate possible time measurement
faults and user errors:
The writing speed of all the drives is approximately 7X. In the reading part,
Ricoh MP5125A is faster with 16.72X and CyQ've 2400Plus gets the third best
place with 13.6X.
10. DVD Tests
CyQ've
2400Plus IDE DVD+RW - Page
10
DVD Tests
- Writing Performance
We used Nero 5.5.9.6 and written the same amount of data for all the drives.
The media DVD+RW/+R come from Ricoh. The results are listed in the following
table.
DVD Tests
|
Drives
|
Writing Speed
|
Average Writing Time (min)
|
CyQ've 2400Plus DVD+RW
|
2.4x
|
23:30
|
CyQ've 2400Plus DVD+R
|
2.4x
|
24:32
|
Ricoh MP5125A DVD+RW
|
2.4x
|
23:05
|
Ricoh MP5125A DVD+R
|
2.4x
|
24:47
|
Ricoh MP5125A was 25 seconds faster than CyQ've 2400Plus in the DVD+RW writing
test. With DVD+R media, both drives gave higher writing times, but this time
the CyQ've was 15 seconds faster.
The following pictures come from Nero, after successful DVD+RW and DVD+R
burnings. The amount of data is the same in both tests.
- Erase Time Performance
Average Erase Time (mins)
|
Drives
|
Quick
|
Full
|
CyQ've 2400Plus DVD+RW
|
32secs
|
23:56
|
Ricoh MP5125A DVD+RW
|
28secs
|
23:24
|
Ricoh MP5125A has low erase times - 32 seconds for quick erase and 2.24mins
for full erase. CyQ've 2400Plus follows with slightly higher times.
- Packet Writing Performance
We used the same file/methodology we are using for our CD packet-writing
test. Ricoh DVD+RW MP5125A needs less than 2minutes to write the test file.
CyQ've 2400Plus is also fast and gave a 2.4X writing speed and a 2.26X in the
reading test.
Packet Writing/Reading Tests
|
Drives
|
Average Writing Speed
|
Average Reading Speed
|
CyQ've 2400Plus DVD+RW
|
2.4x
|
2.26x
|
Ricoh MP5125A DVD+RW (2.4x)
|
2.46x
|
2.38x
|
11. Conclusion
CyQ've
2400Plus IDE DVD+RW - Page
11
Conclusion
Positive
(+)
|
Negative
(-)
|
-
Fast DVD+RW/+R recorder
- "Just-Link" anti-coaster technology
- Complete retail package
- Optional IEEE 1394/USB2.0 interface
- Very good data reading performance with CDs/HS-RW media
- Good CD-R writing quality
- Good reading/writing packet writing performance
- Good seek times
- Very good DVD-ROM/-R/-RW reading performance
- Good DVD ripping performance
- Supports HS-RW standard (10x rewrite)
- Supports DAO-RAW
- Supports reading of SubChannel data
- Supports CD-Text (reading/writing)
- Can handle CD200 audio discs
|
-
Low CD/DVD error correction capabilities
- DVD+RW/+R reading speed needs improvement
- Failed to backup SD2 protected CDs
- DAE speed limited to 24X
- Cannot handle Key2Audio discs
- Bad DAE quality with dusted/scratched CDR media
|
The
performance of the CyQ've 2400Plus seems to meet the drive's specifications.
The drive comes in a complete retail package with the installation manuals,
software and the essential DVD+RW/+R media, for your first DVD burnings. The
flexible connecting interface provides easiness of use, and the external case
looks solid and stylish. The tests showed that the CyQ've 2400Plus is a fast
DVD+RW/+R writer, can compete other drives in the category in terms of reading
speed, especially for the DVD-RW/-R and DVD-ROM formats and the DVD-Video ripping
speed is adequate. Regarding to the CD format, the 12X maximum supported writing
speed will produce high quality CD-R recordings, the reading speed is high and
HS-RW writing and packet writing is also fast. In addition, the drive supports
the DAO-RAW writing mode, can read Subchannel data, fully recognizes CDS200
audio protected discs and supports CD-Text.
However, the CyQ've 2400Plus seems to have some problems in both CD/DVD formats,
when it comes to error correction matters. The drive gave back read errors in
the corresponding tests with ABEX media, especially with the discs which were
artificially scratched. Reading was very hard for the drive and the tests were
terminated. The same results were also confirmed in the scratched / bad conditioned
disc test we used to run with every drive we test.
The CyQ've 2400Plus will also not be the best solution for all those who
wish to backup their favorite SD2 titles, and as for the audiophiles, the DAE
speed provided will be less than 24X, and there is no support for Key2Audio
protected discs. Last, we mention that the DVD+RW/+R reading speeds could be
higher.
