1. Features - Installation
Pioneer
DVR-SK12D Dual DVD±RW recorder -
Page 1
Toshiba,
NEC , Teac and other manufacturers of internal CD/DVD drives for notebooks /
laptops are working hard to implement high CD/DVD writing speeds for 2.5 inch
devices. And while without doubt, the progress in performance and capabilities
of ATAPI/IDE internal drives has been much more pronounced, many existing laptop
users have been left with a choice of either remaining with their slow drives
originally installed on the laptop, or to purchase a new laptop, simply to gain
higher CD/DVD recording performance. In the first case the user must forsake
performance and capabilities, in the second it can turn out to be quite a costly
exercise.
Well, fear no more, for a solution is at hand. A new slim drive at an affordable
price, with the performance and capabilities of a half height drive.
While there are certainly drives cheaper, faster and with more capabilities
than Pioneer’s newly released DVR-SK12D slim external drive, there are
none matching its performance in the slim drive category, and it gives a lot
of half height drives a scare as well. It is certainly an ideal solution for
anyone with a laptop PC not having a CD/DVD recorder mounted internally on
the laptop. It is a light, compact drive delivering extremely good performance
and at a good price coming in at around €300. Because it is a slim external
drive, it can be easily carried around in the compartment of a laptop carry
case.
Pioneer’s new DVR-SK12D external slim drive offers speed. Add to that
CD-R/RW and DVD+-R/RW support and you now have more options available to you.
But don’t buy this DVD writer just for its speed; buy it for its great
looks and ultra-portability.
- Features
The
Pioneer DVR-SK12D can be connected either through USB 2.0, USB 1.1, (according
to the manufacturer, the unit will not demonstrate its full performance with
USB 1.1) or IEEE1394 interfaces, providing easy and fast installation on your
notebook or PC.
Writes: DVD-R, DVD-RW, +R, +RW, CD-R, CD-RW , DVD-R 2x*, DVD-RW 2x* , +R 2.4x,
+RW 2.4x , CD-R 16x , CD-RW 10x
The drive supports recording of all the recordable/rewritable CD/DVD formats,
using "Buffer Under-Run" protection for safe CD/DVD burning.
Both vertical and horizontal mounting is available saving space on your desktop.
For vertical operation, Pioneer offers a stylish stand bundled in the retail
package.
- Specification
READ SPEED |
DISC Format
|
Transfer Speed
|
DVD-ROM (Single layer)
|
8X CAV
|
DVD-ROM (Dual layer)
|
6X CAV
|
DVD-R Ver.1.0
|
3.6X CAV
|
DVD-R Ver.2.0 / DVD-RW Ver.1.0
and Ver.1.1
|
4X CAV
|
+R/+RW
|
4X CAV
|
DVD-Video with CSS (Single
layer)
|
4X CAV
|
DVD-Video with CSS (Dual layer)
|
3.6X CAV
|
CD-ROM
|
24X CAV
|
Video CD
|
10X CAV
|
CD-DA,CD- TEXT,Mixed-CD,CD-Extra
(Play audio)
|
10X CAV
|
CD-DA,CD- TEXT,Mixed-CD,CD-Extra
(Data extraction)
|
24X CAV
|
CD-R
|
24X CAV
|
CD-RW (Multi Speed, High Speed,
Ultra Speed)
|
24X CAV
|
Note: (*1) Rotational speed
of 8cm media is same as 12cm media. |
WRITE SPEED |
DISC Format
|
Transfer Speed
|
DVD-R
|
1X CLV
|
2X CLV (*3)
|
DVD-RW
|
1X CLV
|
2X CLV (*4)
|
8cm DVD-R/RW
|
1X CLV
|
2X CLV
|
DVD+R
|
2.4X CLV (*5)
|
DVD+RW
|
2.4X CLV (*5)
|
8cm +R/+RW
|
2.4X CLV (*5)
|
CD-R
|
4X CLV
|
8X CLV
|
12X Zone-CLV
|
16X Zone-CLV
|
Multi Speed CD-RW
|
4X CLV
|
High Speed CD-RW
|
4X CLV
|
10X CLV
|
8cm CD-R
|
4X CLV
|
8X CLV
|
8cm Multi Speed CD-RW
|
4X CLV
|
8cm High Speed CD-RW
|
4X CLV
|
10X CLV
|
Note: (*1)
Ultra Speed CD-RW is not supported. (Support read only)
(*2)
Scanning velocity: DVD 3.49 m/s, CD 1.2 m/s
(*3)
4X-Speed DVD-R and normal (1X Speed) DVD-R that the
drive
supports 2X write only.
(*4)
2X-Speed DVD-RW only.
(*5) 4X +R and 4X +RW are supported. But the drive
supports
2.4X
write only. |
Access Time
(Random Average) |
DVD-ROM 140
msec
CD-ROM 130 msec |
Interface: |
IEEE1394 & USB2.0 |
Mounting Orientation |
Horizontal and Verticle |
Interface |
ATAPI (PIO Mode4)/Multi Word DMA Mode2)
Ultra
DMA33(Ultra DMA Mode2) |
Data Buffer (size) |
2 MBytes |
Power |
AC110 - 240V (50/60Hz) |
Weight |
490g |
|
Disc Formats Supported:
- KODAK Photo CD Single and Multi-session
|
|
|
|
|
|
|
- Read/Write DVD-R Ver. 2.00
for General
|
- Read/Write DVD-RW Ver.1.0 & 1.1
|
- Read/Write +R Ver. 1.0 & 1.1
|
|
Note: DVD-RAM is not supported. |
Nero InfoTool confirms the official specifications, as can be seen below:
The drive has a 2MB cache memory. RAO DAO 96 wriitng mode is also supported.
- European retail package
The
retail package includes the Pioneer portable DVR-SK12D drive, a user manual,
Firewire cable, USB2 cable, vertical mounting stand, application software
and AC adapter (input 100-240V AC 50/60 Hz, output 5V DC/2.0 Amp). The application
software comes on a single DVD and includes:
Pinnacle:
Instant CD/DVD 8 (including InstantCopy, InstantCinema and Expression)
Instant VideoAlbum
Instant PhotoAlbum
Studio 8 SE
InterVideo: WinDVD 4
The DVR-SK12D can be found online at a price of less than under $300.
The drive itself is quite stylish, being very light, slim and compact. On
the top side when layed flat, (as can be seen on photo below), there are air
vents on the top right hand side and just below this is a plastic panel with
the Pioneer logo showing through. Also behind the panel is the power indicator
light which when the unit is powered on, turns blue if the connection to the
PC is USB 2.0, green for USB 1.1, and orange for IEEE 1394.
The power switch is located on the side and has three positions: ON, AUTO
and OFF. The unit can be turned on and off by sliding the switch to the ON
and OFF position respectively, or it can be left in the AUTO position to turn
on and off automatically when the unit is connected to a computer.
Looking at the front of the unit, the loading tray has the usual load/eject
button, busy indicator light, and forced eject hole.
The rear of the unit has the interface connections for USB 2.0./USB 1.1 and
IEEE 1394, as well as the DC power input connection jack.
The unit can be fitted with a vertical mounting stand (supplied) being more
compact and taking up less space when placed on a desktop.
- Installation
The Pioneer DVR-SK12D was connected to our test PC and was identified as
device "Pioneer DVD-RW DVR-K12D" under WinXP. All tests were done
with firmware revision v1.00.
For our test line-up we decided to put the DVR-SK12D alone since currently
there are not any competitive drives in the market. Putting the drive against
any internal DVD dual writer would not be a fair comparison.
2. CD Reading Tests
Pioneer DVR-SK12D Dual DVD±R recorder - Page 2
CD Reading Tests
- Pressed CD results
Pioneer
DVR-SK12D supports 24x CAV reading speed with CD-ROM/-R media.
On this test we used an 80 min data pressed disc with the latest version of
Nero CDSpeed to test the reading performance of the drive. As can bee seen
from the graph below, starting from the innermost tracks the drive exhibited
a speed of 11.47x, increasing linearly as it reached the outermost tracks and
a speed of 25.10x. The average speed was 18.95x.
According to the specifications, random seek times for the drive are approximately
130msec. The results we obtained with Nero were very close to the manufacturers
specifications. For the Full stroke the drive was slower, with 274msec. The
performance is compatible to other DVD writers, even to some ATAPI drives.
- CDR Media results
For
this test we used an exact copy of the previously tested pressed disc that
was written onto a cd-r media. Nero CDSpeed reports results a little higher
than in the previous test at all tested speeds. Again the speed increase from
inner to outer tracks is smooth and linear. The reading method was CAV and
the average reading speed was 19.18x.
On the seek time test for the same cd-r media, resulting times were lower
for the Random and 1/3 modes test in comparison with the pressed disc. However,
the full seek time increased (292ms).
- ReWritable Media
For this test we used 10x HS-RW media from Ricoh. The drive
read the disc at 24.69x and the seek times were not significantly different
from those for CD-R/ROM.
The
Pioneer DVR-K12D also supports reading of US-RW media. This time the drive
had some problems when reading our 24x US-RW disc from Mitsubishi Chemicals.
The reading speed dropped to 12x at around the 35min and 40min address marks
on the disc, as can be seen from the graph below.
3. CD Error Correction Tests
Pioneer
DVR-SK12D Dual DVD±R recorder -
Page 3
Error Correction Tests
Next we checked the drive's behavior when it comes to reading scratched /
defective discs. The test discs we used were the ABEX series from ALMEDIO.
- ABEX TCD-721R
Errors total
|
Num: 996439
|
Errors (Loudness) dB(A)
|
Num: 52683
|
Avg: -73.6 dB(A)
|
Max: -35.9 dB(A)
|
Error Muting Samples
|
Num: 3207
|
Avg: 1.1 Samples
|
Max: 40 Samples
|
Skips Samples
|
Num: 0
|
Avg: 0.0 Samples
|
Max: 0 Samples
|
Total Test Result
|
76.7 points (out of 100.0 maximum)
|
The Pioneer DVR-SK12D performed very well. As you can be seen from the graph
above, the majority of the red spikes (error level) are lower than the -60dB(A),
EAC's author limit for non-audible errors. The total average error loudness
level is only -73.6dB(A) with a maximum value at -35.9dB(A). No errors were
skipped and some samples were muted.
The total score for Pioneer DVR-SK12D is good and reaches 76.7 points out
of 100.
- ABEX TCD-726
Errors total
|
Num: 684
|
Errors (Loudness) dB(A)
|
Num:36
|
Avg:-69.4 dB(A)
|
Max: -59.6 dB(A)
|
Error Muting Samples
|
Num:5
|
Avg: 1.0 Samples
|
Max: 1 Samples
|
Skips Samples
|
Num: 0
|
Avg: 0.0 Samples
|
Max: 0 Samples
|
Total Test Result
|
90.6 points (out of 100.0 maximum)
|
Using the 726 Abex test disc, being more easily read by most drives, the drive
managed to rip the contents of the disc without problems. Comparing the original
.wav file (i.e. non deffective source) with the one produced after ripping
the defective disc, showed no major differences. No samples were skipped and
only a few number samples were muted.
The total score of the drive for this test is 90.6 points out of 100.
- CD-Check Audio Test Disc
The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction
/ Error correction capabilities of a CD player. The disc offers a signal combination
with disc error patterns to rate the drive's abilities to read and reproduce
music completely. Five tracks on the disc contain a sequence of progressively
difficult test tracks. These tracks are referred as Check Level-1 through Check
Level-5.
The files are reproduced (played) through a software multimedia player (i.e.
Windows Media Player). Each level is considered as passed, if the tone coming
out from the speakers is smooth, continuous without interruptions, skipping
or looping. The higher the Check Level passed, the more reliable the sound
reproduction of the tested device.
Error Level
|
1
|
2
|
3
|
4
|
5
|
Pioneer DVR-SK12D
|
5/5
|
5/5
|
5/5
|
5/5
|
0/5
|
The Pioneer DVR-SK12D passed the first 4 Check Levels of the test. The performance
reveals very good sound reproduction and error correction. The fifth level
includes an error size of 1.500mm, and the drive here produced audible clicks.
- Conclusion
Test Disc
|
Reading Speed
|
Score
|
ABEX TCD-721R
|
Max
|
76.7
|
ABEX TCD-726
|
90.6
|
Average Score
|
83.7
|
Combining the two scores from the tests, we estimate an average total score
of 83.7 points out of 100. The score is more than adequate. The Pioneer drive
managed to read severely scratched discs with a high accuracy, a fact that
may interest many users who are seeking reliable reproduction of discs.
4. DVD reading tests
Pioneer
DVR-SK12D Dual DVD±R recorder -
Page 4
DVD reading tests
- Single Layer PTP DVD-ROM
The
Pioneer DVR-SK12D supports an 8x CAV reading speed for single layer DVD-ROM
media. Nero CDSpeed reports that the drive reached the 8.16x maximum speed
at the end of the disc (i.e. outermost tracks) while the average speed was
6.07x under CAV mode.
While we may be used to higher DVD-ROM reading speeds from DVD writers (12x~16x),
it should not be forgotten that the DVR-SK12D is a slim and compact DVD recorder
and as such, the achievement of higher speeds is not an easy task.
Random seek time for the drive was faster than 140msec, as stated in the official
specifications. The performance in the full stroke could however have been
better.
- Dual Layer PTP DVD-ROM
Both
layers of the dual layer PTP DVD-ROM were read in the same manner. The Pioneer
DVR-SK12D supports 6x CAV reading of dual layer media. The disc was read accurately
under CAV mode, at an average speed of 4.57x.
In the same test the reported seek times are once again low and very close
to those of the single layer disc previously tested. The random seek test clocked
in at 132ms while the drive needed 288ms for the full seek test.
- Dual Layer OTP DVD-ROM
The
graphs presented below show the drives performance for OTP dual layer DVD-ROM
read under CAV mode.
The first layer was read exactly the same way as the first layer of the PTP
disc we tested previously. The second layer is located in the outer part of
the disc, so the drive starts reading from the outer tracks toward the inner
part of the disc. Here too the speed increase/decrease is linear and symmetrical
between the two layers.
The transfer rate graph is smooth and each layer was read at an average speed
of 4.54x under CAV mode.
- DVD Ripping Tests
We measured the DVD ripping speed of the Pioneer DVR-SK12D using the DVD
Decrypter
software. The DVD Video title is the "Matrix" pressed DVD.
Drive |
Average Ripping Speed |
Pioneer DVR-SK12D |
4.720 KB/s (3.4x) |
The Pioneer DVR-SK12D finished the ripping process after 19:08min. The average
reported ripping speed was 3.4x (4720 KB/sec) which is an acceptable speed.
Apart from the decrypting procedure, the Pioneer DVR-SK12D supports speeds
of 3.6x CAV reading for dual layer DVD-Video discs with CSS, and 4x CAV for
single layer DVD-ROM (with CSS).
- DVD Recordable / Rewritable reading Tests
The chart below shows the Nero CDSpeed results with the following media:
The drive supports 4x CAV reading with DVD±R/RW discs. Note that the
DVD-R Ver.1.0 media will be read at 3.6x CAV. The CDSpeed tests confirmed the
drive's specifications and each disc was read flawlessly at aproximately 3x
average.
5. DVD Error Correction Tests
Pioneer
DVR-SK12D Dual DVD±R recorder -
Page 5
DVD Error Correction
Tests
In the following tests we examined the DVD reading capabilities of
the Pioneer DVR-SK12D drive with scratched / defective
DVD media.
For the tests we used CDVD Benchmark and Nero CDSpeed. The reference test
media
come
from
ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its
surface has an artificial scratch with dimensions varying from 0.4 to 3.0 mm.
The following transfer rate graph comes from the CDVD Benchmark v1.21 transfer
rate test.
The drive read the disc at 6x CAV, which is 2x slower than the supported 8x
CAV for a single layer DVD-ROM. However, the scratched area did not affect
the read process at all. The disc was read accurately and no read errors were
reported. The performance reveals high error correction capabilities with scratched
single layer DVD-ROM discs.
ABEX TDR-825
This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The
data structure of the disc is exactly the same as that of the TDR-821, with
the difference that there are no scratches on it but instead defective areas
of dimensions ranging from 0.5 to 1.1 mm. There are also fingerprints ranging
between 65 and 75 micrometres.
Once again the disc was read without any read errors. The reading speed was
not reduced when the drive read the defective areas, and the test was finished
successfully.
- Dual Layer media
ABEX TDR-841
This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches
of dimensions ranging from 0.4 to 3.0mm, on both layers.
Keeping up the good performance exhibited thus far, the dual layer disc was
read at 6x CAV and no read errors were reported.
ABEX TDR-845
The disc is a single sided, dual layer DVD-ROM disc with capacity of 8.5GB.
The only difference between the TDR-845 and the TDR-841 is that the first includes
both defective areas and fingerprints. The dimensions of the defective areas
range from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micrometres.
As in the corresponding test with the ABEX TDR-825 (defective single layer
DVD-ROM), the disc was read accurately. The average reading speed for each
layer was 6.06x.
ABEX TDV-541
The
TDV-541 is a single sided, dual layer Video/S-2 disc, with a capacity of 8.5GB.The
disc is based on the TDV-540 series which is designed for inspection
and adjustment of DVD-VIDEO players. The discs check the layer switch operation
from layer 0 to layer 1 and also include test pictures and test signals for
DVD sound files. The current TDV-541 also checks the error correction
capabilities of the drive and includes scratches from 0.4 to 3.0 mm.
Both layer were read flawlessly at 6x CAV. The scratched areas did not slow
down reading, even in the second layer of the disc, where most DVD writers
have reading (focusing) problems.
ABEX TDV-545
The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual
layer Video/S-2 disc with a capacity of 8.5GB. The TDV-545 includes artificial
black dots on the data surface, sized from 0.4 to 1.0 mm. It also has
65 -
75 micrometrer fingerprints.
The
drive managed to read the disk without encountering any problem. The test was
finished successfully while the drive exhibited a smooth performance. The starting
speed was 2.56x and the average 6.11x.
6. Protected Disc Tests
Pioneer
DVR-SK12D Dual DVD±R recorder - Page 6
Protected Disc
Tests
- Reading Tests
To create an image of the various protected titles onto a hard disk, we
used CloneCD v4.3.1.7 software and the appropriate settings, depending on the
protection type of the inserted disc. Below are summarized the capabilities
of the Philips drive, according to CloneCD software. Notice that the drive
supports writing of CD+G under RAW DAO:
The Pioneer DVR-K12D supports reading of subchannel data information from
data/audio tracks.
The drive was very slow in the reading task with the SafeDisc v.2 protected.
The specific SecuRom v.2 disc was read in 4:14min, which is an average speed
of 1353.41 sectors/sec.
Game Title |
Protection Scheme |
Duration |
Average Reading
speed |
PSX "NBA Jam Extreme" |
Lybcrypt |
1:30 min |
1004 sectors/sec |
Serious Sam The Second Encounter v1.07 |
SafeDisc v.2.60.052 |
50:24 min |
110.92 sectors/sec |
VRally II |
SecuROM v.2 |
4:14 min |
1353.41 sectors/sec |
- Writing Tests
The Pioneer DVR-SK12D supports the DAO-RAW writing mode. For checking the
drive's EFM correction status, we used 2 different game titles with different
SafeDisc 2 versions with the latest software patches installed. After creating
images of the various titles to the hard disk, we burned them (maximum speed)
with CloneCD v4.3.1.7. Two different discs were created for each title; one
with the "Amplify Weak Sectors" feature enabled and one more with
the function disabled.
In the case of the SecuROM v.2 title, CloneCD prompted that the drive was
capable of writing on the whole 96 bytes of the Subchannel area.
In the table below you can see whether the produced backups were working (game
installed / played normally), or not.
Drive |
Game Title |
SD2 Build |
Settings |
Amplify Weak Sectors Enabled |
Amplify Weak Sectors Disabled |
Pioneer DVR-SK12D |
Max Payne |
v2.51.020 |
OK |
NO |
Serious Sam - The Second Encounter v1.07 |
v2.60.052 |
No |
No |
|
Game Title |
SecuRom |
Working backup |
|
VRally II |
v2 |
Yes |
Enter the Matrix |
v4.84.75.0045 |
No |
The Pioneer DVR-SK12D will not please the game freaks since it is not able
to produce working backups of the latest protection schemes.
7. DAE Tests
Pioneer
DVR-SK12D Dual DVD±R recorder - Page 7
DAE Tests
- Pressed and CDR AudioCD results
The Pioneer DVR-SK12D supports 24x maximum DAE speed. Below can be seen
the CDSpeed transfer rate test with a pressed audio CD:
According to CDSpeed, the average reading speed with this disc was 18.46x.
Note that the specific speed corresponds to audio extraction only. For audio
play of CD-DA,CD- TEXT, Mixed-CD, CD-Extra, the speed is 10x CAV.
We ripped the contents of the same audio disc to the hard disk with CDDAE
software. The drive gave an average ripping speed (burst mode) of 17.7x for
the pressed disc and 17.4x for a copied audioCD on CD-R.
Drive |
Pressed Audio Disc |
CD-R Audio Disc |
Pioneer DVR-SK12D |
17.7x |
17.4x |
- Advanced DAE Quality
The drive produced a perfect score of 100 in the Nero CD Speed Advanced DAE
test. The CDSpeed showed that the average reading speed was 17.25x, and that
the drive supports reading of SubChannel data and CD Text. It can also be seen
that the drive is not capable of reading Leadin / Leadout data.
- Ripping of 99mins AudioCDs
Tested drives |
Ripping up to |
Pioneer DVR-SK12D
|
99min |
- Reading/Ripping Protected AudioCDs
For this test procedure we used two audio discs with different
audio protections. The tasks tested were both recognition and
ripping to hard disk. The software used is the Exact Audio Copy.
* Pressed Audio disc protected by Sony Key2Audio (Celine
Dion - New Day
Has Come)
* Pressed Audio disc protected by Cactus Data Shield 200 (Natalie
Imbruglia - White Lilies Island)
|
Key2Audio |
CDS200 |
EAC |
Pioneer DVR-SK12D |
Recognizes disc contents but cannot rip tracks |
OK |
The drive recognizes contents of protected Key2Audio
discs but cannot rip the tracks. With CDS200 there were no problems in either
the reading or ripping process.
8. CD-R Recording Tests
Pioneer
DVR-SK12D Dual DVD±R recorder -
Page 8
CD Recording Tests
- CD-R Writing
The Pioneer DVR-SK12D
supports 4x, 8x, 12x and 16x writing
speeds under Z-CLV mode.
The
writing procedure starts at 8x CLV remaining steady until the 20min address
mark on the disc, climbing up to 12x. A third speed switch occurs at the 50min
address mark, where the Pioneer DVR-K12D reaches a maximum speed of 16x.

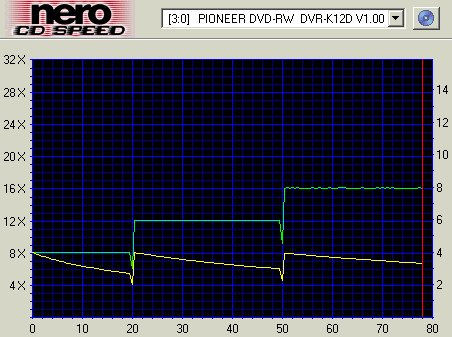

According to CDSpeed, the average writing speed with an 80min blank disc is
12.35x. The writing simulation graph is given below:

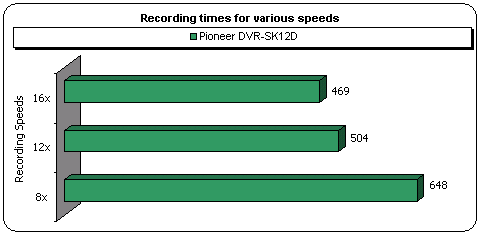

For the burning tests we created an 80min data compilation through Nero Burning
Rom, and recorded the data on a 700MB disc. Pioneer finished the task in 7:49
minutes, when we selected the 16x writing speed. Below can be seen the best writing
times (sec) of the dirve at speeds of 8x, 12x and 16x.
- Other features
Overburning
|
Up to 90:07 min
|
CD text reading/writing
|
Yes
|
- CD-RW Writing

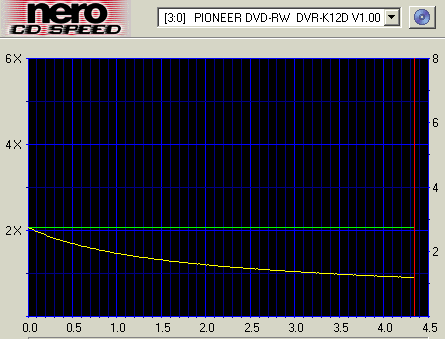

The Pioneer DVR-SK12D supports the 4x and 10x CLV rewriting speeds, with High
Speed CD-RW. Below is the CDSpeed writing simulation graph with 10x HS-RW media.
The average writing speed for the test was 10.28x.
For the burning tests we created a 74min data compilation through Nero Burning
Rom, and recorded the data on a 650MB HS-RW disc. The drive completed the task
in 8:01 minutes, when we selected the 10x writing speed:
- Packet Writing Tests
We used InCD and a 10x HS-RW media from Mitsubishi Chemicals for all Packet
Writing tests (22 KB) from a local Hard Disk onto the formatted RW media through
Windows explorer (drag and drop).
|
Duration
|
Average speed
|
Read
|
6:59 min
|
6.57X
|
Write
|
7:09 min
|
6.41X
|
The drive achieved competitive times and speed in this test. The numbers were
almost the same for both read and write processes.
9. Writing Quality Tests - 3T Jitter Tests_1
Pioneer
DVR-SK12D Dual DVD±R recorder -
Page 9
Writing Quality Tests - 3T Jitter Tests
Using 80min 48x CD-R media from Taiyo Yuden, we burned the same AudioCD project
at 8x, 12x and 16x. On this page you can see the 3T Pit & Land Jitter graphs.
- 3T Pit results
The results we took are possibly the best we have ever experienced. The drive
is an excellent CD burner with very low 3T Pit jitter values, using the specific
media. The maximum value was at 16x and it was 25nsec. As a sidenote, the RedBook
limit is for jitter 35ns.

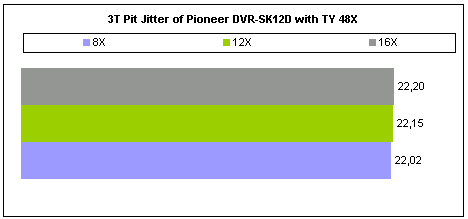

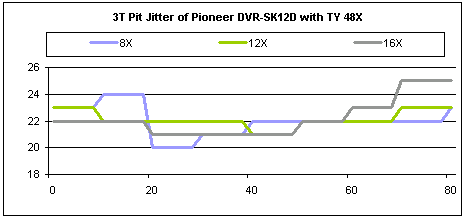

The average 3T Pit Jitter values for all recording speeds are illustrated
in the following table.
- 3T Land results
Once again the drive exhibited high quality results. The maximum 3T Land Jitter
value was 27nsec for the 12x recording speed.

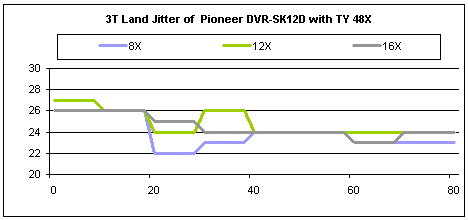

The following table show the average 3T Land Jitter values for all recording
speeds.
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
8X
|
22.20
|
24.49
|
No
|
24 Pit, 27 Land
|
12X
|
22.15
|
24.85
|
No
|
23 Pit, 27Land
|
16X
|
22.02
|
23.98
|
No
|
25 Pit, 26 Land
|
- Summary
For the tests described on this page, the most appropriate word that comes
to mind in describing the writing qualities of the Pioneer DVR-SK12D is excellent.
10. Writing Quality Tests - 3T Jitter Tests_2
Pioneer
DVR-SK12D Dual DVD±R recorder -
Page 10
Writing Quality Tests - 3T Jitter Tests
Here, we carried out the same tests as in the previous page, but this time
we burned a variety of CD-R media with the Pioneer DVR-SK12D. Note that the
recording speed
for
each disc is 16x.

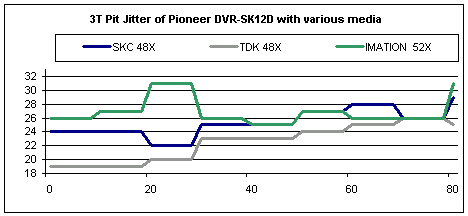

- 3T Pit results
The drive continued its good performance and gave low 3T pit jitter values
with all media.
The average

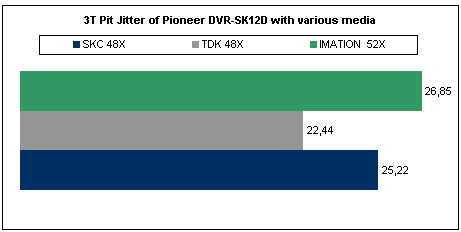

3T Pit Jitter values for all recording speeds are illustrated in the following
table.
- 3T Land results
Once again the drive produced high quality results. The maximum 3T Land
Jitter value was 31nsec for the Imation 52x disc.

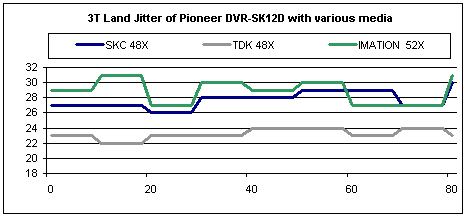

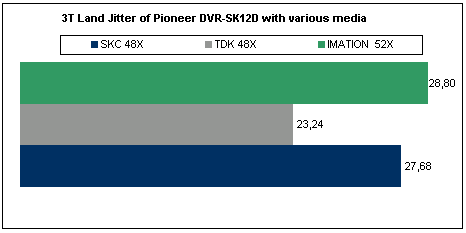

The following
table shows the average
3T Land Jitter values for all recording speeds.
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
SKC 48x
|
26.85
|
27.68
|
No
|
24 Pit, 27 Land
|
TDK 48x
|
22.44
|
23.24
|
No
|
26 Pit, 24 Land
|
Imation 52x
|
22.02
|
28.80
|
No
|
31 Pit, 31 Land
|
- Summary
The overall jitter measurements are low and it seems that the jitter does
not influence the writing quality.
On the following page we examine the C1 and C2 error rates for the same discs,
to further substantiate our conclusions thus far.
11. Writing Quality Tests - C1 / C2 Error Measurements
Pioneer
DVR-SK12D Dual DVD±R recorder -
Page 11
Writing Quality Tests - C1 / C2 Error Measurements

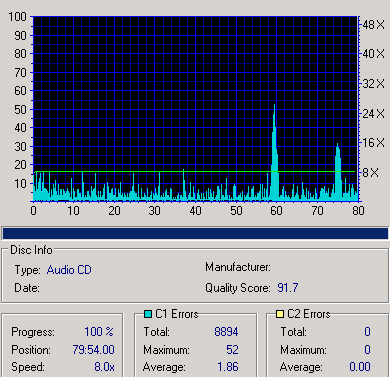

Here we measured the C1 / C2 error rate on the recorded discs we burned at
the various supported writing speeds. The software we used is the CDSpeed CD
Quality
Test. As a reader we used the Plextor Premium drive for retrieving the error
rate information.

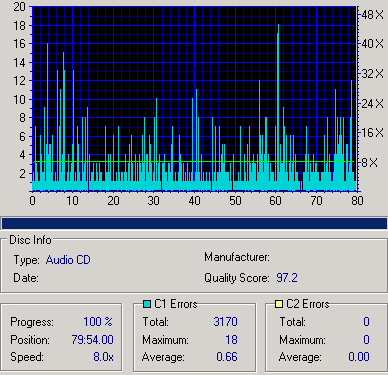

- Taiyo Yuden 48x recorded at 8x
- Taiyo Yuden 48x recorded at 12x

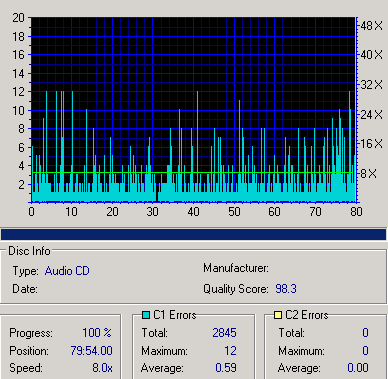

- Taiyo Yuden 48x recorded at 16x

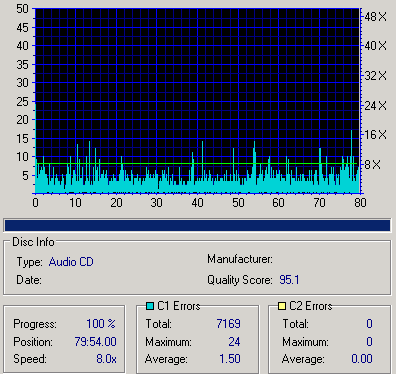

- Imation 48x recorded at 16x
-

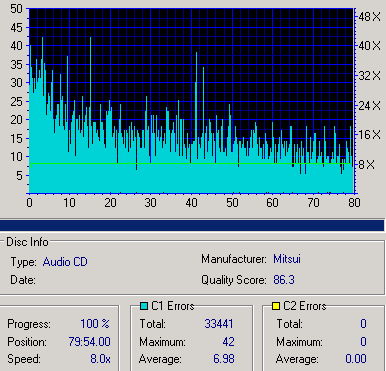

Mam Golden Dye 52x recorded at 16x
Media
|
Speed Recorded
|
C1 |
C2 |
Quality
Score |
Avg / Sec |
Max / Sec |
Total |
Avg / Sec |
Max / Sec |
Total |
Taiyo Yuden 48x |
8x |
0.66 |
18.0 |
3170.0 |
0.0 |
0.0 |
0.0 |
97.2 |
12x |
0.63 |
13.0 |
3003.0 |
0.0 |
0.0 |
0.0 |
98.2 |
16x |
0.59 |
12. |
2845.0 |
0.0 |
0.0 |
0.0 |
98.3 |
TDK 48x |
16x |
1.50 |
24 |
7169.0 |
0.0 |
0.0 |
0.0 |
95.1
|
SKC 48x |
16x |
1.86 |
52 |
8894.0 |
0.0 |
0.0 |
0.0
|
91.7 |
Mam Golden Dye 52x |
16x |
6.98 |
42 |
33441 |
0.0 |
0.0 |
0.0 |
86.3 |
Imation 48x |
16x |
3.61 |
39 |
17300.0 |
0.0 |
0.0 |
0.0 |
91.5 |
Below can be seen more information regarding the CD-R media
we used in this test.
Disc |
ID Code |
Capacity |
Imation 48X |
97m26s66f |
79:59:72 |
SKC 48x |
97m26s26f |
79:59:73 |
Taiyo Yuden 48x |
97m24s01f |
79:59:72 |
Mam Golden Dye 52x |
Mitsui 97m27s58f |
79:59:74 |
TDK 48X |
97m15s05f |
79:59:74 |
- Summary
This test confirms once again the ability of the drive to write CD media
at high quality. Independently of the disc brand we used, the C1 level
was low.
No
C2 errors
were reported.
12. DVD Recording Tests
Pioneer DVR-SK12D Dual DVD±R recorder - Page 12
DVD Recording Tests
- Writing Performance
The Pioneer DVR-SK12D supports
writing of all DVD-R/RW and DVD+R/RW. According to the manufacturer
the supported speeds are 1x, 2x for DVD-R/RW and 2.4x for DVD+R/RW. 4x DVD±R
media are also supported, although the drive will record them at 2x/2.4x.
- Mitsubishi Chemicals 4x DVD-R
First
we tested a 4x DVD-R from Mitsubishi Chemicals at the maximum recording speed.
The drive wrote the disk under CLV mode confirming the manufacturers specifications.
The drive started the write process at 2.07x and finished the test at
the same speed.
We
repeated the procedure using another media type and brand. We tested the
drive with a Maxell 4x DVD-RW.
Once again the drive finished the
test in the prearranged speed, according to Pioneer. The starting speed was,
as with the DVD-R in the previous test, 2.07x and an average speed of 2.06x.
- Mitsubishi Chemicals 4x DVD+R
We
continued the writing performance test with a 4x DVD+R media by Mitsubishi
Chemicals.
As it was expected the drive performed just as Pioneer's specifications
for DVD+R media. The writing process started at the speed of 2.48x and the
test completed with an average speed of 2.47x.
Finally, we
checked the drive's writing behaviour with 4x DVD+RW media. The disc
was from Ricoh.

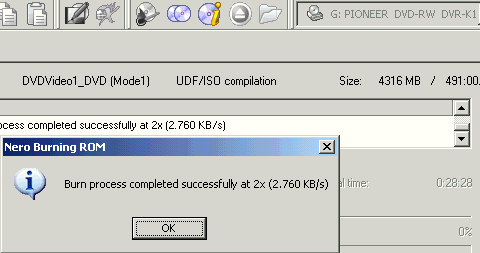

According to the screen shots on the left and below the starting
speed was 2.48x and the average 2.47x. This performance is exactly the same
with the previous one in accordance with the drive's specifications.
- Burning Tests
We selected various media types and brands and burned the same 4315MB DVD-Video
compilation for each disc, at the maximum speed. The best recording times are
illustrated in the screen shots below
and
are
gathered
in the following table.
- Ritek 4x DVD-R
(2x recording)
- Philips 4x DVD+R
(2.4x recording)
- Maxell 2x DVD-RW (2x recording)
- Ricoh 4x DVD+RW (2.4x recording)
In the table below can
be seen
the maximum
permitted writing speeds with various
media including their respective manufacturing code IDs and writing times.
Disc Label |
Disc Information |
Writing Speed |
Recording Time |
Panasonic 2x DVD-R |
MEI 00V001 |
2x |
28:30 |
Pioneer 4x DVD-R |
PVCR001002 |
2x |
28:31 |
Princo 2x DVD-R |
TDKG02000000 |
2x |
28:28 |
Prodisc 2x DVD-R |
PRODISCG02 |
2x |
28:29 |
MCC 4x DVD-R |
MCC 01RG20 |
2x |
28:30 |
Ritek 4x DVD-R |
RITEKG04 |
2x |
28:30 |
Maxell 4x DVD-RW |
MCC 01RW11n9 |
2x |
28:28 |
MCC 4x DVD+R |
MCC 002 |
2.4x |
22:20 |
Ricoh 4x DVD+RW |
RICOHJPNW11 |
2.4x |
22:18 |
Ricoh 4x DVD+R |
RICOHJPNRO1 |
2.4x |
22:19 |
Philips 4x DVD+R |
RICOHJPNR00 |
2.4x |
22:29 |
Sentinel 2.4x DVD+RW |
SENTINELW01 |
2.4x |
22:45 |
TY 2X DVD-R |
TAIYOYUDEN |
2x |
28:29 |
- DVD±RW Packet Writing
The Pioneer DVR-SK12D supports packet writing with both DVD+RW and DVD-RW
media. To test the performance with the DVD+RW format, we formatted a 4x
DVD+RW disc from Ricoh
and started the drag and drop process, using
a 412 MB file (412.822 KB). With the background formatting in
full progress, we wrote down the reading / writing performance.
For the DVD-RW format we used a 2x DVD-RW from Maxell. The performance of
the drive is illustrated in the following table:
|
DVD+RW
|
DVD-RW
|
Read
|
4:35 min / 1.1X
|
4:30 min / 1.13X
|
Write
|
8:19 min / 0.61X
|
6:52 min / 0.74X
|
Although the media we used supported higher available writing speeds for
each format, and the drive's specifications are faster, under packet writing
the performance is lower. With the +RW media the speed was 0.61x and 1.1x for
write and read respectively, while with -RW media was 0.74x for write and 1.13x
for read.
13. KProbe PI/PO quality results
Pioneer DVR-SK12D Dual DVD±R recorder - Page 13
KProbe PI/PO
quality results

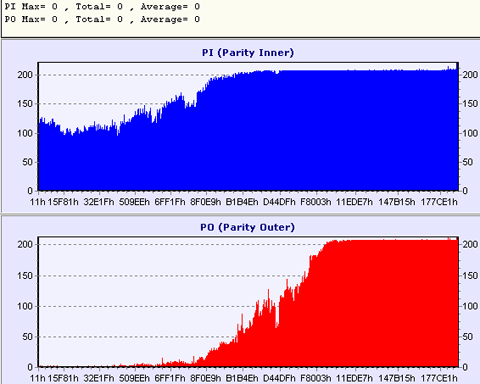

In the following screenshots you can see the PI/PO error rate graphs with
various DVD-R/+R and DVD-RW/+RW, recorded with the Pioneer
DVR-SK12D at
the maximum
speed.
The software we used for the measurements is the KProbe v1.1.26, and the reader
is LiteOn LDW401S. The reading speed was set to maximum, while the ECC was
set to 8.
The specific methodology is very dependent on the drive we
use as a reader, and the reliability of the PI/PO provided output is also
not technically confirmed. As a result, we cannot safely come up with absolute
results,
but we are
allowed
to compare
the behavior
of
the
drive
with
various
DVD recordable/rewritable
media.
The recordable discs we used came from Mitsubishi Chemicals, Philips, Ricoh,
Ritek, Princo, Maxell and Taiyo Yuden. More information about
each disc type is available at the bottom of the page.
-

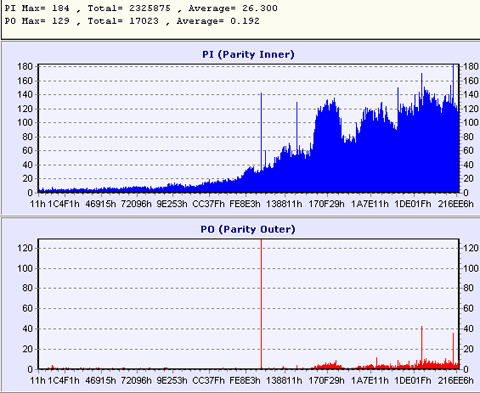

Mitsubishi Chemicals 4x DVD+R
-
Mitsubishi Chemicals 8x DVD+R
In this test, the disc from Mitsubishi Chemicaks supports up to 8x writing
speed, we wrote at the maximum speed supported by the drive, namely 2.4x, the
results
were quite satisfactory, with a relatively low error rate.
In this test, the disc from Ricoh supports up to 4x writing speed, we wrote
at the maximum speed supported by the drive, namely 2.4x,
the results indicate a somewhat increased error rate while being inside the
specifications.
-
Mitsubishi Chemicals 4x DVD-R
As in the previous case, the error rate is a little high with Mitsubishi Chemicals
4x DVD-R discs, however it is still within the specifications.
The specific media is probably not reccomended for the DVR-SK12D. The PI/PO
error rate reached 1872. The specific disc is a 1x-2x DVD-R for data/video.
Media |
Code |
MCC 8x DVD+R |
Philips 081 |
MCC 4x DVD+R |
MCC 002 |
Philips 4x DVD+R |
RICOHJPN R01 |
Ricoh 4x DVD+R |
RICOHJPNRO1 |
Ricoh 4x DVD+RW |
RICOHJPNW11 |
MCC 4x DVD-R |
MCC 01RG20 |
Ritek 4x DVD-R |
RITEKG04 |
Princo 2x DVD-R |
TDKG02000000 |
Maxell 2x DVD-RW |
MCC 01RW11n9 |
TY 2X DVD-R |
TAIYOYUDEN |
14. Conclusion
Pioneer
DVR-SK12D Dual DVD±R recorder -
Page 14
Conclusion
Pros
|
Cons
|
- Slim
Dual DVD burner
- Stylish
design
- Complete
retail package
- Dual iEEE1394
& USB 2.0/1.1 interface
- Supports
vertical & horizontal mounting
- DVD-R/RW/+R/+RW
writing
- 16/10/24
CD-RW
- Acceptable
CD seek times
- Good CD-R/RW/DVD-ROM/DVD±R/RW
reading performance
- High error
correction with defective / scratched CD-R media
- High reading
accuracy with defective DVD media
- 24x max
DAE
- Good CD-R writing quality
- Low 3T
jitter
- Acceptable
DVD-Video ripping speed
- Overburning
up to 90min (CD)
- Supports CD-Text (reading/writing)
- Supports 99min audio discs
- Ideal
for portable PC users
|
- Cannot
create working backups of SafeDisc versions greater than v.2.50
- Does not
support Key2Audio protected discs
- DVD seek
times could be better
- DVD/CD
writing could be faster
- Higher
than expected PI/PO error rate with some media types
|
At
first glance, the Pioneer DVR-SK12D appears to be a very good solution for
notebook and portable PC users. It is the first of its kind, being able to
deliver amongst other formats, recording of DVD-R and +R media in a slim drive.
It is compact, and delivers very good performance with a wide range of capabilities.
The dual interface is also a plus.
Very impressive was the fact that the drive was able to record on all the
media we tested, although the maximum writing speed supported by the drive
(i.e. 2.4x) is a bit on the slow side compared to what is currently available
on the market. For example, the supported writing speed of 2.4x is slow when
compared to drives that support 4x and 8x writing speeds. While overall the
drive performed very well in the write tests, the PI/PO produced a higher than
expected error rate, although it remained within the specifications.
The drive also performed very well with the reading tests. It read all media
formats without problems. The drive's DVD video ripping capabilities were acceptable.
Although seek times were adequate, it would have been desirable to have had
faster seek times. A point which leads us once again, to the conclusion that,
as with the writing speed, a slightly higher maximum reading speed would have
been desirable.
CD reading and writing performed well, being well within the specifications
of the drive. While there were no problems reading 10x HS-RW, there was a sharp
drop-off
while reading 24x US-RW (see relevant test results for this media under
CD
Reading Tests)
The error correction and concealment tests were also impressive with the
drive yielding very good sound reproduction coupled with excellent error
correction capabilities. This sort of performance was carried over into the
DVD error correction tests where the drive performed flawlessly.
The DAE tests produced a perfect score, with the drive being able to read
both CD text and subchannel data. Jitter was very low, amongst the best we
have encountered, but this was to be expected since the drive operates at
slightly lower speeds than current maximums.
The writing quality tests, C1/C2, exhibited low error rate for C1 and no
errors for C2.
Summing up, this is an impressive drive and would suit someone who is interested
in overall quality rather than speed. It's size makes it an ideal device
for anyone needing to carry the drive from one location to another as is
the case with portable PC users. It's price is around the €300.00 mark,
and if you do a bit of shopping around on the internet, you should be able
to find it for a good deal less.
