1. Introduction
Optorite DD1203 Dual DVD±RW Recorder -
Page 1
After
the dual 8X recorder DD0405, Optorite speeds up to 12X recording for the plus
format, with it's new DD1203 burner. Based on the Sanyo chipset,
the new recorder promises good performance at an affordable price
compared with other 12X +R recorders. Lets see how it stacks up!.
- Drive specs
The DD1203 dual burner offers 12X DVD+R, 8x DVD-R, 4X DVD±RW writing
and 12X DVD-ROM reading. The drive also supports 40X recording for CD-R media
and
24X for HS-RW.
- Features
"Safe-BP" has
achieved enough detection performance at more than 40x speed with the improvement
of the electric circuit for the detection of disarrangement
of the servo pickup. When a disarrangement of this servo is detected at
high speed
recording conditions, the drive stops the recording immediately and restarts
the
recording at a lower recording speed.
Shock-BP
always monitors the condition of the focus and tracking servos and stops
the recording when it detects the change in rapid servo conditions,
whence it restarts recording at the stop position after the servo
condition has recovered.
A
generic name for Flexible Speed and Flexible Strategy. 'FlexSS-BP'technology
automatically selects the optimum recording speed for each disc, because some
CDs cannot stand high speed recording with a high recording power.
Flexible Speed
When a drive determines that it is barely tracking the placed
disc correctly because of the variations between discs, and it determines
that the disc
cannot withstand a high power laser at high speed recording, the drive
selects a suitable recording speed for the disc and continues to record.
Flexible Strategy
It measures and evaluates the recording condition of recorded area at switching
zones.
HD-BURN
Developed by SANYO Electric Co., Ltd., a high density recording technology
that doubles the recording capacity of conventional CD-R media (700MB).
- Specifications
Interface |
E-IDE / ATAPI (Ultra DMA mode2) |
Internal Buffer Size |
2MB |
Data tranfer speed ( ATA I/F) |
33MB/sec. (Ultra DMA mode2) |
Random Access Time: |
|
Write Speed |
DVD+R: 12X DVD-R: 8X,
DVD+RW: 4X DVD-RW: 4X
CD-R: 40X CD-RW: 24X
HD-BURN: 24X |
Read Speed |
DVD+R: 12X DVD-R:12X
DVD+RW:12X DVD-RW:12X
DVD-ROM: Max. 12X (Single)
DVD-ROM: Max. 8X (Double)
DVD-Video: 12X
CD-R: Max. 40X
CD-RW: Max. 40X
CD-ROM: Max. 40X
CD-DA: Max 40X
CD-Video: Max 4X

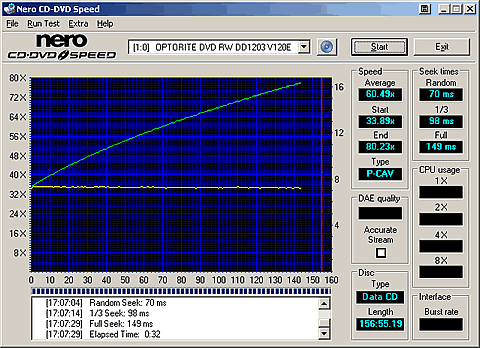

HD-BURN: Max. 78X
|
Writng Type |
DVD+R: Incremental Write (Multi Session Support)
DVD-R: Disc at Once, Incremental Recording (Multi-Border Support)
DVD+RW: Random Write
DVD-RW: Rigid Restricted Overwriting, Incremental Write
CD-R/RW:
Disc at Once, Session at Once, Track at Once, Packet Writing (Multi Session Support) |
Disc Size |
8/12 cm discs |
OS Compatibility |
Windows 98SE/ME/2000/XP |
Dimensions (W*H*D) |
148.5x42.5x194.2mm |
Weight |
<1.0kg (2.2lb) |
Power Requirements |
DC +5V± 5% / 12V± 10%, Max. 2.0A |
MTBF |
> 30.000 POH (duty 20%) |
Enviromental Specifications |
Operating Temprature: 5°C to 45 °C
Storage Temprature -30°C to 60°C
|
Below
are the drive's main specs as given by NeroInfoTool and DVDInfoPro:
The drive also uses the RPC II region control, allowing a user
to change the drive's region at most 5 times. There is a region free firmware available
at "The Dangerous Brothers" website.
- Retail package
The
retail package includes the Optorite DD1203, a quick installation
guide, mounting screws and a sound cable. Software included are Nero v6
OEM version and Sonic MyDVD. A pleasant surprise is the inclusion of an
alternative black bezel.
On the front, there are on the tray the DVD-R/RW, DVD+RW and compact
disc rewritable logos. The activity led is below the emergency eject
hole. On the right there are the play/skip and stop/eject buttons, while
there's also a volume adjust on the left next to the headphones jack. The
front bezel can be changed with the included
black as was previously mentioned, or left white, as is out of the box. Note
that both are included in the retail package.
On the rear panel you can see the analogue and digital outputs (SPDIF), the
IDE connector
and the power input.
Removing the screws and opening the drive's cover voids the drive's warranty.
For reference reasons, we post the following pictures. You can click on the mainboard
picture for a higher resolution image:
- Installation
The drive was installed as secondary master and WindowsXP recognized
it as "OPTORITE DVD RW DD1203".
The drive arrived with firmware v110E.
After all tests finished a newer firmware revision (v1.20E)
was released.
Below is a picture from Nero Burning Rom, showing the drive's specs.
We will compare the Optorite drive with the LiteOn SOHW-1213S
and Plextor PX-712A, since the drives have similar DVD/CD recording
specs.
- Testing software
In order to perform our tests we used:
- Nero CD-DVD Speed
v3.12
- CDVD Benchmark v1.21
- ExactAudioCopy v0.9 beta5
- Nero Info Tool v2.21

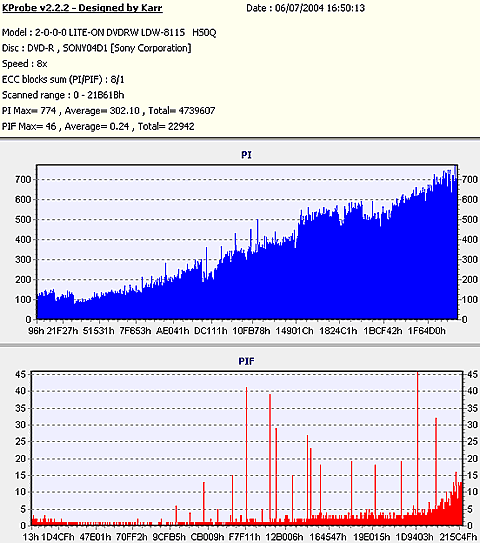

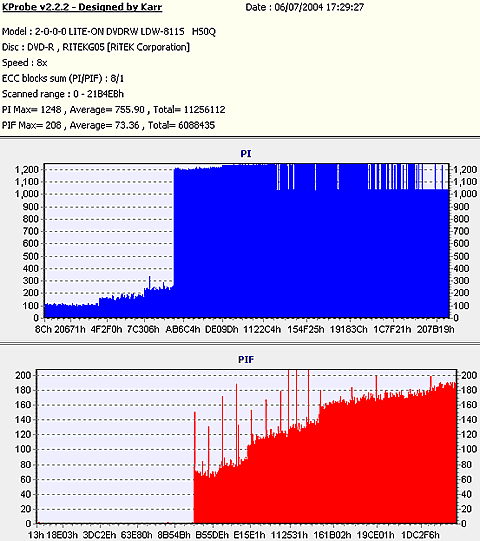

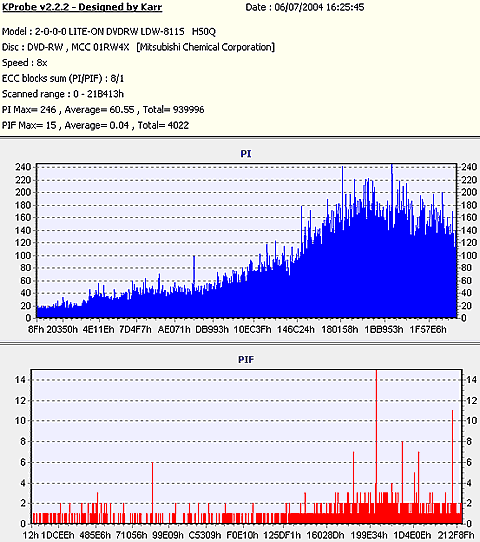

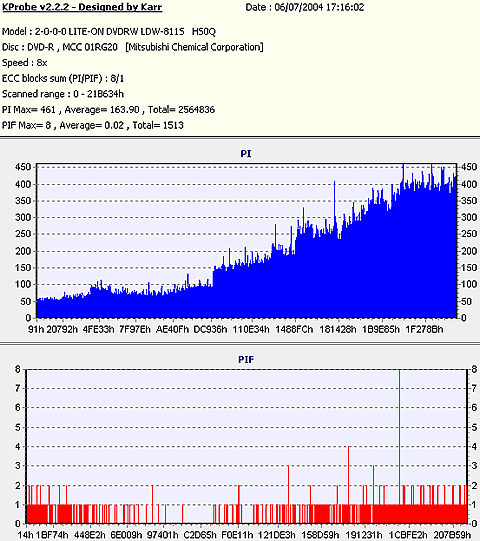

- KProbe
v2.2.2 (Reader: Optorite LDW-811S firmware vHS0Q, Reading speed 8X CAV)

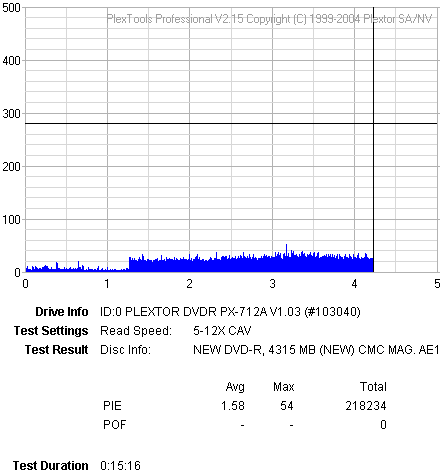

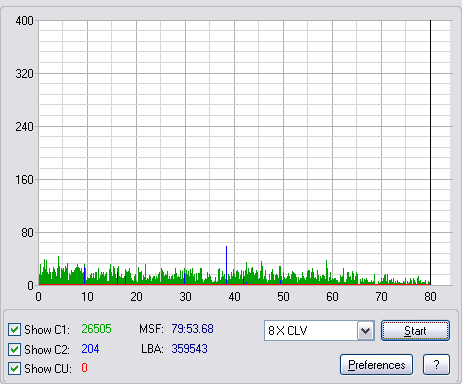

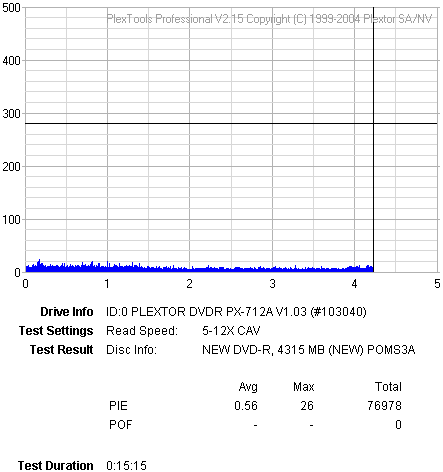

- PlexTools v2.15 (Reader:
Plextor PX-712A firmware v1.03, Reading speed 8X CLV for CD-R)
- DVDInfoPro v2.54
- Nero Burning Rom v6.3.1.17
2. Transfer Rate Reading Tests
Optorite DD1203 Dual DVD±RW Recorder - Page 2
Transfer Rate Reading Tests
- CD Format

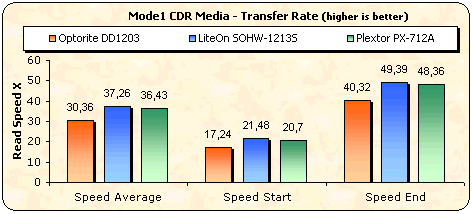

The Optorite DD1203 supports up to 40X reading speed for CD media. Our
tests confirmed this. Below are the transfer rate graphs:
The CD reading performance of the DD1203 is not the fastest in
the comaprison but this is due to the fact that the LiteOn and Plextor drives
support 48X speed with CD media.
- DVD Format
The DD1203 drive was slower than both the Plextor and LiteOn drives when using
single layer DVD-ROM media, but again this is due to the speeds supported
by each drive. However, the OptoRite drive did not quite reach 12X reading
speed, as
per the
specs!
The two layers of a PTP DVD-ROM disc are read sequentially with the drive
starting reading from the inner part of the disc, which is the beginning of
each layer, towards the outer range, for each layer. Here too, the DD1203 was
slower than the Plextor, again due to the supported speeds but this time the
drive managed to reach the manufacturer's stated specs for DL DVD-ROM media
(8X).
The first layer of an OTP dual layer DVD-ROM is read exactly the same way
as the first layer of the PTP disc we tested previously. The difference here
is the reading strategy of the second layer of the disc. The beginning of the
second layer is located in the outer part of the disc, so the drive starts
reading from the outer tracks toward the inner part of the disc. The average
reading speed was at 6.39X.
The DD1203 supports 12X reading speed for all four DVD formats
(-R, +R, -RW, +RW). While the Plextor drive displayed fairly consistent
speeds of
just over 9X regardless of the format, the Optorite and LiteOn drives weren't
quite so steady. With -/+R media, the Optorite drive was just slightly slower
than the Plextor, but with RW media, its performance was way behind.
At 9441 kb/s, the Optorite offers a fast ripping transfer rate but again lags
behind the Plextor drive.
- Appendix
Nero CD-DVD Speed Graphs
3. CD Error Correction Tests
Optorite DD1203 Dual DVD±RW Recorder - Page 3
CD Error Correction Tests
In the following tests we check the drive's behavior when it comes to reading
scratched / defective discs. The test discs we used are the ABEX series
from ALMEDIO.
- ABEX TCD-721R
Errors total
|
Num: 1235229
|
Errors (Loudness) dB(A)
|
Num: 59315
|
Avg: -72.1 dB(A)
|
Max: -6.8 dB(A)
|
Error Muting Samples
|
Num: 59315
|
Avg: 1.3 Samples
|
Max: 605 Samples
|
Skips Samples
|
Num: 117
|
Avg: 16.4 Samples
|
Max: 582 Samples
|
Total Test Result
|
60.9 points (out of 100.0
maximum)
|
The 1203 performed poorly with the ABEX TCD-721R. The total error count
of 1235229 is about average, but the level at -6.8 dB(A) is very high and
may lead to audible errors. Consequently, the number of skipped
samples
is also very high.
The low total
test result score of 60.9 out of 100 is justified.
- ABEX TCD-726
Errors total
|
Num: 0
|
Errors (Loudness) dB(A)
|
Num: 18
|
Avg: -40.1 dB(A)
|
Max: -37.6 dB(A)
|
Error Muting Samples
|
Num: 0
|
Avg: 0.0 Samples
|
Max: 0 Samples
|
Skips Samples
|
Num: 2
|
Avg: 36.0 Samples
|
Max: 36 Samples
|
Total Test Result
|
84.9 points (out of 100.0
maximum)
|
The performance with this test disc was better than with the previous
case, which is logical since this disc is much easier to read. The total
test result of 84.9 out of 100 is not the best we have seen since there are
many drives that achieve scores close to 100. Overall, the performance for
this series can be considered below par.
- CD-Check Audio Test Disc
The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction
/ Error correction capabilities of a CD player. The disc offers a signal combination
with disc error patterns to rate the drive's abilities to read music and reproduce
it completely. Five tracks on the disc contain a sequence of progressively
difficult tests. These tracks are referred as Check Level-1 through Check Level-5.
The
files are reproduced (played) through a software multimedia player (i.e.
Windows Media Player). Each level is considered as passed, if the tone coming
out
from the speakers is smooth, continuous without interruptions, skipping or
looping. The higher the Check Level passed, the more reliable the sound reproduction
of the tested device.
Error Level
|
1
|
2
|
3
|
4
|
5
|
Optorite DD1203
|
5/5
|
5/5
|
5/5
|
5/5
|
0/5
|
The drive passed the first four Check Levels of the test. The performance
is very good offering better than average error correction capabilities.
The fifth level, which includes an error size of 1.500mm, produced
many audible
clicks with the drive.
- Conclusion
CD error correction is not one of the Optorite drive's strongpoints.
Performance could be better...
4. DVD Error Correction Tests
Optorite DD1203 Dual DVD±RW Recorder - Page 4
DVD Error Correction
Tests
In the following tests we examined the DVD reading capabilities of
the DD1203 drive with scratched / defective
DVD media.
For the tests we used CDVD Benchmark and Nero CDSpeed. The reference test
media
come
from
ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its
surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm.
The following transfer rate graph comes from the CDVD Benchmark v1.21 transfer
rate test.
Generally a clean performance, just a few speed deviations especially
over the more difficult areas as shown by the collection of yellow dots becoming
more dense as reading progresses over the defective area.
ABEX TDR-825
This is also a single sided, single layer DVD-ROM of a 4.7GB capacity. The
data structure of the disc is exactly the same as that of the TDR-821, with
the difference that there are no scratches on it but defected areas of dimensions
ranging from 0.5 to 1.1 mm. There are also fingerprints sized between 65 and
75 micrometers.
Both single layer test media were not a problem for the DD1203 drive. So far,
DVD error correction is impressive.
- Dual Layer media
ABEX TDR-841
This is a 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches
of dimensions ranging from 0.4 to 3.0mm, in both layers.
The drive read both layers without any major problems, however the reading
strategy changed from CAV to CLV when it met with problems while reading over
the defective region.
ABEX TDR-845
The disc is a single sided, dual layer DVD-ROM disc of a capacity of 8.5GB.
The only difference between the TDR-845 and the TDR-841 is that the first includes
defected areas and fingerprints. The dimensions of the defected areas range
from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micro meters.
Excellent performance...
ABEX TDV-541
The
TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The
disc is based upon the TDV-540 series which is designed for inspection
and adjustment of DVD-VIDEO players. The discs check the layer switch operation
from layer 0 to layer 1 and also include test pictures and test signals for
DVD sound files. The current TDV-541 checks also the error correcting capabilities
of the drive and includes scratches from 0.4 to 3.0 mm.
Although the reading started normaly, after a while the drive needed to slow
down in order to read the contents of the disc on the defeactive area. However,
no errors were reported and the task finished successfully.
ABEX TDV-545
The
TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer
DVD-VIDEO disc with a capacity of 8.5GB. The TDV-545 includes artificial black
dots on the data surface, sized from 0.4 to 1.0 mm. It has also 65 - 75 micro
meters fingerprints.
Black dots and fingerprints on the disc's surface did not create
any reading problems.
- Summary
The DVD error correction of the Optorite drive is in general,
very good.
5. Protected Disc Tests
Optorite DD1203 Dual DVD±RW Recorder - Page 5
Protected Disc
Tests
- Reading Tests
To create the image of the various protected titles to the hard disk, we
used Alcohol 120% software and the appropriate settings, according to the protection
type of the inserted discs. Below you can see the duration for each process
as well as the transfer rate in each case.
Game Title |
Protection Scheme |
Duration |
Reading speed |

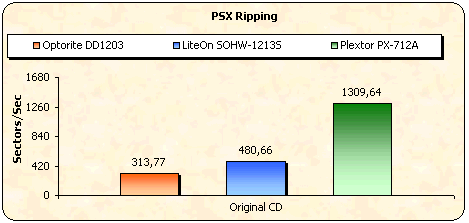

PSX "NBA Jam Extreme" |
Lybcrypt |
04:48min |
313 sectors/sec |
Serious Sam The Second Encounter |
SafeDisc v.2.50.051 |
1:08:00min |
92 sectors/sec |

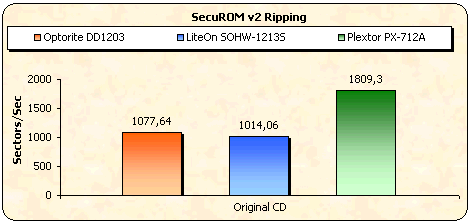

VRally II |
SecuROM v.2 |
05:19min |
1077 sectors/sec |

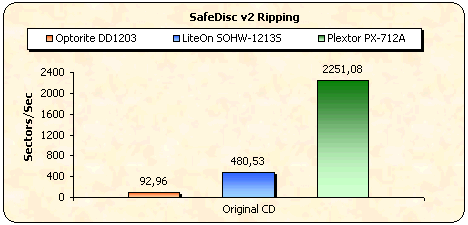

The Optorite drive had the slowest ripping speed with all tested games.
Especially with the SafeDisc protection scheme, the time needed was totaly
unacceptable.
- Writing Tests
The Optorite DD1203 supports the DAO-RAW writing mode. For checking the
drive's EFM correction status, we used 3 different game titles with different
SafeDisc
2 versions having the latest software patches installed. After making the images
of the various titles onto the hard disk, we burned them (maximum speed) with
Alcohol 120% v1.9.2.1705. Two different discs were created for each title;
one with the "Bypass EFM error" enabled and one more with the function
disabled.
- Fifa 2004 - Safe Disc v3.1x
- The Sims Superstar - Safe Disc v2.9x
- The Sims Unleashed - Safe Disc v2.8x
- Serious Sam Second Encounter - Safe Disc v2.51.021
- Max Payne - Safe Disc v2.51.020
The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.
Drive
|
Fifa 2004
SD v3.1
|
Sims Superstar SD v2.9
|
Sims Unleashed SD
v2.8
|
Serious Sam-Second Encounter
SD v2.51.051
|
Max Payne
SD v2.51.020
|
EFM OFF
|
EFM ON
|
EFM OFF
|
EFM ON
|
EFM OFF
|
EFM ON
|
EFM OFF
|
EFM ON
|
EFM OFF
|
EFM ON
|
Toshiba
SD-M1502
|
No
|
Yes |
Creative CD5233E
|
Optorite DD1203
|
The drive maneged to create working backups only up to version 2.8. Newer
versions are a problem for the DD1203.
6. DAE Tests
Optorite DD1203 Dual DVD±RW Recorder - Page 6
DAE Tests
- Pressed and CDR AudioCD
The Optorite DD1203 supports up to 40X CAV DAE speed. When using a pressed
AudioCD and its CD-R copy, with EAC we logged the following results:
The Optorite drive performed well if we keep in mind it supports 40X
speed against 48X for the other drives.
- Advanced DAE Quality
The Optorite DD1203 received a score of 100 (perfect) in the Nero CD Speed
Advanced DAE test. CDSpeed showed that the average reading speed was 28.6X,
and
the drive supports reading of
SubChannel
data, Leadin / Leadout data and CD
Text.
- Reading 90/ 99mins AudioCDs
7. Protected AudioCDs
Optorite DD1203 Dual DVD±RW Recorder - Page 7
Protected AudioCDs
For the test procedure we used three audio discs with different
audio copy protections. The ripping process performed for all protected Audio
discs was carried out with Exact Audio Copy v0.9beta5.
The tested protected Audio discs were:
- Sony's Key2Audio from "Celine Dion - New Day Has Come"
- Cactus Data Shield 200 from "Natalie Imbruglia - White Lilies Island"
The Cactus Data Shield 200, contains artificial errors that are not easily
bypassed with a reader, while the Key2Audio contains a second session,
causing problems for readers when trying to read the Table Of Contents (TOC).
The tested tasks are:
- Recognition of the inserted disc (Yes/No)
- Ripping all wavs (with EAC's Burst Mode) to the hard disk with copy&compare function.
- Listening to the produced wavs for any click/skips.

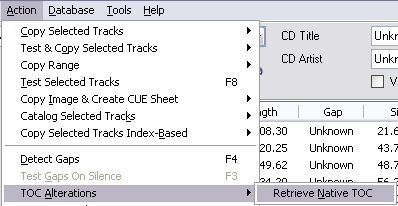

The Optorite DD1203 recognized up to the 12th Audio track of the CDS200
disc, and with the "Retrieve Native TOC" option removed, the 13th
Data track.
The test results are shown in the following table:
|
Key2Audio |
CDS200 |
Optorite DD1203 |
Ripping process completed, EAC reports
timing problems, Read&Test CRC comparison successful for all tracks |
Ripping process completed, EAC reports timing problems, Read&Test CRC comparison not the same for all tracks |
The Optorite DD1203 will rip both Key2Audio/CDS200
protected audio discs. Both discs were recognized and their contents were
ripped
at the maximum speed. However, the drive may not rip 100% accurately,
since EAC reported timing problems.
- Cactus Data Shield 200.0.4 - 3.0 build 16a (Aiko Katsukino - The Love Letter)
This
is a "special" CDS200 build, as it doesn't contain any artificial
errors during the ripping process. Most problems occur when trying to write
the ripped wav files, since the produced CD-R disc contains C2 and CU errors!
This "problem" is rumored to be connected with specific
chipset weaknesses..
We ripped the disc contents with EAC and burned the produced wav with the
latest Nero version as AudioCD+CD-Text. The burned media was checked for
C1/C2 errors with PlexTools software using Plextor PX-712A (firmware
v1.03).
|
CDS 200.0.4 - 3.0 build 16a |
Optorite DD1203 |
Reading performed
without any errors but writing results a high number of C2/CU errors. |
- C1C2 Error rate from PleXWriter PX-712A (8X CLV reading speed)
- BETA/Jitter Error rate from PleXWriter PX-712A
The C1/C2 error graphs indicate that the drive doesn't manage to produce
a 100% error free disc.
Lets try to extract all the wav files with the Plextor PX-712A and PlexTool
DAE Error Correction 5th Level enabled:
Errors were reported for all tracks. The drive cannot backup the disc accurately.
8. CD Recording Tests
Optorite DD1203
Dual DVD±RW Recorder - Page 8
CD Recording Tests
The Optorite DD1203 supports 40X CD-R and 24X US-RW recording speeds.
The drive
supports 4X, 8X, 16X, 24X, 32X, and 40X writing speeds. Below
are
the recording speeds as detected by Nero Burning Rom.
According to Nero CDSpeed, the drive reached the maximum 40X speed. The test
started at 18.22X and finished at 41.20X having an average speed of 31.17X.
Click on the image to see the complete graph.

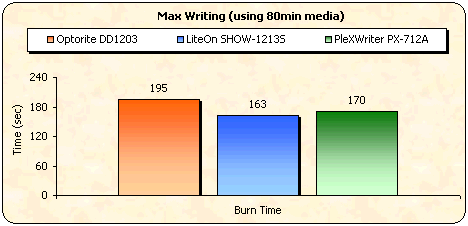

For the burning tests we created an 80min data compilation through Nero Burning
Rom, recording the data on a 700MB disc. The Optorite DD1203 finished the
task in
3:15 minutes, at the maximum 40X writing speed. The LiteOn
and Plextor drives support 48X and this is the reason for the difference
in
times.
The
writing performance varies according to the inserted media. The ExactLink
system will lower the writing speed if the media ID code is not found in the
drive's firmware. Below is a chart demonstrating
corresponding recording times for the various media.
- Other features
CD text reading/writing
|
Yes
|
Overburning with 80min CD |
81:57 |
Overburning with 90min CD |
91:50 |
Overburning with 99min CD |
81:47 |
The DD1203 supports a maximum 24X P-CAV rewriting speed with Ultra Speed Rewritable Media
(US-RW).
Below you can see the Nero CD-DVD Speed writing simulation test with blank
24X US-RW media from Mitsubishi Chemicals.
We also used Nero Burning Rom in order to burn a data disc with 24X US-RW
media from MC. The data compilation we burned had a size of 651 MB and the
duration of the recording process was 3:44 minutes.
- CD-RW Mount Rainier Tests
Mount Rainier isn't supported.
9. 3T Jitter Tests
Optorite DD1203 Dual DVD±RW Recorder - Page 9
3T Jitter Tests
In the following page you can
see the 3T
Pit & Land Jitter graphs using various media burned at 40X CAV writing
speed.

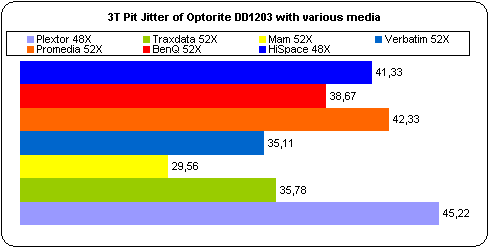

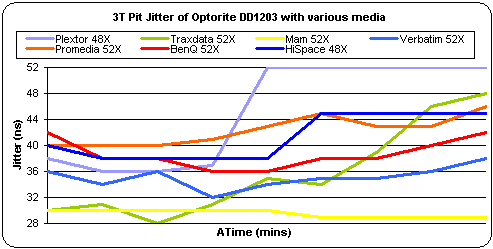

- 3T Pit results

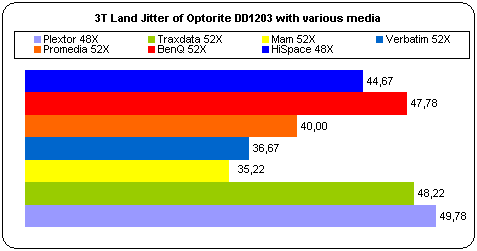

- 3T Land results
As it can been seen from the graphs above, the Jitter levels are high to extremely
high with most media. Verbatim and Mam had the best results.
In the following page we check the C1 and C2 error rates of the same discs,
to come up with more specific conclusions.
10. C1 / C2 Error Measurements
Optorite DD1203 Dual DVD±RW Recorder - Page 10
C1 / C2 Error Measurements
We measured the C1 / C2 error rate on the recorded discs we burned at the
various supported writing speeds. The software we used was PleXTools Professional
v2.15, and particularly the built-in Q-Check utility. The reader was the Plextor
PX-712A (firmware v1.03)
BenQ CD-R 52X@ 40X
HiSpace CD-R 48X@ 16X
Mam CD-R 52X@ 24X
Plextor CD-R 48X @ 40X

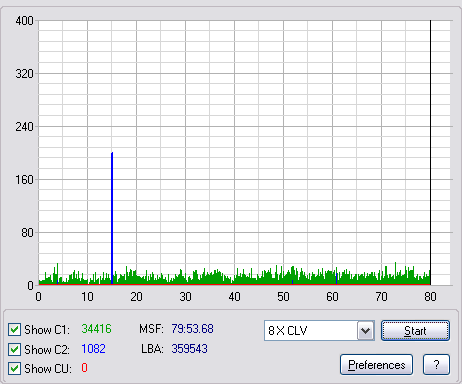

Promedia CD-R 48X@ 40X

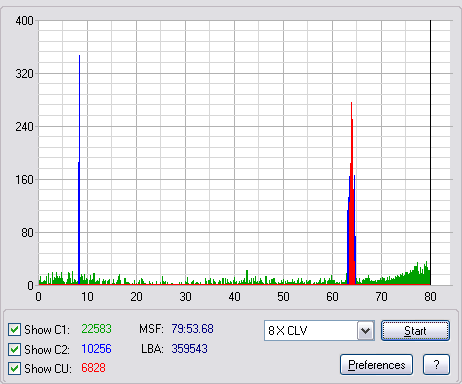

Traxdata CD-R 52X@ 40X

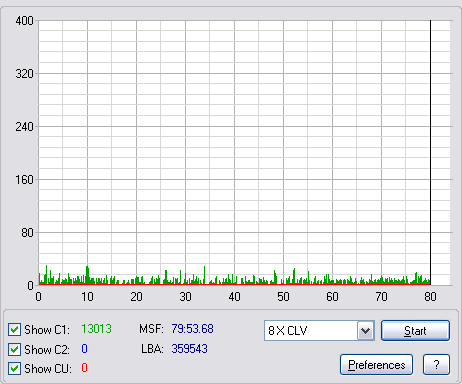

Verbatim CD-R 52X@ 40X
The CD recording quality is barely acceptable with the specific media
we tested. Only in two cases is the quality good, without C2 or CU errors.
With the
rest,
there were C2 readings and in one case CU (Traxdata CD-R 52X@ 40X).
- Appendix
Media Label |
ID Code |
Manufacturer Name |
Lead Out TIme |
Verbatim 80min 52X |
97m34s23f |
Verbatim |
79:59.73 |
HiSpace 80min 48X |
97m25s07f |
unknown |
79:59.00 |
BenQ 80min 48X |
97m22s67f |
Daxon Technology |
79:59.74 |
Plextor 80min 48X |
97m24s 1f |
Taiyo Yuden |
79:59.72 |
TraxData 80min 52X |
97m15s17f |
Ritek |
79:59.70 |
Mam 80min 52X |
97m27s58f |
Mitsui |
79:59.74 |
Promedia 80min 52X |
97m26s66f |
CMC Magnetics |
79:59.71 |
11. DVD Recording Tests
Optorite DD1203 Dual DVD±RW Recorder - Page 11
DVD Recording Tests
- Writing Performance
The Optorite DD1203 supports
both the DVD-R/RW and DVD+R/RW writing formats. The maximum supported speed
for DVD+R is
12X ( P-CAV) & 4X CLV for DVD+RW
media. DVD-R writing offers 8X ( Z-CLV) maximum writing speed
and 4X CLV
rewriting speed. Nero Burning Rom reported speeds are shown below.
Nero CD-DVD Speed's "create disc" function with Taiyo Yuden 8X
DVD+R media, shows us the 12X Z-CLV recording technology being used
by
the Optorite DD1203
recorder. The second screenshot reveals the writing strategy for 8X DVD+R while
the third for DVD-R.
- Burning Tests

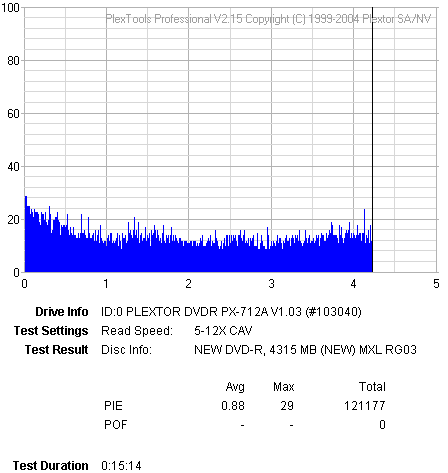

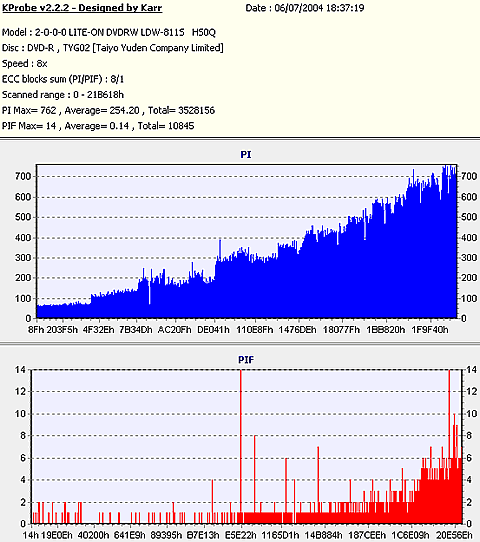

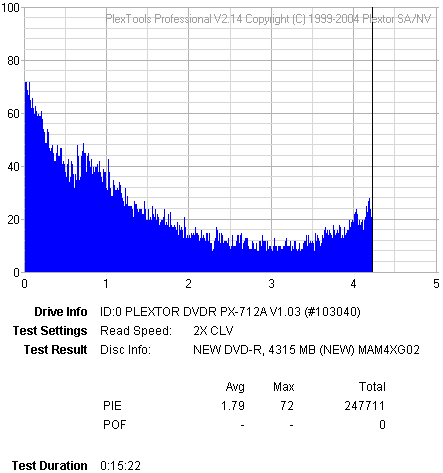

We burned 4315MB of data on various DVD±R, DVD±RW media.
We used the maximum allowed writing speed for each disc, with th ExactLink
feature enabled. For the 12X DVD+R burning speed, the supported
media list is poor as only two of our media was compatible at that speed.
The best recording time for the DVD+R format came from Maxell 8X media
with
6:44 mins burning time.
Below are all the burning results with the various media types used.
Disc Label |
Disc Information |
Max Allowed Writing Speed |
Total Recording Time (mins) |
3A 8X DVD-R |
POMS3A |
4X |
14:58 |
BenQ 4X DVD-R |
SONY04D1 |
4X |
14:50 |
CMC 8X DVD-R |
CMC MAG. AE1 |
8X |
9:49 |
MAM 4X DVD-R |
MAM4XG02 |
4X |
14:44 |
Maxell 8X DVD-R |
MXL RG03 |
8X |
9:49 |
Mitsubishi 4X DVD-R |
MCC 01RG20 |
4X |
14:35 |
Mitsubishi 8X DVD-R |
MCC 02RG20 |
8X |
9:43 |
Traxdata 4X DVD-R |
RITEKG04 |
4X |
14:36 |
Traxdata 8X DVD-R |
RITEKG05 |
8X |
9:46 |
Taiyo Yuden 8X DVD-R |
TYG01 |
8X |
9:42 |
Traxdata 4X DVD-RW |
RITEK W04 |
4X |
14:39 |
Verbatim 4X DVD-RW |
MCC 01RW4X |
4X |
14:38 |
Disc Label |
Disc Information |
Max Allowed Writing Speed |
Total Recording Time (mins) |
Ricoh 8X DVD+R |
PICOHJPNR02 |
12X |
6:39 |
3A 8X DVD+R |
Plasmon1 C01 |
4X |
14:29 |
CMC 8X DVD+R |
CMC MAG E01 |
8X |
7:49 |
Maxell 8X DVD+R |
MAXELL002 |
12X |
6:44 |
Mitsubishi 4X DVD+R |
MCC 002 |
4X |
14:09 |
Mitsubishi 8X DVD+R |
MCC 003 |
8X |
7:47 |
MMore 4X DVD+R |
MBIPG101R03 |
4X |
14:16 |
Intenso 8X DVD+R |
PRODISC R03 |
8X |
7:51 |
Traxdata 4X DVD+R |
RICOHJPN R01 |
4X |
14:10 |
Traxdata 8X DVD+R |
RITEK R03 |
4X |
14:25 |
Taiyo Yuden 8X DVD+R |
YUDEN000 T02 |
12X |
6:53 |
Traxdata 4X DVD+RW |
RICOHJPNW11 |
4X |
13:43 |
Maxell 4X DVD+RW |
PHILIPS 041 |
4X |
13:43 |
Supported media list for firmware 120E.
- DVD Overburning Tests
In order to test the drive's DVD overburning capabilities, we used two media
types, one from CMC 8X DVD-R and one from 3A 8X DVD+R. As you can
see, the drive refused to start the test with DVD-R media,
while with DVD+R, the test started but when it reached 4.38GB, stopped with
an error message.
The Optorite DD1203 cannot overburn with DVD±R formats.
- DVD+MRW Tests
Mount Rainier isn't supported.
12. KProbe/PlexTools Scans - Page 1
Optorite DD1203 Dual DVD±RW Recorder - Page 12
KProbe/PlexTools Scans - Page 1
In the following screenshots you can see the PI/PIF scans for the DVD+R/RW
media we burned with the Optorite DD1203. The software we used for all measurements
is KProbe v2.2.2, and the reader is the LiteOn LDW-811S with "HS0Q
patched" firmware, being able to read DVD±R/RW media up to 8X CAV.
All scans have been performed at 8X with PI/PIF Sum8. Note that LiteOn drives
cannot report PO but PIF errors, despite what KProbe reports. In addition,
all discs have been scanned with PX-712A v1.03 using PlexTools v2.15 for comparison
levels.
Comparing the KProbe/PlexTools scans, we can see major differences in the
reported PI/PIF error rates. The main explanation is that we have two different
readers, with different pickup/chipset combinations, scanning at different
reading speeds (8X CAV for KProbe, 2~5X CAV for PlexTools). It's interesting
to see the
disc scanned at low & high speeds, since when the error rate increases
at a specific disc area, it should appear in both scans...else it would be,
perhaps,
a reading glitch of the tested reader.
Note: PI/PIF errors only give us a quick look at the error
rate of the burned media. Those scans should be taken not as the absolute criteria
of the burning quality but as an indication level.
Ricoh 8X DVD+R @ 12X
3A 8X DVD+R @ 4X
CMC 8X DVD+R @ 8X
Maxell 8X DVD+R @ 12X
Although Plextools failed to read the disc's contents, as was the case with
CDSpeed also, the disc was playable without problems in our standalone DVD
players and
in
Media
Player
Classic with both DVD-ROM drive and recorder.
Mitsubishi Chemicals 4X DVD+R @ 4X
Mitsubishi Chemicals 8X DVD+R @ 8X
MMore 4X DVD+R @ 4X
Intenso 8X DVD+R @ 8X
Traxdata 4X DVD+R @ 4X
Traxdata 8X DVD+R @ 4X
Taiyo Yuden 8X DVD+R @ 12X
This media was not accessible on our Philips player while it was on the Pioneer.
Traxdata 4X DVD+RW @ 4X
Maxell 4X DVD+RW @ 4X
- Summary
Regarding the PIE/PIF scans, we can say that the Optorite DD1203
had average performance. The PIE/PIF levels are high in many cases
and in certain cases extremely high. All the discs were playable
on our standalone players, except for Taiyo Yuden media which did not play
on one of our two players.
- Appendix
Disc Label |
Disc Information |
Max Allowed Writing Speed |
Total Recording Time (mins) |
Ricoh 8X DVD+R |
PICOHJPNR02 |
12X |
6:39 |
3A 8X DVD+R |
Plasmon1 C01 |
4X |
14:29 |
CMC 8X DVD+R |
CMC MAG E01 |
8X |
7:49 |
Maxell 8X DVD+R |
MAXELL002 |
12X |
6:44 |
Mitsubishi 4X DVD+R |
MCC 002 |
4X |
14:09 |
Mitsubishi 8X DVD+R |
MCC 003 |
8X |
7:47 |
MMore 4X DVD+R |
MBIPG101R03 |
4X |
14:16 |
Intenso 8X DVD+R |
PRODISC R03 |
8X |
7:51 |
Traxdata 4X DVD+R |
RICOHJPN R01 |
4X |
14:10 |
Traxdata 8X DVD+R |
RITEK R03 |
4X |
14:25 |
Taiyo Yuden 8X DVD+R |
YUDEN000 T02 |
12X |
6:53 |
Traxdata 4X DVD+RW |
RICOHJPNW11 |
4X |
13:43 |
Maxell 4X DVD+RW |
PHILIPS 041 |
4X |
13:43 |
With the latest firmware (120E), the situation is the same as far as
the allowed speeds for each media are concerned. Only for Traxdata 8X DVD+R
(RITEK R03) is there a change which can now be burned at 8X.
We have also confirmed the maximum allowed speed for the Philips C08 and C16,
Taiyo Yuden YUDEN000 T01 which are all 4X. For Optodisc ( OPTODISC
OR8) the speed is at 8X.
13. KProbe/PlexTools Scans - Page 2
Optorite DD1203 Dual DVD±RW Recorder - Page 13
KProbe/PlexTools Scans - Page 2
In the following screenshots you can see the PI/PIF scans for the DVD+R/RW
media we burned with the Optorite DD1203. The software we used for all measurements
is KProbe v2.2.2, and the reader is the LiteOn LDW-811S with "HS0Q patched" firmware,
being able to read DVD±R/RW media up to 8X CAV. All scans have been
performed at 8X with PI/PIF Sum8. Note that LiteOn drives cannot report PO
but PIF errors, despite what KProbe reports. In addition, all discs have been
scanned with PX-712A v1.03 using PlexTools v2.15 for comparison levels.
Comparing the KProbe/PlexTools scans, we can see major differences in the
reported PI/PIF error rates. The main explanation is that we have two different
readers, with different pickup/chipset combinations, scanning at different
reading speeds (8X CAV for KProbe, 2~5X CAV for PlexTools). It's interesting
to see the disc scanned at low & high speeds, since when the error rate
increases at a specific disc area, it should appear in both scans...else it
would be, perhaps, a reading glitch of the tested reader.
Note: PI/PIF errors only give us a quick look at the error
rate of the burned media. Those scans should be taken not as the absolute
criteria of the burning quality but as an indication level.
3A 8X DVD-R @ 4X

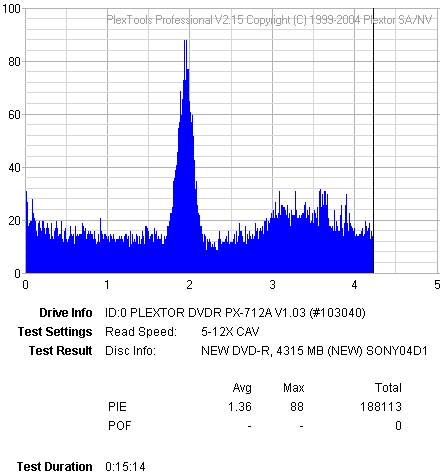

BenQ 4X DVD-R @ 4X
CMC 8X DVD-R @ 8X
MAM 4X DVD-R @ 4X
Maxell 8X DVD-R @ 8X
Mitsubishi Chemicals 4X DVD-R @ 4X
Mitsubishi Chemicals 8X DVD-R @ 8X

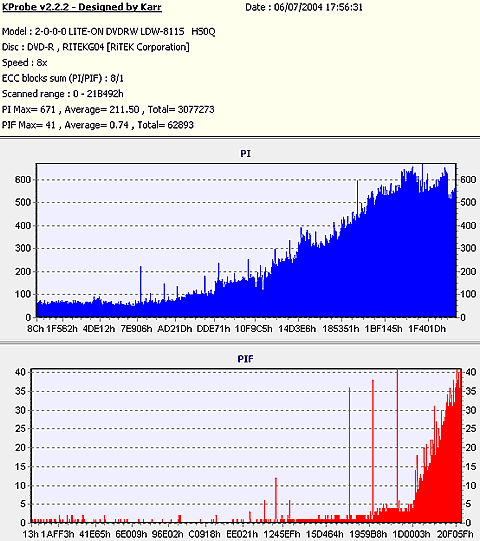

Traxdata 4X DVD-R @ 4X
Traxdata 8X DVD-R @ 8X
Taiyo Yuden 8X DVD-R @ 8X

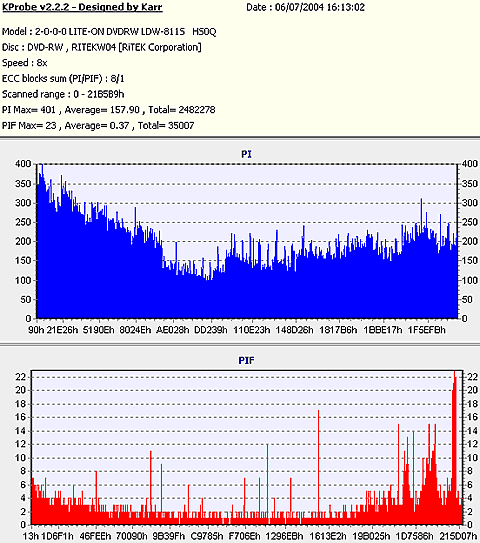

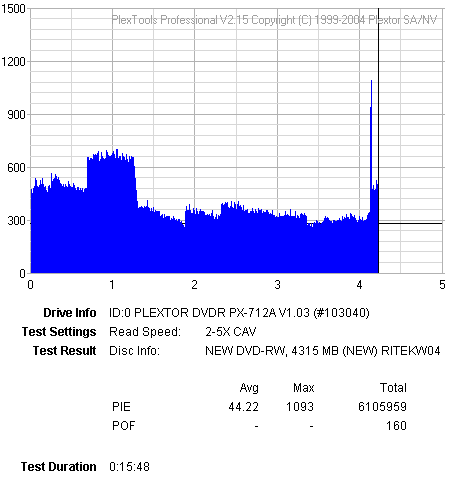

Traxdata 4X DVD-RW @ 4X
Verbatim 4X DVD-RW @ 4X
- Summary
Once again, the DVD recording quality, this time with the minus format,
is barely acceptable. Here too there are high levels of PIE/PIF, while
all the discs were playable on our standalone players.
- Appendix
Disc Label |
Disc Information |
Max Allowed Writing Speed |
Total Recording Time (mins) |
3A 8X DVD-R |
POMS3A |
4X |
14:58 |
BenQ 4X DVD-R |
SONY04D1 |
4X |
14:50 |
CMC 8X DVD-R |
CMC MAG. AE1 |
8X |
9:49 |
MAM 4X DVD-R |
MAM4XG02 |
4X |
14:44 |
Maxell 8X DVD-R |
MXL RG03 |
8X |
9:49 |
Mitsubishi 4X DVD-R |
MCC 01RG20 |
4X |
14:35 |
Mitsubishi 8X DVD-R |
MCC 02RG20 |
8X |
9:43 |
Traxdata 4X DVD-R |
RITEKG04 |
4X |
14:36 |
Traxdata 8X DVD-R |
RITEKG05 |
8X |
9:46 |
Taiyo Yuden 8X DVD-R |
TYG01 |
8X |
9:42 |
Traxdata 4X DVD-RW |
RITEK W04 |
4X |
14:39 |
Verbatim 4X DVD-RW |
MCC 01RW4X |
4X |
14:38 |
14. HD - BURN
Optorite
DD1203 Dual DVD±RW Recorder -
Page 14
HD - BURN
HD-BURN allows writing twice the amount of data than can normally
fit on a CD-R disc. This means that up to 1.4GB of data can be recorded
on 700MB
CD-R media. The Optorite DD1203 supports 24x writing speed for the HD-Burn
option.
To check the performance of the Optorite DD1203 with HD-Burn, we used
NeroBurning Rom which supports the HD-Burn function. The available HD-Burn
compilations
are CD-ROM (ISO, UDF, ISO/UDF, Bootable), HD-BURN -Video or just copy an
HD-BURN disc.
The supported reading speed for HD-BURN, according to the manufacturer,
is 74X. In our test, the drive reached 80X reading speed.
Our output HD-Burn disc was playable without problems with Windows Media
Player.
15. BookType Setting
Optorite
DD1203 Dual DVD±RW Recorder -
Page 15
BookType Setting
We would like to see this option supported.
16. Conclusion
Optorite
DD1203 Dual DVD±RW Recorder -
Page 16
After finishing the review, we have come to the conclusion that the drive's
performance as a reader was good. The Optorite DD1203 had acceptable reading
speed for a 40X drive and very good seek times in all modes. As for CD
error correction, the drive performed
poorly
and
is something we would like to see improved.
In the DVD tests, the drive showed good reading speed and low seek
times. With scratced DVD media, the drive's ability to correct and read through
the defective areas was very good, where in our tests, no errors were reported.
There was
only one case, that of the ABEX TDV-541 test disc, where the speed dropped
in order to read the defective area.
Games protected with SafeDisc up to version v2.8 are not a problem for the
Optorite drive. With newer versions, the drive could not make working backups.
The ripping
speed was not high, especially in the case of Safedisk protection scheme where
the results were rather slow.
The DD1203 drive managed to play and rip both Key2Audio and CDS200 protection
schemes. However the drive may not be ripping the discs
100% accurately since EAC reported timing problems. The 90min test
disc was played successfully while the 99min disc reports errors in the last
tracks. The drive also
cannot backup the CDS200 protected Aiko Katsukino - The Love Letter title.
CD recording quality is good with half the media we tried, even after we
flashed the drive with the latest firmware (120E). The rest of the media reported
high
jitter levels. This needs to be addressed and fixed!
As for the writing quality with the DVD media, it was acceptable. There were
many cases with increased PI/PIF levels. This
is also something that we would like to see improved. However, no matter what
the recording quality was, all the media we burned was playable on our standalone
DVD players from Pioneer and Philips. There was only one case where the media
did not playable.
- The Good
- 12X DVD+R recording
- Good DVD error correction
- Supports HD-Burn
- High speed for DVD video ripping
- Supports protected Audio discs (CDS200, Key2Audio)
- Second bezel included (different color)
- Frequent firmware updates from Optorite
- The Bad
- DVD±R incompatibility with the maximum writing speeds
- CD recording quality with several media (can be fixed with firmware upgrade)
- Cannot backup the CDS200 protected Aiko Katsukino - The Love Letter
- Doesn't support Booktype Bitsetting
- DVD±R needs improvement as
drive produces high PI error rates and PI failures in many cases
- CD error correction is not very good
- Doesn't report C2 errors
- Doesn't backup SafeDisc v2.9 & 3.1x protected discs
- Slow SafeDisc protection ripping
- Doesn't support reading of DVD-RAM media
- Doesn't support DVD overburning
- Cannot be used to scan (measure) CD/DVD media (this could be fixed with
a newer UMDoctor version)
- Like to be fixed
- DVD±R writing performance and quality
