Wednesday, June 23, 2010
Noctua NH-U9B SE2 review
|
|
| Manufacturer |
Noctua |
| Model |
|
| Price |
|
| Category |
Power users |

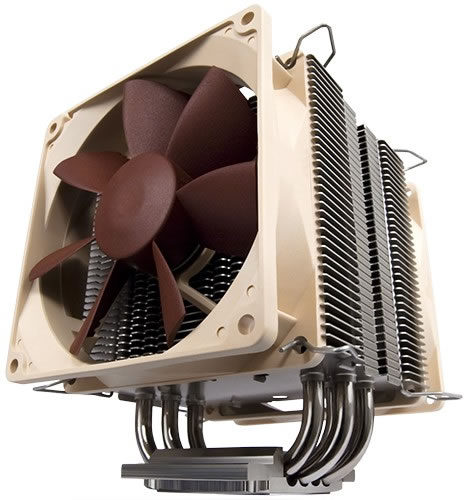

Noctua's NH-U9B SE2 cooler is a special edition of the NH-U9B cooler for HTPCs or smaller cases. The NH-U9B SE2 now comes with two of Noctua's NF-B9 92mm fans and adds support for LGA1156 as well as LGA1366 via the latest SecuFirm2 multi-socket mounting system. It also supports AMD's AM2, AM2+ and AM3 systems.
The cooler has been designed to offer users quiet cooling, a performance level close to its bigger brothers while being much more compact. The supplied Low-Noise and Ultra-Low-Noise-Adaptors allow for full flexibility in fine-tuning the cooler for more quietness or maximum performance in push-pull mode.

- Product features
 |
NH-U9B Heatsink
The NH-U9B SE2 is built around Noctua's NH-U9B heatsink that combines quiet cooling performance with compact size, making it ideal for use in HTPC systems and smaller cases. |
 |
SecuFirm2 multi-socket mounting system
Noctua’s enthusiast grade SecuFirm2 multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA775, AM2, AM2+ and AM3) |
 |
2x NF-B9 92mm Premium Fan
Including two of Noctua's NF-B9 92mm fans with Low-Noise and Ultra-Low-Noise-Adaptors, the NH-U9B SE2 offers full flexibility in fine-tuning the cooler for supreme quietness and maximum performance in push-pull mode.
|
 |
NT-H1 Thermal Compound
Noctua's NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
|
 |
Special Edition Premium Kit
Bundled with a tube of NT-H1, two exquisite NF-B9 fans and the new SecuFirm2™ multi-socket mounting system, the NH-U9B SE2 forms a complete package that's backed up with 6 years manufacturer's warranty |
- Specifications
| Socket compatibility |
|
Intel LGA1366, LGA1156, LGA775 & AMD AM2, AM2+, AM3 (backplate required) |
| |
| |
| |
| Height (without fan) |
|
125 mm |
| |
| |
| |
| Width (without fan) |
|
95 mm |
| |
| |
| |
| Depth (without fan) |
|
71 mm |
| |
| |
| |
| Height (with fan) |
|
125 mm |
| |
| |
| |
| Width (with fan) |
|
95 mm |
| |
| |
| |
| Depth (with fan) |
|
95/120* mm |
| |
| |
| |
| Weight (without fan) |
|
460 g |
| |
| |
| |
| Weight (with fan) |
|
550/640* g |
| |
| |
| |
| Material |
|
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| |
| |
| |
| Fan compatibility |
|
2x 92x92x25mm |
| |
| |
| |
| Scope of Delivery |
|
2x NF-B9 premium fan
2x Ultra-Low-Noise Adaptor (U.L.N.A.)
2x Low-Noise Adaptor (L.N.A.)
Y-Split Cable
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kits |
| |
| |
| |
| Warranty |
|
6 Years |
| |
| |
| |
Fan specifications |
|
|
| |
| |
| |
| Model |
|
Noctua NF-B9 |
| |
| |
| |
| Bearing |
|
SSO-Bearing |
| |
| |
| |
| Rotational Speed (+/- 10%) |
|
1600 RPM |
| |
| |
| |
| Rotational Speed with L.N.A. (+/- 10%) |
|
1300 RPM |
| |
| |
| |
| Rotational Speed with U.L.N.A. (+/- 10%) |
|
1000 RPM |
| |
| |
| |
| Airflow |
|
64,3 m³/h |
| |
| |
| |
| Airflow with L.N.A. |
|
52,6 m³/h |
| |
| |
| |
| Airflow with U.L.N.A. |
|
41,1 m³/h |
| |
| |
| |
| Acoustical Noise |
|
17,6 dB(A) |
| |
| |
| |
| Acoustical Noise with L.N.A. |
|
13,1 dB(A) |
| |
| |
| |
| Acoustical Noise with U.L.N.A. |
|
7,9** dB(A) |
| |
| |
| |
| Input Power |
|
1,32 W |
| |
| |
| |
| Voltage Range |
|
12 V |
| |
| |
| |
| MTBF |
|
> 150.000 h |
|
