Friday, March 16, 2018
Shuttle SZ270R8 review

1. Features

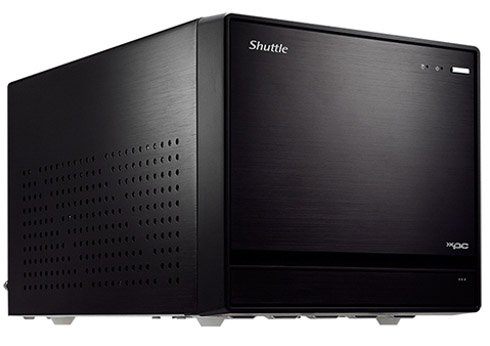

Shuttle has recently added the SZ270R8 model in its XPC series of miniPC chassis. Based on the Intel Z270 chipset, this product promises to offer high performance and expansion flexibility, at a compelling price. The stylish aluminum chassis is three times smaller than tower PC but as a result of a new internal design, it can support large-format dual-slot graphics cards, installation of up to four 3.5" hard disck drives and supports the Intel Rapid Storage Technology (Intel RST) for those looking at RAID configurations (RAID 0/1/5/10).

Equipped with Intel Z270 chipset, this new XPC cube is designed to drive Intel Kabylake LGA 1151 processors - it supports both Intel 6th Gen (Skylake) and Intel 7th Gen (Kabylake) Core i3/i5/i7, Pentium, and Celeron 95W processors. With Intel HD graphics, the SZ270R8 is able to support 4K/Ultra HD video playback and up to three independent screens and dual-screen displays via HDMI or DisplayPort interfaces.

The SZ270R8 provides one PCI-E x16 slot (Support Dual Slot VGA card). It's built-in Dual Gigabit LAN supports Wake on LAN and Teaming Mode; comes with two M.2 2280 and one M.2 2230 slots, 10 USB3.0 ports, as well as an optional RS232.

Shuttle's I.C.E.2 heat pipe technology and an 80 Plus Silver 500W power supply ensure stability and and energy-efficiency for long-term operation. Shuttle's recommended retail price for the XPC Barebone SZ270R8 is around 325-350 Euros (ex VAT).

- Features/Specifications

  • Chassis
    Black aluminium chassis
    Front panel: brushed aluminium
    Front doors for USB ports
    Kensington Security Slot at the back panel (also called K-Slot
    or Kensington lock) as a part of an anti-theft system
    Dimensions: 34.84 x 21.54 x 19.02 cm (LWH), rubber feet: 7 mm
    Weight: 3.5 kg net / 5.0 kg gross
  • Storage bays
    Storage bays: 4x 3.5" (internal)
    Using the optional accessory PHD3 two 2.5" drives
    can be installed into one 3.5" bay.
  • Mainboard / Chipset
    Shuttle Mainboard "FZ270", Shuttle Form Factor
    proprietary design for XPC cube Barebone SZ270R8
    Dimensions: 270 x 195 mm
    Chipset: Intel Z270 Chipset, code name "Union Point"
    Platform Controller Hub (PCH) as Single-Chip-Solution
    Solid Capacitors for sensitive areas provide excellent
    heat resistance for enhanced system durability
  • BIOS
    AMI BIOS, SPI Interface, 32 MBit Flash-ROM with SPI interface
    Supports PnP, ACPI 3.0, Hardware Monitoring
    Supports Unified Extensible Firmware Interface (UEFI)
    Supports boot-up from external USB flash memory
  • Power supply
    Built-in 500 Watt mini switching power supply (PC63J)
    AC input voltage: supports 100~240 V, 50~60 Hz
    80 PLUS Silver [9] compliant: the PSU provides at least
    85/89/85% of efficiency at 20/50/100% of load.
    Active PFC circuit (Power Factor Correction)
    ATX main power connectors: 2x10 and 2x2 pins
    Graphics power connector: 6 pins and 8 pins
    Other connectors: 4x SATA, 2x Molex, 1x Floppy
  • Operation System
    This system comes without operating system.
    It is compatible with Windows 7 / 10 and Linux (64-bit).
    Note: Windows 7 is only supported in combination with 6th generation Intel Core processors "Skylake".
  • Processor support
    Socket LGA 1151 (H4) supports
    Intel Core i7 / i5 / i3, Pentium and Celeron processors
    - 6th generation, code name "Skylake"
    - 7th generation, code name "Kaby Lake"
    Maximum supported processor power consumption (TDP) = 95W
    14nm process technology, up to 8 MB of L3 cache
    Not compatible with Intel Xeon E3 V5 processors for socket LGA 1151 and processors with the older Socket LGA 1150.
    Supports the unlock-function of Intel K-Series processors.
    The processor integrates PCI-Express, memory controller
    and the graphics engine on the same die (performance features
    depending on processor type)
    Please refer to the support list for detailed processor support information at
  • Processor cooling
    Shuttle I.C.E. (Integrated Cooling Engine)
    Advanced I.C.E. Heatpipe technology with 3 pipes
    Temperature controlled 92 mm fan
    SilentX cooling and noise reduction technology with Active Airflow
  • Memory support
    4 x 288-pin slot
    Supports DDR4-2133/2400 memory (PC4-17066/19200) at 1.2V
    Supports 2+2 Dual Channel mode
    Supports max. 16 GB per DIMM, maximum total size of 64 GB
  • Integrated Graphics
    The features of the integrated Intel HD graphics function
    depend on the processor type used.
    Supports DirectX 12, OGL 5.x, OCL 2.x
    The PC features three digital video outputs:
    - HDMI v1.4b (supports 1080p/60 and 2160p/30)
    - 2x DisplayPort v1.2 (support 1080p/60 and 2160p/60)
    Supports displays with 4K Ultra HD resolution at 3840 x 2160 [3]
    Supports three independent FullHD displays with the integrated graphics function
    Supports more displays in combination with a discrete graphics card [2]
    Supports Blu-ray (BD) playback with HDCP copy protection
    Supports multi-channel digital audio over the same cable
    Maximum shared memory of 512 MB
  • PCIe Expansion Slots
    1x PCI-Express x16 v3.0 slot (PEG, for graphics cards only)
    1x PCI-Express x4 v3.0 slot
    This XPC supports dual-slot (double-width) graphics cards -
    in this case the second PCI-Express slot will be occupied.
    The length of the graphics cards can be up to 280 mm
    or 273 mm, if the power connectors are on the back side.
    Graphics power connectors: 6-pin and 8-pin
  • Two M.2-2280 SSD slots
    The mainboard provides two M.2 2280 slots with the following interfaces:
    - PCI-Express Gen. 3.0 X4 (max. 32 Gbps), supports NVMe
    - SATA v3.0 (max. 6 Gbps)
    It supports M.2 cards with a width of 22 mm
    and a length of 42, 60 or 80 mm (type 2242, 2260, 2280).
    Supports M.2 SSDs with SATA or PCI-Express interface.
  • Intel Optane Ready
    The SZ270R8 supports the Intel Optane Technology
    which accelerates the speed of one hard disk through data caching.
    This requires a 7th gen. Intel Core processor ("Kaby Lake")
    and an Optane-SSD with 3D-Xpoint memory (e.g. in M.2 format).
  • M.2-2230 slot for WLAN cards
    Interfaces: PCI-Express Gen. 2.0 X1 and USB 2.0
    Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
    Supports WLAN extension cards (optional Shuttle accessory WLN-M [6])
  • Multi-Channel HD audio
    High Definition Audio with Realtek ALC662 codec
    Back panel: three analog audio connectors (3.5 mm):
    Line-in (blue), line-out (green) and microphone input (pink)
    shared with 5.1 channel line-out (front, rear, center/bass)
    Front panel: microphone input and headphones output
    7.1 channel Digital Audio: via HDMI and DisplayPort outputs
  • Dual Gigabit Network
    Dual network with two RJ45 ports
    2x Intel i211 Ethernet Controller with MAC, PHY and PCIe interface
    Supports 10 / 100 / 1.000 MBit/s operation
    Supports WAKE ON LAN (WOL)
    Supports network boot by Preboot eXecution Environment (PXE)
    Supports Teaming mode
  • SATA connectors
    The mainboard provides five Serial-ATA 3.0 interfaces, max. 6 Gbps supported
    4x Serial ATA connector onboard
    Supports Intel Rapid Storage Technology (RST, Raid 0/1/5/10, JBOD)
  • Other Onboard Connectors
    2x USB 2.0 (2x 5-pin)
    1x RS232 (2x 5-pin) for optional accessory H-RS232
    2x fan connectors (4 pin), both connectors are occupied
    Occupied front connectors: USB 3.0, USB2.0, audio, power buttons, LEDs
