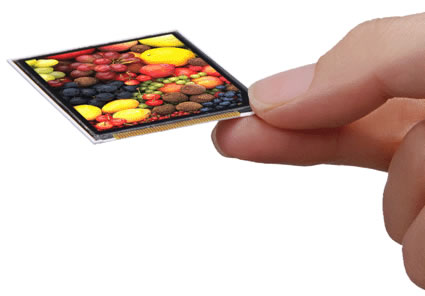

Sharp has successfully developed a 2.2-inch super-thin LCD for mobile devices with a thickness of only 0.68 mm, the industry's thinnest. Mobile devices such as mobile phones and digital cameras are rapidly becoming thinner as manufacturers strive to improve portability and allow for more stylish designs.

Sharp developed a new 2.2-inch Mobile Advanced Super View LCD with a thickness of only 0.68 mm, based on proprietary Sharp fabrication techniques for thin LCDs, glass substrate and backlight technologies. The new LCD delivers superior image quality approaching that of an LCD TV thanks to a high contrast ratio of 2000:1, wide viewing angle of 176°, and fast response speed of 8 ms.



The display will be exhibited at FPD International 2007 to be held at Pacifico Yokohama on October 24 to 26.

Specifications:

Screen size: 2.2 inches
Pixel: 240 x 320 (QVGA)
Module thickness: 0.68 mm
Contrast: 2000:1
Viewing angle Vertical, horizontal, and diagonal: 176°
Response speed: 8 ms (black white display)
Applications: Mobile phones, digital cameras, and other mobile devices
