1. Introduction
Review Pages
This review is for those who want a PC case that looks like a modified PC cases. The following pages are going to take a closer look at Thermaltake's Soprano PC case. This PC case comes in two versions and colours: with or without the transparent X Side Panel Window, in black or silver. We had the opportunity to test the Black Soprano with the transparent panel.

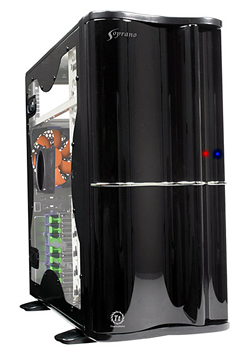

The Soprano VB1000BWS is very striking, mainly due to the wavy front door and the X type transparent panel. However, one thing that is annoying is how easily fingerprints show up on the case, although TT provides a lens cloth to clean them with.
 |
Enclosed dust cloth.... |
- Specifications
| P/N | VB1000BWS | ||
| Case Type | Middle Tower | ||
| Side Panel | Transparent X type side panel | ||
| Color |
Black or Silver | ||
| Net Weight | 9.4kg | ||
| Dimension (H*W*D) | 495 x 210 x 7480 mm | ||
| Power Supply |
N/A | ||
| Cooling System | Front (intake) | 120x120x25 mm, 1400rpm, 21dBA | |
| Rear (exhaust) |
120x120x25 mm, 1400rpm, 21dBA | ||
| Side (exhaust) | 90x90x25 mm, 1800rpm, 21dBA | ||
| Material | Chassis | 0.8 mm SECC | |
| Front Door | Plastic | ||
| Drive Bays | 11 | External | 4 x 5.25", 2 x 3.5" |
| Internal |
5 x3.5" | ||
| Expansion Slots | 7 | ||
| Motherboards |
Micro ATX , Standard ATX | ||
| Features | High efficiency ventilation: Dual 12cm silent fan in front & rear, 9cm fan on side panel | ||
| Transparent side panel | |||
| Tool - Free when installing 5.25" & 3.5" device | |||
| Dual USB 2.0, IEEE 1394 Firewire, Audio & Speaker ports | |||
| Highly flexible "Silent Purepower supply" unit supports PS/II for PC case (optional) | |||
Now that we've covered the basics, let's move on to the detailed analysis of the features and case accessories.
