AMD today introduced the AMD FirePro 2270 and ATI FirePro V5800 DVI professional graphics cards, designed for professionals in the medical, financial, design and engineering fields. As AMD's only low-profile, passively cooled, dual-display, triple set support solution graphics card, the AMD FirePro 2270 delivers multi-display capabilities. For example, the AMD FirePro 2270 features a fan-less, energy efficient design that consumes 15 watts maximum power and less than 10 watts on average. Additionally, the AMD FirePro 2270 enables efficient multitasking across multiple applications, including graphics intensive applications, helping to prevent system slowdowns. Legacy support for DisplayPort, DVI and VGA connectivity allows for integration into existing installations.



The ATI FirePro V5800 DVI delivers professionals the graphics performance needed to drive two high-resolution dual link DVI displays while offering users the ability to stretch one image or application across both screens for expanded field of view. Support for DVI, the most common digital interface, makes setting up dual-display configurations easier. The ATI FirePro V5800 DVI professional graphics delivers a full 30-bit display pipeline to enable increased color reproduction and supports packed pixel mode to support dual 5MP medical displays.



With AMD FirePro 2270 starting at $149 US SEP and ATI FirePro V5800 DVI starting at $469 US SEP, both cards are available from professional graphics retailers worldwide.

Specifications

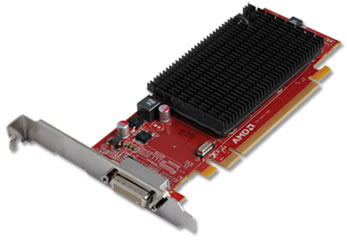

AMD FirePro 2270

System Requirements
* Available PCIe x1 or x16 lane
* Microsoft Windows XP, Windows Vista, Windows 7 or Linux 14 (32-bit or 64-bit)
* 256MB of system memory
* 350-Watt power supply or greater
* CD-ROM drive (or Internet access) for software installation2

Display Capabilities

* Independent multi-monitor resolution and refresh rate selection * Two DVI-VGA adapters
* DMS-59 connector and DMS-59 cable for DVI and VGA support
* DMS-59 to DisplayPort cable sold separately

Warranty and Support

* Three year limited product repair/replacement warranty
* Direct toll free phone and email access to dedicated workstation technical support team
* Advanced parts replacement option

API and OS Support

* OpenGL 4.1
* DirectX 11
* Microsoft Windows XP, Windows Vista and Windows 7 (32-bit or 64-bit)
* Linux 32 and Linux 64

Retail Part Numbers

* AMD FirePro 2270: 100-505651
* AMD FirePro 2270 x1: 100-505652

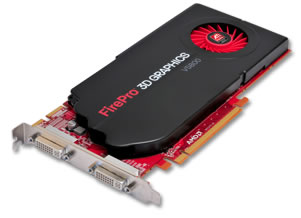

ATI FirePro V5800 DVI

GPU

* 800 Stream processors
* 128-bit Memory Interface

Memory

* 1GB GDDR5
* Bandwidth (GB/s): 64.0

Display Outputs and Capabilities

* Two (2) Dual-link DVI outputs
* Max resolution 2560x2048, at 60Hz with packed pixel mode
* Independent multi-monitor resolution and refresh rate selection

System Requirements

* Available PCIe 2.1 x16 lane
* Microsoft Windows XP, Windows Vista, Windows 7 or Linux 14 (32-bit or 64-bit)
* 512MB of system memory
* Power supply with 75W for graphics
* CD-ROM drive (or Internet access) for software installation

Retail Package Contents (when sold independently from workstation/system)

* ATI FirePro V5800 DVI
* One ATI CrossFire Pro connection cable
* Installation CD with drivers and documentation
* Quick Start Reference Guide

Warranty and Support

* Three year limited product repair/replacement warranty
* Direct toll free phone and email access to dedicated workstation technical support team
* Advanced parts replacement option

API and OS Support

* OpenGL 4.1
* DirectX 11
* OpenCL 1.1
* Microsoft Windows XP, Windows Vista and Windows 7 (32-bit or 64-bit)
* Linux 32 and Linux 64

Retail Part Number

* 100-505682
