Noctua NH-L9i review

Feb 25,2013 0

1. Features



Review Pages

1. Features
2. A closer look
3. Measurements
4. Final thoughts



Manufacturer
Noctua
Model
NH-L9i
Price

$48

Category
HTPC Users

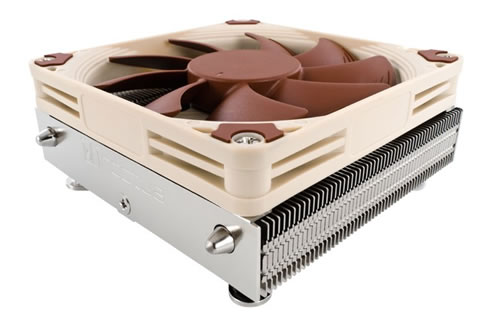

Today we have in our labs a low-profile CPU cooler for home theater PCs and Small Form Factor systems, the Noctua NH-L9i. The compact cooler is compatible with Intel LGA115x based systems and has been designed to offer a better cooling performance than Intel's stock cooler that is possibly installed in your system.

The NH-L9i has a super-low profile of just 37mm, meaning that it is ideal for extremely slim cases. In addition, its 95x95mm footprint provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards.

The cooler can be easily installed featuring Noctua's custom designed SecuFirm2 mounting system for LGA115x . Air stream is provided by Noctua's  NF-A9x14 fan, which supports fully automatic speed control via PWM to maintain cooling efficiency and quiet operation.

We should note that the NH-L9i has been designed to operate efficiently when installed in small form factor cases and HTPC environments. While it promises first class performance in its class, it is not suitable for overclocking and should be used mainly with CPUs with Thermal Power Design (TDP) of not very higher than the 65W. So make sure to check Noctua 's webpage to find out whether the NH-L9i is recommended for your CPU.

- Product features

NH-L12 37mm low profile

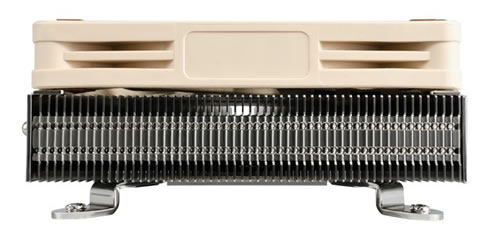

Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.

NH-L12 100% RAM compatibility
The NH-L9i has a 95x95mm footprint that complies exactly to the Intel LGA115x socket keep-out zone. This means that it won’t cause issues with chipset coolers and doesn’t overhang the RAM slots, so it’s fully compatible with tall memory modules.
NH-L12 100% compatibility with PCIe cards on mini-ITX
Most Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-L9i provides full compatibility with PCIe cards.
NH-L12 NF-A9x14 PWM premium fan
The highly optimized NF-A9x14 premium fan features Noctua’s proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet
NH-L12 Low-Noise Adaptor
Allowing to reduce the maximum speed of the NF-A9x14 fan from 2500 to 1800rpm, the included Low-Noise Adaptor (L.N.A.) makes it possible to achieve near-silent setups using CPUs with less than 65W TDP.
NT-H1 6 years manufacturer’s warranty
Like all Noctua fans, the supplied NF-A9x14 features an MTBF rating of more than 150.000 hours and the entire NH-L9i package comes with a full 6 years manufacturer’s warranty.

- Specifications

Socket compatibility LGA1150, LGA1155, LGA1156
Height (without fan) 23 mm
Width (without fan) 95 mm
Depth (without fan) 95 mm
Height (with fan) 37 mm
Width (with fan) 95 mm
Depth (with fan) 95 mm
Weight (without fan) 345 g
Weight (with fan) 420 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility 92x92x14mm, 92x92x25mm
Scope of Delivery
  • NF-A9x14 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Screws for 92x92x25mm fans
  • Noctua Metal Case-Badge
  • Warranty 6 Years


    Fan specifications

    Model Noctua NF-A9x14 PWM
    Bearing SSO2
    Max. Rotational Speed (+/- 10%) 2500 RPM
    Max. Rotational Speed with L.N.A. (+/- 10%) 1800 RPM
    Min. Rotational Speed (PWM) 300 RPM
    Max. Airflow 57,5 m³/h
    Max. Airflow with L.N.A. 40,8 m³/h
    Max. Acoustical Noise 23,6 dB(A)
    Max. Acoustical Noise with L.N.A. 14,8 dB(A)
    Input Power 2,52 W
    Voltage Range 12 V
    MTBF > 150.000 h



    Review Pages

    1. Features
    2. A closer look
    3. Measurements
    4. Final thoughts



    Pages

    • 1
    • 2
    • 3
    • 4
    • next ›
    • last »
