Ridisc Media Tests

May 17,2005 0

17. LiteOn SOHW-1653S (fw CS0K)

Review Pages

1. Introduction
2. 4X DVD+R ( RICOHJPNR01)
3. DVD-R 4X ( RITEK G04)
4. DVD-R 8X ( TTG02)
5. DVD-R 8X ( RITEK G05)
6. DVD-R 8X Silver Printable( CMC MAG AE1)
7. DVD+R 16X ( CMC MAG M01)
8. Aopen DUW1608-ARR (fw A070)
9. Asus DRW-1604P (fw 1.18)
10. Asus DRW-1608P (fw 1.50)
11. BenQ DW1620 (fw B7U9)
12. BenQ DW1625 (fw BBEA)
13. HP DVD640i (fw ES04)
14. LG GSA-4120B (fw A116)
15. LG GSA-4163B (fw A104)
16. LG GSA-5160B (fw A303)
17. LiteOn SOHW-1653S (fw CS0K)
18. LiteOn SOHW-1673S (fw JS05)
19. NEC ND-3520A ( fw 1.04)
20. NEC ND-3530A (fw 2.10)
21. Philips DVDR16LS (fw P1.6)
22. Philips DVDRW1640P (fw P.3.4)
23. Pioneer DVR-107 (fw 1.21)
24. Pioneer DVR-108 (fw 1.19)
25. Pioneer DVR-109 (fw 1.40)
26. Plextor PX-712A (fw 1.06)
27. Plextor PX-716A (fw 1.06)
28. Ricoh MP5316DA (fw 2B.9)
29. Samsung TS-H552B (fw TS09)
30. Toshiba SD-R5372 (fw TU55)
31. Waitec Action 16 (fw BSX1)
32. Conclusion

DVD Family:
Write	DVD+R 16X(21600KB/sec) maximum by CAV
	DVD-R 12X(16200KB/sec) maximum by CAV
	DVD+R9 4X(5400KB/sec) maximum by CLV
ReWrite	DVD+RW 4X(5400KB/sec) by CLV
	DVD-RW 4X(5400KB/sec) by CLV
Read	16X(21600KB/sec) maximum by CAV
Access time	160ms
CD Family :
Write	CD-R 48X(7200KB/sec) maximum by P-CAV
ReWrite	CD-RW 24X(3600KB/sec) maximum by Z-CLV in UltraSpeed disc
Read	48X(7200KB/sec) maximum by CAV
Access time	160ms
Buffer Size :	2MB
PC Required :	Pentium III 450MHz or faster CPU and 128MB or higher RAM are required 650MB HDD available capacity; and 5GB free space for creating a DVD image file
Compatibility :	MS-Windows 98 / NT4.0 / ME / 2000 / XP
MTBF(Life) :	70000 Hours
S/N Ratio :	>75dB
Environment :
Operating	5 C to 45 C ;Relative Humidity: 15% to 80%
Non-Operating	-40 C to 60 C ; Relative Humidity: 15% to 95%
Dimension :	145(W) x 41.3(H) x 170(D) mm
Weight :	<0.9 Kg
Voltage Requirements :	+5V +/-5% and less than 100 mVp-p ripple voltage +12V +/-5% and less than 200 mVp-p ripple voltage

*1	SMART-BURN : Smart Monitoring & Adapting Recording Technology for BURNing.
*2	SMART-X : Smart Monitoring & Adjusting Read-speed Technology for eXtraction.
*3	VAS : Vibration Absorber System

- 4X DVD+R @ 4X

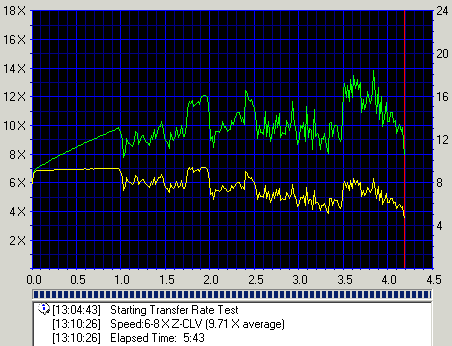

- 4X DVD-R @ 4X

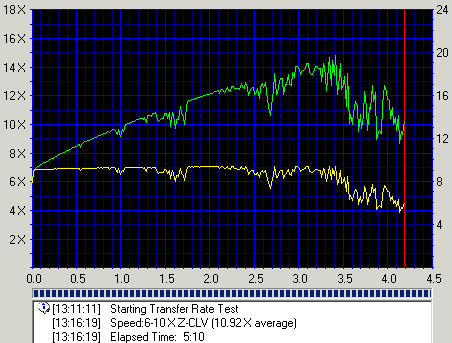

- 8X DVD-R @ 8X ( TTG02)

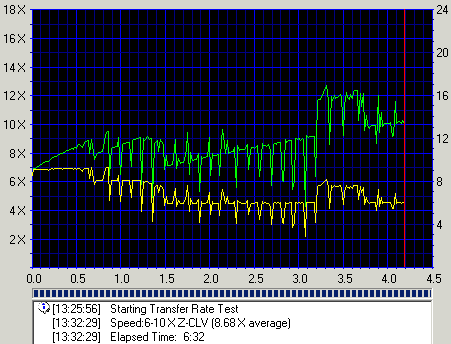

- 8X DVD-R @ 8X ( RITEK G05)

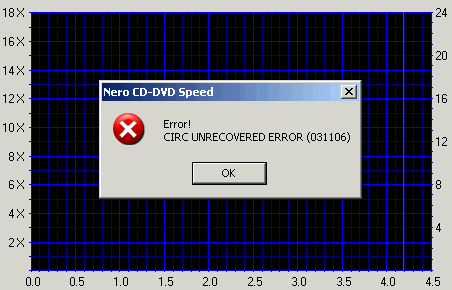

- 8X DVD-R @ 12X ( CMC MAG AE1)

cannot access disc

- 16X DVD+R @ 16X ( CMC MAG M01)

- Summary

Media	Code ID	Speed	Time
4X DVD+R	RICOHJPNR01	4X	14:24
4X DVD-R	RITEK G04	4X	14:42
8X DVD-R	TTG02	8X	8:52
8X DVD-R	RITEK G05	8X	8:57
8X DVD-R pr.	CMC MAG AE1	12X	7:59
16X DVD+R	CMC MAG M01	16X	6:13
