1. Specifications - Instalation
LiteOn
LDW-811S DVD±RW recorder -
Page 1
LITE-ON
IT CORP. has
released the LDW-811S half-height ATAPI / E-IDE 8x DVD Dual ReWriter. The drive
is capable of writing DVD+R media at 8x, rewrite DVD+RW
media at 4x, write DVD-R media at 4x, rewrite DVD-RW media at 2x, and read
DVD-ROM
media at 12x maximum. Based on MediaTEK MT1818E chipset, the drive is represents
the Taiwanese proposal for fast DVD writers.
- Features
SMART-BURN
technology provides Buffer UnderRun Free function and great media compatibility
for high-speed writing DVD+R / DVD-R / DVD+RW / DVD-RW / CD-R
/ CD-RW media.
SMART-X
technology provides smooth & stable Audio CD / VCD / DVD playback
and high-performance DAE / VCD / DVD data extraction.
The LiteOn LDW-811S also uses VASŪ technology to reduce vibration & noise
during
recording & reading.
- Specifications
DVD Family
|
Writing
|
DVD-R |
4x ( 5400KB/sec ) CLV |
DVD+R
|
8x (10800KB/sec ) Zone-CLV
|
Rewriting |
DVD-RW |
2x ( 2700KB/sec ) CLV |
DVD+RW
|
4x (5400KB/sec) CLV
|
Reading Speed
|
|
12x (16200KB/sec) maximum CAV
|
DVD-ROM (Dual layer)
|
8x (10800KB/sec) maximum CAV
|
Access Time |
160 ms |
CD Family
|
Writing Speed CD-R
|
40x (6000KB/sec) maximum CAV
|
ReWriting speed CD-RW |
24x (3600KB/sec) maximum P-CAV in UltraSpeed disc |
Reading |
40x (6000KB/sec) maximum CAV |
Access Time |
140 ms |
Buffer Size |
2MB |
Dimension
|
145 ( W ) x 41.3 ( H ) x 170 ( D ) mm |
Writing methods |
Fixed Packet, Variable Packet, TAO, SAO, DAO, Raw Mode
Burning & Over-Burn |
DVD read format |
DVD single / dual layer ( PTP / OTP ), DVD-R (3.9GB /
4.7GB ), DVD-R multi-borders, DVD+R, DVD+R multi-sessions, DVD-RW, and
DVD+RW |
CD read format |
CD-DA, CD-ROM, CD-ROM/XA, Photo-CD, Multi-session, Karaoke-CD, Video-CD,
CD-I FMV, CD Extra, CD Plus, CD-R, and CD-RW |
Transfer mode |
PIO mode 4, DMA mode 2 and Ultra DMA mode 2 |
Support both 8cm and 12cm disc of
CD and DVD family |
From the specification table above, it can be seen that the LiteOn LDW-811S
supports writing of DVD±R/RW and CD-R/RW media. The new drive offers
8x DVD+R (6-8x Z-CLV)
recording, DVD+RW and DVD-R at 4x CLV, while DVD-RW can be burned at 2x CLV.
The maximum CD writing speed for CD-R is 40x CAV and 24x P-CAV when using
Ultra Speed CD-RW media. Reading of CD-ROM/-R/RW can be done at 40x CAV maximum.
Single layer DVD-ROM media can be read at 12x CAV, while DVD±R/RW discs
can be read at 6x CAV.
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/info_tool_1.gif)
LiteOn used a 2MB buffer for the drive. The drive also
supports RAW DAO 96 writing (CD).
The LiteOn LDW-811S uses the RPC II region control, allowing a user to change
the drive's region at most 5 times. For our tests, we set the region
code to 2 (Europe).
- The drive
LiteOn's
complete retail package, includes two CD-ROMs,
containing the Sonic MyDVD CD/DVD authoring software,
CyberLink
PowerDVDXP
player, installation drivers and a pdf manual.
Two blank DVD recordable discs are also included in the retail package. One
is a DVD-R disc from CMC Magnetics, and the other a DVD+RW from Ricoh.
A quick installation quide, audio cable and mounting screws complete the
retail package contents.
The drive's front panel has the usual features. The tray door has the
RW DVD+ReWritable, DVD R/RW, and Compact disc ReWritable logos located on the
left, centre and right respectively. Between the DVD R/RW and Compact disc
ReWritable logos is LiteOn's web url, www.liteonit.com. On the lower half of
the drive, below the tray door, starting at left there
are
the
headphones
jack,
volume control and power/activity led, and on the right the eject button.
The emergency eject hole is located just above the volume control. The activity
LED lights up green when busy and red when reading/writing is in progress.

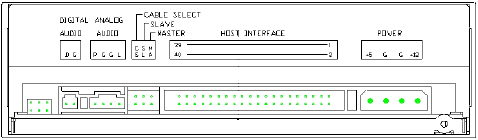

On the rear panel (schematic included above for clarity) there are
the analogue and digital audio outputs (SPDIF), the IDE connector
and the power input.
Removing the screws and opening the drive's cover voids the drive's warranty.
For reference reasons, we post the following pictures.
The LSI chip shown above, located on the upper side of the controller
circuit borad, is from Kyoto-based semiconductor
manufacturer ROHM CO., LTD. This IC contains
a 3-phase Pulse Width Modulation (PWM) spindle motor driver, PWM driver for
feed motor, and BTL driver
for actuators. It is specifically designed for half-inch
high disc drives which need to address
the challenges of high speed and low heat generation in
restricted spaces such as those imposed by notebook PCs.
The LiteOn LDW-811S further incorporates (located on the underside
of the controller circuit board), a high-speed DVD dual Optical Disk Controller
chipset
from MediaTek
Inc. consisting of two
CMOS
ultra-scale
integrated
circuits,
the MT1816E
and MT1818E. The MT1816E is the
front-end analog signal processor and MT1818E is the servo control and Endec
IC.
This chipset is suitable for DVD dual drives with both CD/DVD read and CD-R/RW,
DVD-R, DVD
+RW write functions. The general system specification is 8/8/4/4/48/24/48/16,
i.e.
DVD+R recording up to 8xS, DVD-R recording up to 8xS, DVD+RW recording up to
4xS, DVD-RW recording up to 4xS, CD-R recording up to 48xS, CD-RW recording
up to 24xS, CD-ROM decoding up to 48xS, and DVD-ROM decoding up to 16xS. Moreover,
it can support DVD-RAM playback, Mt. Rainier CD-RW/DVD+RW format, and true
CAV mode recording functions. In addition, this chipset can support power saving
function. Therefore, it can be used for both H/H and Slim drive. In the future,
the intended product consists of the enhanced DVD dual drive, Blu-ray drive,
AOD drive and Digital Video Recorder (DVR), etc. The enhanced DVD dual chipset
can provide system specification of 16/16/8/8/52/32/52/16.
There are some innovative techniques developed in this chipset, including
the optical servo control, disk ID & auto calibration, DVD-RAM read signal
generator, robust automatic power control system, supporting Mt. Rainier format,
MTK-SUPERLinkTM, programmable & flexible write strategy, support LVDS
interface and true CAV mode recording technique, etc. Furthermore, since this
highly integrated SOC chipset has excellence in system architecture and integration,
there is significant cost reduction for the drive makers.
[The above is taken from the Taiwan Hsinchu Science Park's
site, where MediaTek Inc. was awarded the Innovative Product Award for the
development of this chipset.]
- Installation
The LiteOn LDW-811S was connected to our test PC and was identified
as "LITE-ON DVDRW LDW-811S" under
WinXP. All tests were done with firmware revision vHS0E.
The following pages include the test results of the LiteOn drive in comparison
to two other dual DVD burners, the Optorite DD0401 DVD and the CyberDrive DX082D.
2. Data CD Reading Tests
LiteOn LDW-811S DVD±RW recorder - Page 2
Data CD Reading Tests
- Pressed CD results (Click for
CDSpeed results)
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/pressed_disc_graph1.gif)
The LiteOn LDW-811S drive supports 40x CAV reading speed with CD-ROM/-R.
The maximum speed reached was 41.83x on the outer tracks of the disc, with
an overall average speed of 31.58x. The results are quite good, although the
Cyberdrive DX082D
was slightly faster.
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/pressed_disc_graph2.gif)

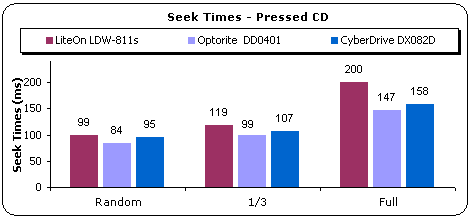

On the seek times test, the LiteOn drive returned the slowest times amongst
the three drives, especially the full disc seek which was a hefty 200ms,
while the random and 1/3 seeks were somewhat better.
The Optorite DD0401 was the best performer with 84msec
for a random seek.
- CD-R Media results (Click for
CDSpeed results)

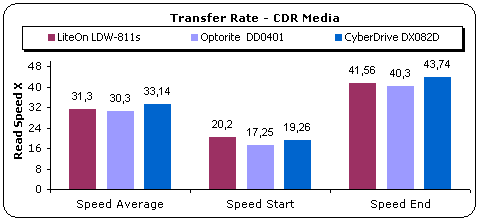

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/cdr_disc_graph2.gif)
In the transfer rate test for CDR media, the LiteOn drive returned results
very similar to those of the transfer rate test for pressed CDs previously,
as was the case with the other two drives. The reading method was CAV, with
a start speed of
17.25x,
end speed
of 41.56x
and average of 31.3x. Here too, the LiteOn drive was slightly slower than the
CyberDrive.

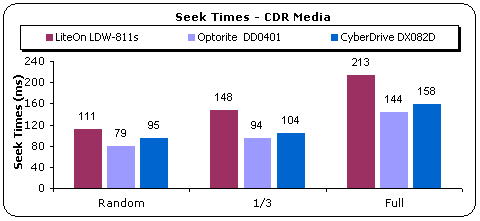

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/cdr_disc_graph1.gif)
The seek times for the LiteOn drive were quite slow, a good deal more so
than the other two drives. In comparison to the pressed CD seek times,
the LiteOn drive's times were markedly up although the random seek time is
well within the manufacturer's stated seek time of 140ms. In
contrast, the Optorite and CyberDrive drives had marginally faster
CDR-Media seek times when compared to pressed CD media.
- ReWritable Media (Click for
CDSpeed results)

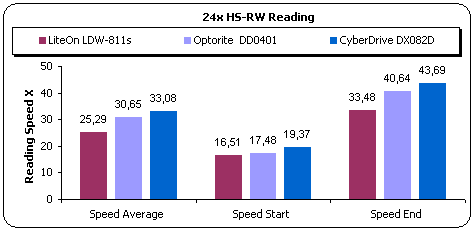

The LiteOn LDW-811S supports a maximum reading speed of 32x CAV with rewritable
media. For the reading test
we used 24x High Speed rewritable media from Mitsubishi Chemicals.
The reading speed with CD-RW media was a good deal lower than that
with CD-R media. This is again in contrast to the other two drives whose reading
times stayed fairly constant regardless of the media type used. The average read
time of 25.29x for the LiteOn is quite slow when compared to the 30.65x and
33.08x for the Optorite and CyberDrive drives respectively.
3. CD Error Correction Tests
LiteOn
LDW-811S DVD±RW recorder -
Page 3
Error Correction Tests
In the following tests we check the drive's behaviour when reading
scratched / defective audio discs. The test discs used were the ABEX series
from ALMEDIO.
- ABEX TCD-721R
Errors total
|
Num:
943423
|
Errors (Loudness) dB(A)
|
Num:
49504
|
Avg:
-73.6 dB(A)
|
Max:
-20.8 dB(A)
|
Error Muting Samples
|
Num:
3061
|
Avg:
1.0 Samples
|
Max:
11 Samples
|
Skips Samples
|
Num:
0
|
Avg:
0 Samples
|
Max:
0 Samples
|
Total Test Result
|
76.8 points (out of 100.0 maximum)
|
The drive performed very well with the ABEX TCD-721R
test disc, giving a very low count on the number of errors
at an average of -73.6 dB. Muting error count was minimal and no samples were
skipped. The total score of 76.8 is quite good.
- ABEX TCD-726
Errors total
|
Num: 0
|
Errors (Loudness) dB(A)
|
Num:18
|
Avg:
-174.0 dB(A)
|
Max:
-174.0 dB(A)
|
Error Muting Samples
|
Num: 0
|
Avg: 0.0 Samples
|
Max: 0 Samples
|
Skips Samples
|
Num:
0
|
Avg:
0 Samples
|
Max:
0 Samples
|
Total Test Result
|
100.0
points (out of 100.0 maximum)
|
The Abex TCD-726 test disc is much easier for drives in general to read,
and as such, the LiteOn LDW-811S drive corrected almost all
errors with a high overall quality
score
of 100 points. In fact, the loudness error returned had an average of -174.0
dB which doesn't even register on the graph.
- CD-Check Audio Test Disc
The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction
/ Error correction capabilities of a CD player. The disc offers a signal combination
with disc error patterns to rate the drive's abilities to read music and reproduce
it completely. Five tracks on the disc contain a sequence of progressively
more difficult tests. These tracks are referred to as Check Level-1 through
Check Level-5.
The
tracks are reproduced (played) through a software multimedia player (i.e.
Windows Media Player). Each level is considered as passed, if the tone coming
out
from the speakers is smooth, continuous without interruptions, skipping or
looping. The higher the Check Level passed, the more reliable the sound reproduction
of the tested drive.
Error Level
|
1
|
2
|
3
|
4
|
5
|
LiteOn LDW-811S
|
5/5
|
5/5
|
5/5
|
0/5
|
0/5
|
The drive succesfully passed the first 3 check levels for this
test. Playing the 4th and 5th tracks produced a constant noise in the background.
Since we are testing the analogue audio output, we could conclude here that
the drive is capable of "correcting" errors created by
scratches with size less than the 1.125 mm present on the 4th check level.
It is a little surprising however, that the LiteOn drive did not pass the
4th check level
considering the good results returned in the tests with the ABEX TCD discs
previously. The 5th check level, which has a scratch a size of 1.500 mm, is
difficult to read with most drives.
- Summary
Test Disc
|
Reading Speed
|
Score
|
ABEX TCD-721R
|
Max
|
76.8
|
ABEX TCD-726
|
100.0
|
Average Score
|
88.4
|
Combining the two scores from the ABEX tests gives an average total
score of 88.4 points out of 100. This is a very good overall
score, however the only dissapointment was the drive's inability to read at
least the 4th check level on the audio test disc.
4. DVD Reading Tests
LiteOn
LDW-811S
DVD±RW recorder -
Page 4
DVD reading tests
- Single Layer DVD-ROM (Click
for CDSpeed results)

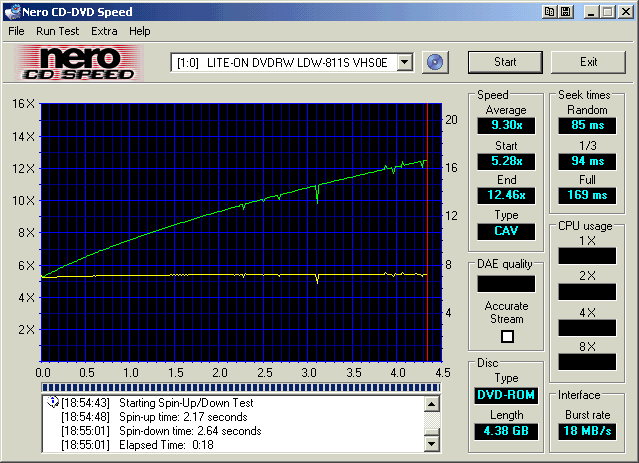

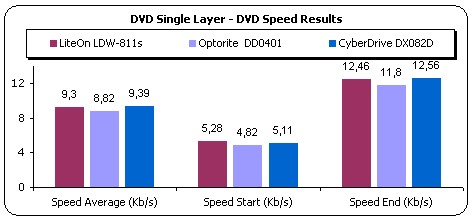

In the DVD single layer read test, in comparison with the Cyberdrive
and Optorite drives and noting that all three drives support a maximum
reading speed of 12x for DVD-ROM media, the LiteOn LDW-811S
is quite fast
with
an average
speed of 9.3x, and the CyberDrive only slightly faster at 9.93x.
The manufacturer's specifications give the LiteOn drive as having a seek
time of 160msec for DVD media. NeroCDSpeed reports that the drive needed 169ms
for full seek time, 94 ms for 1/3 seek and 85 ms average. The LiteOn performed
quite well here giving very fast access times which coincide with the results
in the speed test above.
- Dual Layer PTP DVD-ROM (Click for
CDSpeed results)
The two layers of a PTP DVD-ROM disc are read sequentially with the drive
starting the read process from the inner tracks on the disc, which is the beginning
of each layer,
and progressing outwards towards to the outer tracks for each layer.
According to the manufacturer, the LiteOn LDW-811S has a maximum reading

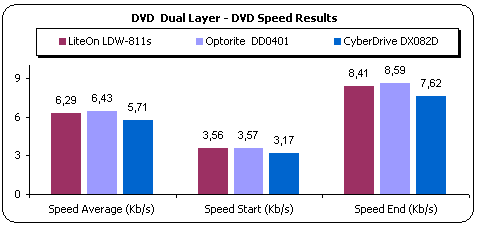

speed of 8x with dual layer DVD-ROM discs. The drive managed to reach
a maximum reading speed of 8.41x and was slightly slower than the Optorite
drive. As can be seen
from the graph above, the LiteOn drive
was only slightly slower than the Optorite DD0401 on all three occasions. Again,
it appears to be a quick reader.
Here too, the seek times are quite fast. The
drive finished with a random seek time of 89ms, faster than the other drives.
- Dual Layer OTP DVD-ROM
The
first layer of an OTP dual layer DVD-ROM is read exactly the same way as the
first layer of the PTP disc we tested previously. The difference here is the
reading strategy
of the second layer on the disc. The beginning of the second layer is located
in the outer part of the disc, so the drive starts reading from the outer tracks
inwards towards the inner tracks of the disc.
As we have experienced with some other 8x DVD recorders, so too LiteOn seems
to have problems reading the dual layer OTP DVD-ROM. The first layer was read
flawlessly but at the beginning of the second
layer the
reading
speed
fluctuateded. Software playback, however, did not give any noticable problems.
- DVD Ripping Tests
We measured the DVD-Video ripping speed of the LiteOn LDW-811S using the
latest version of DVD Decrypter. The DVD Video title is the "Matrix" pressed
DVD-Video.
The drive

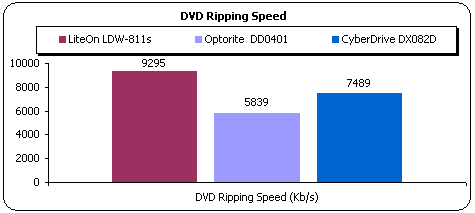

ripped the DVD movie files to the hard disk
at 9295 KB/s (6.88x) average.
The performance is quite high, considering that the Optorite and Cyberdrive
were slower with 4.32x and 5.54x average, respectively.
- DVD Recordable / Rewritable reading Tests

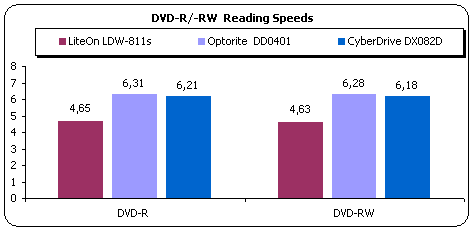

The chart below shows the Nero CDSpeed results with the following media:
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/dvd%2Br_reading_graph.gif)
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/dvd-r_reading_graph.gif)
The LiteOn drive did not prove quite as fast a reader with DVD +/- formats.
The LiteOn LDW-811s was quite a bit slower
than the
other
two
drives
used as comparison with reported
average reading speeds for all formats being from 4.63x to 4.7x.
As with the minus format, NeroCdSpeed reports that the Optorite drive reads
the
-R format at an average speed of 4.65x and -RW at 4.63x.
5. DVD Error Correction Tests
LiteOn
LDW-811S
DVD±RW recorder -
Page 5
DVD Error Correction
Tests
In the following tests we examined the DVD reading capabilities of the LiteOn
LDW-811s drive
with scratched / defective DVD media.
For the tests we used CDVD Benchmark and Nero CDSpeed. The reference test
media
come
from
ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its
surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm.

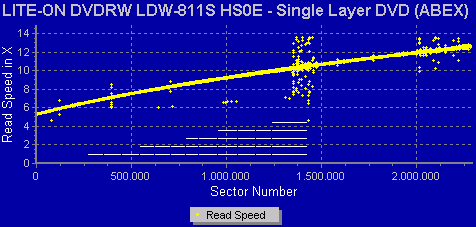

The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer
rate test.
The drive read the 821 test disc without reporting any read errors.
The yellow dots indicate that the drive gave back different reading speeds
for each reading retry, due to the scratched areas. The disc was read accurately
and exceeded 12x CAV.
ABEX TDR-825
This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The
data structure of the disc is exactly the same as that of the TDR-821, with
the difference that there are no scratches on the surface and instead
defective areas ranging in dimensions from 0.5 to 1.1 mm. There
are also fingerprints with height
between
65 and
75 micrometers.
As in the previous test, no read errors occured with this disc. The drive
again managed to reach maximum reading
speed
slightly in excess of 12x CAV.
- Dual Layer media
ABEX TDR-841
This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches
of dimensions ranging from 0.4 to 3.0mm, on both layers.

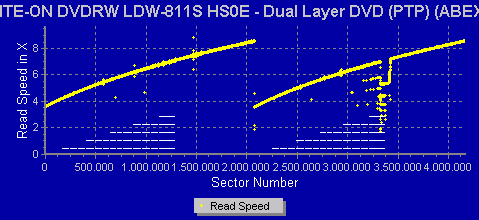

The first layer was read without too much fuss. However the second layer presented
a few problems with the deeper scratches where the drive dropped speed before
recovering and continuing on to a final maximum speed of just over 8x for both
layers.
The
resultant
output can be seen above with the speed change evident in the broken line
of the second layer.
ABEX TDR-845
This disc is a single sided, dual layer DVD-ROM disc with capacity of 8.5GB.
The only difference between the TDR-845 and the TDR-841 is that the first includes
both defective areas and fingerprints. The dimensions of the defective areas
range from 0.5 to 1.1 mm and the fingerprints have height sized from 65
to 75 micrometres.
The drive read this disc fairly effortlessly with only a few minor difficulties,
primarily in the first layer. Final maxim read speed for both layers exceeded
8x.
ABEX TDV-541
The
TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The
disc is based on the TDV-540 series which is designed for inspection
and adjustment of DVD-VIDEO players. The disc checks the layer switch operation
from layer 0 to layer 1 and also includes test pictures and test signals for
DVD sound files. The current TDV-541 also checks the error correcting
capabilities of the drive and includes scratches sized from 0.4 to 3.0 mm.
Reading the first layer did not prove a problem, with the drive reaching a
maximum of just over 8x CAV. The increase in speed is fairly constant and linear,
starting
at
3.58x
and
reaching 8.45x by the end of the first layer (outer tracks). The velocity (yellow
line on the graph above) also remained fairly constant. The second layer however
is quite a different tale. The drive had a lot of difficulty at the beginning
(outer
tracks on the disc's surface), where both transfer speed and velocity fluctuated.
Only at around the 5GB mark did things settle down. Since the point of the TDV-541
test disc is to check the switch operation from layer 0 to layer 1, it is evident
that the LiteOn drive had a few problems, althought it managed to surpass them.
ABEX TDV-545
The
TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer
Video/S-2 disc with a capacity of 8.5GB. The TDV-545 includes artificial
black dots on the disc's surface, sized from 0.4 to 1.0 mm. It also has 65
- 75 micrometre high fingerprints.
Here too, the second layer presented some difficulties although the drive
did recover and continue on. Maximum speed reached was 8.40x CAV at the end
of the first layer.
6. Protected Disc Tests
LiteOn
LDW-811S
DVD±RW recorder -
Page 6
Protected Disc
Tests
- Reading Tests
To create an image of the various protected titles onto a hard disk, we
used CloneCD v.v4.3.1.9 software and the appropriate settings, depending on
the protection type of the inserted discs. Below are summarized the capabilities
of the LiteOn drive, according to CloneCD
software. Notice that the drive supports writing of CD+G under RAW DAO:
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/clonecd_properties.gif)
The game titles we used for each protection scheme are given in the
table below:
Game Title
|
Protection Scheme
|
PSX "NBA Jam Extreme"
|
Lybcrypt
|
Serious Sam The Second Encounter v1.07
|
SafeDisc v.2.60.052
|
VRally II
|
SecuROM v.2
|
PSX Pressed Media

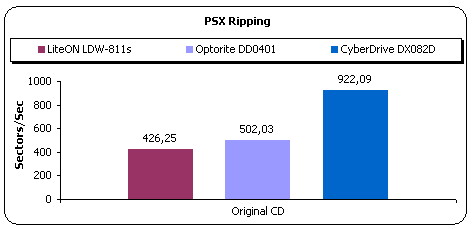

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/psx_ripping_graph.gif)
SafeDisc v.2

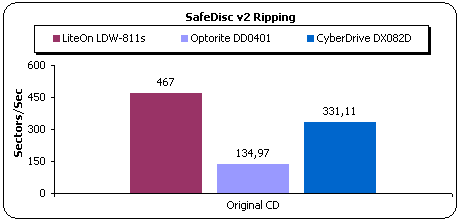

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/safedisc_graph.gif)
SecuROM v.2

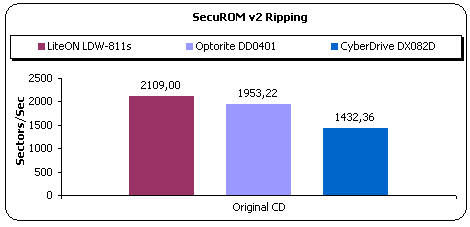

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/securom_graph.gif)
The LiteOn drive supports reading of subchannel data information
from data/audio tracks. The drive was very fast with all of the
protection schemes except for PSX pressed media, showing up quite well
against the other two drives used in the comparison.
- Writing Tests
The LiteOn LDW-811s supports the DAO-RAW writing mode.
For checking the drive's EFM correction status, we used 3 different game titles
with different SafeDisc 2 versions with the latest software patches installed.
After making the images of the various titles to the hard disk, we burned them
(maximum speed) with CloneCD. Two different discs were created for each
title; one with the "Amplify Weak Sectors" enabled and one more with
the
function disabled.
The table below shows the results of the attempted backups and whether
they ran (game installed / played normally), or not.
Drive |
Game Title |
SD2 Build |
Settings |
Amplify Weak Sectors On |
Amplify Weak Sectors Off |
LiteOn LDW-811s |
Max Payne |
v2.51.020 |
Yes |
Yes |
Serious Sam - The Second Encounter
v1.07
|
v.2.60.052 |
Yes |
Yes |
The Sims Unleashed |
v.2.8 |
Yes |
Yes |
|
The Sims Superstar |
v2.9 |
NO |
NO |
The backups were tested in many CD-RW and DVD-ROM drives, and both installation
and playability worked flawlessly. Only Sims Superstar failed.
7. DAE Tests
LiteOn
LDW-811S
DVD±RW recorder -
Page 7
DAE Tests
- Pressed and CDR AudioCD results
The LiteOn LDW-811s uses 40x CAV strategy for CD-DA.
Below is the resultant output from the CDSpeed transfer rate test with a pressed
audio CD:
According to CDSpeed, the average reading speed with this disc was 30.80x,
while the reported seek times were satisfactory.
We ripped the contents of the same audio disc to the hard disk with CDDAE
software. The drive gave an excellent average ripping speed (burst mode) of
39.4x:
For the same test, the Optorite and CyberDrive drives gave 28.5x and 29.4x
average speeds respectively.
The same pressed audio disc was copied onto a CD-R and was
read again with CDspeed. Again, the LiteOn drive was very fast with an average
speed of 39.8x.

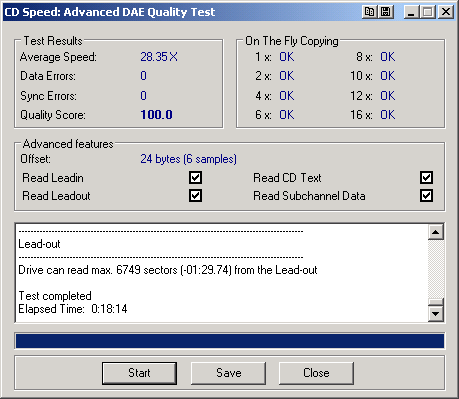

- Advanced DAE Quality

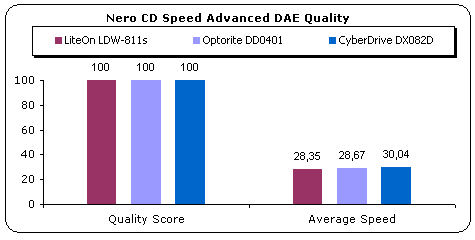

![](/Sections/Articles/Sources/LiteOn LDW-811s/Images/cdspeed_advanced_dae_quality_check.gif)
In the Nero
CD Speed Advanced DAE test, the LiteOn drive posted an average speed of 28.35,
only slightly slower than the other two drives, and a quality score of 100. CDSpeed
reports that the drive can read Leadin and Leadout data, Cd Text
and Subchannel Data.
- Support of 90/99mins AudioCDs
Supports 99min disc
- Reading/Ripping Protected AudioCDs
For the test procedure we used two audio discs with different
audio protection schemes. We tested for both recognition and
ripping to the hard disk. The software used was Exact Audio Copy.
* Pressed Audio disc protected by Sony Key2Audio (Celine
Dion - New Day
Has Come)
* Pressed Audio disc protected by Cactus Data Shield 200 (Natalie
Imbruglia - White Lilies Island)
|
Key2Audio |
CDS200 |
EAC |
LiteOn LDW-811s
|
OK
|
OK
|
Optorite DD0401
|
OK
|
Recognizes disc and rips/reads all
tracks except the first.
|
CyberDrive DX082D |
OK |
OK |
The LiteOn LDW-811s presented no problems with either ripping or playback
of the two pressed discs and their respective protection schemes.
8. CD Recording Tests
LiteOn
LDW-811S
DVD±RW recorder - Page
8
CD Recording Tests
- CD-R Writing Tests
The LiteOn LDW-811s supports 8x, 16x, 24x, 32x and the maximum 40x CAV
writing speeds. Below you can see the CDSpeed writing simulation graph with
Taiyo Yuden
48x CD-R
media.
The
writing speed at the start of the disc is 18.42x and increases linearly to
the end of the disc reaching a maximum of 41.51x. According to CDSpeed,
the average writing speed with an 80min disc was 31.42x. The velocity throughout
the whole writing process remained quite steady.
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/cdspeed_writing_cd_1.gif)
- Recording Times

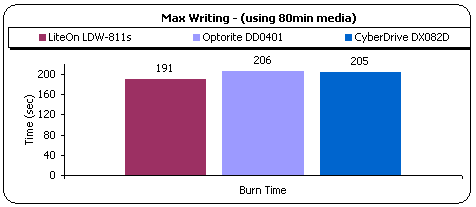

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/max_writing_graph.gif)
For the burning tests we created an 80min data compilation with Nero Burning
Rom and recorded the data on a 700MB disc. The LiteOn drive completed the task
in
3:11 minutes, with 40x writing speed selected. The
performance is reasonably good for 40x recording speed.
Below are the best writing times at 8x, 16x,
24x, 32x and 40x. In each case, the Seamless Link feature was enabled:

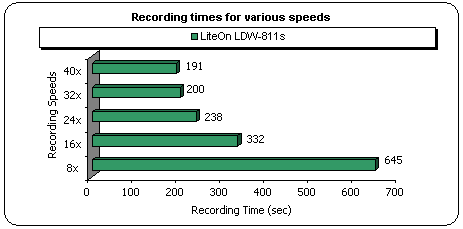

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/recording_cd_various_speeds.gif)

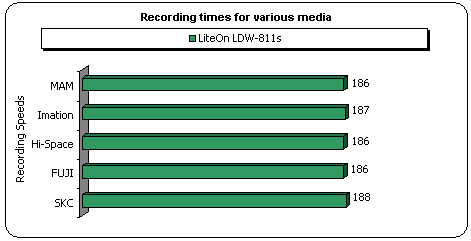

![](/Sections/Articles/Sources/LiteOn LDW-811s/Images/max_writing_various_media_graph.gif)
What is good about the above times is that the drive seems
to be consistent regardless of disc manufacturer.
- CD-RW Writing Tests
The
LiteOn LDW-811s supports 24x P-CAV maximum rewriting speed,
with High Speed rewritable media. The drive also writes at 4x CLV with NS CD-RW.
Below

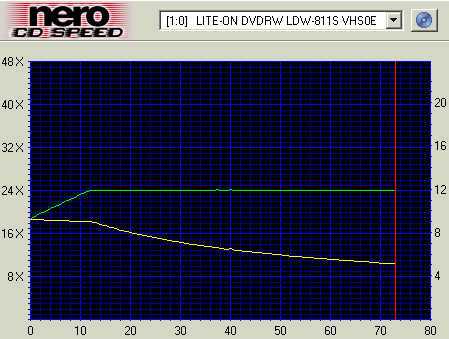

are the results from the CDSpeed writing simulation test with blank
10x HS-RW media from Ricoh.
The drive starts the writing task at 18.53x and reaches the
maximum 24x around the 12:00 min address mark on the disc. According to CDSpeed,
the average writing speed was 23.53x.
We also used Nero Burning Rom to burn a data disc using 24x US-RW
media from MC. The data compilation burned had a size of 651 MB and the
duration of the recording process was 3:44 minutes.
- Packet Writing Tests
Using InCD and Mitsubishi Chemicals 24x US-RW media for all Packet Writing
tests, quick format took 32sec. The formatted disc had
530mbs of free space. We copied a 403 MB file (403.147 KB) from Hard Disk
(on the same PC as the recorder) to the formatted RW media through Windows
explorer (drag and drop).
operation
|
Duration
|
Average speed
|
Read
|
2:38 min
|
17.4X
|
Write
|
2:40 min
|
17.2X
|
The LiteOn drive gave an average writing speed of 17.2x and average reading
speed of 17.4x.
- Other features
Overburning
|
Up to 99min
|
CD text reading/writing
|
Yes
|
9. 3T Jitter Tests 1
LiteOn
LDW-811S
DVD±RW recorder -
Page 9
Writing Quality Tests - 3T Jitter Tests
On an 80min 48X CD-R disc from Taiyo Yuden we burned the same AudioCD
project at 8x, 16x, 24x and 40x. The 3T
Pit & Land Jitter graphs are presented here.
- 3T Pit results

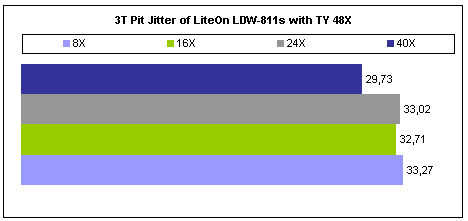

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/3t_pit_jitter_graph2.gif)
Generally the drive did not introduce high 3T pit jitter with the specific
media. The highest 3T pit jitter was reported from the disc recorded at 16x,
in the outer tracks. In general the Jitter remain below the Red Book limit
of 35nsec at all speeds. Results of the 40x recorded disc is especially good.
The average
3T Pit Jitter values for all recording speeds are illustrated in the following
table.
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/3t_pit_jitter_graph1.gif)
Here it can be clearly seen that the pit jitter level is low
and well within specs.
- 3T Land results
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/3t_land_jitter_graph1.gif)
As with pit jitter, land jitter is also quite low and below the Red
Book limit of 35nsec. Only at 40x writing speed was there a slight increase
and that towards the end, but other than that, land jitter was quite low
at all speeds.
And just to confirm it, the average jitter for all speeds presented in the
graph below show just how low the values land jitter was.

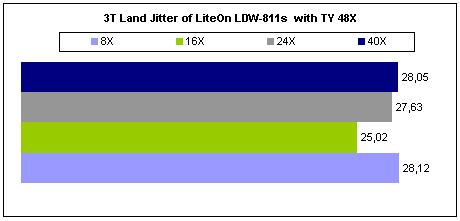

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/3t_land_jitter_graph2.gif)
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
8X
|
33.27
|
28.12
|
No
|
34 Pit, 29 Land
|
16X
|
32.71
|
25.02
|
Yes
|
41 Pit, 26Land
|
24X
|
33.02
|
27.63
|
Yes
|
38 Pit, 26 Land
|
40X
|
29.73
|
28.05
|
No
|
34 Pit, 35 Land
|
- Summary
The LiteOn LDW-811s in general presented low jitter values, and while the
table above shows that the drive did go over the 35ns Red Book limit (pitt
jitter only), the average jitter values indicate a drive that operates well
within the limits. What is especially pleasing is that at 40x the values are
well within limits.
The following page where we check the jitter levels produced on various
manufacturers discs, should give a better indication
of the
writing
quality
level
of
the
drive.
10. 3T Jitter Tests 2
LiteOn
LDW-811S
DVD±RW recorder -
Page 10
Writing Quality Tests - 3T Jitter Tests
Here we used 80min CD-R media from various manufacturers and burned the same
AudioCD project at 40x. The following graphs show the 3T Pit & Land Jitter
results.
- 3T Pit results

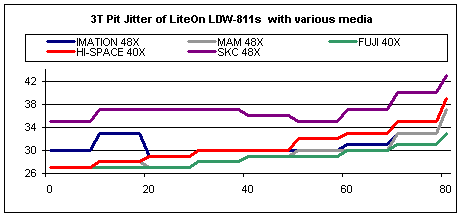

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/3t_pit_jitter_graph_various.gif)
With all discs, there was a small increase towards the end when writing on
the outer tracks on the disc's surface. The SKC disc gave the worst results
being consistently above 35nsec. Only Fuji media (40x) managed to remain below
35nsec over the entire disc.
The average 3T Jitter values for all manufacturers discs are illustrated in
the following graph. Here again, it can be seen that the SKC disc was above
the Red Book limit.

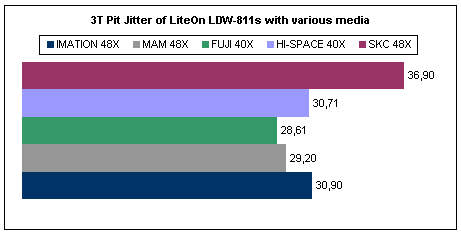

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/3t_pit_jitter_graph_various_2.gif)
- 3T Land results

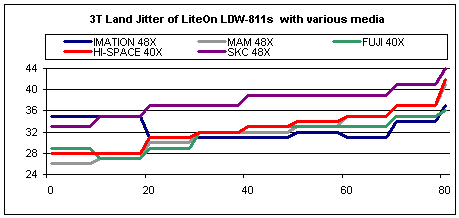

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/3t_land_jitter_graph_various_2.gif)
The interesting thing to note here is the almost steady increase in land jitter
as writing progresses from inner to outer tracks with again the SKC disc fairing
worst of all and Fuji best.
The average values presented below only confirm the pattern we have seen
develop so far.

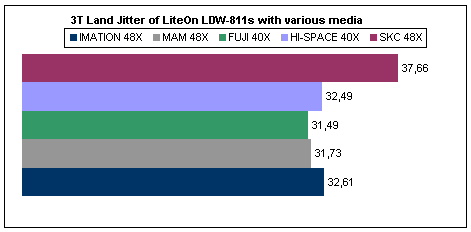

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/3t_land_jitter_graph_various_1.gif)
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
Imation 48x
|
36.90
|
32.61
|
Yes
|
37 Pit, 37 Land
|
MAM 48x
|
29.20
|
31.73
|
Yes
|
37 Pit, 41 Land
|
Fuji 40x
|
28.61
|
31.49
|
Yes
|
33 Pit, 36 Land
|
Hi-Space 40x
|
30.71
|
32.49
|
Yes
|
39 Pit, 42 Land
|
SKC 48x
|
36.90
|
37.66
|
Yes
|
43 Pit, 44 Land
|
- Summary
Except for the SKC disc, the values for the various manufacturers discs seem
to be consistent and steady. Apart from some peaks that produced
values above 35nsec, the drive in general kept the jitter values to an acceptable
level. Certainly the average values were very good.
On the following page we check the C1 and C2 error rates for the same discs.
These are the last of the quality tests.
11. C1 / C2 Error Measurements
LiteOn
LDW-811S
DVD±RW recorder -
Page 11
Writing Quality Tests - C1 / C2 Error Measurements
The C1 / C2 error rate was measured for the recorded discs burned during
the previous writing tests (jitter). The software used was UMDoctor Pro II,
and the reader the Optorite DD0203 drive.
- Taiyo Yuden 48x recorded at 8x

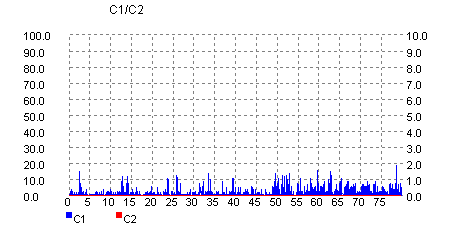

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/umdoctor_8x_TY.gif)
- Taiyo Yuden 48x recorded at 16x

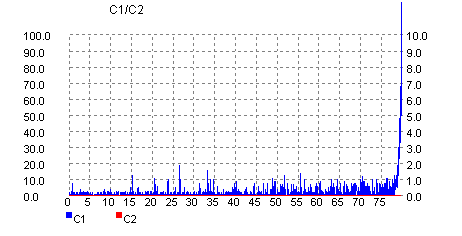

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/umdoctor_16x_TY.gif)

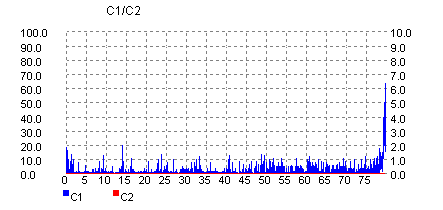

- Taiyo Yuden 48x recorded at 24x
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/umdoctor_24x_TY.gif)
- Taiyo Yuden 48x recorded at 32x

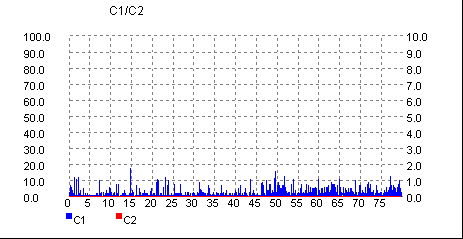

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/umdoctor_32x.gif)
- Taiyo Yuden 48x recorded at 40x

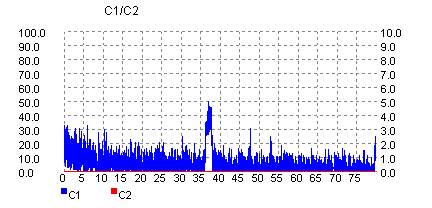

![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/umdoctor_40x_TY.gif)
Below is presented information on the CD-R
media used in this test.
Disc
|
ID Code
|
Capacity
|
Taiyo Yuden 48X
|
TaiyoYuden 97m24s01f
|
79:59:72
|
Fuji 40x
|
Fuji 97m:26s45f
|
79:59:73
|
Imation 48x
|
CMC Magnetics 97m26s66f
|
79:59:71
|
MAM 48x
|
Mitsui 97m27s58f
|
79:59:71
|
Hi-Space 52X
|
MPO 97m25s07f
|
79:59:00
|
SKC 48X
|
SKC 97m26s26f
|
79:59:73
|
- Summary
The results are very good. Firstly, there were no C2 errors reported (red
line in each of the graphs above). The C1 levels were all very low and perhaps
just as important is
that the levels are all fairly constant for each disc, which is a good indicator
of quality writing. The only glitch occurred with Taiyo Yuden media at 16x
where at the end the C1 rate spiked.
12. DVD Recording Tests
LiteOn LDW-811S DVD±RW recorder - Page 12
DVD Recording Tests
- Writing Performance
The LiteOn LDW-811s supports DVD-R/RW and DVD+R/RW writing. The maximum
supported speed for DVD+R is 8x (6x~8x Z-CLV), 4x CLV for DVD-R, 4x CLV for
DVD+RW and 2x CLV for DVD-RW media.
Currently, only a few 8x certified DVD+R media are available on the market.
The supported 8x DVD+R media came from Mitsubishi Chemicals, CMC Magnetics,
Ricoh and Taiyo Yuden.
8x DVD+R
A 8x
DVD+R disc from Mitsubishi-Kagaku was used to check the 8x writing strategy
of the drive. The software used was Nero CDSpeed, and its "create disc" function.
The drive started writing at 6.12x, maintaining this speed until
the 1.25 GB address mark on the disc, where the speed changed to just a bit
over 8x. Overall average speed was 7.50.
The test was repeated with Mitsubishi 4x DVD-R and 4x DVD+RW media,
and Fuji 2x DVD-RW media. The end results, presented in consecutive graphs
further
below,
was a near perfect straight
line
on each occasion.
Below is a CDSpeed screenshot with a 8x DVD+R disc from Mitsubishi.
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/cdspeed_writing_dvd%2Br_1.gif)
4x DVD-R
Below
is a screenshot of CDspeed writing test with a 4x DVD+RW disc from Mitsubishi:
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/cdspeed_dvd-r_writing_1.gif)
4x DVD+RW
![](/Sections/Articles/Sources/LiteOn LDW-811s/Images/cdspeed_dvd+rw_writing_1.gif)

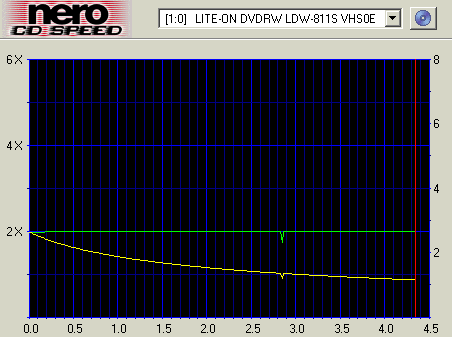

2x DVD-RW
![](/Sections/Articles/Sources/LiteOn LDW-811s/Images/cdspeed_dvd-rw_writing_1.gif)
- Burning Tests
The best recording times are illustrated in the following table after burning
4315MB of data on various DVD±R, DVD±RW media, using the maximum
allowed writing speed for each disc. For
comparison, we
also include
the
writing
times for the

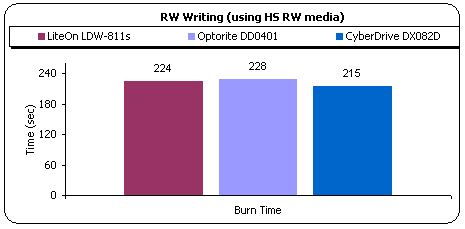

Optorite DD0401 and CyberDrive DX082D drives. The LiteOn drive returned some
very good times.
Mitsubishi 8x DVD+R media was burned at 8x and gave the best writing
time (8:25 min). The drive finished the same writing task with
Ricoh 4x DVD+RW discs in 13:45 min, a fast performance for 4x DVD+RW recording.
With DVD-R media the time taken was 14.32 mins while for DVD-RW the time was
28.11 mins.

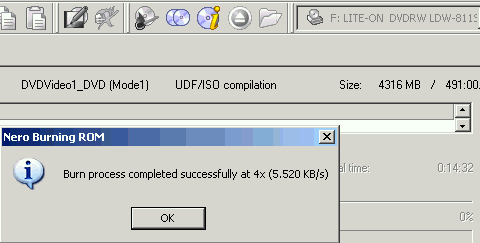

The following screenshot was taken from Nero, after successful
burnings with Mitsubishi 8x DVD+R, Taiyo Yuden 4x DVD+R, and Ricoh 4x DVD+RW
media. The
amount
of data
is the same for all the tests.
- Mitshubishi Kagaku 8x DVD+R
(8x recording)
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/nero_writing_dvd%2Br_MCC_8x_s.gif)
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/nero_writing_dvd-r_fuji_small.gif)
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/nero_writing_dvd%2Brw_mcc_sma.gif)
Disc Label
|
Disc Information
|
Writing Speed
|
Fuji 4x DVD-R
|
TYG01
|
4x
|
Mitshubishi Kagaku 8x DVD+R
|
MCC003
|
8x
|
Mitsubishi 4x DVD-R
|
MCC 01RG20
|
4x
|
MCC 4x DVD+Rw
|
MKMA02
|
4x
|
Pony 4x DVD-R
|
RITEK G04
|
4x
|
N-Tech 4x DVD+R
|
MCC 002
|
2.4x
|
N-Tech 4x DVD-R
|
AN31
|
4x
|
Pioneer DVD-RW
|
PVCW00V00245
|
2x
|
TY 8x DVD+R
|
YUDEN000 T01
|
8x
|
The table above presents the writing speeds of the drive for the various
media formats.
- Packet Writing Tests
DVD-RW
|
Duration
|
Average speed
|
Read
|
2:51 min
|
1.8X
|
Write
|
2:38 min
|
1.9X
|
DVD+RW
|
Duration
|
Average speed
|
Read
|
2:15 min
|
1.8X
|
Write
|
1:17 min
|
1.9X
|
13. PI / PO Error Measurements
LiteOn LDW-811s DVD±RW recorder - Page 13
KProbe PI/PO
quality results

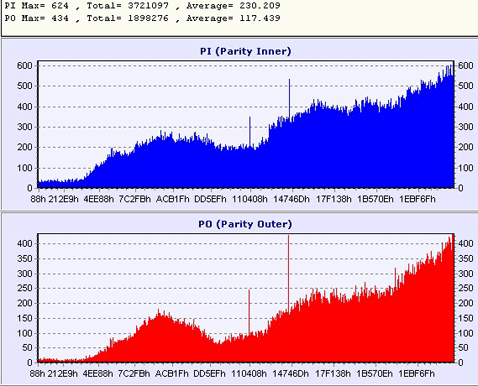

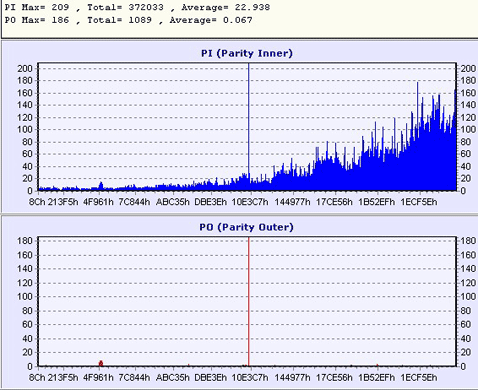

The following screenshots show the PI/PO scans for the various DVD-/+R
and DVD-/+RW media, recorded with LiteOn LDW-811s at the maximum permitted
speed.
The software used for the measurements was the KProbe v1.1.26, and the reader
was LiteOn LDW-811s. The specific methodology is very dependent on the drive
used as a reader, while the reliability of the PI/PO provided output is also
not technically confirmed. Hence as a result, we cannot safely come up
with conclusive results,
although we do make a comparison
of the drive's behaviour
when using
various
DVD recordable/rewritable
media.
The recordable discs used came from Fuji, Mitsubishi
Chemicals, N-Tech, Pioneer, Taiyo Yuden and Ritek. Further details
about each disc type are presented at the bottom of this page.
- Mitshubishi Chemicals 8x DVD+R
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/Kprobe_dvd%2Br_kagaku_small.gif)
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/Kprobe_Fujifilm_dvd-r_small.gif)
![](/Sections/Articles/Sources/LiteOn LDW-811s/Images/LiteOnLDW-811s_vHS0E_dvd+r_TY.gif)
![](/Sections/Articles/Sources/LiteOn LDW-811s/Images/LiteOnLDW-811s_vHS0E_dvd-r_pony_small.gif)
![](/Sections/Articles/Sources/LiteOn%20LDW-811s/Images/Kprobe_pioneer_dvd-rw_small.gif)
![](/Sections/Articles/Sources/LiteOn LDW-811s/Images/kprobe_ntech_dvd-r_small.gif)
- N-Tech 4x DVD+R(Recorded at 2.4x)
Media
|
Code
|
Fuji 4x DVD-R
|
TYG01
|
Mitshubishi Kagaku 8x DVD+R
|
MCC003
|
Mitsubishi 4x DVD-R
|
MCC 01RG20
|
MCC 4x DVD+Rw
|
MKMA02
|
Ritek 4x DVD-R
|
RITEK G04
|
N-Tech 4x DVD+R
|
MCC 002
|
N-Tech 4x DVD-R
|
AN31
|
Pioneer DVD-RW
|
PVCW00V00245
|
TY 8x DVD+R
|
YUDEN000 T01
|
14. Conclusion
LiteOn
LDW-811S
DVD±RW recorder -
Page 14
Conclusion
Pros
|
Cons
|
- 8x DVD+R writing
- 4x DVD+RW/-R writing
- 40/24/40 CD-RW
- Good error correction
- Supports audio protected discs
- Fast DVD seek times
- Good CD-R writing quality
- Creates working backups of SafeDisc v.2.80
- Overburning up to 99min
- Supports CD-Text (reading/writing)
- Supports 99min audio discs
- Supports
40x DAE
- Fast DVD ripping
- Fast DVD recording
|
- Limited media support for 8x DVD+R writing
- Slow CD seek times
- Reads 6x DVD+/-R, RW
- Encounters
problems reading the start of the second layer on dual layer
DVDs
- Only at 16x writing speed introduced high
jitter spike and high C1 error rate towards the end
|
The LiteOn LDW-811s is the third recorder from LiteOn and their second dual
DVD recorder. Overall, the drive performed satisfactorily, providing good
speeds except for the 6x DVD-/+R and RW formats. It generally provided good
quality recording, especially with CD-R media, and good error correction capabilities
although at 16x writing speed, towards the end of writing, it introduced a
surprisingly
high jitter spike, and high C1 error rate.
The 6x DVD-/+R, RW reading speed is a little dissapointing, however this is
compensated for by fielding some handy features such as overburning
up to 99 minutes, backups of SafeDisc, support for 99 minute
audio
discs,
DAE
and
protected audio CDs, thus making it a versatile drive.
DVD reading was relatively fast, as it also proved to be a fast drive with
DVD ripping and recording. The only blemish was with dual layer media where
there was a problem when reading the beginning of the second layer.
Performance with CD media wasn't quite as impressive though, and the seek
times could certainly have been better here.
Error correction was also another plus for this drive although, in the check
level tests, it only managed to read up to the third level. This probably indicates
that the drive can and does bypass scratches and defects located on the media's
surface, as long as the affected area isn't particularly large.
The drive is very competetively priced at around $150.
