1. Introduction
Plextor
PX-716A Writer -
Page 1
We
finally received the much awaited for drive from Plextor, the PX-716A. The
drive supports
16X for DVD±R, 8X for DVD+RW, 4X for DVD-RW, 4X for DVD+R DL, 48X for
CD-R and 24X CD-RW. For reading the speeds are 16X for DVD-ROM and 48X for
CD-ROM.
- Features
The
VariRec feature can be applied not only with Audio CD-R discs but also with
DVD±RW
media. The user can select some settings during the recording preparation in
order to obtain a more personalized sound tone. The feature is fully controlled
from within
PlexTools software, available in the Plextor retail package, and works
for CD at 4X and 8X and for DVD at 2X and 4X writing speeds. Nero and other
programs support this feature as well.
The PoweRec technology ensures the quality of CD and DVD recordings. Low quality media is often the source of disc errors during high speed recording. PoweRec checks the quality of the inserted CD/DVD media and automatically selects the optimum (maximum) writing speed, giving the highest quality results.
Other interesting features of the PX-712A, used only with PlexTools are:
- allows high capacity storage of up to 1 GB on a 700 MB disc. With this advanced feature, you can increase the maximum writing capacity up to 40%
- offers password protection for your disc and other valuable data
- checks
and reports written disc quality - C1/C2, PI/PO, track and focus errors
- enables users to vary tray load/unload speed, spin up/down speed and write/read speeds
- PX-716A Benefits
- Writing DVD+R: 16x
- DVD-R: 16x
- DL DVD+R: 4X
- CD-R: 48x
- Rewriting DVD+RW: 8x
- DVD-RW: 4x
- CD-RW: 24x
- Reading DVD-ROM: 16x
- CD-ROM: 48x
- Buffer Underrun Proof Technology: Stops buffer underrun errors
- GigaRec Technology
- Intelligent Recording
-
'AutoStrategy' is a self-learning writing technology to optimize the writing
quality on any type of media
-
'Intelligent Tilt' controls the laser in three dimensions, to ensure high quality writing and reading if the disc surface has imperfections
-
'PoweRec' is a complex piece of writing intelligence ensuring superior recording quality at high speeds on certified media
- SecureRecording Technology
- Silent Mode
- Q-Check
- VariRec Technology
- Supports Lossless Linking (DVD+R/RW)
- Zero Link (DVD-R/RW)
- Supports Background Formatting
- Access Time <100 ms for CD; 150 ms for DVD
- 8MB Buffer
- E-IDE (ATAPI) interface
- PC Compatibility:
-
Pentium 4 1.4Ghz or higher
-
256MB Memory
-
10GB of free disk space
- Compatible with:
-
Windows 98 SE, Windows Me, Windows 2000, Windows XP
- MultiRead Compatible
- Supports SPDIF (Digital Audio Output)
- High Quality Digital Audio Extraction
- A black tray, to reduce the jitter and to increase the quality of the burned CD
- Two year fast warranty service (EU, Norway and Switzerland: Collect & Return); 1 year in other countries.
- Compatible formats:
CD (Read/Write)
CD-DA, CD-Extra, CD-ROM Mode-1, CD-ROM Mode-2, CD-ROM XA, Photo-CD, Video-CD, Multisession, CD TEXT, CD-I, CD+G, Mixed CD
CD-R/RW (Write)
Track at Once, Disc at Once, Packet Write (variable and fixed), Session at Once
DVD (Read/Write)
DVD-ROM, DVD-Video, Multiborder, Multisession, DVD+VR, DVD-VR
DVD+R/RW (Write)
DVD+R:Disc at Once, Multisession, Incremental Recording
DVD+R DL: Disc at Once
DVD+RW: Sequential Write, Random Access Write
DVD-R/RW (Write)
DVD-R: Disc at Once, Multiborder recording, Incremental recording
DVD-RW: Disc at Once, Multiborder recording, Incremental recording, Restricted Overwriting, DRT-DM
- Specifications
Data Transfer Rate |
Burst |
66MB/s |
Write |
DVD+R |
DVD-R |
CD-R |
16x: 22.160KB/s (CAV)
12x: 16.620KB/s (PCAV)
6-8x: 8.310-11.080KB/s (PCAV)
6x: 8.310KB/s (CLV)
4x: 5.540KB/s (CLV)
2.4x: 3.324KB/s (CLV)
DVD+R DL
4x: 5.540KB/s (CLV)
2.4x: 3.324KB/s (CLV) |
16x: 22.160KB/s (CAV)
12x: 16.620KB/s (PCAV)
6-8x: 8.310-11.080KB/s (PCAV)
6x: 8.310KB/s (CLV)
4x: 5.540KB/s (CLV)
2x: 2.770KB/s (CLV)
|
48x: 7.200KB/s (CAV)
32x: 4.800KB/s (PCAV)
16x: 2.400KB/s (CLV)
8x: 1.200KB/s (CLV)
4x: 600KB/s (CLV) |
ReWrite |
DVD+RW |
DVD-RW |
CD-RW |
6-8x: 8.310-11.080KB/s (PCAV)
6x: 8.310KB/s (CLV)
4x: 5.540KB/s (CLV)
2.4x: 3.324KB/s (CLV) |
4x: 5.540KB/s (CLV)
2x: 2.770KB/s (CLV)
1x: 1.385KB/s (CLV) |
24x: 3.600KB/s (PCAV)
10x: 1.500KB/s (CLV)
4x: 600KB/s (CLV) |
Read |
DVD-ROM |
CD-ROM |
6-16x CAV
5-12x CAV
3-8x CAV
2-5x CAV
2x CLV |
20-48x CAV
17-40x CAV
14-32x CAV
10-24x CAV
8x CLV
4x CLV |
Access Time |
<150ms (DVD)
<100ms (CD) |
Data Buffer |
8MB |
Error Rate |
Mode1: less than 10-12bits
Mode2: less than 10-9bits |
MTBF |
60.000 POH |
Tray Loading Eject |
50.000 times |
Warranty |
2 year Fast Warranty Service (in EU, Norway and Switzerland: Collect & Return); 1 year in other countries |
Dimensions |
146 x 41,3 x 170 mm |
Weight |
1 kg |
From the Info Tool and DVDinfoPro screenshots above, we can see that the drive
doesn't support the DVD-RAM format or Mount Rainier. The buffer size
is 8MB while
the drive
uses the RPCII region control and allows the user to change the region five
times. For our tests we set it to region 2 (Europe).
- Tested Kit / Software Bundle

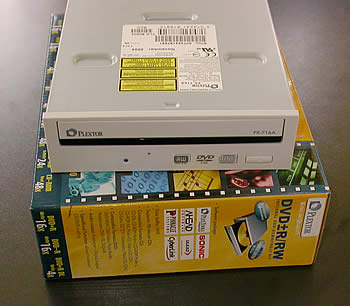

The retail package includes an IDE 80pin cable, four mounting screws, an
extra jumper, an extra front bezel colored black along with front bezel replacement
guide, an eject pin, the installation guide and various installation media
which includes the following:
|
Ahead |
CyberLink |
Pinnacle |
Sonic |
Ulead |
CD/DVD Mastering |
Nero Express 6 SE |
Power2Go 3.0
(30 days trial) |
Instant CD/DVD 8.3 LE
(Limited Edition) |
RecordNow!
(30 days trial) |
Burn Now
(30 days trial) |
Video Editing |
Nero Vision Express 2
(30 days trial) |
PowerDirector 3.0
(30 days trial) |
Studio 9
(30 days trial) |
My DVD
(30 days trial) |
Video Studio 8
(30 days trial) |
DVD Authoring |
Nero Vision Express 2
(30 days trial) |
PowerProducer 2.0 Gold
(30 days trial) |
Studio 9
(30 days trial) |
My DVD
(30 days trial) |
DVD Movie Factory 3.5 SE
(30 days trial) |
DVD Player |
Nero ShowTime
(30 days trial) |
PowerDVD 5.0
(30 days trial) |
Instant Cinema
(Limited Edition) |
|
|
MultiMedia Player |
Nero Media Player |
Media@Show 2.0
(30 days trial) |
Instant Audio |
|
|
Duplication |
|
|
Instant Copy |
|
|
Other |
Nero Recode 2
(30 days trial) |
PowerBackup 1.0
(30 days trial) |
Instant Backup |
|
|
The front bezel continues in the tradition of Plextor front panels.
On the rear panel, we have the analogue and digital
outputs (SPDIF), the IDE connector and power input.
Removing the screws and opening the drive's cover voids the drive's warranty,
so don't do it. Instead, for reference reasons, we post the following images.
You can click on the mainboard picture for a higher resolution image:
The drive is Sanyo based with the following chipset in it.
Below is shown the difference between Plextor drive models
712 and the 716. As you can see, the latest model is shorter.
- Installation
The drive was installed as secondary master and under WindowsXP was recognized
as "PLEXTOR DVDR PX-716A". The drive arrived with
firmware revision v1.02.
Below is a screenshot from Nero Burning Rom's specs for the drive.
- Testing software
In order to perform our tests, we used:
- Nero CD-DVD Speed v3.55
- CDVD Benchmark v1.21
- Nero Info Tool v2.27
- PlexTools v2.18
- DVDInfoPro v2.63
- Nero Burning Rom v6.6.0.3
- CopyToDVD 3.0.35
*Updated
1/12/2005 Click
here for full review
2. DVD Error Correction Tests
Plextor PX-716A Writer -
Page 2
DVD Error Correction Tests
In the following tests we examine the DVD reading capabilities of the drive with scratched / defective DVD media. For the tests we used CDVD Benchmark and Nero CDSpeed. The reference test media comes from ALMEDIO.
- Single Layer media
ABEX TDR-821
This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm.
The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.
The PX-716A read the disc successfully with negligible fluctuations
that mainly appear over the higher dimension defect area.
ABEX TDR-825
This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, with the difference that there are no scratches on it but instead, defective areas of dimensions ranging from 0.5 to 1.1 mm.
There are also fingerprints sized between 65 and 75 micrometers.
Over the fingerprints, the drive had to drop the speed in order
to read the defective area.
- Dual Layer media
ABEX TDR-841
This is an 8.5GB dual layer single sided DVD-ROM disc with artificial scratches of dimensions ranging from 0.4 to 3.0mm, on both layers.
Once again, there were a few speed falls but they were less pronounced than
with the previous test disc.
ABEX TDR-845
The disc is a single sided, dual layer DVD-ROM disc with a capacity of
8.5GB. The only difference between the TDR-845 and the TDR-841 is that the
first includes
defective areas and fingerprints.
The dimensions of the defective areas range from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micro meters.
Excellent performance...
In the upcoming complete review, we will include more DVD
error correction tests as well as CD error correction tests.
3. DVD Recording Tests
Plextor
PX-716A Writer -
Page 3
DVD Recording Test
The drive is capable of 16X speed for both the DVD+R and DVD-R formats, while
according to the specifications it can also burn DVD+RW at 8X. DVD-RW is still
at 4X.
Since this is a preview of the drive, we only burned one DVD+R and one
DVD-R media at the maximum allowed speed of 16X. Notice that both media we
tried
are certified at this speed. Unfortunately, there are no DVD+RW
media available at 8X so we couldn't confirm this speed.
The writing strategies are illustrated below:
The writing times for the two media we burned are below:
Mitsubishi Chemicals 16X DVD+R@ 16X ( MCC 004)
9:14 minutes is not a satisfactory time for 16X recording.
Is it the media or the firmware? We will answer this in the upcoming, full
review.
TDK 16X DVD-R@ 16X ( TTH02)
4. PlexTools/CDSpeed Scans - Page 1
Plextor
PX-716A Writer -
Page 4
PlexTools/CDSpeed Scans - Page 1
In order to test the writing quality and readability of the burned media, we used two readers in combination with two software packages:
- The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests, we used the latest Nero CDSpeed version.
- The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.
- The Plextor PX-716A with the latest available firmware and the same setting
as the 712 just for indicating any differences between the two drives.
In general, a "perfect" disc should have a smooth reading curve,
very low PIE/POE and zero (0) POF error rates. Most times, even when a disc
has very low PIE/POE error rates, the reading curve may not be smooth, exhibiting
dropoffs. Due to the fact that we oversped the reading capabilities of the
LiteON SOHD-167T, such drops are expected, especially near the outer area of
the disc.
The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.
- Mitsubishi Chemicals 16X DVD+R @ 16X
Excellent writing quality. Notice the similarity between the 712 and 716
results.
5. PlexTools/CDSpeed Scans - Page 2
Plextor
PX-716A Writer -
Page 5
PlexTools/CDSpeed Scans - Page 2
In order to test the writing quality and readability of the burned media, we used two readers in combination with two software packages:
- The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests, we used the latest Nero CDSpeed version.
- The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.
- The Plextor PX-716A with the latest available firmware and the same setting
as the 712 just for indicating any differences between the two drives.
In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times, even when a disc has very low PIE/POE error rates, the reading curve may not be smooth with dropoffs. Due to the fact that we oversped the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.
The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.

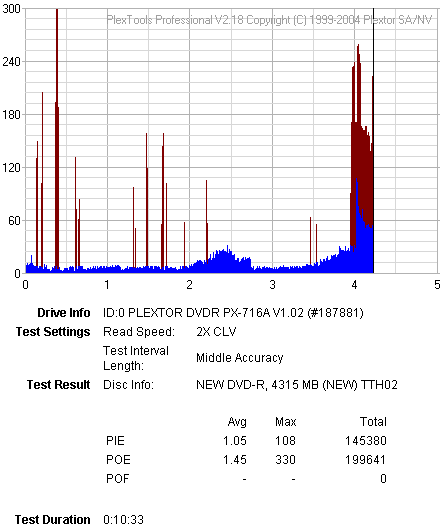

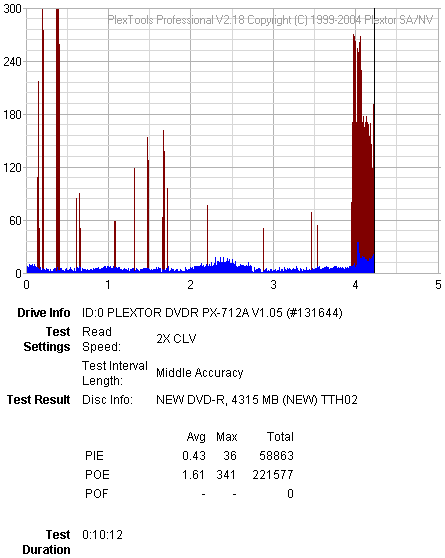

- TDK 16X DVD-R @ 16X
The quality is good while the PlexTools scans are similar for the 712 and
716.
6. DVD+R DL - Page 1
Plextor
PX-716A Writer -
Page 6
DVD+R DL - Page 1

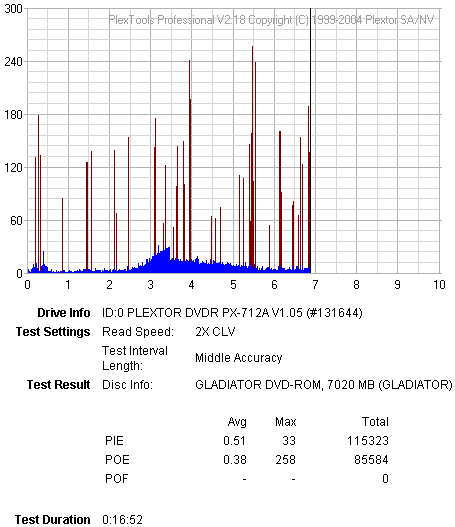

The drive, according to the manufacturer's specifications, supports 4X writing
for the Double Layer format. To confirm, this we burned a DVD+R DL disc
with DVD-Video content. The
source disc was "Gladiator Movie - Special Edition" disc1 with a total
size of 6.86GB. First, we transferred the movie to the hard disc with DVD Decrypter
in ISO format (single file). Afterwards, we used CopyToDVD latest version. After
choosing the "GLADIATOR.ISO" image we selected the Plextor burner and
the writing process began.
After 23:33 minutes, the task finished and confirmed the 4X speed. The reported
average writing speed according to the CopyToDVD log, was 3.77X.

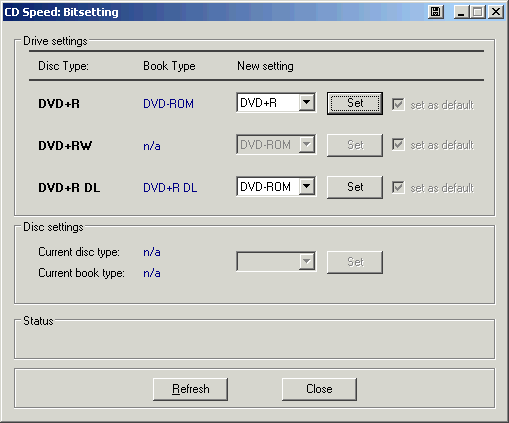

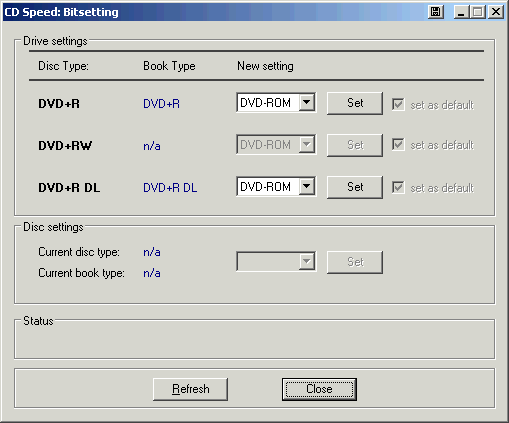

- Bitsetting
The drive supports this feature for the DVD+R and DVD+R DL formats only. With
DVD+RW, there is no such option. We used CDSpeed 3.55 to set the Booktype
to DVD-ROM.
7. DVD+R DL - Page 2
Plextor PX-716A Recorder -
Page 7
DVD+R DL - Page 2
- Writing Quality
Verbatim 2.4X DVD+R Double Layer Media @ 4X
High quality with both drives reporting almost the same
results.
8. 716 vs SA300
Plextor
PX-716A Writer -
Page 7
716 vs SA300
For checking exactly what the Plextor PX-716A reports, we used four different
media, burned with other writers. The media have been measured with the
well known AudioDev SA300 DVD CATS system at 1X. For this preview, we present
results from only one of the four media. More results in the upcoming full
review...
The drive is capable of reporting PIE/POF errors, so we will compare those
measurements at 2X CLV speed with Plextools 2.18 for three different accuracies,
slowest, middle and high.
Please note that the posted results are only valid for the specific tested Plextor drive. Using other drives, even another 716, can produce totally different results. Be aware!
Slowest Accuracy
Middle Accuracy
High Accuracy
In all cases, the trendlines are similar but the values very different.
9. Conclusion
Plextor
PX-716A Writer -
Page 7
Conclusion
It would be better to avoid any premature comments or conclusions at this
point. However, this pre-release preview has given us an idea of what is in
store.
Stay
tuned for the complete review ...
*Updated
1/12/2005 Click
here for full review
