Writing Quality Tests - 3T Jitter Tests
The same Nero compilation used in the previous jitter tests was used once again, this time with media from different brands. The recording speed was the maximum 52x for all brands except from MAM media with which the drive supported the maximum 48x speed. The following graphs show the 3T Pit & Land Jitter results.
- 3T Pit results
With all the media brands used with the LiteOn drive, the jitter levels were generally low.

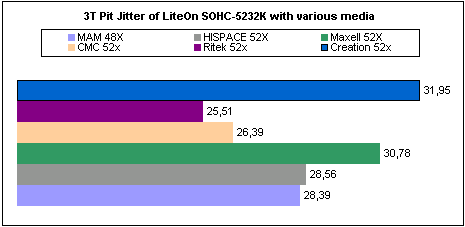

The average 3T Jitter values for all manufacturers discs are illustrated in the following graph.

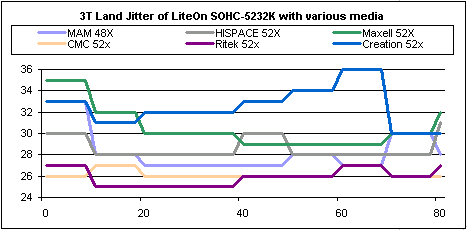

- 3T Land results
Once again all the media brands gave low land values.The average values presented below illustrates the drives recording ability.
|
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
Mam 48X |
28,39 |
28,37 |
No |
29 Pit, 33 Land |
HiSpace 52x |
28,56 |
28,56 |
Yes |
31 Pit, 31 Land |
Maxell 52x |
30,78 |
30,54 |
Yes |
32 Pit, 35 Land |
CMC 52x |
26,39 |
26,24 |
No |
28 Pit, 27 Land |
Ritek 52x
|
25,51
|
25,90
|
No
|
26 Pit, 27 Land
|
Creation 52x |
31.95 |
35.56 |
Yes |
36 Pit, 36 Land |
- Summary
Generally, from this series of tests, we can conclude that at least jitter does not affect the writing quality. On the following page we check the C1 and C2 error rates for the same discs.
