TEAC DV-W58G - Page 12

KProbe PI/PO quality results

The following screenshots show the PI/PO scans for various DVD-/+R and DVD-/+RW media, recorded with TEAC DV-W58G at the maximum permitted speed.

The software used for the measurements was KProbe v1.1.26, the ECC was set to 8 and the reader was LiteOn LDW-811s. The specific methodology is very dependent on the drive used as a reader, while the reliability of the PI/PO provided output is also not technically confirmed. Hence, we cannot safely come up with conclusive results, although we do make a comparison of the drive behavior when using various DVD recordable/rewritable media.

The recordable discs we use, came from Verbatim, Taiyo Yuden, CMC, MAM, Maxell , MC and Ritek. Further details about each disc type are presented at the bottom of this page.

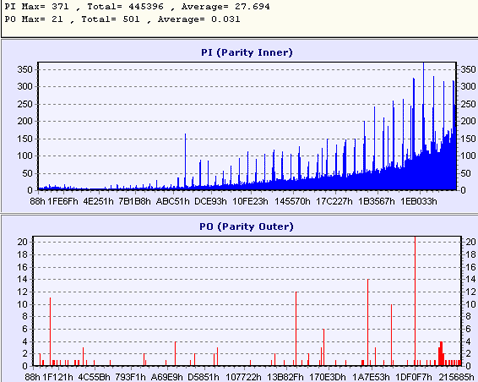

• Ritek 4x DVD-R (Recorded at 4x)

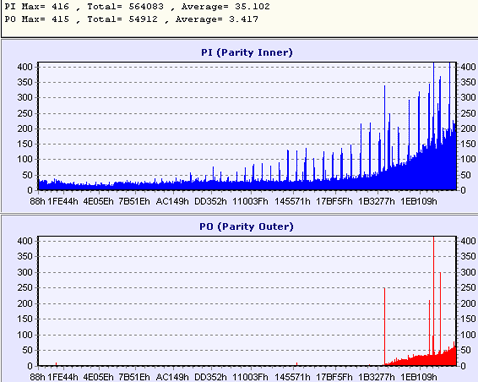

• Verbatim 4x DVD-R (Recorded at 4x)

• TY 4x DVD-R (Recorded at 4x)

• Maxell 4x DVD-R (Recorded at 4x)

• CMC 8x DVD+R (Recorded at 4x)

• MKM 8x DVD+R (Recorded at 8x)

• TY 4x DVD+R (Recorded at 8x)

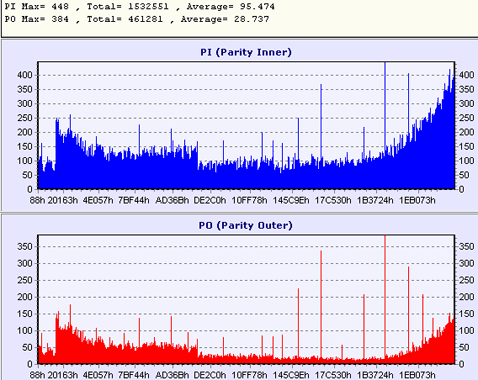

• Pioneer 2x DVD-RW (Recorded at 2x)
