be quiet! Pure Base 500 FX
be quiet! has a lot of products aimed mainly at low noise and excellent build quality. Recently be quiet! introduced a new series of products called, Pure Base 500 FX Black, which offers impressive lighting with multiple modes and maximum airflow for high cooling performance.
Since it includes ARGB lighting at the fans (front and inside) with its four Light Wings PWM fans, it aims at gamers or users who wish to have ARGB lighting in their system. Apart from the lighting, there is also on board an ARGB-PWM-Hub enables synchronization of up to 6 ARGB components and 6 PWM fans, the case includes a high airflow intake front panel and top cover for maximum performance, adds USB 3.2 Gen. 2 Type C for latest hardware at its front panel and its read for radiators of up to 360mm with 3-year manufacturer’s warranty! Impressive package for users, and today we will examine it in depth.
- Product Features

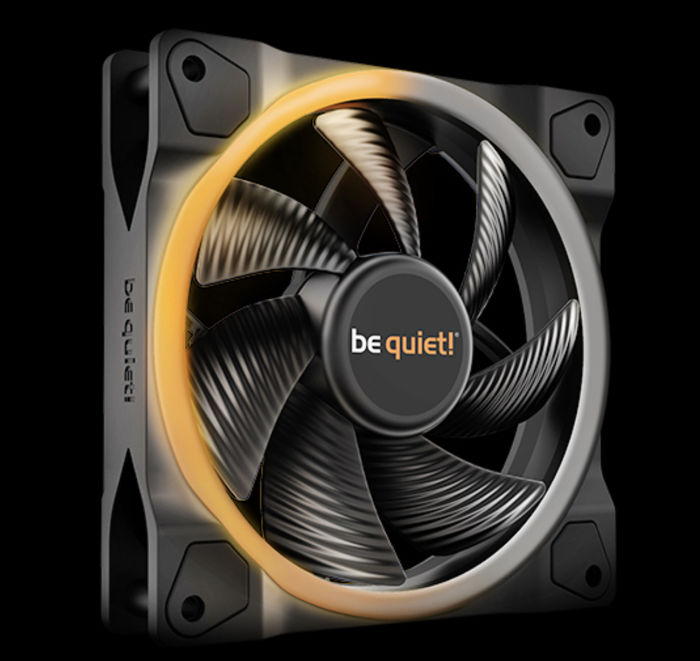

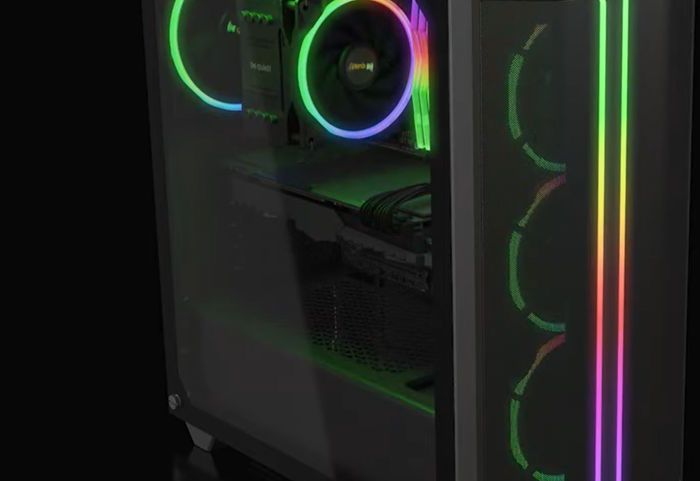

Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front and inside the case offer multiple colors and modes to individualize the look from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.
With optimization for maximum airflow, the Light Wings PWM fan is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure the fan to provide the performance that is needed, even in demanding configurations.
HIGH AIRFLOW AND MAXIMUM PERFORMANCE

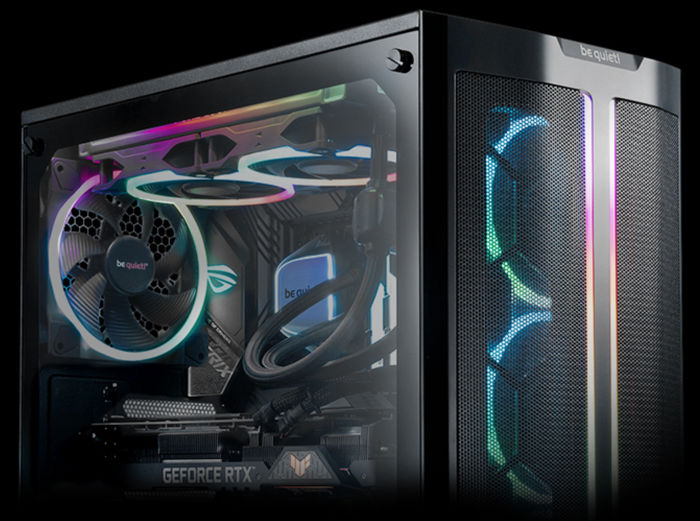

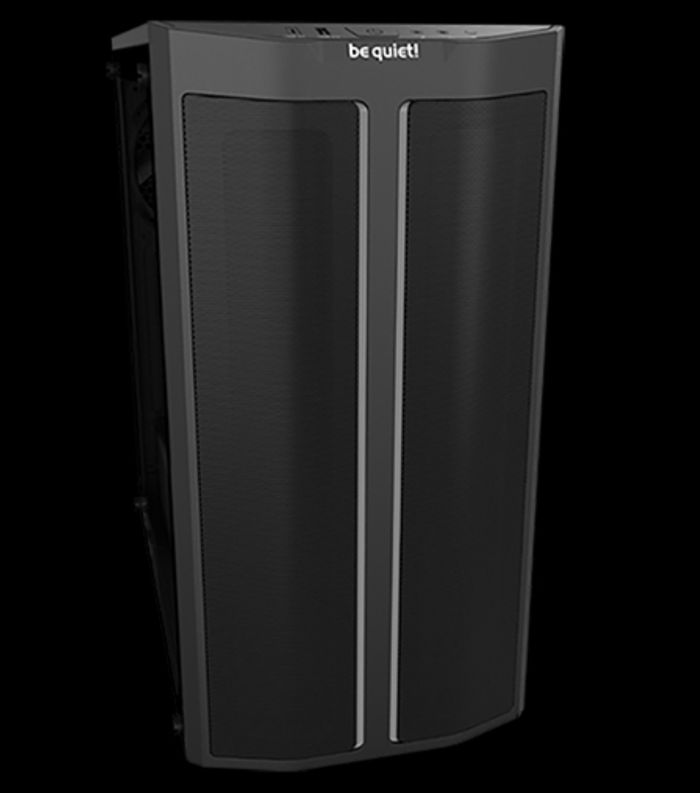

The extremely permeable front is perfect for everyone who strives for maximum performance with water-cooled systems in particular. The airflow-optimized top cover underlines the performance orientated claim of Pure Base 500 FX Black. The dust filters on the front panel and bottom can be easily removed for cleaning.
ONE HUB, MANY POSSIBILITIES

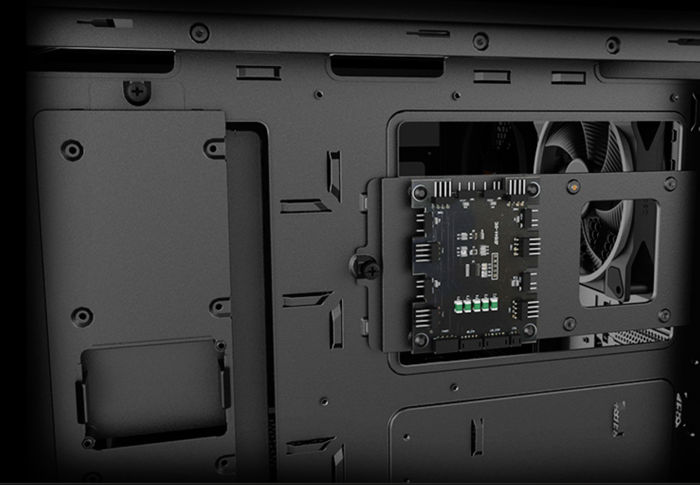

The ARGB-PWM-Hub enables synchronization of up to 6 PWM fans and 6 ARGB components: Preinstalled on the backside of the motherboard tray it supports a neat interior and cable management.
MODERN I/O PORT
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.
The Pure Base 500 FX Black provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Radiators of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm.

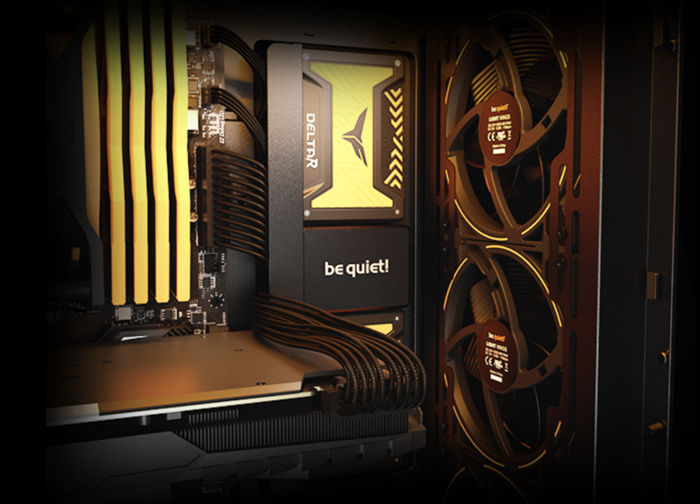

Pure Base 500 FX Black offers various options for installing up to 4 SSDs in total. 2 can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.

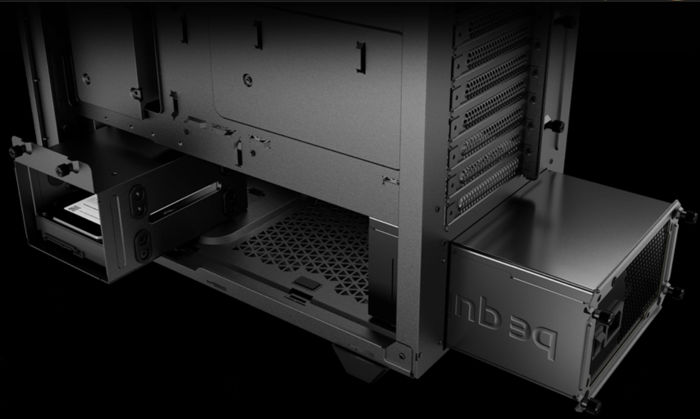

FUNCTIONAL PSU SHROUD
The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the provided PSU bracket.
TEMPERED GLASS WINDOW
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
Below are the main specifications of the Pure Base 500FX
|Model||Pure Base 500 FX|
|PSU form factor||ATX PS/2|
|Motherboard compatibility||ATX / M-ATX / Mini-ITX|
|Installation of motherboards with backplate||✓|
|Case size excl. stands (L x W x H), (mm)||450 x 232 x 443|
|Case size incl. stands (L x W x H), (mm)||450 x 232 x 463|
|Dimensions side panel window (L x W), (mm)||400 x 431|
|USB 3.2 Gen. 1||1|
|USB 3.2 Gen. 2 Type C||1|
|HD Audio I/O||Mic + Audio|
|Fan mounting locations||6|
