be quiet! Pure Wings 3

Nov 7,2023 0

1. Introduction



Review Pages

1. Introduction
2. The package
3. Conclusion

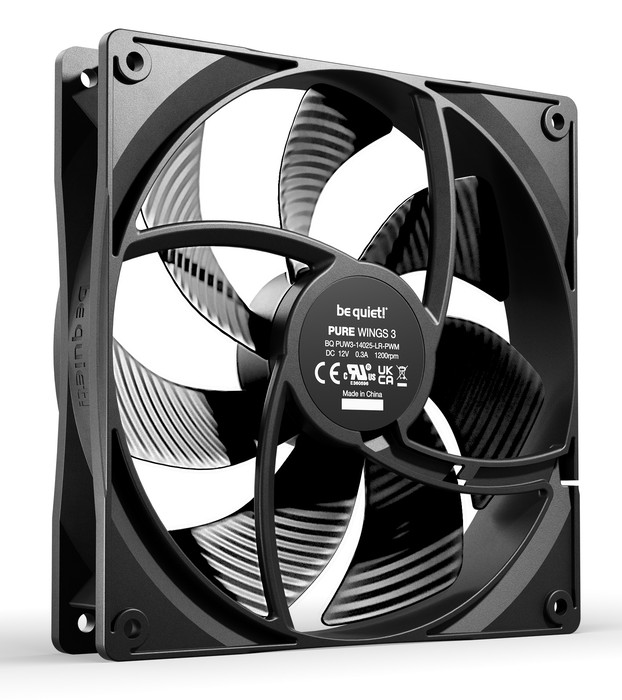

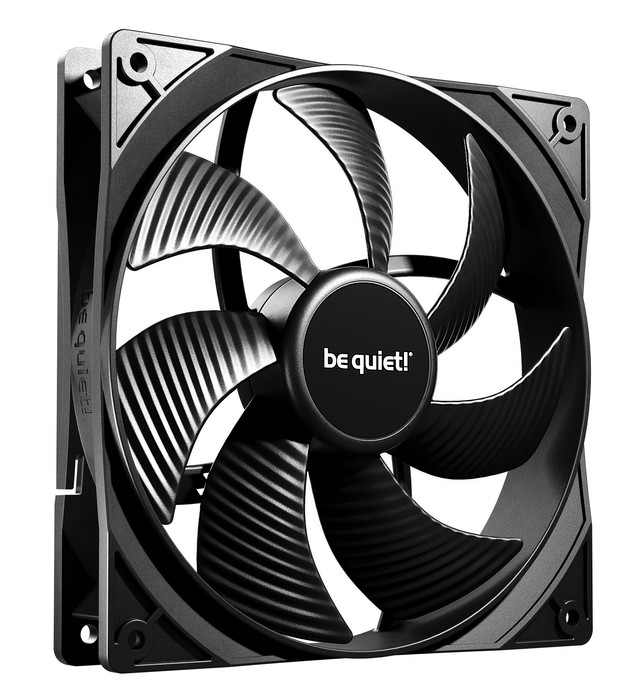

be quiet! as a leading cooling solutions manufacturer, recently introduced a new line of affordable fan series, the Pure Wings 3. With a low minimum rpm and high top-end speed, Pure Wings 3 is a PC fan for any application, whether it is a demanding workstation or an entry-level gaming build. Thanks to an optimized fan frame, it delivers outstanding performance on radiators while the newly designed fan blades and re-arranged angle result in extraordinary air pressure. Pure Wings 3 is available in two different sizes (120mm and 140mm) and three different versions (3-pin, 4-pin PWM, 4-pin PWM high-speed), where the high-speed versions include an innovative closed-loop motor to keep the rpm stable no matter the resistance. The result is a fan series that offers outstanding reliability and makes for a long-lasting companion for your gaming system.

Optimized for unprecedented air pressure and maximum airflow

The fan frame outlet of Pure Wings 3 is newly designed to minimize air leaks. This benefits especially the radiator performance. To reach even higher performance, the fan blades are optimized as well: their angle is adjusted to achieve even more air pressure, resulting in an unprecedented performance in its class. But Pure Wings 3 doesn’t just perform well on radiators, it’s also the perfect case fan: with optimizations for maximum airflow, Pure Wings 3 is the right choice for any case configuration that demands high cooling performance and great air circulation. The airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure the performance that is needed, even in demanding configurations. True to the company name, Pure Wings 3 fans are extremely silent thanks to a very low starting rpm, and thanks to proven rifle-bearing technology, these fans boast a lifespan of 80,000 hours.

High-speed version with closed loop motor for great cooling performance

The Pure Wings 120mm PWM high-speed and Pure Wings 140mm PWM high-speed versions are specifically designed for demanding configurations, increasing the maximum speed to 2100 rpm and 1600 rpm respectively while integrating no less than 9 airflow-optimized fan blades. This results in a remarkably high air pressure of up to 2.41mm/H2O for the 120mm version and 2.44mm/H2O for the 140mm version. And that’s not all: the high-speed models also include a unique closed-loop motor, comparable with cruise control in cars. When working against resistance, fans usually spin slower as a result. The closed-loop motor technology constantly monitors the current rpm and increases it to the target, if necessary. As a result, Pure Wings 3 high-speed fans always operate at the desired speed, no matter the resistance.

Pure Wings 3 is available in retail from November 7. For suggested retail pricing and main specifications, see the table below:

Product Fan blades Max rpm Closed loop motor MSRP
Pure Wings 3 120mm 7 1600 ✗ $ 9.90
€ 13.90
£ 10.99
Pure Wings 3 120mm PWM 7 1600 ✗ $ 9.90
€ 13.90
£ 10.99
Pure Wings 3 120mm PWM high-speed 9 2100 ✓ $ 9.90
€ 13.90
£ 10.99
Pure Wings 3 140mm 7 1200 ✗ $ 11.90
€ 14.90
£ 10.99
Pure Wings 3 140mm PWM 7 1200 ✗ $ 11.90
€ 14.90
£ 10.99
Pure Wings 3 140mm PWM high-speed 9 1800 ✓ $ 11.90
€ 14.90
£ 10.99

- Full Specifications

Pure Wings 3
model
140mm PWM High-Speed
140mm PWM
140mm
120mm PWM High-Speed
120mm PWM
120mm
Dimensions
140 x 140 x 25
120 x 120 x 25
Fan speed (rpm) @ 100% PWM
1800
1200
2100
1600
Noise level (db(A)) @ 100% PWM
30,5
21.9
30.9
25.5
Airflow @ 100 PWM (cfm/m3)
72.2 / 122.6
57.4 / 97.5
59.6 / 101.2
49.9 / 84.8
Air pressure (mm/H2O)
2.44
0.96
2.41
1.45
Voltage range DC (V)
5-13.2
Input power (W)
6.00
3.60
2.41
2.40
Connector
4-pin PWM
3-pin
4-pin PWM
3-pin
Lifetime @ 25celsius (h)
up to 80.000
Bearing & Motor Technology
Rifle 4-pole fan motor
Accessories
4 screws
Price (single)
$ 11.90 / € 14.90 / £ 10.99
$ 9.90 / € 13.90 / £ 10.99
