DVD Burning at 22x
2. Taiyo Yuden TYG03 DVD-R
Review Pages
Disc: Taiyo Yuden 's TYG03 (DVD-R) |
Burner: HL-DT-ST GH22NS30 v1.02-------------------------------------------------------------------------------------------------------------------- |

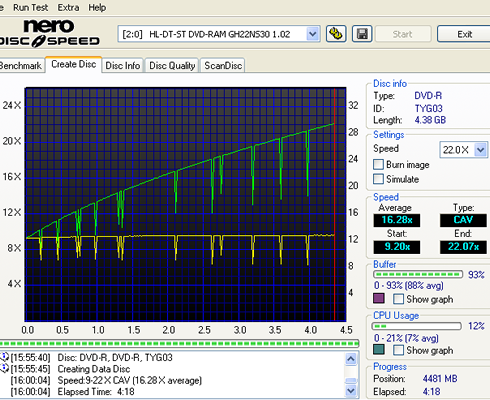

Writing - 22X (16.28X average) in 04:18

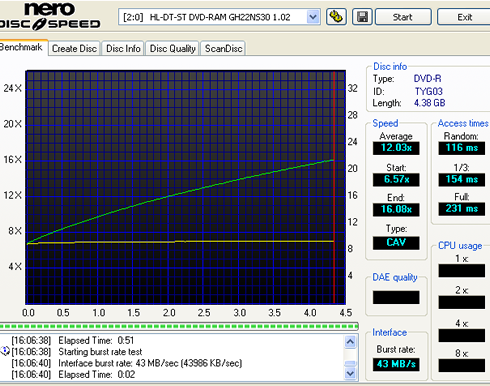

Reading - 16X

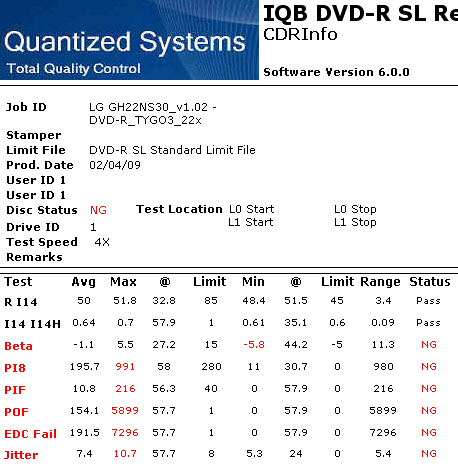

Quality Scanning Results
 |
 |
|
Click on thumbnail for larger view of all signals |
The correctable PISum8 errors here exceed the acceptable limits (280) and unfortunately they were also reported as POF. These were reported in the outer part of the data area, where the burning speed was higher than 20x. Jitter was also out of specs after the 49mm radius of the disc.
Burner: LITEON iHAS422 v4L11-------------------------------------------------------------------------------------------------------------------- |
Writing - 22X (16.10X Average) in 04:36
Although the LiteOn drive initiated the burning for 22x, it slowed down to16x before the end of the recordable area.
Reading - 16X
Quality Scanning Results
 |
 |
 |
 |
 Click on thumbnail for larger view of all signals |
Despite the relatively slow burning speed by the end of the data area (16x), POF were reported there possibly due to the sudden drop in the burning speed.
Burner:TSST SH-S223F vSB03-------------------------------------------------------------------------------------------------------------------- |
Writing - 22X (16.41X Average) in 04:22
Reading - 16X
Quality Scanning Results
 |
 |
 Click on thumbnail for larger view of all signals |
This time we got a relatively good burn, with just the PISUm8 to slightly exceed the limits and zero uncorrectable errors.
