JSAUX 65Wh Rog Ally Battery

Apr 17,2025 0

1. Introduction - Retail package



Review Pages

1. Introduction - Retail package
2. Tests - Conclusion



Portable gaming devices while nowadays becoming more and more powerful, the need for higher running time is always a request from most users. Asus has introduced their first ever gaming device, the Rog Ally with a rather "small" stock battery of 40mAh that gives users more or less up to 1 hour of AAA gaming titles at 20~25Watts, while reducing power consumption did improved running times for less demanding games.

Asus did listen to users complaining and introduced the Asus ROG Ally X featuring an 80Wh battery, which allows for approximately 2.7 hours of heavy AAA gaming or up to 14.5 hours of video playback. This larger battery capacity significantly extends gaming sessions compared to its predecessor, the ROG Ally. Asus made sure that the new battery doesn't fit the "old" Rog Ally models, so are users alone in this area...or not?

While some attempts have already been made by users effort modding laptop batteries to fit into Rog Ally with 74mAh and even up to 90mAh, none of them went into massive product and for this reason, a well-known peripheral manufacturer, JSAUX enters the chat with their latest product, the 65mAh battery upgrade for Rog Ally (1st gen).

- Features

  • 【Battery Upgrade – 50% More Playtime】 Upgrade from the stock 40Wh battery to a powerful 65Wh capacity, giving you up to 50% longer gaming sessions without interruptions. Say goodbye to frequent recharges and keep gaming longer.

  • 【Seamless Compatibility】 Designed exclusively for ROG Ally, ensuring full stability and peak performance. (Note: Must be used with the included backplate—not compatible with the original backplate or ROG Ally X.)
  • 【Cooler & More Efficient】 Featuring a precision-engineered aluminum heatshield, this upgrade runs cooler than stock, reducing heat buildup and extending both battery lifespan and overall device efficiency.

  • 【All-in-One Installation Kit】 Everything you need in one package: 65Wh battery, custom ROG Ally backplate, and essential tools for a smooth, stress-free installation.

  • 【Fast & Easy Installation】 Complete the upgrade in under 15 minutes with a straightforward process—no technical expertise required. Enjoy more power with minimal effort.

- Product Specifications

  • Dimensions: 251.6mm(L) * 41.4mm(W) * 9.8mm(H)
  • Weight: 248g
  • Charging Standard: Supports PD+QC charging protocols
  • Material: Lithium Polymer + Stainless Steel
  • Capacity: 65Wh
  • Working Voltage: 15.48V
  • Compatibility: Only with ROG Ally, not compatible with ROG Ally X

The retail package design is what we have seen with previous JSAUX products for the Rog Ally. Opening the box unveils its contents, which are..many. There is a protective foam sheet included as well.

And below you can find all included contents in separate compartments for safe transportation.

In short, users will find the following content:

  • 1x ROG Ally Built-in Battery (Black, Silk Print)
  • 1x ROG Ally Back Plate
  • 1x Aluminum Heatshield (Black)
  • 1x PC Decoration Sticker
  • 1x ROG Ally Charging Port Dust Plug (White)
  • 1x ROG Ally Joystick Caps (Black)
  • 1x Light-sensitive Sticker (Black)
  • 1x Rubber Pad 1 (Black)
  • 1x Rubber Pad 2 (Black)
  • 4x Screws D3.50.8-CM 1.63.0
  • 4x Screws D3.50.8-CM 1.69.0
  • 2x Cross Flathead Machine Screws CM2.08.0-D3.31.0 (Silver)
  • 5x Cross Flathead Machine Screws CM2.015.5-D3.31.0 (Silver)
  • 2x Pan Head with Spacer Screws PWB M1.2*3mm (Silver)
  • 1x Cross Flathead Machine Screws CM1.63.0-D3.40.5 (Silver)
  • 1x Screwdriver (Black)
  • 1x Multi-functional Diagonal Cutting Pliers (Blue Handle, 170mm)
  • 2x Pure Nitrile Gloves (Blue)
  • 1x Prying Tool (Blue)
  • 1x Pry Blade (Blue)

The battery has similiar design as the original Rog Ally battery, and has metal holding to secure it at exactly the same positions at the Rog Ally main body.

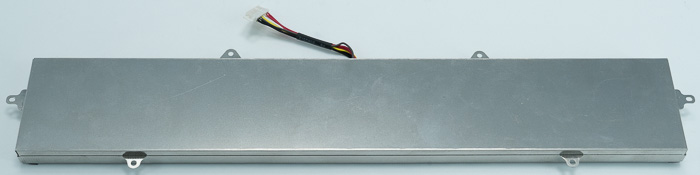

At the back, there is an aluminum sheet that encloses the battery for better thermal dispassion.

There is also a new backplate, which should be used to avoid cutting the original Rog Ally backplate for the new battery to fit properly.

An aluminum back heat spreader also included for the NVME SSD

Let's now see the main differences between the Rog Ally original battery and the JSAUX Battery upgrade. As you can see there are some visual differences.

The total weight of the Rog Ally original battery is around 155gr while the JSAUX battery upgrade is 249gr. The height of the Rog Ally original battery is 0.95cm, while the JSAUX battery comes at 1.10cm, due to its increased capacity.

The battery plug also comes in a slightly different position but can be installed without any issue.

- Installation

JSAUX has a complete video installation guide that we highly advise you to watch and pause after each step before making the upgrade. Additional information and steps are displayed on the official JSAUX website.

Using a 2230 to 2280 SSD adapter is not compatible with the included heatsink, as JSAUX mentions. Additionally, the battery cable will be compressed beneath the adapter, which may affect performance and longevity. Read more information on this page.
