Traxdata Media Tests - Page 21

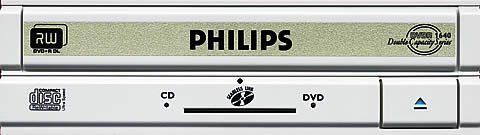

Philips DVDRW1640P (vP2.2)

Interface:
E-IDE/ATAPI (Ultra DMA Mode 2)
Writing Speed:

DVD+R: 16X, DVD-R: 8X, DVD±RW: 4X, DVD+R DL: 2.4X
CD-R: 40X, CD-RW: 24X
Read Speed:

DVD+R/-R/+RW/-RW: 10X max
DVD-ROM: 16X, CD-R/RW: 40X
Random Access:
DVD: 140msec, CD: 120msec
Buffer Size:
2MB

Supported Disc Formats:
8cm discs, CD-Audio, CD-Bridge, Stereo out (2 cinch), CD-I, CD-Recordable, CD-Rewritable, CD-ROM, CD-Text, DVD+R, DVD+RW, DVD-ROM, DVD/R, DVD/RW, Photo CD
Supported Writing Types:
 		 Disc at once (DAO), Fixed packet, Multi session (MS), Over-burn writing, Packet writing, Raw mode burning, Session at once (SAO), Track at once (TAO), Variable packet
Recording format : UDF and ISO 9660
Connectivity
Other connections :  12 V DC in, Analogue audio left / right out 2x, Master / slave select jumper, IDE interface connector
System Requirements :
Hard disc space :  500MB
PC OS :  Windows 98 SE, 2000, ME, XP
Processor :  Pentium III 500MHz or faster
RAM memory :  128 MB
Dimensions :
20x15x4 cm (WxDxH) inch
Weight : 0.95 kg
Technical specifications :
Humidity :  5 - 90 %RH (no condensation)
Operating temperature range :  5 - 50 °C
Safety standards :  EN60950, EN60825,UL1950
EMC standards :  EN55022, EMS55024,FCC Part 15



- 2.4X DVD+R DL@ 2.4

- 16X DVD+R@ 16X

- 8X DVD+R@ 8X

- 8X DVD-R@ 8X

- 4X DVD+RW@ 4X

- 4X DVD-RW@ 4X

Plextools failed to access the disc.



- Summary

Media Code ID Speed Time
DVD+R DL RITEK D01 2.4X 40:09
DVD+R 16X RITEK R04 16X 5:58
DVD+R 8X RITEK R03 8X 8:14
DVD-R 8X RITEK G05 8X 8:06
DVD+RW 4X RICOHJPNW11 4X 14:35
DVD-RW 4X RITEK W04 4X 15:04



Very good results. Traxdata and the Philips DVDRW1640P seem to combine well.
