LiteON SOHW-1633S Recorder - Page 23

For checking exactly what the SOHW-1633S reports, we used three different media, burned with other recorders. The three media have been measured using the well known AudioDev SA300 DVD CATS system at 1X.

The drive is capable of reporting PI/PIF errors, so we will compare those measurements at various reading speeds:

• 3~8X CAV
• 2~6X CAV

Please note that the posted results are only valid for the specific tested LiteON SOHW-1633S drive. Using other drives, even another SOHW-1633S, can produce totally different results. Be aware!

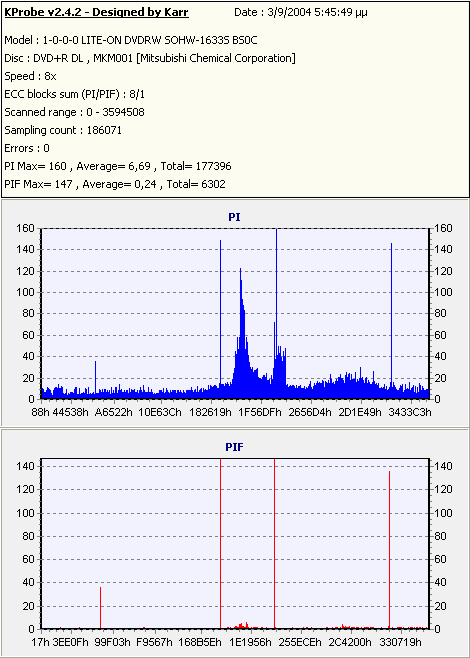

#4th Test Disc - PISum8/PIF Comparison - 8X Reading speed







#4th Test Disc - PISum8/PIF Comparison - 4X Reading speed







Not even with this disc could the LiteON SOHW-1633S produce similar results to the SA300 system. In all the graphs above, the SOHW-1633S drive reports higher error level values than the SA300 system.
