CDSpeed/PlexTools Scans - Page 1

In order to test the writing quality and readability of the burned media we used two readers with two software applications:

• The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
• The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version 2.18 at 2X CLV reading speed, BURST mode, with middle accuracy.

In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we oversped the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.

The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.

16X DVD-R Writing Speed

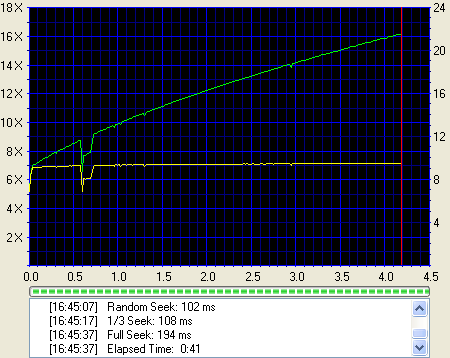

• TDK 16X DVD-R @ 16X

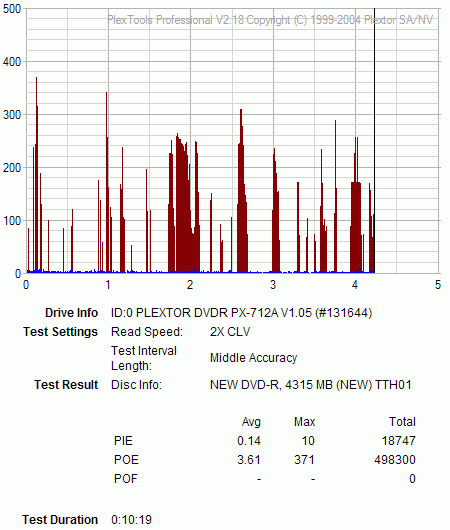

• TDK 8X DVD-R @ 16X

• Maxell 8X DVD-R @ 16X

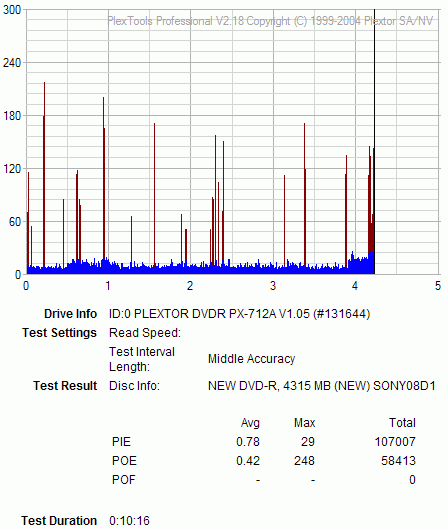

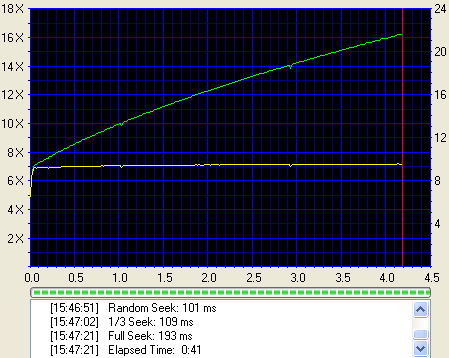

• Sony 8x DVD-R @ 16X

- Summary

The PI/PIF scans show that the RICOH MP5316DA performed very well with the used DVD-R media at 16X. The red peak values in Plextools PI/PO scans indicate POE errors, but these are correctable errors. The drive might need to lower its speed during the reading process to correct POE errors, but the disc should be read successfully.
