Asus EAX1650XT

Jan 29,2007 0

3. Asus EAX1650XT



Review Pages

1. Introduction
2. Specifications
3. Asus EAX1650XT
4. Tests and setup
5. 3D Mark 05 v1.2.0
6. F.E.A.R.
7. Prey
8. Splinter Cell Chaos Theory
9. Half Life 2 Episode 1
10. Company Of Heroes
11. BattleField 2142
12. NFS Carbon
13. NeverWinter Nights 2
14. Overclocking
15. Conclusion



Asus presents its version for the X1650XT platform with the EAX1650XT. The ASUS EAX1650XT/2DHT/256M and ASUS EAX1650XT CrossFire/2DHT/256M are both equipped with exclusive ASUS innovations and the ATI RADEON® X1650XT GPU. With the powerful ATI RADEON® X1650XT GPU, the ASUS EAX1650XT supports the finest in graphics technology, including CrossFire™ Ready multi-GPU technology, Ultra-Threaded and Shader Engine. Combined with unique ASUS innovations such as SPLENDID for intelligent video enhancement and interactive gaming features, the all-new ASUS card delivers the ultimate in computer visual enjoyment.

With the EAX1650XT, your graphics performance will never be compromised!

ASUS Features

Over 26% faster than Generic GF7600GT

The Hottest 3D game: GTI Racing bundled

ATI CrossFire Technology Ready

Copper base heatsink to dissipate the GPU heat away effectively

Built for Microsoft® Windows Vista

Key features

  • ASUS Splendid: Watching movies on PC is as good as on Top-of-the-line consumer television
  • ASUS Video Security Online: Keep an eye on your home at all times no matter where you are
  • ASUS Game LiveShow: Stream live gaming action onto the internet and share with other gaming enthusiast
  • ASUS Game Replay: Recording gaming action and strategy into MPEG4 files to share with other gaming enthusiast
  • ASUS Game FaceMessenger: Easy IM and live game conference in any PC games
  • ASUS Gamer OnScreenDisplay: Adjust the fame settings and enhance gaming experience without leaving the game

Models Available

  • EAX1650XT/2DHT/256M/A: PCI-Express, Dual VGA, Dual DVI-I, TV-Out, HDTV-Out, 256M
  • EAX1650XT CrossFire/2DHT/256M/A: PCI-Express, Dual VGA, Dual DVI-I, TV-Out, HDTV-Out, 256M

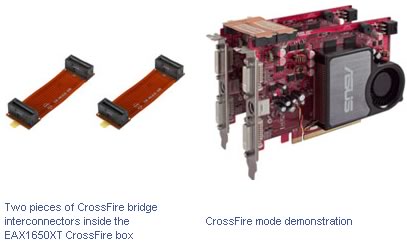

** Note: To enable CrossFire™ function

System requirements:
1. A standard ASUS EAX1650XT graphics card
2. An additional ASUS EAX1650XT CrossFire™ edition graphics card (with two pieces of CrossFire bridge interconnectors inside the box)
3. A CrossFire™ Ready motherboard
4. 512MB of system memory

Power Supply Requirements:
1. 450-Watt power supply or greater, 30 Amps, 12 volt rail is recommended (assumes fully loaded system)
2. For CrossFire™: 550 watt power supply or greater, 38 Amps, 12 volt rail

For our review, Asus provided us with their retail version of the EAX1650XT. The card costs around €170 in Europe and US$169.99 in the US, as found on several online stores.

The retail package is complete with printed manual, drivers and of course cables:

The retail package includes:

  • The Asus EAX1650XT card
  • 2x DVI to VGA adapters
  • 1x 7 Pin S-Video to composite cable
  • 1x Power cable
  • 1x CD-ROM with GTI Racing Retail Game
  • 1x CD-ROM with ASUS Utilities
  • 1x CD-ROM with Asus Driver
  • 1x Leather CD carrying case

Looking at the card, it is small in size. It has a small copper air cooling system on board:

On the top of the card are the 2 Crossfire connections:

The card has two DVI-D outputs and one TV-out output:

The card requires that a PCI-E power supply be used in order to supply enough current. You need a PSU with at least a 600W rating with these current VGA cards, especially if you decide to go CrossFire:

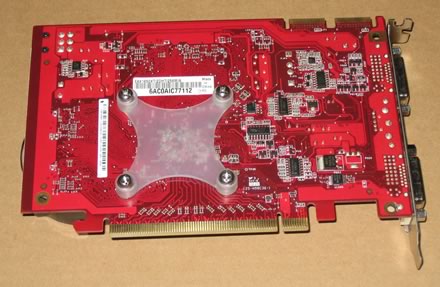

On the rear we see the cooler's mounting plate and SN for the VGA card:
