CDRinfo had already tested the ASUS DVD-E616P2 DVD-ROM drive some months ago, and it proved to be a very fast and reliable reader. Now has ASUS pushed the limit even further. Their latest DVD-E616A reader promises even better compatibility, being able to read DVD-RAM discs.

- Features

The E616A has the same features as the E616P2, but Random Access times are reduced, the Data Buffer size is increased and of course, DVD-RAM media is now supported. Additionally, the Speed Auto Switch function controls the speed of the drive to achieve more reliable readings. Attention should be given to the Double Dynamic Suspension System and the Airflow Field Modification, features that are present in all QuieTrack series drives.

DVD-ROM max. data transfer rate: 21640 KB/s (16X)
CD-ROM max. data transfer rate: 7200 KB/s (48X)
Interface: E-IDE/ATAPI
Random Access Time: DVD: 110 ms vs. CD: 100 ms typical
Data Buffer: 2 MB
Application Formats: Capable of reading most of the DVD-ROM/R/RW, DVD+R/RW, DVD-Video, CD-ROM/R/RW discs and DVD-RAM discs.
High-Speed Digital Audio Extraction

Unique Dust Resistant Design
Supports Speed Auto-Switch Function
DDSSII – Double Dynamic Suspension System. Superior Stability with Low Vibration. Reduced vibration on traverse & drive case; resonance frequency control; reduced vibration noise; enhanced readability & playability
AFFM (Airflow Field Modification)
AFFM is designed to change the uneven airflow field inside the drive because even pressure distribution leads to quieter and more stable operation.

- Specifications

Sustained DataTransfer Rate	16X max:21640 KB/s (DVD) 48X max:7200 KB/s (CD)
Burst Data Transfer Rate	99.9MB/s (Ultra DMA/100 Mode) 66.6MB/s (Ultra DMA/66 Mode) 33.3MB/s (Ultra DMA/33 Mode) 16.6MB/s (PIO Mode 4 & Multi-Word DMA Mode 2)
Random Access Time	DVD:110ms typical CD:100ms typical
Interface	ATAPI Specification
Disc Formats	DVD DVD-R, DVD-9, DVD-10, DVD-18, DVD-ROM, DVD-R, DVD-RW, DVD-Video, DVD+R, DVD+RW CD CD XA(Video), CD XA(Audio), CD RW(Video),CD RW(Audio), CD RW(UDF), Multi-Session(Data), Multi-Session(Audio), Bootable CD, CD ROM, Karaoke CD, CD-MixMode, CD-Extra, CD-I, Photo CD
Disc Diameters	8cm & 12cm
Data Buffer Size	2 MB
Mounting Orientation	Horizontal & Vertical
Compatibility	Windows 98SE / ME / 2000 / XP, DOS6.xx, Linux
Audio Outputs	Line out Output: 0.7V rms typical
Reliability	MTBF: 100,000 Power On Hours (POH) MTTR: 0.5 hr
Environment	Temperature Operating: 5~45° C Storage: -20~60° C Humidity Operating: 20~80% (non-condensing) Storage:15~85% (non-condensing)
Configuration	Dimension: 14.85 x 4.26 x 17.3 cm (W x H x D) Weight: 830g
Power Requirement	Voltage:DC + 5V / DC + 12V Tolerance:5% / 10%

The drive also uses the RPC II region control, allowing a user to change the drive's region at most 5 times.

- The package

In the retail box, you will find the ASUS DVD-E616A drive, one audio cable, a CD with DVD Playback software, a user manual, a quick installation guide and finally, the mounting screws.

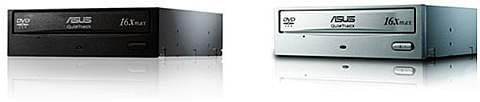

The front panel on the drive is the same as that of the E616P2. The device that arrived at our lab was white, but the drive is also available in black and silver.

On the rear panel, you will see the analogue and digital outputs (SPDIF), the IDE connector and the power input.

We strongly advise against removing the drive's cover, as this will void the drive's warranty. Instead, use the following pictures if you are curious and want to see what is hidden inside. You can click on the mainboard picture for a higher resolution image:

- Installation

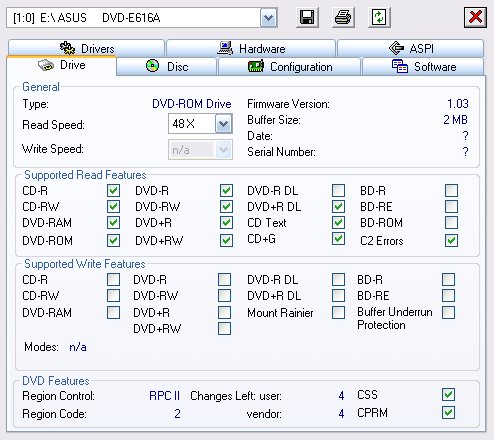

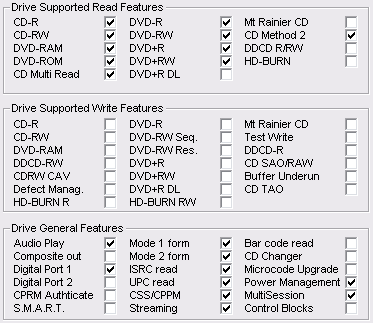

The drive was installed as secondary master and WindowsXP recognized it as "ASUS DVD-E616A". The drive arrived with firmware version v1.03.

There are numerous utilities available that allow you to change the default speed of the drive, in order to achieve more reliable or quieter operation. The following screenshots are from Nero DriveSpeed.
