DaTARIUS has a long and impressive history: it started as Koch in the 1980s, and the company was the second in Europe to replicate CDs. At that time, test equipment did not exist, so they built their own.

After developing the first quality control analyzer for the optical media industry, DaTARIUS has continued to set standards and design breakthrough solutions, all of which have led to success for many major replicators.

The DaTARIUS name was created in 2000, following the separation of Koch test equipment from the kdg media manufacturing group. Within three years, DaTARIUS acquired three major names in the inspection, testing and verification equipment market – CD Associates, the optical disc branch of Integral Vision, and the assets of aeco Ltd (formerly Aerosonic).

From the DaTARIUS web site.

---

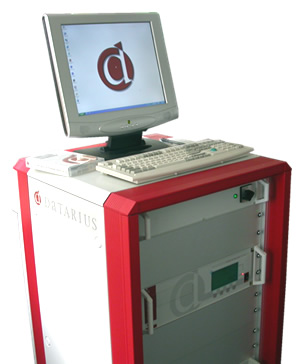

The DaTARIUS DVD Analyzer R 2x

The DaTARIUS DVD Analyzer R 2x is one of the cornerstones in DVD quality control equipment, and is truly unique in the industry. It allows checking of replicated DVDs with single and dual layer structure (DVD-5, DVD-9, DVD-10, DVD-14, DVD-18) and written DVD recordable, at 1X and 2X speed. It is based on the Pulstec Reference Pickup and Drive, developed in close co-operation with Pulstec and according to the standards of the DVD Forum.

In short, the device's features include:

• Analysis of pre-recorded DVDs, single and dual layer, and written DVD recordable
• Analysis of pre-recorded DVDs, single and dual layer, and written DVD recordable
• Double and single speed analysis
• Double-check function at reference speed
• Double-check function at reference speed
• Multi-dimensional calibration
• HF, jitter, mechanical and tracking parameters checked
• Radial tilt control, focus offset compensation and slicing level adjustment for jitter measurement
• Local defect detection/missing pits
• Error flag analysis (PI-errors, PI-fail, PO-fail)
• According to DVD Forum specification
• Double-Check function
• Control data simulation
• DVD-9 OTP sector number check

Following, is a brief explanation of the various parameters the DaTARIUS DVD Analyzer R 2x offers. The measuring parameters spread out over the next few pages, are divided into Analogue Signals, servo and tracking, time based, digital error and mechanical parameters.
