PleXWriter PX-W4012TS
3. Error Correction Tests
Error Correction Tests
In the following tests we examine the reading error correction capabilities of the drive.
- EAC CD-R Test Disc
- Test Results (Max Reading)
|
Errors total
|
Num: 115248617
|
||
|
Errors (Loudness) dB(A)
|
Num: 582339
|
Avg:-29.0 dB(A)
|
Max: -7.2 dB(A)
|
|
Error Muting Samples
|
Num: 76754
|
Avg: 1.0 Samples
|
Max: 633 Samples
|
|
Skips Samples
|
Num: 355
|
Avg: 44 Samples
|
Max: 2938 Samples
|
|
Total Test Result
|
52.8 points (of 100.0 maximum)
|
||
The drive didn't perform very well and produced a high amount of errors with high spikes. After the fifth scratch area the drive seems to loose control and produces a constant error level of -7.2dB (A). Also the black defect triangle seems to cause problems resulting to an overall score of 52.8 points out of 100.

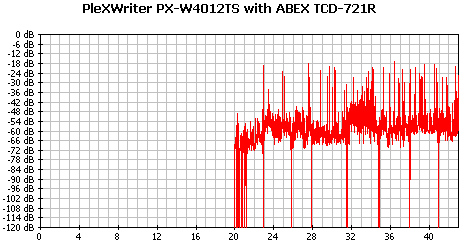

- ABEX TCD-721R
- Test Results (Max speed)
|
Errors total
|
Num: 1520067
|
||
|
Errors (Loudness) dB(A)
|
Num: 69147
|
Avg: -72.7 dB(A)
|
Max: -17.5 dB(A)
|
|
Error Muting Samples
|
Num: 7315
|
Avg: 1.1 Samples
|
Max: 85 Samples
|
|
Skips Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
|
Total Test Result
|
75.6 points (of 100.0 maximum)
|
||
The drive performed better with the ABEX 721R test disc. The average level is -72.7 dB(A), while the max spike reached -17.5 dB (A). The score is 75.6 points out of 100.

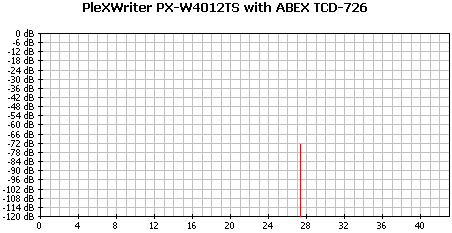

- ABEX TCD-726
- Test Results (Max Speed)
|
Errors total
|
Num: 15
|
||
|
Errors (Loudness) dB(A)
|
Num: 14
|
Avg: -80.2 dB(A)
|
Max: -72.7 dB(A)
|
|
Error Muting Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
|
Skips Samples
|
Num: 0
|
Avg: 0 Samples
|
Max: 0 Samples
|
|
Total Test Result
|
93.0 points (of 100.0 maximum)
|
||
The ABEX 726 test disc was a "piece of cake" for the PX-W4012TS. Only one spike error was noticed at 27mins producing a 93.0 points score out of 100.
- Conclusion
|
Test Disc
|
Reading Speed
|
ASUS CRW5224
|
|
Score
|
||
|
EAC CD-R
|
Max
|
52.8
|
|
ABEX TCD-721R
|
Max
|
75.6
|
|
ABEX TCD-726
|
Max
|
93.0
|
|
Average Score
|
73.8
|
|
The PleXWriter PX-W4012TS gave an average performance with a 73.8 score out of 100.
- C2 Information accuracy
- Test Results (MAX Speed)

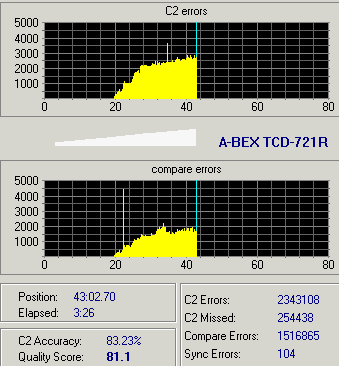

Below is the CDSpeed DAE quality test result of the drive. Despite the 104 sync errors, the drive got an 81.1 score. The C2 % accuracy seems to be low with an 83.23% score:
Below are the C2 % accuracy results as the EAC software reports. CDSpeed also confirmed the 82.17% result in the previous test.
|
Test Disc
|
Reading Speed
|
ASUS CRW5224
|
|
Score
|
||
|
EAC CD-R
|
Max
|
50.00
|
|
ABEX TCD-721R
|
Max
|
96.5
|
|
ABEX TCD-726
|
Max
|
100
|
|
Average Score
|
82.17
|
|

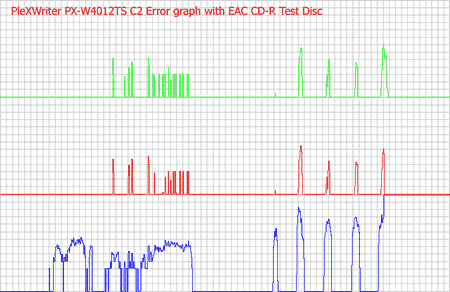

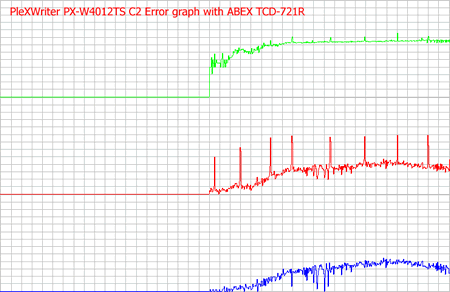

Last, we post the C2 error graphs as they are available by EAC analyser software.
