AOpen COM5232 / AAH

Jun 18,2004 0

7. DAE Tests



Review Pages

1. Retail Package - Installation
2. Data CD Reading Tests
3. Error Correction Tests
4. DVD reading tests
5. DVD Error Correction Tests
6. Protected Disc Tests
7. DAE Tests
8. CD Recording Tests
9. Writing Quality Tests - 3T Jitter Tests
10. Writing Quality Tests - C1 / C2 Error Measurements
11. Conclusion



AOpen COM5232 / AAH - Page 7

DAE Tests

- Pressed and CDR AudioCD results

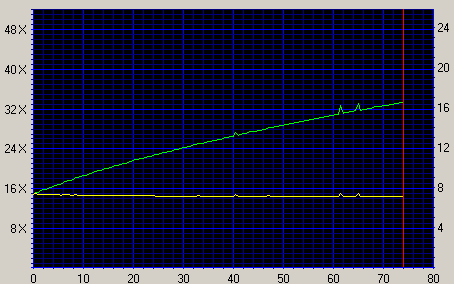

To check reading of a pressed disc with the AOpen COM5232 we used a pressed audio CD and NeroCDSpeed.

Click for full graph

The reading test finished with a reported average reading speed of 33.20X. The drive used CAV reading strategy and the software reported acceptable seek times.

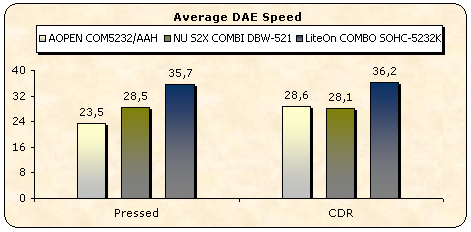

To test the ripping speed of the AOpen we ripped the contents of the same audio disc to our hard disk, using the CDDAE software. For CD-R media we used a clone of the pressed disc.

The LiteOn produced the fastest average ripping speeds of the comparison. The above graph shows that AOpen was the slowest device in the audio pressed ripping process.

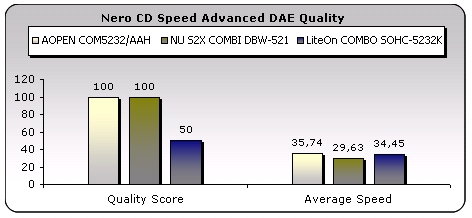

- Advanced DAE Quality

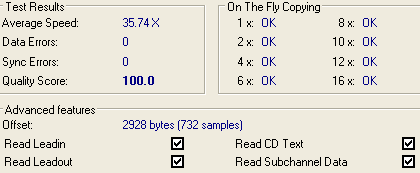

The above graph shows that the LiteOn was the only device that wasn't awarded a quality score of 100 (perfect). The AOpen had the fastest average speed at 35.74X while as the screenshot from Advanced Dae Quality shows, the drive is able to read Leadin/Leadout, CDText information and Subchannel Data.

- Support of 99mins AudioCDs

AOpen ripped all disc contents of the 99mins AudioCD

- Reading/Ripping Protected AudioCDs

For the test procedure we used two audio discs with different audio protection schemes. We tested for both recognition and ripping to the hard disk. The software used was Exact Audio Copy.

* Pressed Audio disc protected by Sony Key2Audio (Celine Dion - New Day Has Come)

* Pressed Audio disc protected by Cactus Data Shield 200 (Natalie Imbruglia - White Lilies Island)


Key2Audio
CDS200
EAC
AOpen COM5232 / AAH
OK
OK
LiteOn SOHC 5232K
Audible playback problems
Audible playback problems
NU DBW-521
No
Recognizes disc contents but cannot rip tracks

The AOpen drive was the only device of the comparison that managed to read, playback and rip the contents of both tested media. The results with the three devices are summarized on the above table.
