The need for faster Wi-Fi speeds has moved technology and boundaries and now many different vendors offer Wi-Fi 7 access points, routers, and even mobile devices. EnGenius, as one of the premium manufacturers. The ECW520 is the latest addition to its Wi-Fi 7 portfolio. Engineered to provide enterprise-grade wireless performance at a highly cost-effective price point, the ECW520 is designed to empower small and medium-sized businesses (SMBs) with next-generation connectivity—without the traditional enterprise cost.

Powered by the Qualcomm Networking Pro 1220 Wi-Fi 7 platform, the ECW520 delivers robust tri-band 2x2x2 performance with combined throughput capabilities of up to 10.8 Gbps. At an MSRP of $189, the ECW520 redefines value in the wireless networking space, offering a professional-grade solution for IT professionals, managed service providers (MSPs), and integrators seeking high-capacity, reliable connectivity for SMB deployments.

The ECW520 is equipped with essential features including:

• License-free EnGenius Cloud management for centralized visibility and control.
• Mobile-first provisioning via the EnGenius Cloud To-Go app.
• Advanced security protocols with WPA3 Enterprise support.
• An industry-leading 5-year warranty that underscores long-term reliability.

ECW520 incorporates the latest Wi-Fi 7 innovations, including:

• 320 MHz and 240 MHz channel widths, 4096-QAM, and Multi-Link Operation (MLO) to enhance throughput, reduce latency, and improve spectrum efficiency.
• Multi-RU puncturing to optimize channel utilization in congested environments.
• A 2.5 Gigabit Ethernet interface with PoE+ support and a maximum power consumption of just 21 W, ensuring compatibility with existing infrastructure.
• Backward compatibility with legacy Wi-Fi standards, simplifying transitions from older networks.

This combination of technical sophistication and affordability makes the ECW520 an ideal solution for high-density environments such as multifamily, educational institutions, hospitality, and professional office settings.

Main features

• Wi-Fi 7 Technology: Tri-concurrent 802.11be architecture with backward compatibility for legacy Wi-Fi devices.
• High-Performance Speeds: Delivers 8,700 Mbps (6GHz), 4,300 Mbps (5GHz), and 700 Mbps (2.4GHz) throughput.
• Advanced Security: Integrated WPA3 and WPA2-AES authentication protection.
• Professional-Grade Antenna: 5 dBi integrated system with 2x2 (2.4GHz) and 3x3 (5GHz/6GHz) configuration.
• Versatile Connectivity: 2.5GE PoE+ port for power and high-speed networking.
• Cloud Management: Free local and remote management via EnGenius Cloud.
• Flexible Deployment: Multiple operating modes with AP, STA, and Mesh support.

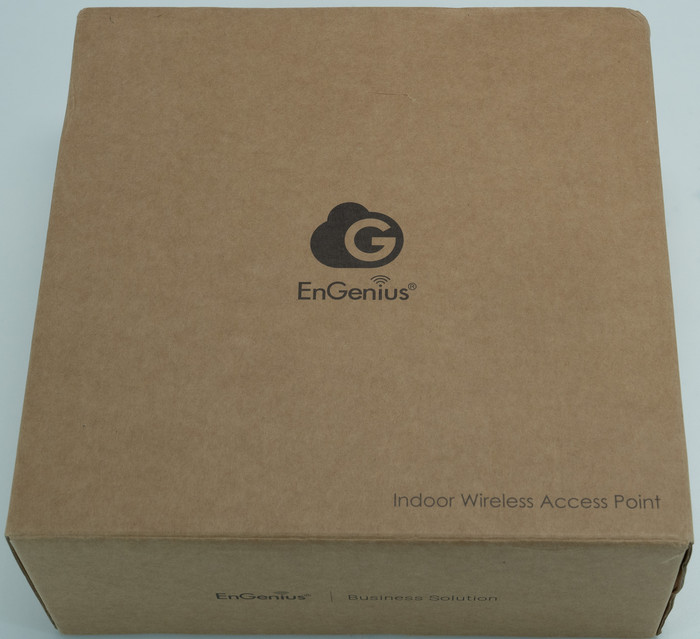

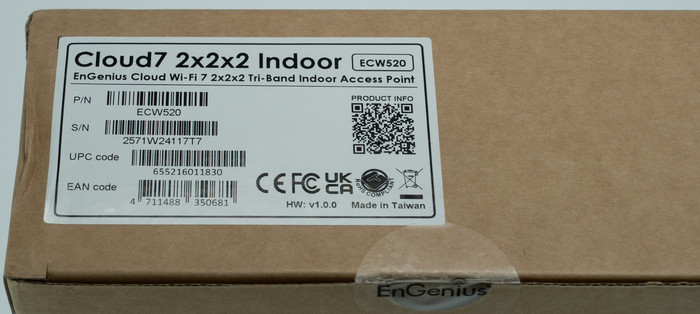

The retail package is simple, as with all EnGenius Access Points. The product is based around Qualcomm Networking Pro 1220 Wi-Fi 7 platform and costs $10 m ore than the ECW516L, which is based upon MediaTek MT7986A Quad-core A53 2GHz CPU.

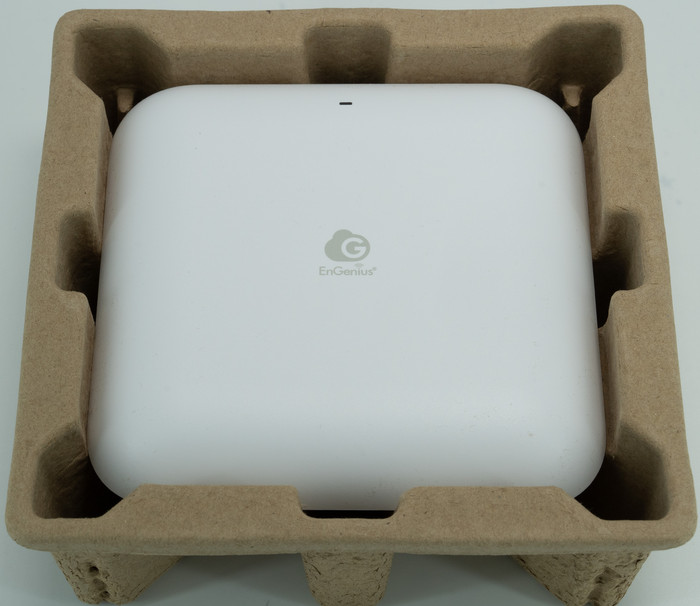

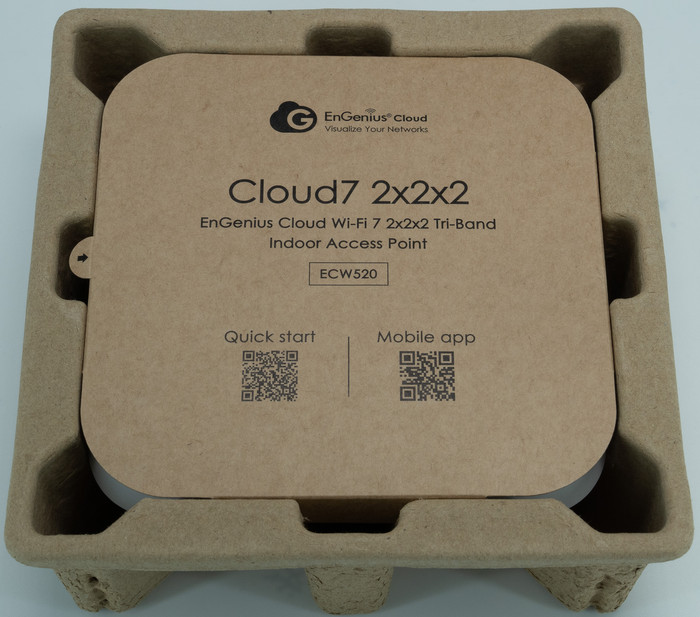

Everything is well packaged and secured.

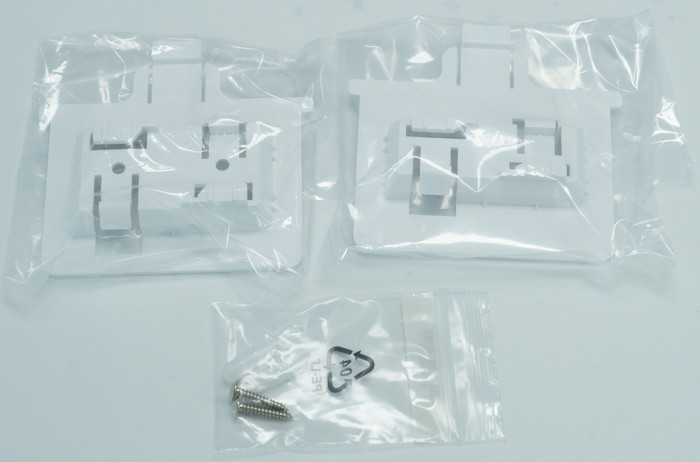

Apart from the main product, the mounting mechanism is also included in a box at the bottom:

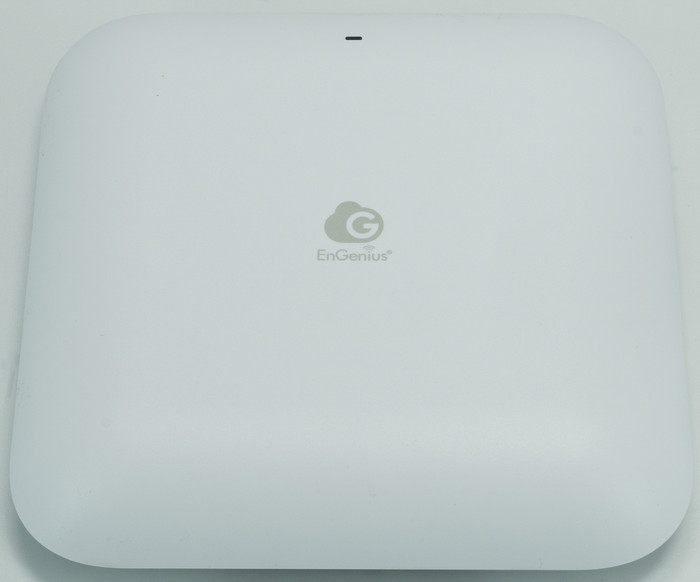

Looking at the product, the design is the same as with other EnGenius APs; there is a multi-color LED at the top, and at the front, you will find the EnGenius logo. The device has small dimensions 158 x 158 x 35 mm (Length X Width X Height) and weighs around 600 g.

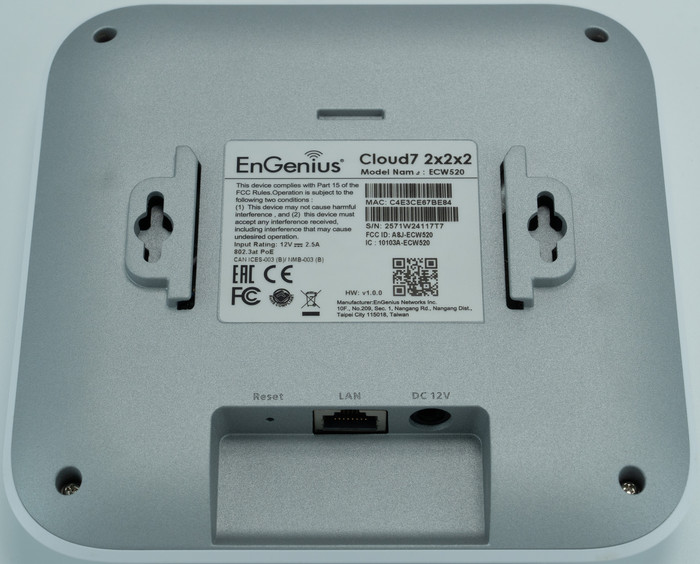

At the back, you will find product label information and the connection ports.

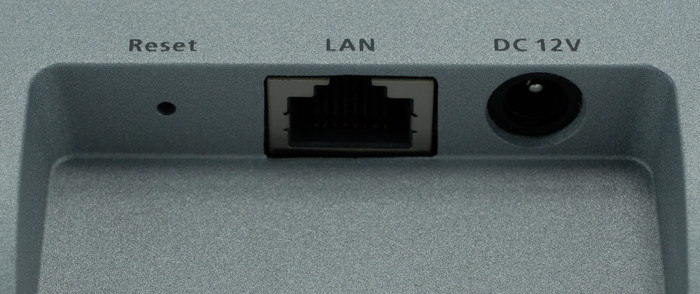

The connection ports are rather typical, a reset hole, a 2.5G PoE LAN port, and a DC12V jack (in case you need it).

Our device has hardware revision v1.0.0.
