For our CD/DVD transfer rate tests we used the Opti Drive Control Nero Disc utility and a set of data and audio CD/DVD R/RW/ROM media. Here we test the maximum reading speed of the LiteOn drive for each type of disc. For comparison, we have included the corresponding reading results two otther 24x DVD burners, the LiteOn IHAS324 and the the Optiarc AD-7240S.

-CD-ROM

- US-RW

The following CD Speed graph shows the reading performance with US-RW media.

- AudioCD

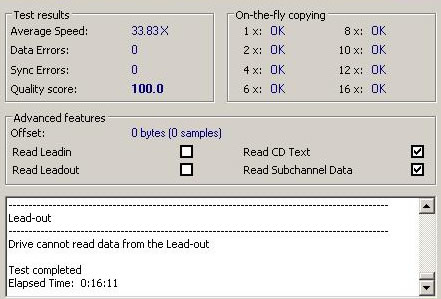

In the CD Speed Advanced DAE quality test, the drive's average speed was 33.83X with a quality score of 100.

- CD DAE

Digital Audio Extraction or DAE is important when we try to read the files stored on an audio CD and store them in our hard disk drive. The procedure is not always that simple and the fidelity of the extracted data depend on the way each drive handles these data.

The majority of the software that support this procedure, commonly known as "ripping", will just read the audio files and store them on your hard disk. However, this approach is not recommended for all drives, since it may result to read or sync errors if your drive does not support report of C2 error pointer information and also what the author of the EAC (Exact Audio Copy) software describes as "accurate stream" and " non-caching."

According to EAC, the LiteON IHAS-524 drive does not support "caching ", but it supports "Accurate stream" and reports "C2 error" pointer information.

Accurate stream and C2 error reporting is always welcome and contribute to reliable and fast audio extraction. Generally, if you select a drive for extraction better have a look that the drive does not cache audio data.

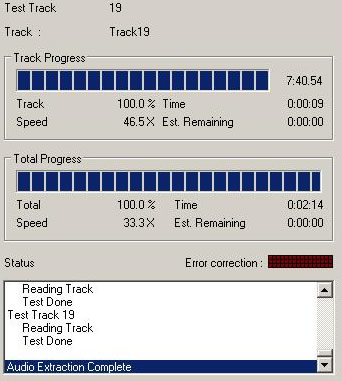

If you are sure about the physical condition of your audio CD and you need faster extractions, you may chose the default audio ripping settings of the EAC software. A typical ripping task finished at an average reading speed of 33.3X:

- 90 mins Audio disc

90min Audio disc

- DVD Format

Now let's take a look at how the drive performs with DVD media. This time, a set of SL and DL DVD media was used. The drive is capable of reading at 16X maximum speed for single layer DVD ROM and at 12X for dual layer DVD ROM media.

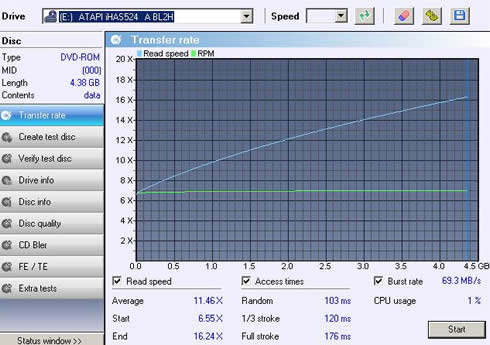

DVD-ROM SL media

PTP DVD-ROM

The two layers of a PTP DVD-ROM disc are read sequentially with the drive starting reading from the inner part of the disc, which is the beginning of each layer, progressing towards its outer range.

OTP DVD-ROM

The first layer of an OTP dual layer DVD-ROM is read exactly the same way as the first layer of the PTP disc we tested previously. The difference here is the reading strategy of the second layer of the disc. The beginning of the second layer is located in the outer part of the disc, so the drive starts reading from the outer tracks and progresses towards the inner part of the disc.

DVD-R

DVD-RW

DVD+R

DVD+RW

DVD+R DL

DVD-R DL

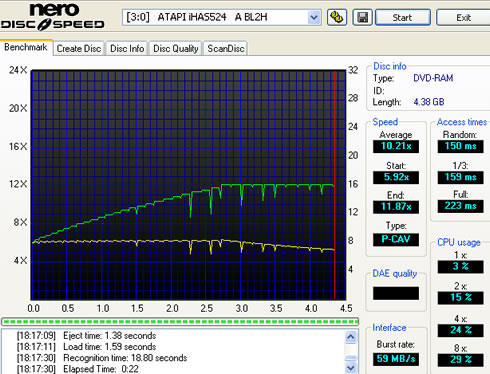

DVD-RAM (12x)

DVD Ripping speed -

Ripping of a single layer DVD movie:

Summary

The reading process of almost all media was completed without read errors and at speeds that match the drive's specifications.
