Philips DVDR824P DVD+RW- Page 10

Writing Quality Tests - C1 / C2 Error Measurements

We measured the C1 / C2 error rate on the recorded discs we burned at the various supported writing speeds. The software we used is the Nero CDSpeed CD Quality Test and Plextor Premium as a reader for retrieving the error rate information. The charts below illustrate the Q-Check graphs for various CD-R media.

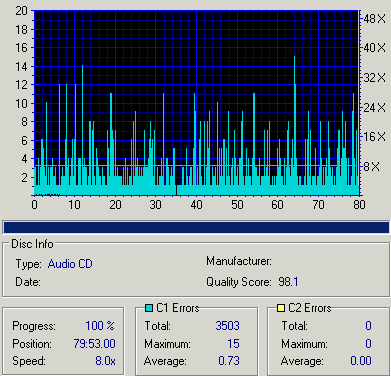

Taiyo Yuden 48x recorded at 8x

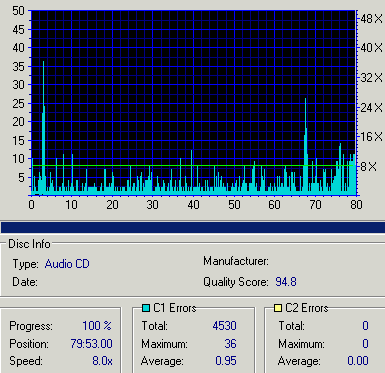

Taiyo Yuden 48x recorded at 12x

Taiyo Yuden 48x recorded at 16x

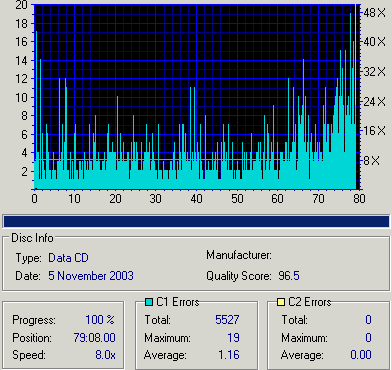

Taiyo Yuden 48x recorded at 24x

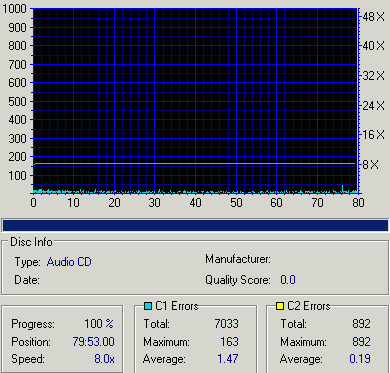

SKC 48x recorded at 24x

Emtec 48x recorded at 24x

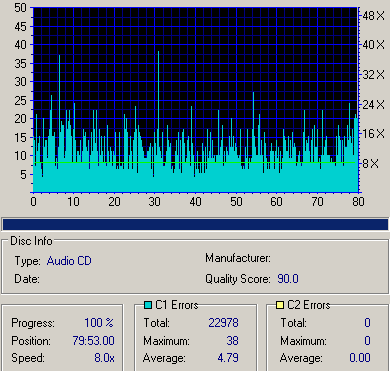

Memorex 52x recorded at 24x

Media	Recording speed	C1			C2			Quality Score
Media	Recording speed	Avg	Max	Total	Avg / Sec	Max / Sec	Total	Quality Score
Taiyo Yuden 48X	8x	0.73	15	3503	0.0	0.0	0.0	98.1
	12x	0.95	36	4530	0.0	0.0	0.0	94.8
	16x	1.03	35	4949	0.0	0.0	0.0	94.7
	24x	1.16	19	5527	0.0	0.0	0.0	96.5
SKC 48x	24x	1.47	163	7033	0.19	892	892	0.0
EMTEC 48x	24x	5.53	86	26528	0.0	5	5	73.1
Memorex 52x	24x	4.79	38	22978	0.0	0.0	0.0	90.0

Below you can see more information about the CD-R media we used in this test.

Disc	ID Code	Capacity
Taiyo Yuden 48X	TaiyoYuden 97m24s01f	79:59:72
SKC 48X	97m26s26f	79:59:73
EMTEC 48X	97m17s06f	79:59:74
Hi-Space 52X	MPO 97m25s07f	79:59:00
Memorex 52X	CMC Magnetics 97m26s66f	79:59:74

- Summary

The results with Taiyo Yuden media are very good for all the supported writing speeds. The C1 error rate is low, and no C2 or CU errors were reported. The Memorex media had almost the same performance. With the other two media, SKC and Emtec, we tested we had low quality results especially with Emtec where the score was totally zero. In that case lot of C2 were reported.
