Gigabyte GA-EP35-DS4

May 14,2008 0

1. Features, specifications



Review Pages

1. Features, specifications
2. The Package
3. BIOS, test configuration, Energy Saving function
4. Benchmarks - Everest Ultimate Edition, SiSoftware Sandra
5. Benchmarks - PCMark Vantage, SYSmark 2007 Preview
6. Benchmarks - MAXON CINEBENCH, x264 HD Benchmark, - TMPGEnc 4 Xpress
7. Benchmarks - SuperPI, wPrime
8. Benchmarks - 3DMark 06, Crysis, Unreal Tournament 3
9. Overclocking
10. Conclusion



Gigabyte is one of the biggest motherboard manufacturers that offer innovating products and rich features. Recently, Gigabyte shipped their P35 based motherboard with energy saving features. We have already seen such features with various motherboards so we wanted to compare and check how Gigabyte's approach performs.

The EP35-DS4 is based on Intel's P35 series, which of course is not a new chipset. However, the Gigabyte EP35 series is brand new since it includes a new Dynamic Energy Saver (DES) software/hardware combination that adjusts the CPU power phase use on the fly to maximise the efficiency of the subsystem. In theory that can give you up to 70% CPU power savings and up to 20% improved CPU power efficiency.

- Gigabyte EP35-DS4

GIGABYTE’s GA-EP35-DS4 motherboard is the ultimate dream machine for serious overclockers and enthusiasts. Making sure gamers have plenty of CPU headroom, the GIGABYTE GA-EP35-DS4 supports Intel Core 2 multi-core processors as well as the Intel 45nm CPUs. In addition to providing record setting support for 1600MHz (O.C.) Front Side Bus and up to 1200 MHz (O.C.) of DDR2 memory, the GA-EP35-DS4 is further equipped to support ATI CrossFireX with dual PCI Express x16 interfaces.

The GA-EP35-DS4 also delivers several Unique GIGABYTE innovations including the Dynamic Energy Saver (DES), providing extensive power savings with one simple click. Featuring the award-winning Durable 2 design, the GA-EP35-DS4 provides ultra cooling and extended system durability for even the most hardcore PC gamers.

Gigabyte EP35-DS4 features:

  1. Supports Intel Core 2 multi-core and Intel 45nm processors
  2. Supports DDR2 1200(OC) memory for outstanding system performance.
  3. Revolution energy saving design with GIGABYTE Dynamic Energy Saver(DES) technology.
  4. Ultra Durable 2 motherboard features High Quality CPU Power design with Ferrite core chokes, Low RDS (on) MOSFET and Solid Capacitors.
  5. Ultimate graphics performance with dual PCI-E x16 interface
  6. Integrated SATA 3Gb/s with RAID function
  7. Features high speed Gigabit Ethernet and IEEE1394
  8. Unique Silent-Pipe with outstanding cooling performance
  9. Audio controller from ALC 889A codec and DTS Connect, featuring 106 dB Signal to Noise ratio and supporting for both Blu-ray and HD DVD formats.

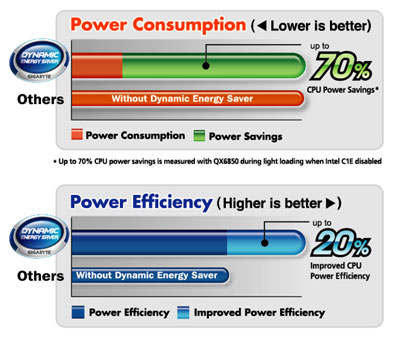

GIGABYTE Dynamic Energy SaverGIGABYTE Dynamic Energy Saver is a technology that delivers unparalleled power savings with the simple click of a button. Featuring an advanced proprietary hardware and software design, GIGABYTE Dynamic Energy Saver is able to provide exceptional power savings of up to 70% and up to 20% improved power efficiency without sacrificing computing performance...more

Intel Core 2 multi-core and 45nm processors GA-EP35-DS4 supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform.
Dual Channel DDR2 1200 by OC

Experience the advanced technology of DDR2 1200 (O.C.) memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.

In order to get familiar with the full features of the Gigabyte EP35-DS4 visit Gigabyte's website.

- Full specifications

CPU
  1. Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/ Intel Pentium processor Extreme Edition/Intel Pentium D processor/ Intel Pentium 4 processor Extreme Edition/Intel Pentium 4 processor/ Intel Celeron processor in the LGA 775 package
    (Go to GIGABYTE's website for the latest CPU support list.)
  2. L2 cache varies with CPU
  3. 1600 (O.C.)/1333/1066/800 MHz FSB
Chipset
  1. North Bridge: Intel® P35 Chipset
  2. South Bridge: Intel® ICH9R
Memory
  1. 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR2 1200 (O.C.)/1066/800/667 MHz memory modules
Audio
  1. Realtek ALC889A codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for DTS (dts NEO:PC)
  5. Support for S/PDIF In/Out
  6. Support for CD In
LAN
  1. Realtek 8111B chip (10/100/1000 Mbit)
Expansion Slots
  1. 2 x PCI Express x16 slots (The PCIE_16_1 slot supports x16; the PCIE_16_2 supports x4.)
  2. 3 x PCI Express x1 slots (share with the PCIE_16_2 slot)
  3. 2 x PCI slots
Form Factor
  1. ATX (305 x 244mm)
Storage Interface South Bridge:
  1. 6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 2 x SATA 3Gb/s connectors (GSATAII0, GSATAII1) supporting up to 2 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8718 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394
  1. T.I. TSB43AB23 chip
  2. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394 bracket connected to the internal IEEE 1394 header)
USB
  1. Integrated in the South Bridge
  2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin PCIe 12V power connector
  4. 1 x floppy disk drive connector
  5. 1 x IDE connector
  6. 8 x SATA 3Gb/s connectors
  7. 1 x CPU fan header
  8. 2 x system fan headers
  9. 1 x power fan header
  10. 1 x North Bridge fan header
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x CD In connector
  14. 1 x S/PDIF In header
  15. 1 x S/PDIF Out header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x IEEE 1394a header
  18. 1 x parallel port header
  19. 1 x serial port header
  20. 1 x power LED header
  21. 1 x chassis intrusion header
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x coaxial S/PDIF Out connector
  4. 1 x optical S/PDIF Out connector
  5. 8 x USB 2.0/1.1 ports
  6. 2 x IEEE 1394a ports
  7. 1 x RJ-45 port
  8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8718 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU fan speed control
BIOS
  1. Supports DualBIOS Plus
  2. 2 x 8 Mbit flash ROM
  3. Use of licensed AWARD BIOS
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.
Unique Features
  1. Support for @BIOS
  2. Support for Download Center
  3. Support for Q-Flash
  4. Support for EasyTune
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
