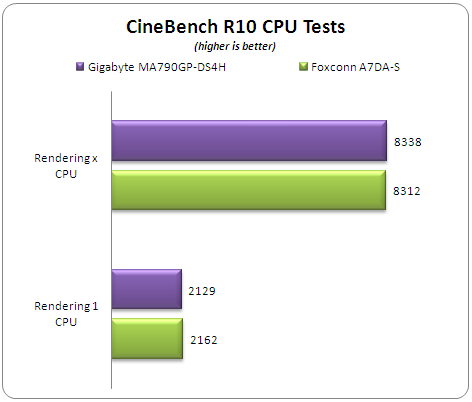

MAXON CINEBENCH is based on MAXON's animation software, CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation.

MAXON software has been used in blockbuster movies such and Spider-Man, Star Wars, The Chronicles of Narnia and many more. The software runs several tests on your computer to measure the performance of the main processor and the graphics card under real world circumstances. The benchmark application makes use of up to 16 CPUs or CPU cores and is available for Windows (32-bit and 64-Bit) and Macintosh (PPC and Intel-based). The resulting values among different operating systems are 100% comparable.

The motherboards behaved similarly here with the Gigabyte MA790GP-DS4H to have a small lead.

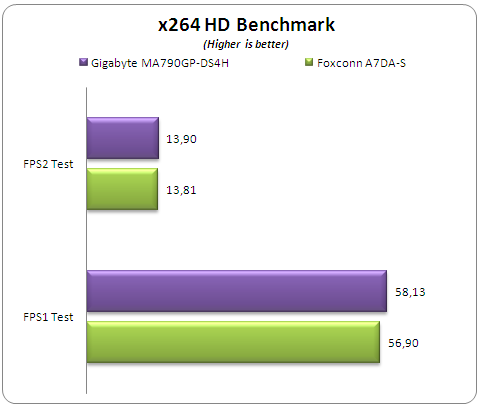

- x264 HD Benchmark

x264 Benchmark utilizes the next generation of Video Encoding benchmarks with support for x264 codec that is considered to be one of the most demanding for Video applications. Simply put, it is a reproducible measure of fast your machine can encode a short, HD video clip to a high quality x264 video file. It's nice because everyone running it will use the identical video clip and software. The video encoder (x264.exe) reports a fairly accurate internal benchmark (frames per second) for each pass of the video encode and it also uses multi-core processors very efficiently. All these factors make this an ideal benchmark to compare different processors and systems to each other.

The benchmark procedure is very simple. You should ran a batch file that encodes the same file four times. The sotware provides the results for both the single pass and the second pass of encoding. The average performance for each processor is available in the graph below:

At both passes, the Gigabyte motherboard proved to be slightly faster.

- TMPGEnc 4 Xpress

TMPGEnc converts *.AVI files to MPEG1, the format which is used in VideoCDs. The application takes advantage of all the CPU resources and actually the encoding time automatically gets faster as CPU speed gets faster.

For our test we encoded a 350MB AVI file with the Xvid (Mpeg4 ASP) codec using the the built- in Mpeg4 ASP/AVC MediaEncoder profile. The average FPS encoding speed for each processor are available below:
