Asus CRW-5232AS
9. 3T Jitter Tests - Page 2
ASUS CRW-5232AS Recorder - Page 9
3T Jitter Tests
- Page 2
In the following page you can see the 3T Pit & Land Jitter graphs using various media burned at 52X CAV writing speed.
- 3T Pit results
Again the drive didn't perform satisfactorily and again no media went below the 35ns limit. The best results came with BenQ 48X CD-R media.

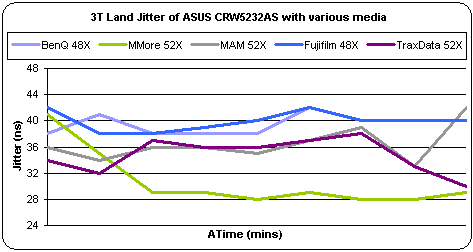

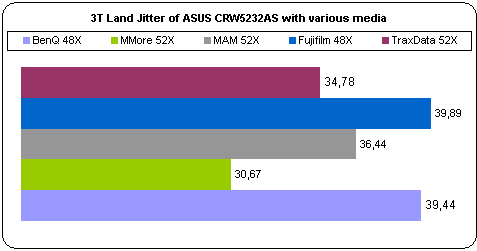

- 3T Land results
The average 3T Land results were also high. The best results came with MMore 52X (average 30,67nsec) and Traxdata 52X (average 34,78nsec).
|
Recording Speed
|
Average 3T Pit Jitter (ns)
|
Average 3T Land Jitter (ns)
|
> 35ns
|
Max 3T jitter values (ns)
|
MMore 52x
|
43,89 |
30,67 |
Yes |
46 Pit, 41 Land
|
BenQ 48x
|
40,89 |
39,44 |
Yes |
42 Pit, 42 Land
|
Traxdata 52x
|
41,56 |
34,78 |
Yes |
44 Pit, 38 Land
|
Mam 52x
|
41,78 |
36,44 |
Yes |
48 Pit, 42 Land
|
Fujifilm 48x
|
41,11 |
39,89 |
Yes |
42 Pit, 42 Land
|
In the following page we check the C1 and C2 error rates of the same discs, to come up with more specific conclusions.
