CyberDrive DX082D DVD+RW - Page 9

Writing Quality Tests - 3T Jitter Tests

In this test we used various media, burning the same Audio CD project at the maximum speed supported by the CyberDrive DX082D. In the following graphs can be seen the 3T Pit & Land Jitter measurements we measured.

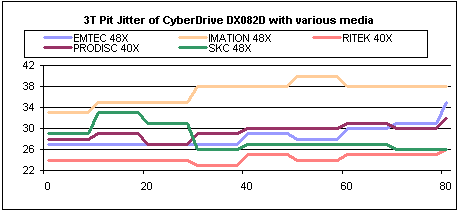

- 3T Pit results

According to our measurement the drive performed very well with all the media tested. The 3T Pit Jitter values are below the Red Limit (<35ns) in all cases except with Imation media which had slight lyincreased values. Generally, the drive appears to be a quality CD-R writer.

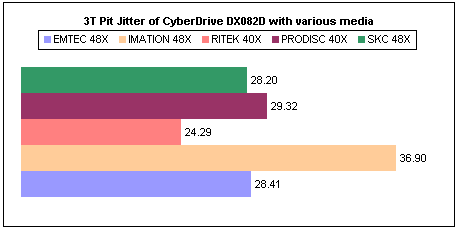

Below are the average 3T Jitter values for all tested media.

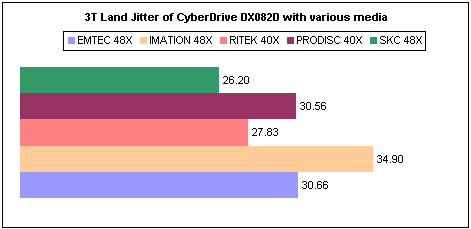

- 3T Land results

Once again the drive gave acceptable 3T Land Jitter values. No matter what the media was, the results we took indicate very good writing quality.

- Summary

Media Brand	Average 3T Pit Jitter (ns)	Average 3T Land Jitter (ns)	> 35ns	Max 3T jitter values (ns)
EMTEC 48X	28.41	30.66	Yes	35 Pit, 37 Land
IMATION 48X	36.90	34.90	Yes	40 Pit, 37 Land
RITEK 40X	24.29	27.83	No	29 Pit, 31 Land
SKC 48X	28.20	26.20	No	33 Pit, 32 Land
PRODISC 40X	29.32	30.56	No	32 Pit, 33 Land
