LG GSA-4160B DL Recorder - Page 9

Writing Quality Tests - 3T Jitter Tests

On this page, we present the 3T Pit & Land Jitter graphs when using various media burned at 40X CAV writing speed.

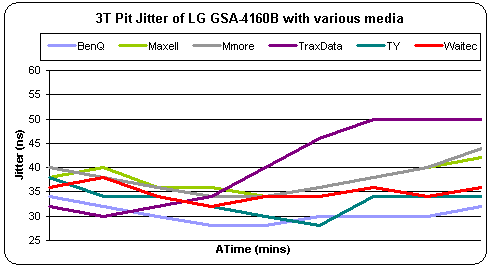

- 3T Pit results

Traxdata 52X media recorded the worst results with a high of 50ns and in general, we expected somewhat better figures from the LG drive, since almost all media overshot the 35ns limit. BenQ media reported the best results.

Below are the average 3T Pit Jitter values for the various media:

- 3T Land results

Same image here, with high 3T Land values, overshooting the 35ns limit. Again, the best results were achieved with BenQ media.
