Liteon SOSW - 852SX External

Jan 20,2005 0

17. CDSpeed/PlexTools Scans - Page 4



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. Writing Quality - 3T Jitter Tests
10. C1 / C2 Error Measurements
11. Writing Quality Tests - Clover System Tests
12. DVD Recording Tests
13. Media Support list
14. CDSpeed/PlexTools Scans - Page 1
15. CDSpeed/PlexTools Scans - Page 2
16. CDSpeed/PlexTools Scans - Page 3
17. CDSpeed/PlexTools Scans - Page 4
18. CDSpeed/PlexTools Scans - Page 5
19. DVD+R DL - Page 1
20. DVD+R DL - Page 2
21. SOSW-852SX vs. SA300 - Page 1
22. SOSW-852SX vs. SA300 - Page 2
23. SOSW-852SX vs. SA300 - Page 3
24. SOSW-852SX vs. SA300 - Page 4
25. BookType Setting
26. Conclusion



Waitec Action 16 Burner - Page 17

CDSpeed/PlexTools Scans - Page 4

In order to test the writing quality and readability of the burned media we used two readers with two software applications:

  • The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
  • The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.

In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we oversped the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.

The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.

4X DVD-R Writing Speed

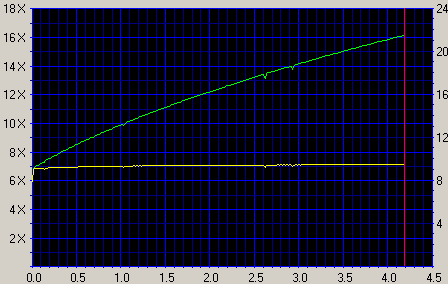

  • BenQ 4X DVD-R @ 4X

click to enlarge!

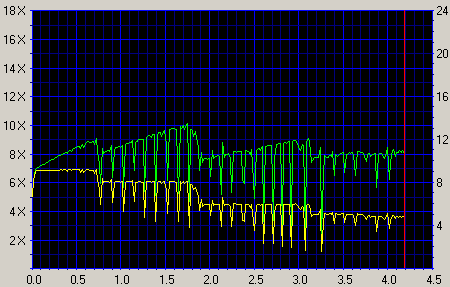

  • MAM-e 4X DVD-R @ 2.4X

click to enlarge!

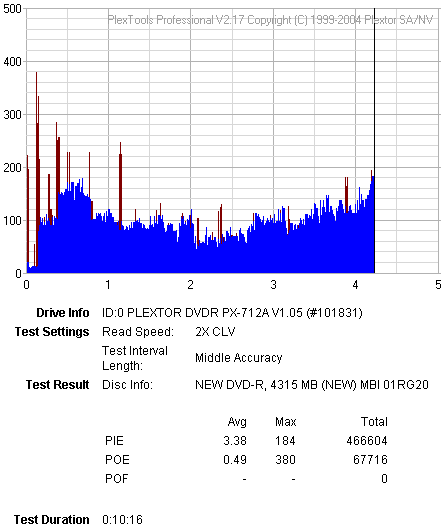

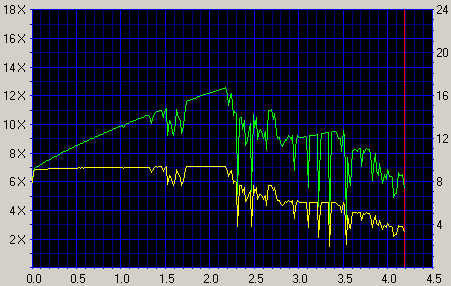

  • MMore 4X DVD-R @ 4X

click to enlarge!

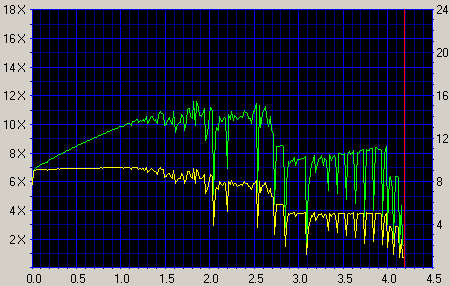

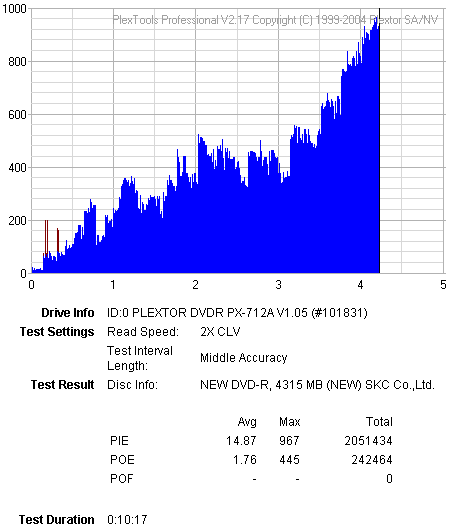

  • SKC 4X DVD-R @ 4X

- Summary

At 4X writing speed, the drive did not give the expected results, even though the recording speed was 4X, as supported by the drive. BenQ media reported the best readings.
