Memorex True 8Xn external DVD±R/RW Recorder - Page 9

On this page you can see the 3T Pit & Land Jitter graphs using various media burned at 32X CAV writing speed.

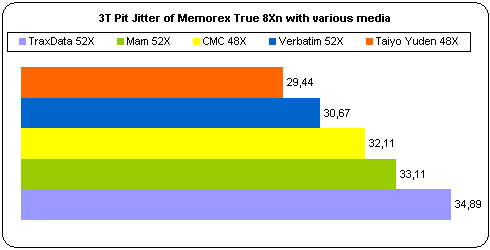

- 3T Pit results

The True 8Xn performed satisfactorily with most media used. The highest average 3T Pit jitter reached 34.89nsec, which is just below the Red Book limit (35nsec). The best results came with Taiyo Yuden 48X CD-R media, which was the only media to stay below the 35nsec limit for the entire disc.

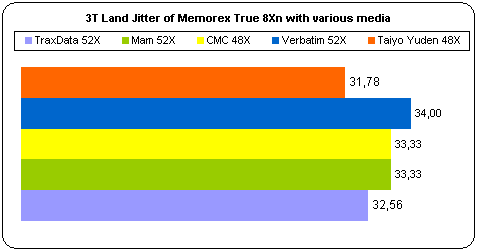

- 3T Land results

The average 3T Land Jitter measurements were also good. The maximum 3T Land Jitter reached 34nsec and again, Taiyo Yuden 48X CD-R media produced the best results with 31.78nsec.

In the following page we check the C1 and C2 error rates of the same discs, to come up with more specific conclusions.
