NEC ND-2510A Recorder - Page 9

Writing Quality Tests - 3T Jitter Tests

In the following page we present the 3T Pit & Land Jitter graphs when using various media burned at 32X CAV writing speed.

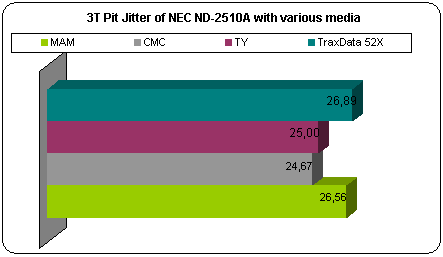

- 3T Pit results

Generally the drive performed extremely well with most media used. The highest 3T Pit jitter reached 33nsec, which is below the Red Book limit (35nsec). Best results were achieved with CMC 48X CD-R media. The ND-2510A shows that it is a high quality recorder, just as was the case with the ND-2500A.

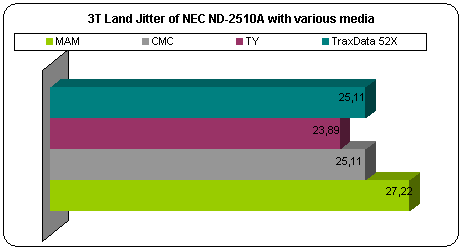

- 3T Land results

Again, the average 3T Land results were also low. The maximum 3T Land Jitter reached 32nsec and TY 48X CD-R media produced the best results. Excellent performance from the ND-2510A.

According to all the above graphs, the ND-2510A drive produced excellent results with all the media. It should be noted that all discs were recorded at the maximum supported speed. All the discs we burnt produced very low jitter values, regardless of manufacturer or speed. High quality recording from NEC!
