NEC ND-2510A Recorder - Page 10

Writing Quality Tests - C1 / C2 Error Measurements

We measured the C1 / C2 error rate on the recorded discs we burned at the various supported writing speeds. The software we used is PleXTools Professional v2.15, and particularly the built-in Q-Check utility. The reader was the Plextor PX-712SA (firmware v1.03).

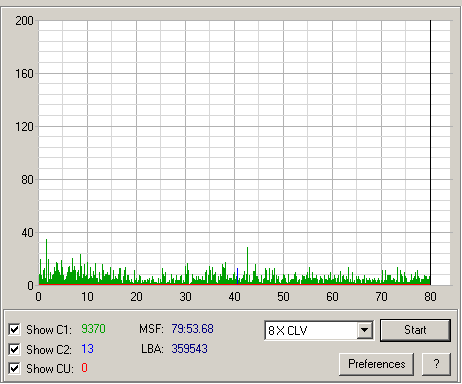

TraxData 80min 52X @ 32X

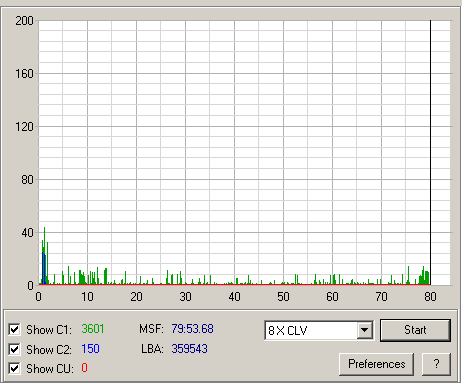

TY 80min 48X @ 32X

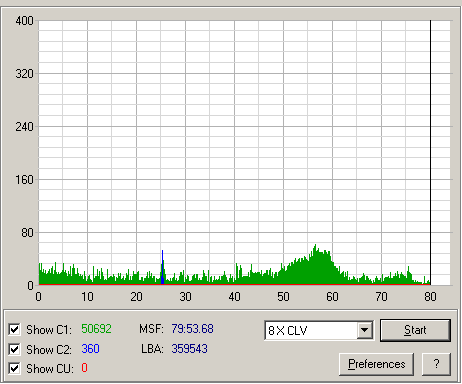

Mam 80min 52X @ 32X

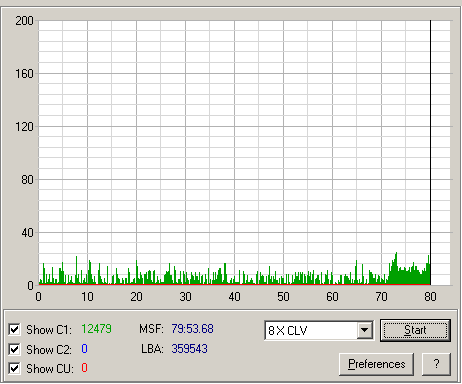

CMC 80min 48X @ 32X

- Summary

Graphs show that NEC's drive is a good quality recorder. There are some C2 errors reported for certain media, but this could be improved from NEC. It should be noted that all discs were recorded at the maximum speed supported by the recorder.
