3D Mark is a widely used and accepted benchmark that stresses the DirectX performance of a VGA card. A very strong point of 3DMark is that it's VGA card measuring is does not require any CPU power. So the resulting fps are a good reference a VGA card's rendering performance. For testing the performance of each card we used the 4 game benchmarks 3DMark has.

3Dmark03 also includes sound and CPU tests as well as some other feature tests.

- Game Test 1 - Wings of Fury (DX7)

This test is a combat flight simulator written for older hardware (DirectX 7). Particles are used a lot in this test - smoke and vapor trails, flak and gunfire, and explosions are produced using point sprites and quads.

- Game Test 2 - Battle of Proxycon (DX8)

This test is a simulation of first person shooter game types. 1.1 and 1.4 Vertex shaders are widely used since all character models are skinned using vertex shaders.This makes this test a good vertex shader comparison for VGA cards.

- Game Test 3 - Trolls' Lair (DX8)

This test should be the favorite of all RPG lovers. It is a cut scene of a female warrior facing two malicious trolls. Again the same vertex and pixel processing is used as in game test 2.

This test also uses post-processing effects, such as Depth of Field and Bloom effects which are widely used in today's game cut scene sequences.

- Game Test 4 - Mother Nature (DX9)

Mother nature represents the level of effects and realism that are possible using 2.0 vertex and pixel shaders, plus some other features that DirectX 9 offers.

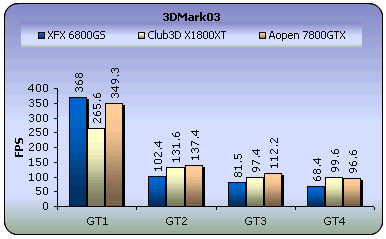

Want to see smoke and vapor trails, flak and gunfire? No problem. The XFX 6800GS XXX Edition performs even faster than the 7800GTX, to say nothing about the X1800XT that was left way behind. But this was only observed in the first game test, although it is a big deal for a mid-range card competing with the giants. David just killed Goliath? :-)

- 3DMark Official score

If you test your machine with 3DMark, you can post the results at 3DMark's online result browser. For more information visit futuremark.com.

The 6800GS XXX performance was similar to that of the 6800Ultra cards. In this comparison though, performance in the other games was not as good as in the first. But again, the difference in performance does not justify the difference in money, with the 6800GS being much much cheaper than the other two cards.
