Yamaha 8424S SCSI CDR-W - Page 2

Package:
Yamaha 8x series include:
CRW8424E   (Internal IDE)
CRW8424S   (Internal Scsi)
CRW8424SX (External Scsi)

OEM version included drive, manual (English,Deutsch,Francais,Espanol) and CDR Software (Nero)..However full retail version will include: Easy CD Creator 4, DirectCD 3.0 and Adaptec Take Two. Media: 1 x, CD-R, 1 x CD-RW, Audio Cable, IDC cable (SCSI ribbon), Operating Guide and Software Guide..

Also Media included on Value Kit:

Yamaha CDM 74 SB
CD-R 74min (media made in Singapor)
ATIP : 97m 34s 21f
Disc Manufacturer : Mitsubishi Chemicals Corp.
Dye : Cyanine Type 1
Type : Cd Recordable
Normal Capacity : 656.40 Mb (74min 43s 00f / LBA 336075)

Yamaha CDM 74 SY
CD-R 74min (media made in Japan)
ATIP : 97m 24s 01f
Disc Manufacturer : Taiyo Yuden Limited
Dye : Cyanine Type 1
Type : Cd Recordable
Normal Capacity : 656.40 Mb (74min 43s 00f / LBA 336075)

Installation:

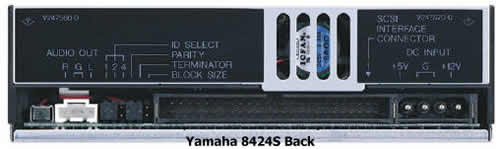

I removed old Yamaha 4416s and i placed 8424s. It has default SCSI ID 3 and termination on. If you have more devices on Scsi card you maybe change SCSI ID number. Don't worry.. Yamaha 8424s manual describes very good how change SCSI ID number and termination..After boot CDR-W intentified as Yamaha 8424s into both DOS & Windows.

I unchecked Auto Insert notification, checked Sync Data Transfer (as manual suggests) and reboot. Yamaha 8424s was October 1999 model with v1.0d firmware. All latest software version (Prassi PrimoCD Pro 8 v1.1.317, Nero v4.0.7.0, DiscJuggler v1.05.395, CDRWin v3.8a) supported Yamaha 8424s..All was set and time to start tests..

Test Machine:
ABIT BH6
Celeron 300A over clocked to 464 MHz
128 MB SDRAM PC 100
Quantum Fireball EX 6.4 GB UDMA
CL RivaTNT
CL AWE32
MS Windows 98 SE
Plextor UltraPlex 40max, Firmware v1.01, (with Auto Insert Notification & Sync transfer off & on). Plextor Manager 2000 v1.01.2 was running at the background with the 17x-40x Speed Setting and 2 minutes Spindown Time-out Setting.
Teac 532E-A Firmware v3.0A
Yamaha 8424s Firmware v1.0d
