Asus P5N32-E SLI Plus

Jul 26,2007 0

3. Installation



Review Pages

1. Introduction
2. The Package
3. Installation
4. Everest Ultimate Edition 2006 - SiSoft Sandra
5. PC MARK 05 - 3D MARK 06
6. Science Mark 2.0 - Pov-Ray - Nero Digital
7. Cinebench - Super Pi
8. Overclocking
9. Conclusion

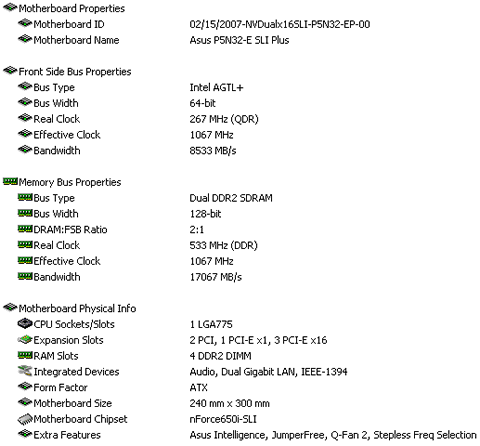

Using Everest Ultimate Edition 2007 we can get more information about the board:

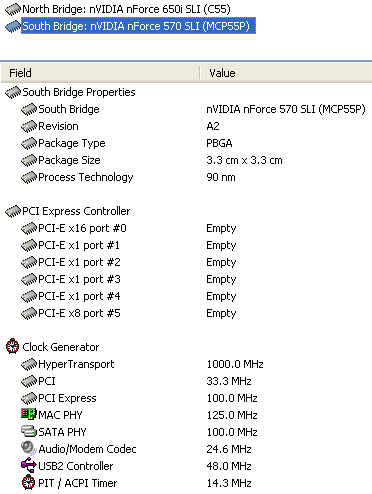

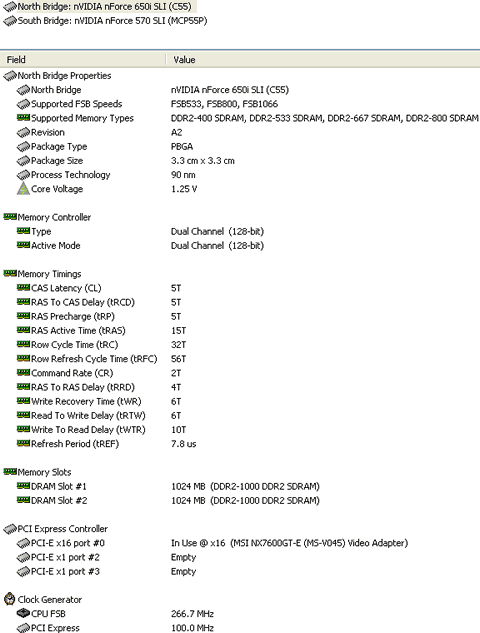

Both North Bridge and South Bridge chipsets unveiled. The Asus P5N32-E SLI is what we can call a hybrid since it is based on the nForce 680i SLI and 570 SLI chipsets! Asus has implemented both chipsets to create a "cheaper" version of the Asus Striker:

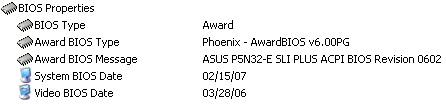

The latest available BIOS was installed for all tests (0602).

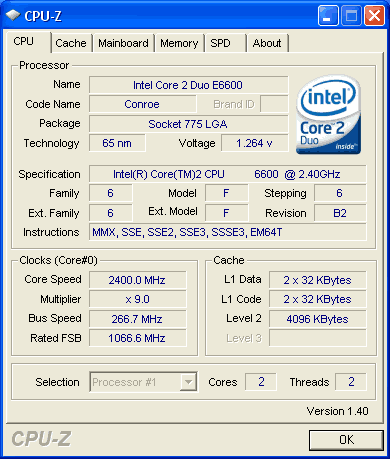

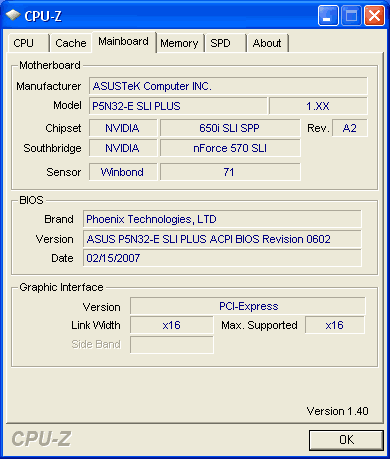

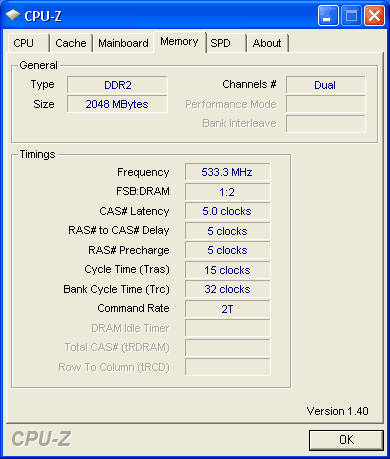

Let's now see how our CPU was identified under CPU-Z:

For comparison, we post the test results from 3 other motherboards:

  • Asus P5B Premium with memory running at 534@5-5-5-15 (Intel P965)
  • EVGA 680i LT with memory running at 534@5-5-5-15 (Nvidia 680i LT)
  • Asus P5N32-E SLI with memory running at 534@5-5-5-15 (Nvidia 680i)
  • Asus P5N32-E SLI Plus with memory running at 534@5-5-5-15 (Nvidia 650i/570i SLI)
