Phase 1 : Disc out of the box
The disc was tested without undergoing any specific processing before testing. Present were some dust particles and handling defects such as minor scratches and fingerprints.
Blu-Ray burner | LiteOn LH-2B1S vAL05 | |
Disc | Memorex BD-R 25GB |
|
Media ID | MEI (001) | |
Writing speed |
2x CLV |
- Measurements
Digital errors
Jitter

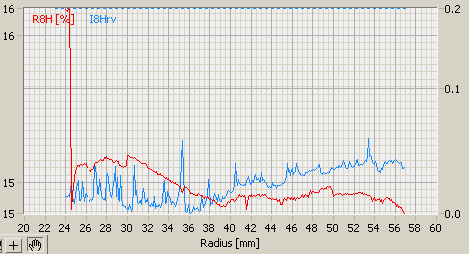

Reflectivity modulation
Reflectivity

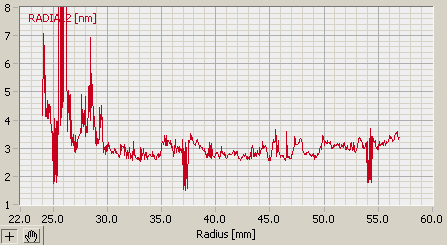

Servo & Tracking parameters - RADIAL2
All signals

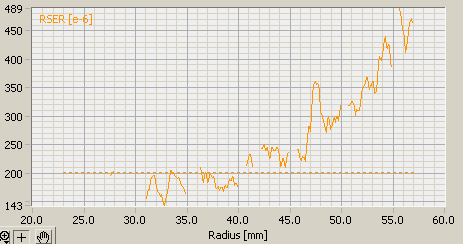

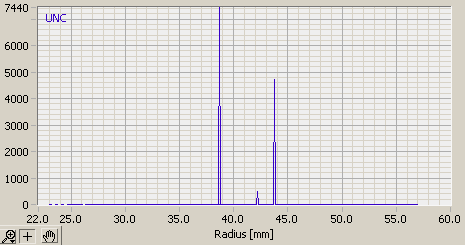

Both the BEL and RSER signals gradually increased towards the end of the disc, although the UNC errors were reported earlier on.
