1. Introduction / Retail Package
JSAUX has been one of the few companies that keep innovating and producing new products for the SteamDeck community.. Cooling down the Steam Deck has been the holy grail for many users and now a new proposal from JSAUX has come to the table, the GP0202 Magnetic Cooler!
- 【Ultra-Fast Cooling】：The Steam Deck magnetic cooling fan uses advanced semiconductor cooling technology with 2-stage temperature adjustment for fast cooling in 10 seconds. No more worrying about the steam deck overheating and affecting your game and damaging your equipment.
- 【Ultra Quiet】: The semiconductor cooler is designed with noise reduction and low noise level, allowing you to play games comfortably without any annoying sounds.
- 【Magnetic Cooling】The Steam Deck fan cooler has a powerful magnet built in to keep the cooler firmly attached to your device when used in conjunction with a metal sheet.
- 【RGB Light Effect】: With RGB light effect, it can automatically change the light effect, making the cooling fan look more technological and fashionable.
- 【Wide Compatibility】: Compatible with Steam Deck, iPad, mobile phones, etc. to meet your various needs.
- 【Easy Installation】 Only two steps are needed, the first part is to attach the lead metal sheet to the back of the device, and the second part is to attach the GP0202 to the lead metal sheet.
- Full Specifications
- Brand: JSAUX
- Product Material: PC+ABS+Iron sheet
- Package size: 94*70.5*52.5mm
- Product size: 60.5*65.5*24mm
- Net weight: 78g
- Charging port: Type-c port
- Maximum input support: 9V2A
- Battery capacity: No built-in battery
- Overall power: 10W at low speed, 18W at high speed
- Fan speed: low speed: 5000rpm, high speed: 6500rpm
- Switch: Push button switch
- Fixing method: Magnetic fixing
- Fire rating: 94-V0
- Overall noise level: <50dB
- Environmental limits: 20℃ ~ 65℃, 10% ~ 80%rh, 0°C ~ 40°C, 10% ~ 80%rh, 2000m
- For best heat dissipation, this product is recommended to be used with PC0106 Transparent Back Plate.
- The Package

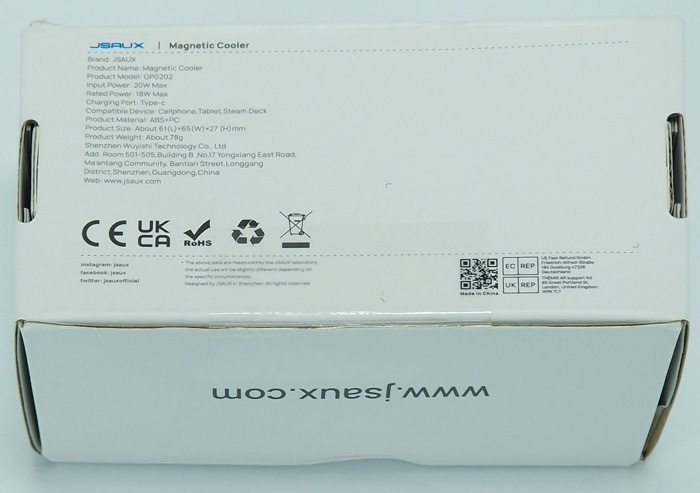

Users can buy the product at the JSAUX website for USD 27.99, which is a great price, compared with other similar magnetic coolers that are currently sold to the market for smartphones (~$50). The retail package is small and includes all the needed information for users.
Opening the box unveils its contents.

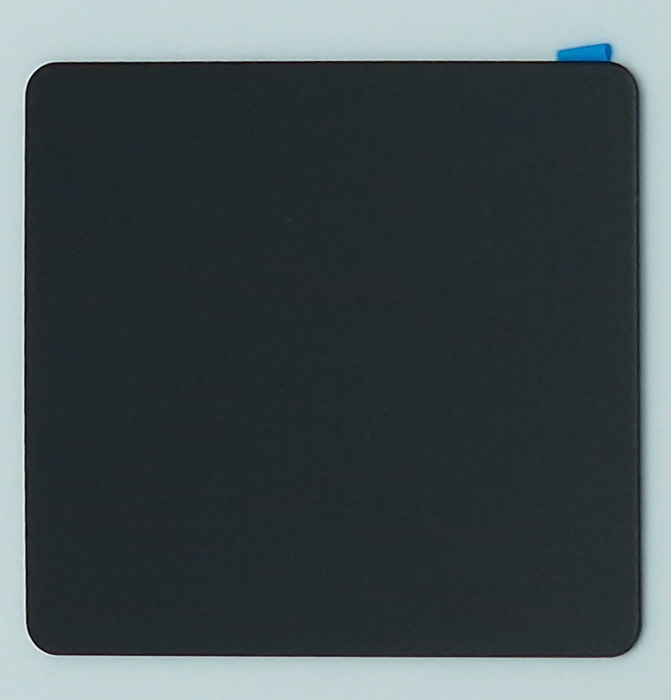

You will find inside the main product, a long USB A to Type C cable (for operation), a square magnetic plate that will stick to the back of the SteamDeck
The product itself it simple at the bottom there is a TypeC input jack, while at the top there is an operation button for changing Fan1 or 2 scale and shutting down the device.

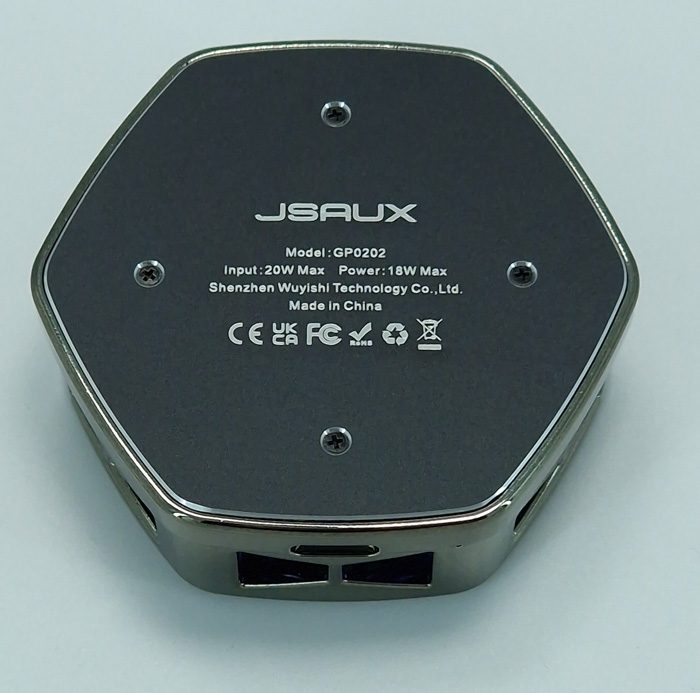

At the back, you will find some product information.
- Installation process
To use the device, you need first the attach the included plate at the back of the SteamDeck. JSAUX suggests using this product ONLY with their PC0106 Transparent Back Plate.

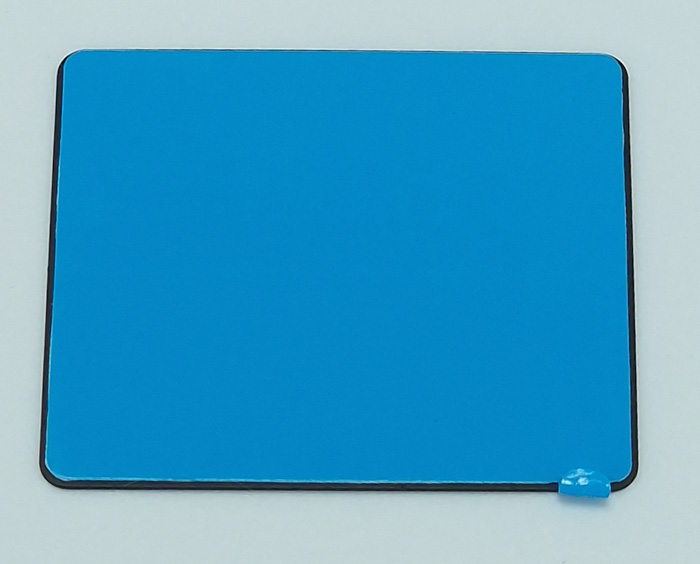

The blue sticker can be removed

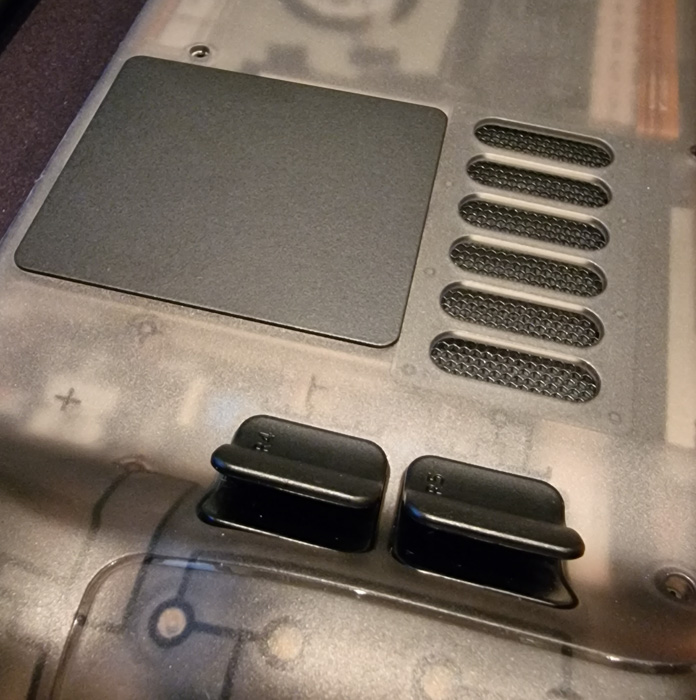

and with some precision, you can apply it at the back of the PC0106 clear case. Note that you have to keep pressing for 2-3 minutes for the plate to stick very well.
Then you have to place the GP0202 cooler to the plate, and it will stick magnetically and it's very secure.
To operate this cooler needs external TypeC input, which of course limits somewhat your portability.

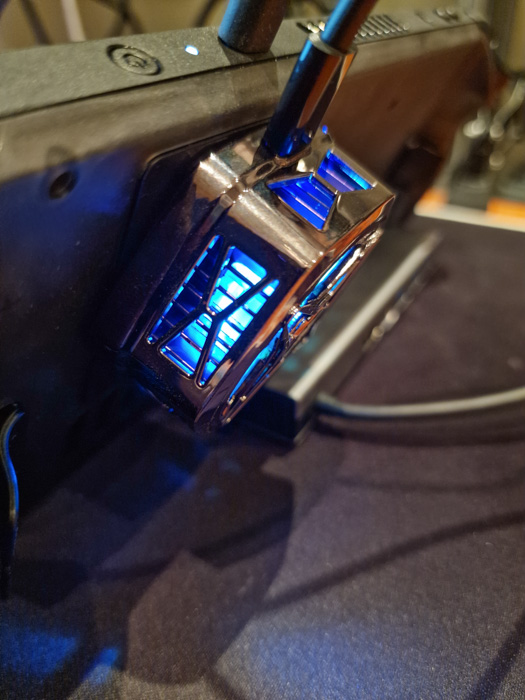

There is also LED light emitted from the device. The included button can push two fan speeds, low speed: 5000rpm and high speed: 6500rpm

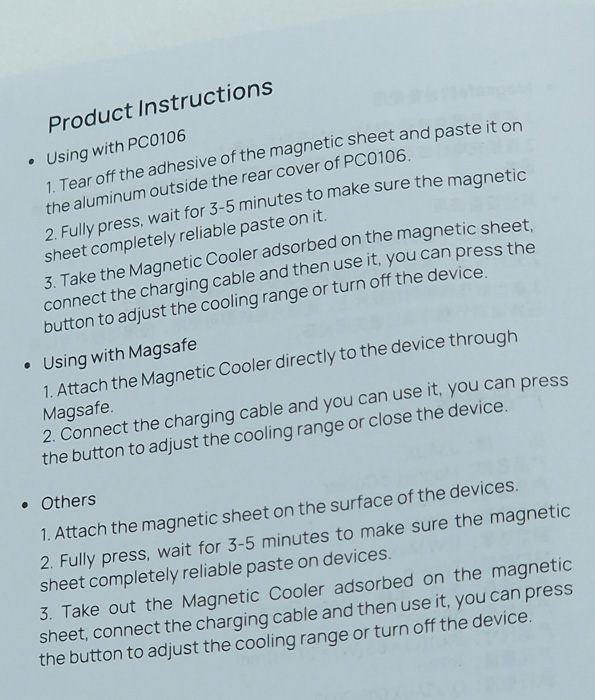

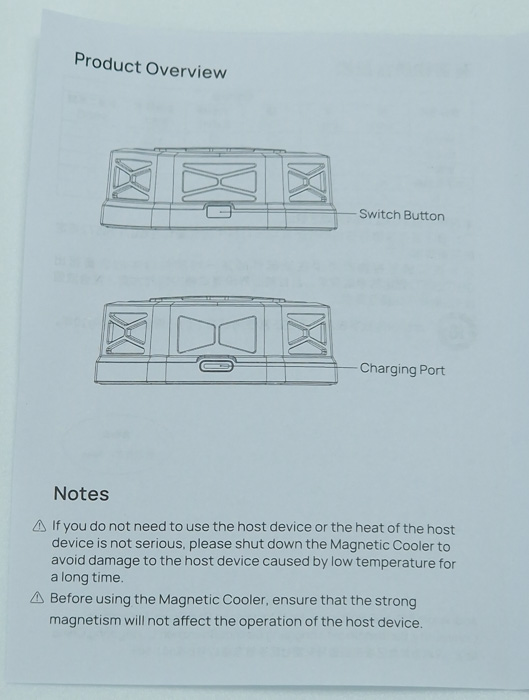

We also include the printed manual for your convenient.
