1. Introduction

Review Pages

JSAUX as a major SteamDeck accessories manufacturer keeps innovating with new products that have special design and user functionality. This time, a new two-in-one product arrived in our labs, the Omnicase 2, for portable gaming consoles, like SteamDeck or the new upcoming Asus Rog Ally.

The project is currently supported via Kickstarter and if you hurry up you will buy the product at a reduced price and with many gifts. Visit the Kickstarter website now and don't miss this chance.

So what is the JSAUX OmniCase 2? It's a nice and clever way to store many cables, adapters, microSD, and SD cards in one box and at the same time have the functionality of a docking station.

JSAUX has placed the MP03 as the product number, while the exact product name is OmniCase 2 USB-C 10 in 1 Storage Docking Station. The product comes in two smaller boxes

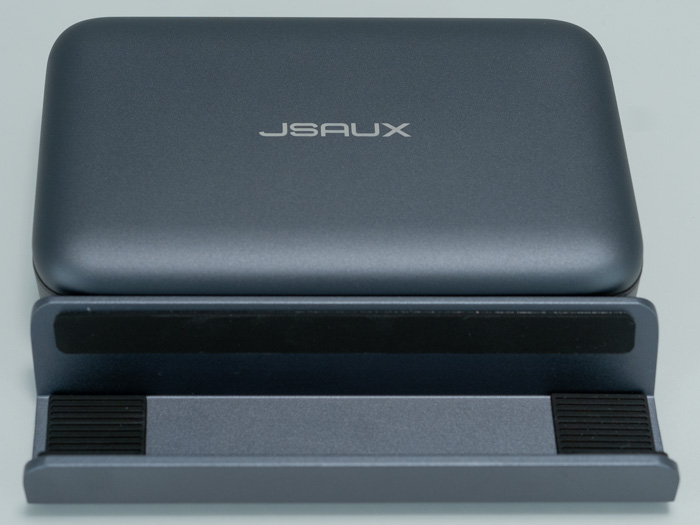

The first box is the Omnicase stand for SteamDeck which is made out of aluminum alloy and is very stable and has weight upon it to host both the SteamDeck and the OmniCase 2 product.

The finish is very nice and at the back there is the JSAUX logo

At the bottom, there are anti-slip pads

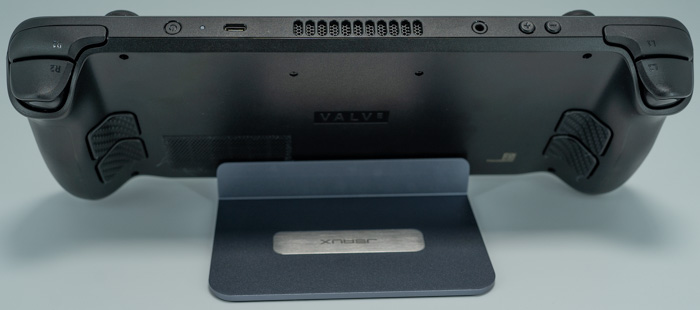

Getting the SteamDeck installed is very easy and secure.

The next box is the main attraction of the show, the Omnicase 2.

Everything is well packaged

The OmniCase 2 is a rounded product made out of aluminum, with 126 (L) × 26 (W) × 78 (H) mm dimensions and around 188gr weight.

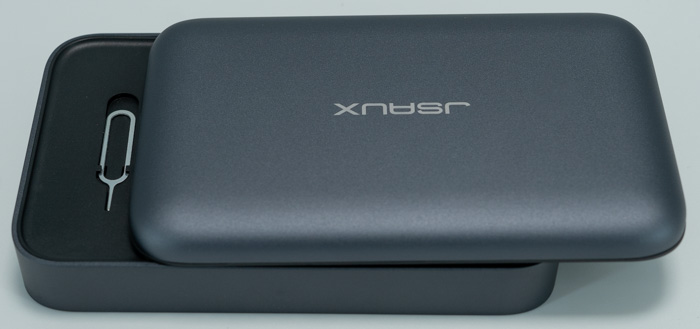

The product is actually a two-part product with "hollow" inside

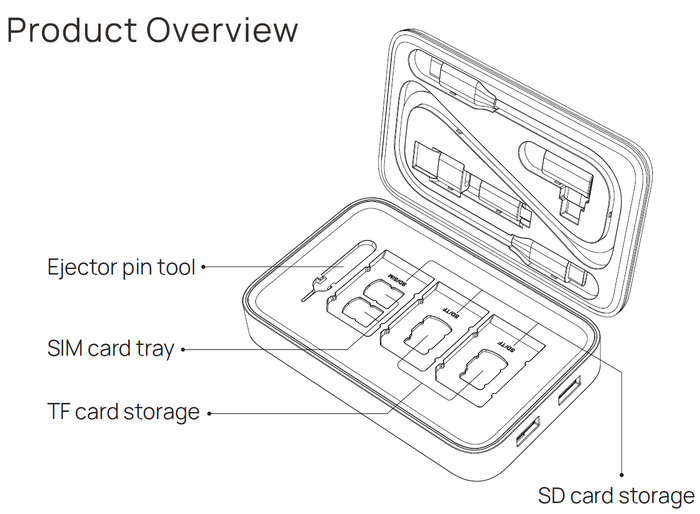

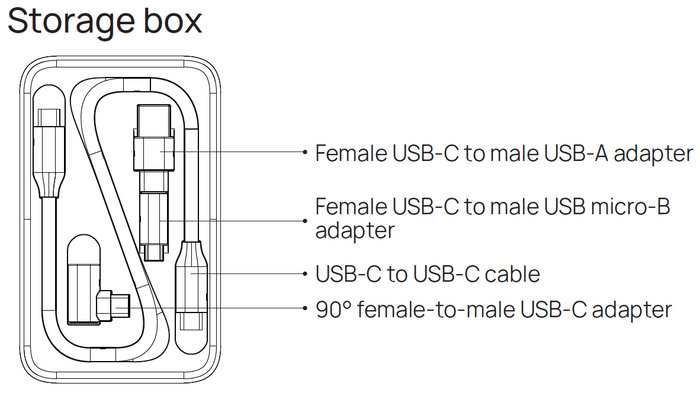

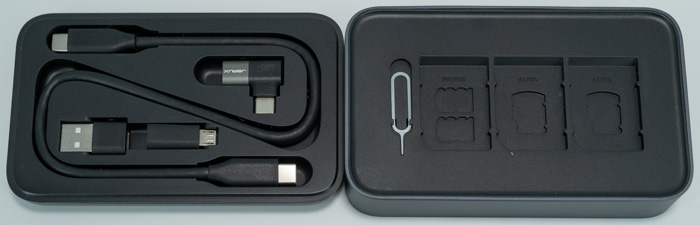

Inside you will find a place to put 3 SD and 4 microSD cars with a sim eject tool. On the other part, you will find ×1 USB-C to USB-C 3.2 cable, ×1 USB-C to USB micro-B adapter, ×1 USB-C Female to USB-A male adapter, and 1x 90° female-to-male USB-C adapter

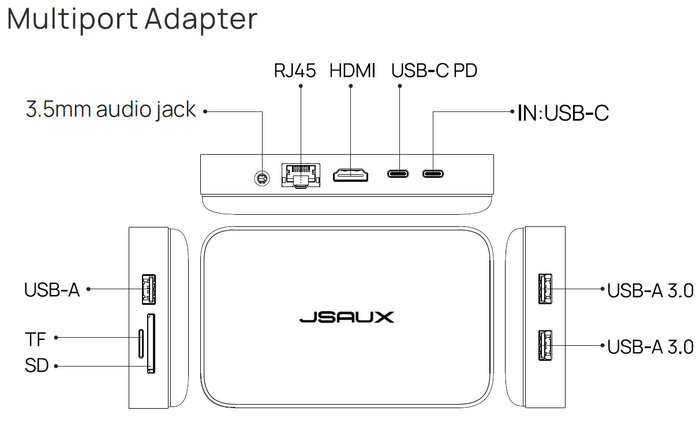

The bottom of the OmniCase 2 hosts all the docking functions and it supports many different ports, 10-in-1

Input:
- USB-C Female ×1
- USB-C PD ×1
Output:
- USB-A3.0 ×2
- USB-A2.0 ×1
- HDMI ×1
- RJ45×1
- SD×1
- TF×1
3.5mm audio jack ×1

The female USB-C port has a max transfer speed of 10 Gbps and it's compatible with USB 3.2 and Thunderbolt interfaces. The female USB-C PD port supports up to 100W/5A PD. The HDMI port supports up to 4K@60Hz, while it supports 2K@120Hz. The two USB-A3.0 support up to 5Gbps data transfer speed with 5V/1A power supply, while the one USB-A 2.0 supports up to 480Mbps data transfer speed with 5V/1A power supply. The RJ45 lan port supports up to 1Gbit ethernet speeds. The SD/TF ports support a max read and write speed of 104MB/s, with simultaneous read and write. Lastly, the 3.5mm female jack can be used either as a 3.5mm Mic or Audio port.

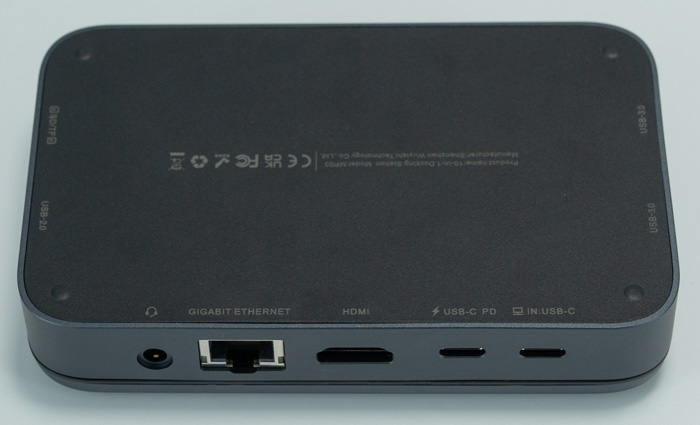

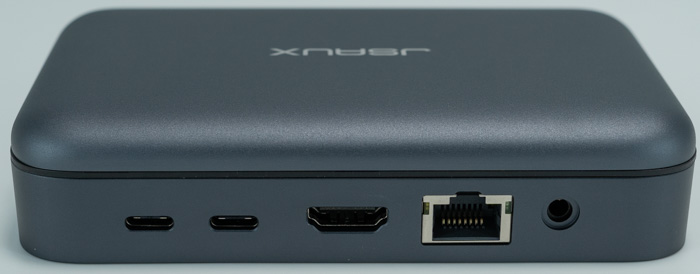

The bottom of the OmniCase 2 shows all the included ports, while also including magnets to secure it with the OmniCase stand for SteamDeck (or other gaming devices).
