JVC announces 3 new standalone DVD recorders

The new recorders, to be available in Japan this month, include the ability to record on a hard -disk, VHS and DVD-RAM, employing VBR and automatically retaining the latest 3 hours of viewing content.

Below are the pictures of the new recorders, along with their specifications.

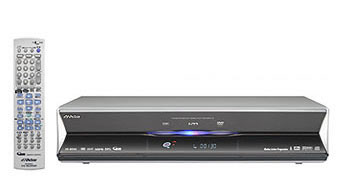

DR-MX50

			DVD	HDD	VHS
Video recording/reproducible media	DVD-RAM* 1(12cm/8cm)		-* 1	-
	DVD-RW* 2(12cm/8cm)		- (VR mode and video mode)	-
	DVD-R (12cm/8cm)		- (VR mode and video mode)	-
	HDD (built-in hard disk)		-	400GB	-
	VHS		-	-	-
Reproducible media	DVD VIDEO/ video CD/CD-DA		-	-
	+ R/ + RW* 3		-	-
	SVCD/MP3/JPEG (CD-R/-RW)		-	-
Video recording function	Video recording system		MPEG-2 (VBR correspondence)		VHS
	Sound recording system		Dolby digital Linear PCM (only XP mode)		VHS-HiFi
	Video recording mode: Video recording possible time* 4		XP: Approximately 1 hour SP: Approximately 2 hours LP: Approximately 4 hours EP: Approximately 6 hours FR60 - 480 (63 steps) Approximately 1 hour - approximately 8 hours * 6	XP: Approximately 86 hours SP: Approximately 175 hours LP: Approximately 350 hours EP: Approximately 527 hours FR60 - 480 (63 steps) Approximately 86 hours - approximately 760 hours * 6	Standard: Approximately 2 hours 3 times: Approximately 6 hours * 7
	High-speed dubbing (HDD -> DVD)		The largest approximately 64 time speed (DVD-R)	-	-
Reception channel	VHF/UHF/CATV		1 - 12ch/13 - 62ch/C13 - C63ch (ground wave W tuner)* 8
	Analog BS		-		-
High picture quality	Image DAC		10bit/54MHz		-
	Progressive image playback		-		-* 9
Treble quality	Sound DAC		192kHz/24bit		-
	??????????		-	-	-
	Dolby digital /DTS digital output		-/-	- /-	-
Reservation function	The number of substance reservation programs		/1 years 32 programs		/1 years 8 programs
	EPG reservation		-
Input/output terminal	Input	S image	2 systems (the inside front 1 system)		-
		Composite image	2 systems (the inside front 1 system)
		Sound	2 systems (the inside front 1 system)
	Output	D terminal	1 system (D1/D2)
		S image	1 system		-
		Composite image	2 systems (as for the inside 1 system HDD/DVD exclusive use)
		Sound	2 systems (as for the inside 1 system HDD/DVD exclusive use)
		Digital sound	Optical digital 1 system		-
	DV input terminal* 10		-		-
	Video control terminal		-	-	-
Power source			AC 100V 50/60Hz
When operating at the time of electric power consumption /BS power source use			43W/49W
When waiting electric power consumption* 11			3.1W (at the time of time indication illumination: At the time of 3.2W and time indication going out: 2.7W)
Largest external size width ? height ? depth			435?96?384mm
Base machine mass			7.0kg

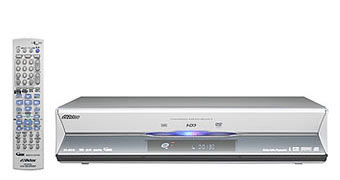

DR-MX10

			DVD	HDD	VHS
Video recording/reproducible media	DVD-RAM* 1(12cm/8cm)		-* 1	-
	DVD-RW* 2(12cm/8cm)		- (VR mode and video mode)	-
	DVD-R (12cm/8cm)		- (VR mode and video mode)	-
	HDD (built-in hard disk)		-	250GB	-
	VHS		-	-	-
Reproducible media	DVD VIDEO/ video CD/CD-DA		-	-
	+ R/ + RW* 3		-	-
	SVCD/MP3/JPEG (CD-R/-RW)		-	-
Video recording function	Video recording system		MPEG-2 (VBR correspondence)		VHS
	Sound recording system		Dolby digital Linear PCM (only XP mode)		VHS-HiFi
	Video recording mode: Video recording possible time* 4		XP: Approximately 1 hour SP: Approximately 2 hours LP: Approximately 4 hours EP: Approximately 6 hours FR60 - 480 (63 steps) Approximately 1 hour - approximately 8 hours * 6	XP: Approximately 53 hours SP: Approximately 109 hours LP: Approximately 218 hours EP: Approximately 328 hours FR60 - 480 (63 steps) Approximately 53 hours - approximately 473 hours * 6	Standard: Approximately 2 hours 3 times: Approximately 6 hours * 7
	High-speed dubbing (HDD -> DVD)		The largest approximately 64 time speed (DVD-R)	-	-
Reception channel	VHF/UHF/CATV		1 - 12ch/13 - 62ch/C13 - C63ch (ground wave W tuner)* 8
	Analog BS		-
High picture quality	Image DAC		10bit/54MHz		-
	Progressive image playback		-		-* 9
Treble quality	Sound DAC		192kHz/24bit		-
	??????????		-	-	-
	Dolby digital /DTS digital output		-/-	- /-	-
Reservation function	The number of substance reservation programs		/1 years 32 programs		/1 years 8 programs
	EPG reservation		-
Input/output terminal	Input	S image	2 systems (the inside front 1 system)		-
		Composite image	2 systems (the inside front 1 system)
		Sound	2 systems (the inside front 1 system)
	Output	D terminal	1 system (D1/D2)
		S image	1 system		-
		Composite image	2 systems (as for the inside 1 system HDD/DVD exclusive use)
		Sound	2 systems (as for the inside 1 system HDD/DVD exclusive use)
		Digital sound	Optical digital 1 system		-
	DV input terminal* 10		-		-
	Video control terminal		-	-	-
Power source			AC 100V 50/60Hz
When operating electric power consumption			39W
When waiting electric power consumption* 11			3.1W (at the time of time indication illumination: At the time of 3.2W and time indication going out: 2.7W)
Largest external size width ? height ? depth			435?96?384mm
Base machine mass			6.9kg

DR-MH300

			DVD	HDD
Video recording/reproducible media	DVD-RAM* 1(12cm/8cm)		-* 1	-
	DVD-RW* 2(12cm/8cm)		- (VR mode and video mode)	-
	DVD-R (12cm/8cm)		- (VR mode and video mode)	-
	HDD (built-in hard disk)		-	250GB
	VHS		-	-
Reproducible media	DVD VIDEO/ video CD/CD-DA		-	-
	+ R/ + RW		-	-
	SVCD/MP3/JPEG (CD-R/-RW)		-	-
Video recording function	Video recording system		MPEG-2 (VBR correspondence)
	Sound recording system		Dolby digital Linear PCM (only XP mode)
	Video recording mode: Video recording possible time* 4		XP: Approximately 1 hour SP: Approximately 2 hours LP: Approximately 4 hours EP: Approximately 6 hours FR60 - 480 (63 steps) Approximately 1 hour - approximately 8 hours * 6	XP: Approximately 53 hours SP: Approximately 109 hours LP: Approximately 218 hours EP: Approximately 328 hours FR60 - 480 (63 steps) Approximately 53 hours - approximately 473 hours * 6
	High-speed dubbing (HDD -> DVD)		The largest approximately 64 time speed (DVD-R)	-
Reception channel	VHF/UHF/CATV		1 - 12ch/13 - 62ch/C13 - C63ch* 8
High picture quality	Image DAC		10bit/54MHz
	Progressive image playback		-
Treble quality	Sound DAC		192kHz/24bit
	??????????		-	-
	Dolby digital /DTS digital output		-/-	- /-
Reservation function	The number of substance reservation programs		/1 years 32 programs
	EPG reservation		-
Input/output terminal	Input	S image	3 systems (the inside front 1 system)
		Composite image	3 systems (the inside front 1 system)
		Sound	3 systems (the inside front 1 system)
	Output	D terminal	1 system (D1/D2)
		S image	1 system
		Composite image	1 system
		Sound	1 system
		Digital sound	Optical digital 1 system
	HDMI terminal		-
	DV input terminal* 10		-
	Video control terminal		-	-
Power source			AC 100V 50/60Hz
When operating electric power consumption			31W
When waiting electric power consumption* 11			2.2W (at the time of time indication illumination: At the time of 2.4W and time indication going out: 1.4W)
Largest external size width ? height ? depth			435?70?300mm
Base machine mass			4.6kg
